VEL 330/ST
Emergency Lighting
LED EMERGENCY LIGHT (Surface Type) – VEL 330/ST
VEL 330/ST offers a streamlined and modern design, making it an ideal choice for various settings. Suitable for surface mounting, it delivers reliable and effective emergency illumination, guaranteeing increased safety and reassurance during power outages or emergencies.
| Application | : | Office, School, Laboratory, Hospitals, Factory, Warehouse, Retail Store, Shophouse, Cafes & Restaurants, Hotels, Supermarkets, Shopping Complexes |
| Certificate | : | JKR, Bomba, SIRIM |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel | |
| Diffuser | Polycarbonate Opal Linear Diffuser | |
| End Cap | Fabricated from Mild Steel | |
| Wire | 105°C Heat Resistance PVC Cable | |
| Connector | Nylon 3 Way x 2.5mm2 | |
| Finishing | Electrostatically Polyester Powder Coated | |
| Mounting Type | Surface Ceiling, Wall | |
| Indicator | Red | |
 |
ALWAYS ON Charging, No fault |
|
 |
INDICATOR LIGHT OFF Operating on battery mode |
|
| Lamp | LED 2835 (20PCS) | |
| Battery | Ni-Cd AA 3.6V 900mAh | |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Mode of Operation | Non-Maintained |
| System Lumen (lm) | 75 lm |
| System Power (W) | 1.2 W |
| System Current (A) | 0.005 A |
| Power Factor | PF ≥ 0.91 |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Max. Operating Temperature (ta) | 35°C |
| IP Grade | IP 20 |
| Classification | Class I |
| Recommended Mounting Height | Min. 3 m |
| Model | Product Weight (Kg) |
Inner Carton Size | Outer Carton Size | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| VEL 330/ST | 0.81 Kg | 346 mm | 122 mm | 83 mm | 442 mm | 384 mm | 367 mm | 13.10 Kg | 15pcs / Carton |

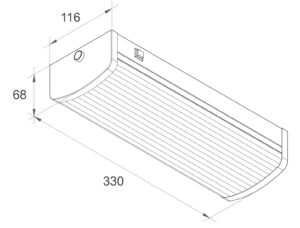

| Model | Dimension (mm) | ||
| L | W | H | |
| VEL 330/ST | 330 mm | 116 mm | 68 mm |
