YOS SL Series
Outdoor Luminaries

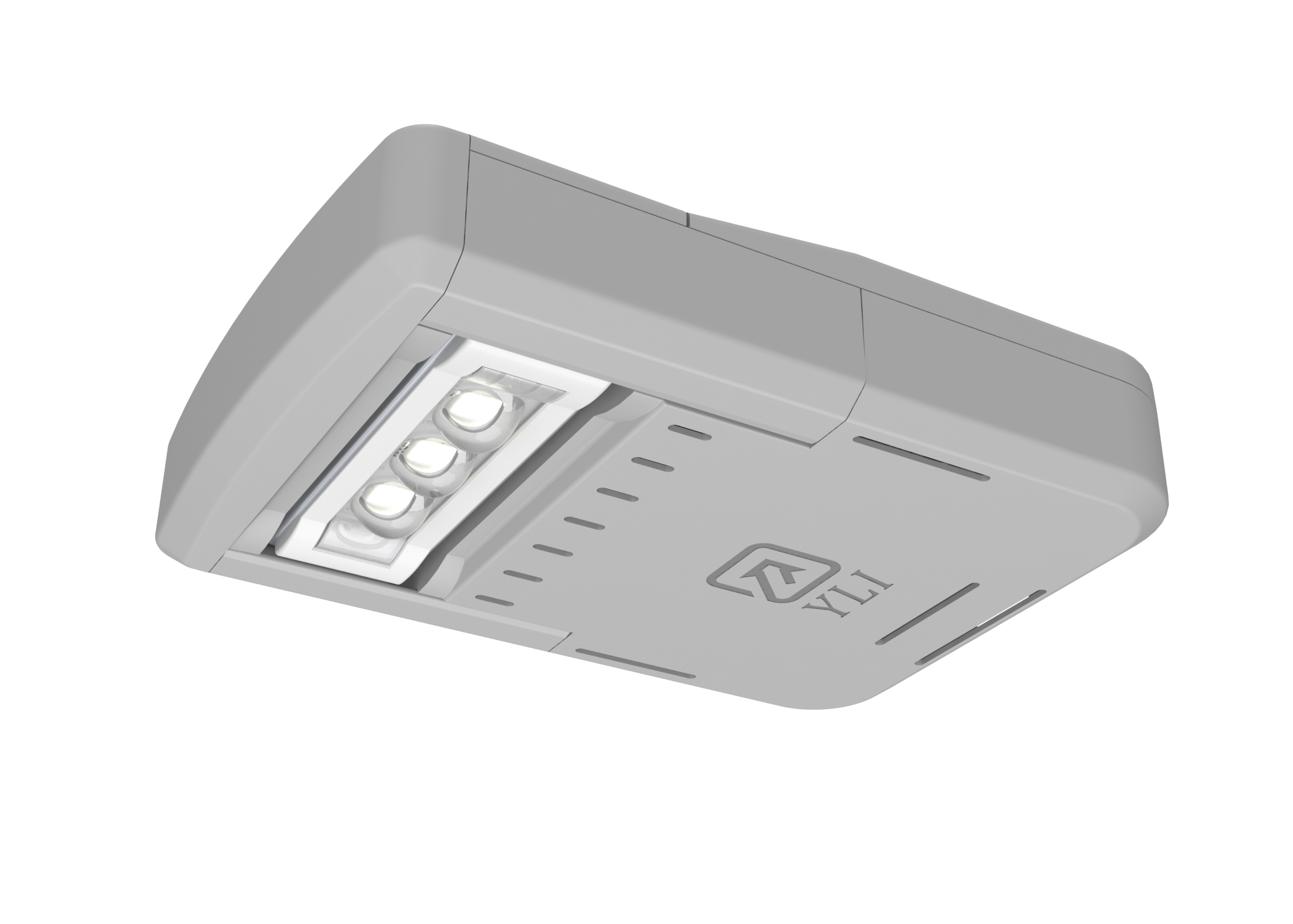

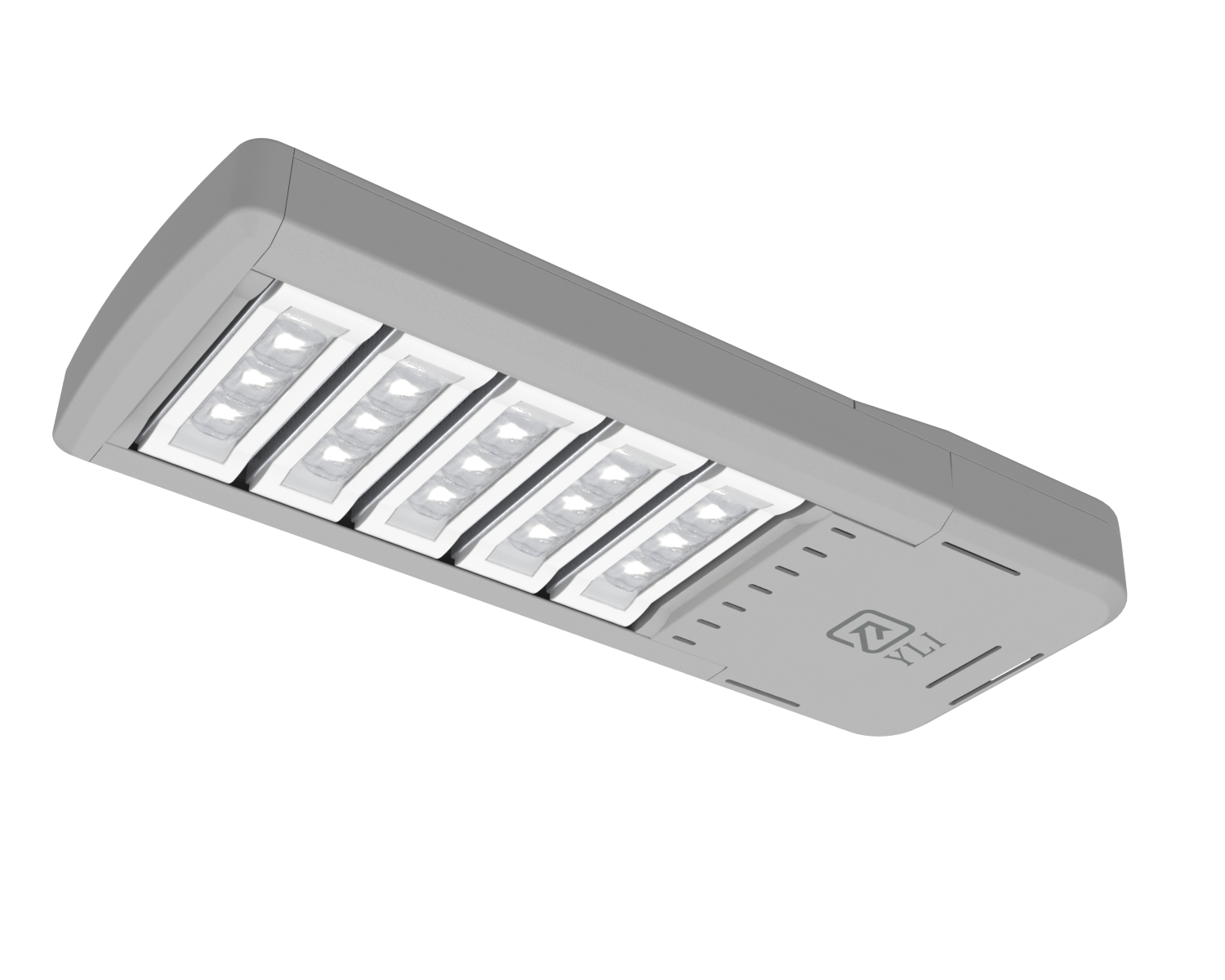

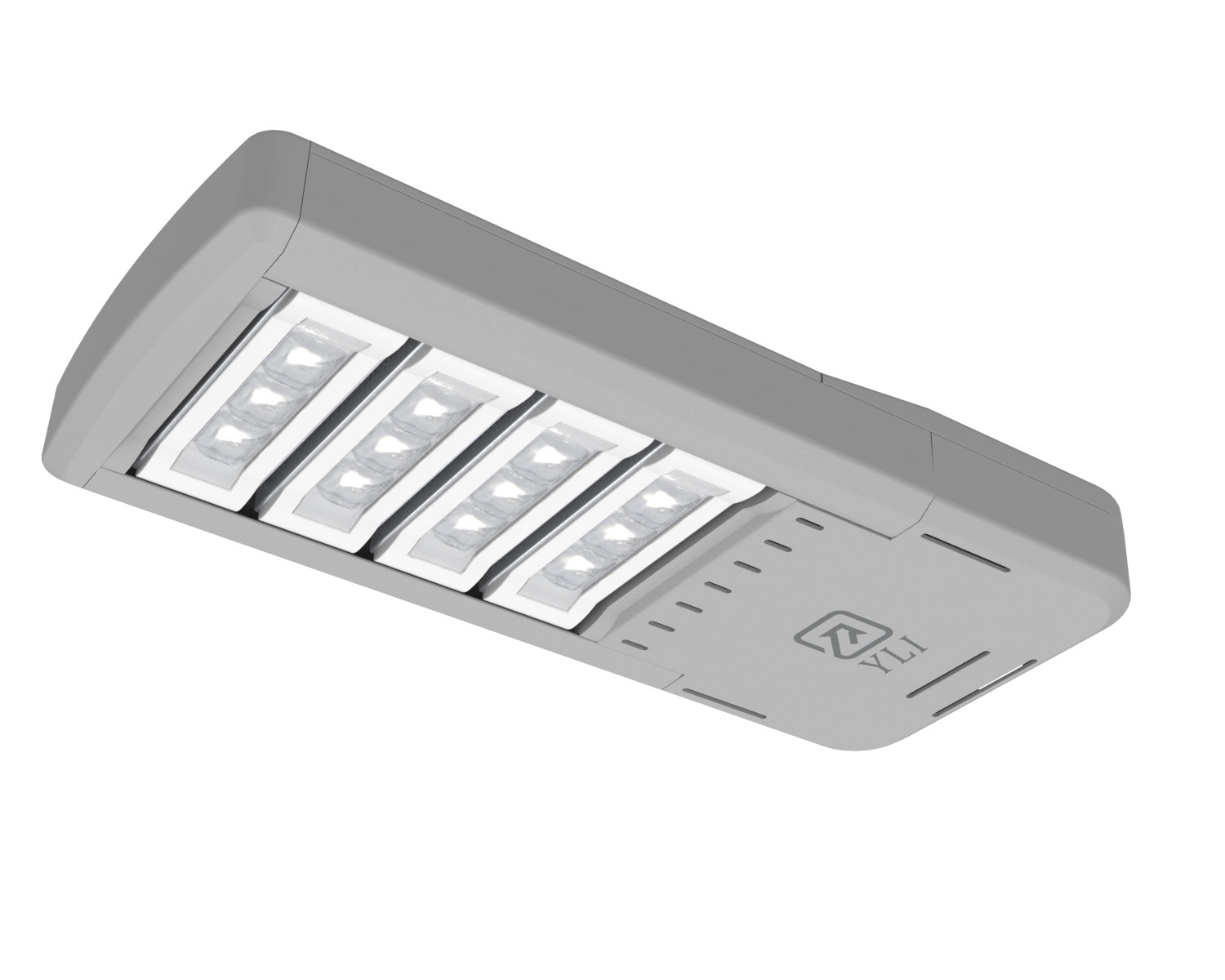

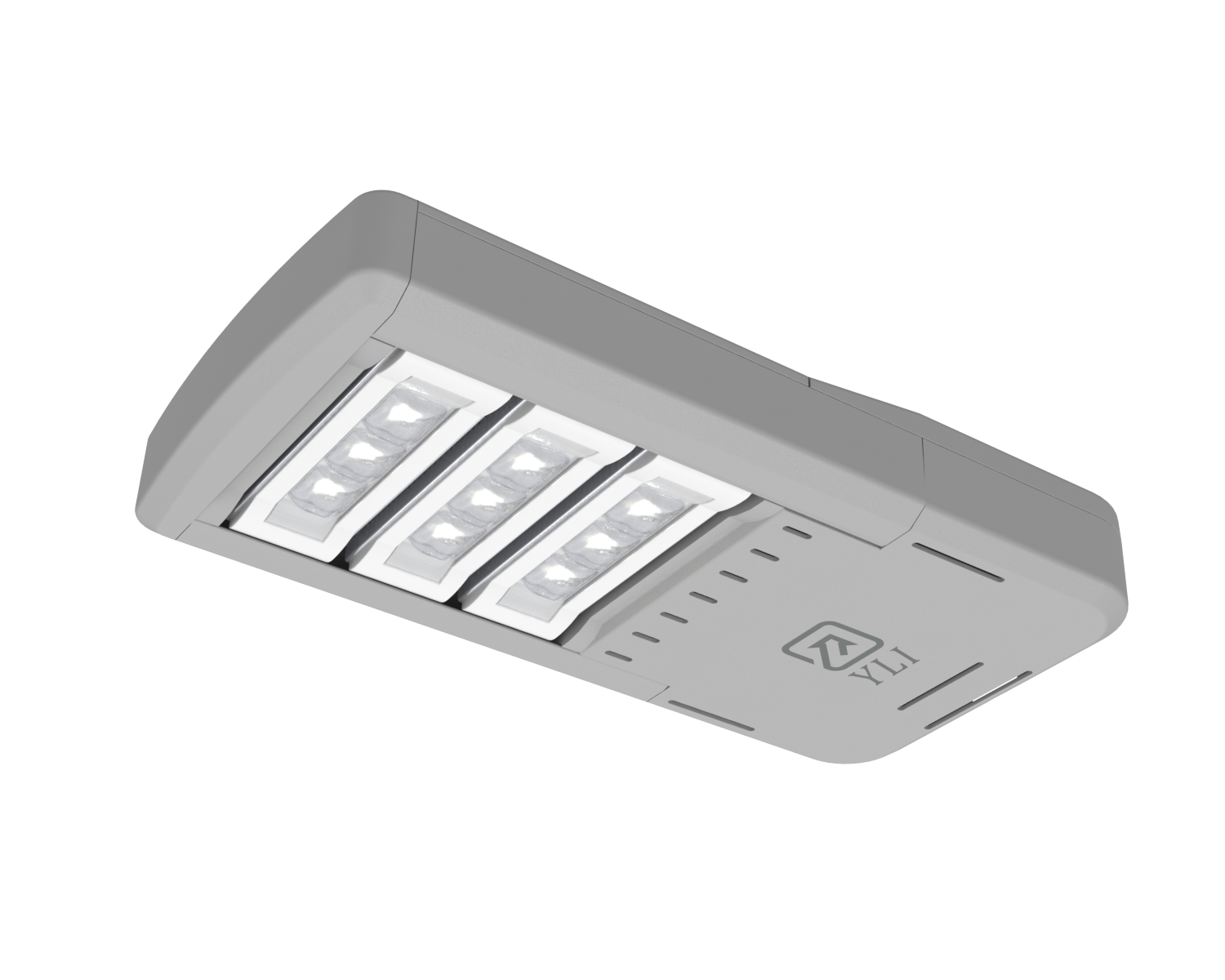

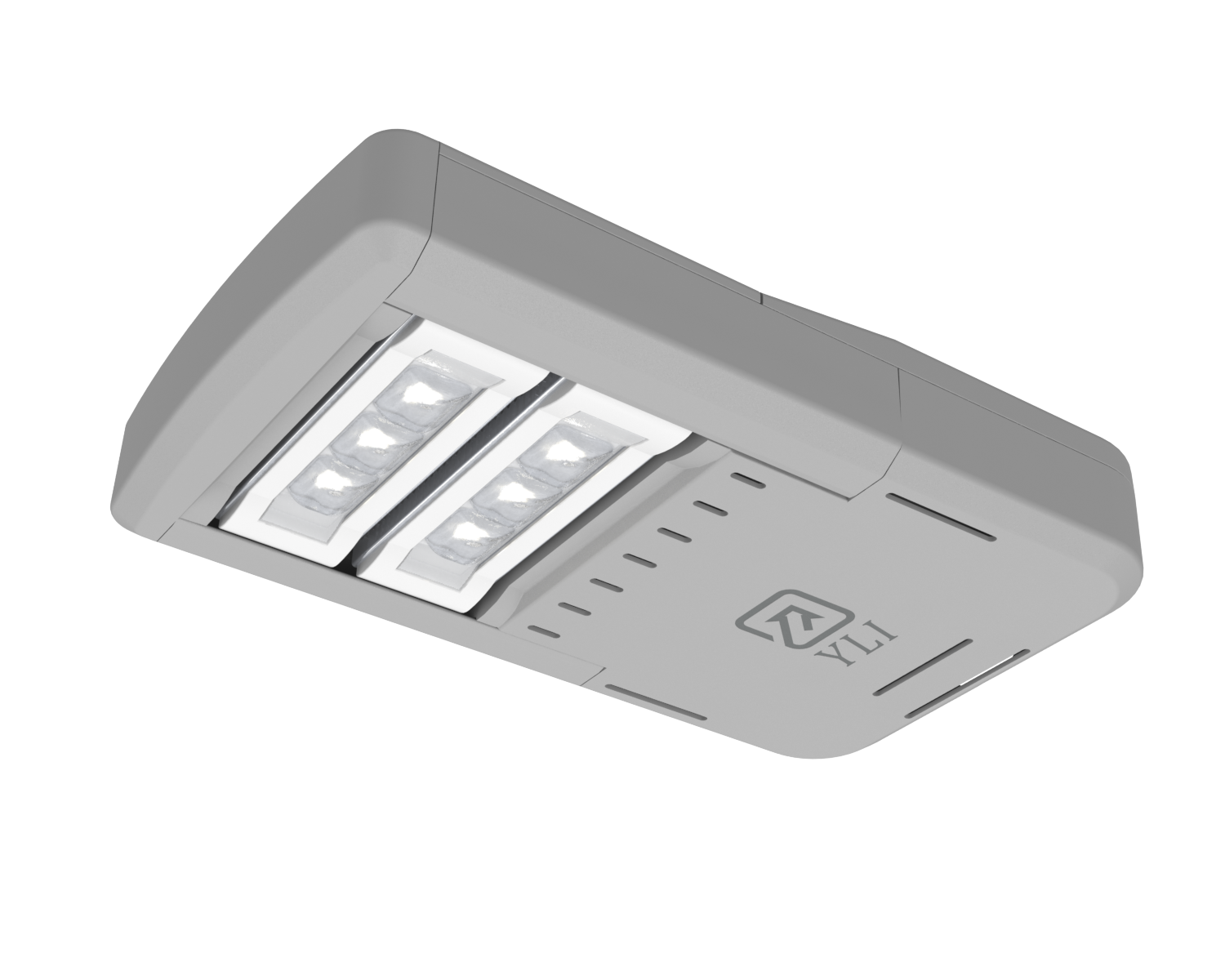

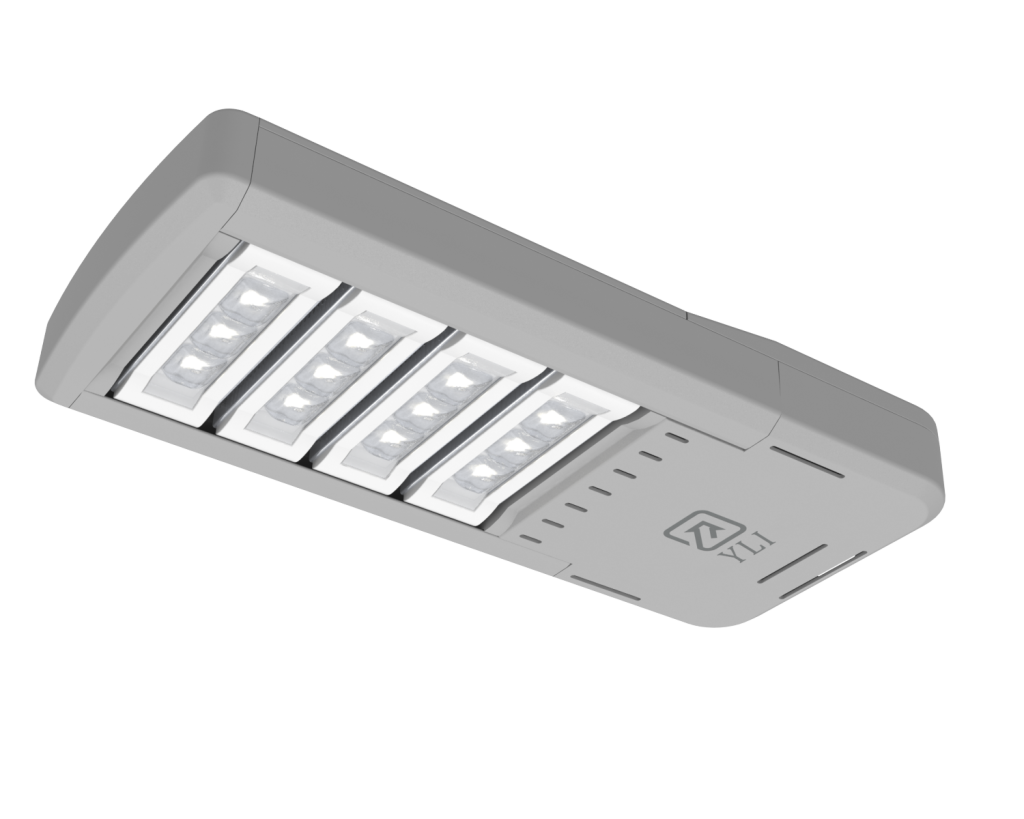

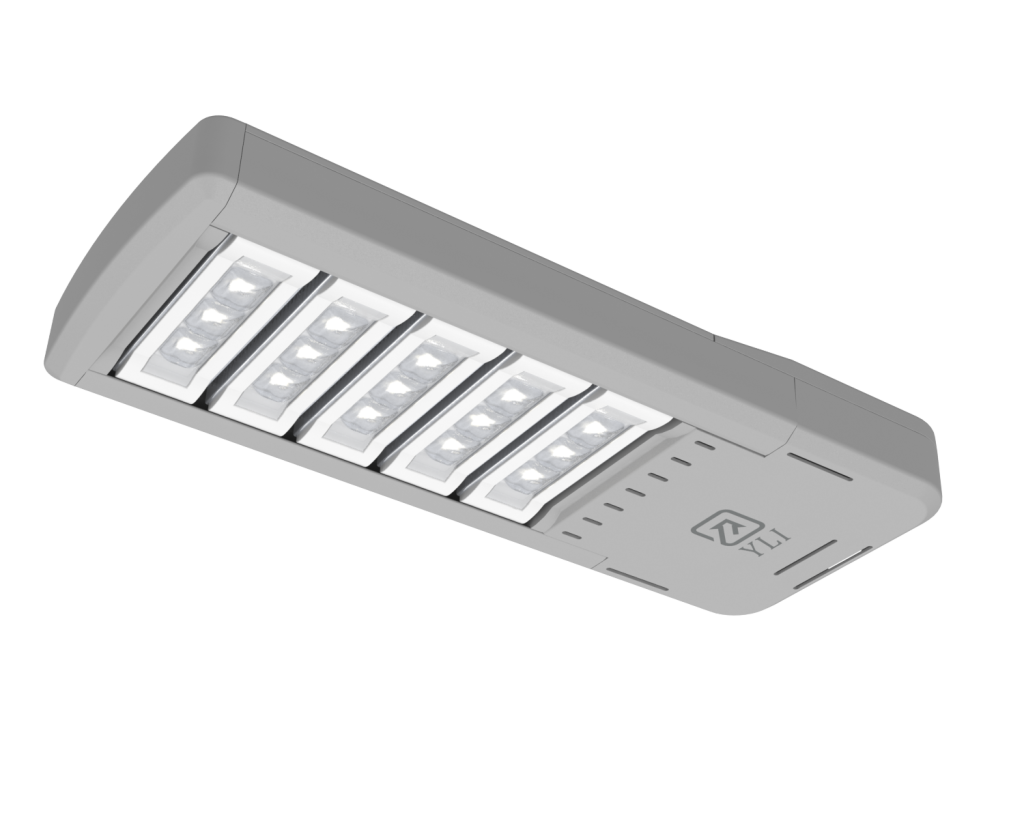

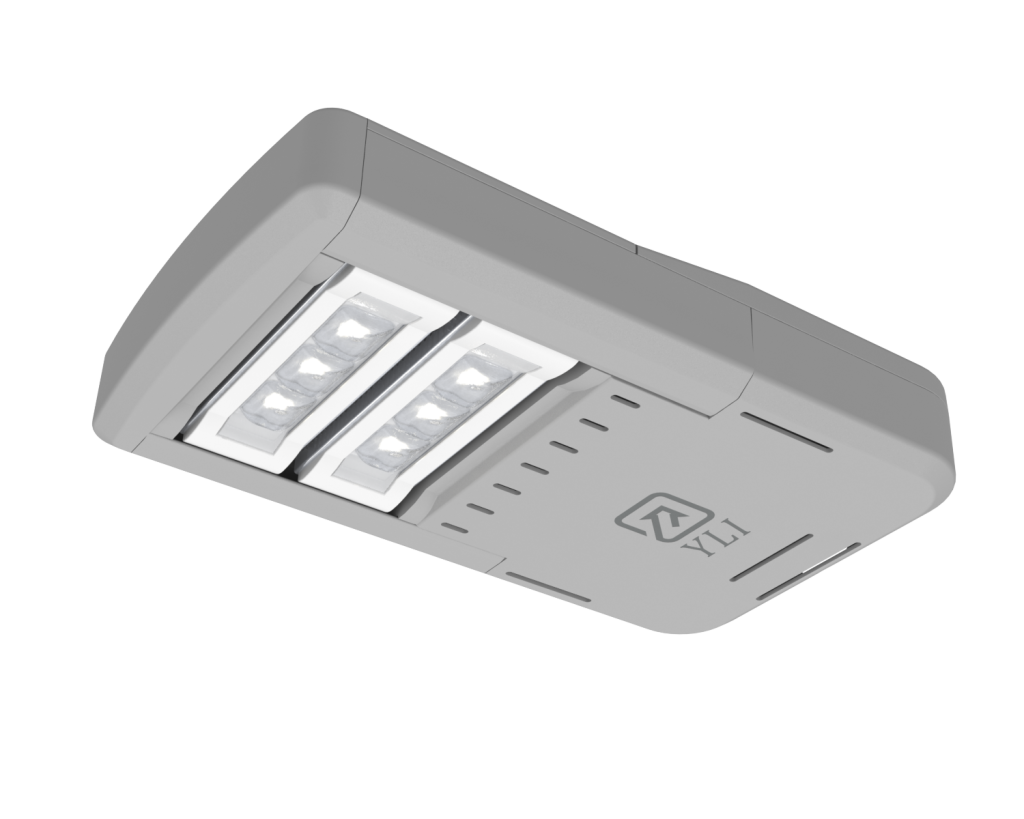

LED STREETLIGHT – YOS SL Series
The YOS SL Series LED Streetlight features a durable housing with an easily replaceable component design for simplified maintenance. Its precision-engineered lens angles ensure reliable illumination, making it ideal for streets, highways, and public spaces. Optimized heat dissipation enhances longevity, while the adaptable mounting design allows for easy installation.
| Application | : |
Roadways, Highways, Residential Street, Parking Lots, Parks and Garden, Backyard, Public & Commercial Areas |
| Certificate | : | JKR, SIRIM, ST |
| Colour | : | Silver Texture |
| Body | Die Casted from ADC12 Aluminium Alloy |
| Mounting Bracket | Extruded from ADC12 Aluminium Alloy |
| Gear Chamber | Built-in |
| Screws | Stainless Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Weatherproof Connecting Devices |
| Cable Gland | Available |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Arm / Pole |
| Driver | SOSEN GA-E |
| Lamp | OS HL-6000-7xx-158 |
| Surge Protection | ZP-LSP20-SY ; 10kV |
| Model | YOS SL-1 | YOS SL-2 | YOS SL-3 | YOS SL-4 | YOS SL-5 | |||
| SOSEN LED Driver | 1 x SS-50GA-E62B | 1 x SS-100GA-E143B | 1 x SS-150GA-E215B | 1 x SS-200GA-E286B | 1 x SS-250GA-E358B | |||
| LED Module | 1 x OS HL-6000-7xx-158 | 2 x OS HL-6000-7xx-158 | 3 x OS HL-6000-7xx-158 | 4 x OS HL-6000-7xx-158 | 5 x OS HL-6000-7xx-158 | |||
| Driver Output Current (mA) | 750mA | 665mA | 870mA | 815mA | 940mA | 880mA | 930mA | 940mA |
| System Lumen (lm) | 5000 | 9600 | 12000 | 16000 | 18000 | 24000 | 25000 | 30000 |
| System Power (W) | 40 | 70 | 100 | 120 | 150 | 180 | 200 | 240 |
| System Current (A) | 0.18 | 0.31 | 0.42 | 0.52 | 0.61 | 0.76 | 0.81 | 1.00 |
| Efficacy (lm/W) | 125 | 137 | 120 | 133 | 120 | 133 | 125 | 125 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |||||||
| IP Grade | IP 66 | |||||||
| IK Grade | IK 08 | |||||||
| Classification | Class I | |||||||
| Power Factor | PF ≥ 0.9 | |||||||
| Operating Temperature (ta) | 0°C ~ 35°C | |||||||
| Max. Casing Temperature (tc) | 95°C | |||||||
| Rated Lifespan | 50,000 hrs | |||||||
| CRI | > 70 Ra | |||||||
| SDCM | ≤ 5 | |||||||
| Beam Angle | 150° x 80° x 40° | |||||||
| Light Distribution | Type III | |||||||
| Surge Protection | 20 kV | |||||||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | |||||||
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| YOS SL-1 | 4.80 Kg | 604 mm | 310 mm | 135 mm | 5.50 Kg | 1pc / Carton |
| YOS SL-2 | 5.50 Kg | 604 mm | 310 mm | 135 mm | 6.20 Kg | 1pc / Carton |
| YOS SL-3 | 6.40 Kg | 604 mm | 310 mm | 135 mm | 6.90 Kg | 1pc / Carton |
| YOS SL-4 | 7.30 Kg | 670 mm | 310 mm | 135 mm | 7.90 Kg | 1pc / Carton |
| YOS SL-5 | 8.10 Kg | 750 mm | 310 mm | 135 mm | 8.70 Kg | 1pc / Carton |
| Model | Luminaires | Dimension (mm) | ||||||
| Wattage | Beam Angle | Driver | LED Module | Colour Temperature, CCT (K) | L | W | H | |
| YOS SL-1 (40W) | 40W | 150° x 80° x 40° | 1 x SS-50GA-E62B | 1 x OS HL-6000-7xx-158 | 3000K/ 4000K/ 6500k |
403 mm | 290 mm | 93 mm |
| YOS SL-2 (70W) | 70W | 1 x SS-100GA-E143B | 2 x OS HL-6000-7xx-158 | 481 mm | 290 mm | 93 mm | ||
| YOS SL-2 (100W) | 100W | |||||||
| YOS SL-3 (120W) | 120W | 1 x SS-150GA-E215B | 3 x OS HL-6000-7xx-158 | 559 mm | 290 mm | 93 mm | ||
| YOS SL-3 (150W) | 150W | |||||||
| YOS SL-4 (180W) | 180W | 1 x SS-200GA-E286B | 4 x OS HL-6000-7xx-158 | 637 mm | 290 mm | 93 mm | ||
| YOS SL-4 (200W) | 200W | |||||||
| YOS SL-5 (240W) | 240W | 1 x SS-250GA-E358B | 5 x OS HL-6000-7xx-158 | 715 mm | 290 mm | 93 mm | ||
