VIP PV/SP Series (Suspension)
Indoor Luminaries
BACKLIT LED PANEL LIGHT (Recessed Plaster) – VIP PV/SP Series
The VIP PV Series Backlit LED Panel Light, designed for suspension purpose, delivers superior quality lighting with enhanced brightness and uniformity. Its LED attachment is engineered for maximum stability, ensuring a long-lasting performance without detachment issues. Compared to the VIP PL Series, the VIP PV Series boasts higher-grade materials and construction, providing greater durability and reliability.
| Application | : | Office, School, Laboratory, Hospitals, Restaurants, Libraries, Living Areas, Shops, Supermarket, Shopping Complexes |
| Certificate | : | Nil |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.5mm) |
| Frame | Extruded from Aluminium |
| Diffuser | Polycarbonate (PC) Opal Diffuser |
| Hanging System | 750mm Steel Cable & Hanger Kit |
| Connector | Nylon 3 Way Connecting Device |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Recessed T-Bar Ceiling |
| Driver | VITALITE VLD Series |
| Lamp | OS LED Square Module |
| Model | VIP PV12/SP | VIP PV22/SP | VIP PV14/SP | VIP PV24/SP | |||
| Size | 1′ x 2′ | 2′ x 2′ | 1′ x 4′ | 2′ x 4′ | |||
| TRIDONIC Driver | 1 x VLD 35 | 1 x VLD 25 | 1 x VLD 35 | 1 x VLD 25 | 1 x VLD 35 | 2 x VLD 25 | 2 x VLD 35 |
| System Lumen (lm) | 2200 | 3400 | 4800 | 3300 | 4700 | 6800 | 9600 |
| System Power (W) | 19 | 26 | 36 | 26 | 36 | 52 | 72 |
| System Current (A) | 0.09 | 0.11 | 0.16 | 0.11 | 0.16 | 0.22 | 0.32 |
| Efficacy (lm/W) | 116 | 131 | 133 | 127 | 131 | 131 | 133 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | ||||||
| IP Grade | IP 20 | ||||||
| Classification | Class I | ||||||
| Power Factor | PF ≥ 0.9 | ||||||
| Operating Temperature (ta) | 0°C ~ 35°C | ||||||
| Max. Casing Temperature (tc) | 80°C | ||||||
| Rated Lifespan | 50,000 hrs | ||||||
| CRI | > 80 Ra | ||||||
| SDCM | ≤ 5 | ||||||
| Beam Angle | 110° | ||||||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | ||||||
| Model | Product Weight (Kg) |
Individual Box Size (mm) | Bundle Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| VIP PV12/SP | Kg | mm | mm | mm | mm | mm | mm | Kg | 2 pcs / Bundle |
| VIP PV22/SP | Kg | 615 mm | 617 mm | 116 mm | mm | mm | mm | Kg | 2 pcs / Bundle |
| VIP PV14/SP | Kg | mm | mm | mm | mm | mm | mm | Kg | 2 pcs / Bundle |
| VIP PV24/SP | Kg | mm | mm | mm | mm | mm | mm | Kg | 2 pcs / Bundle |
| Model | Luminaires | Dimension (mm) | |||||
| Wattage | Driver | LED Module | CCT (K) | L | W | H | |

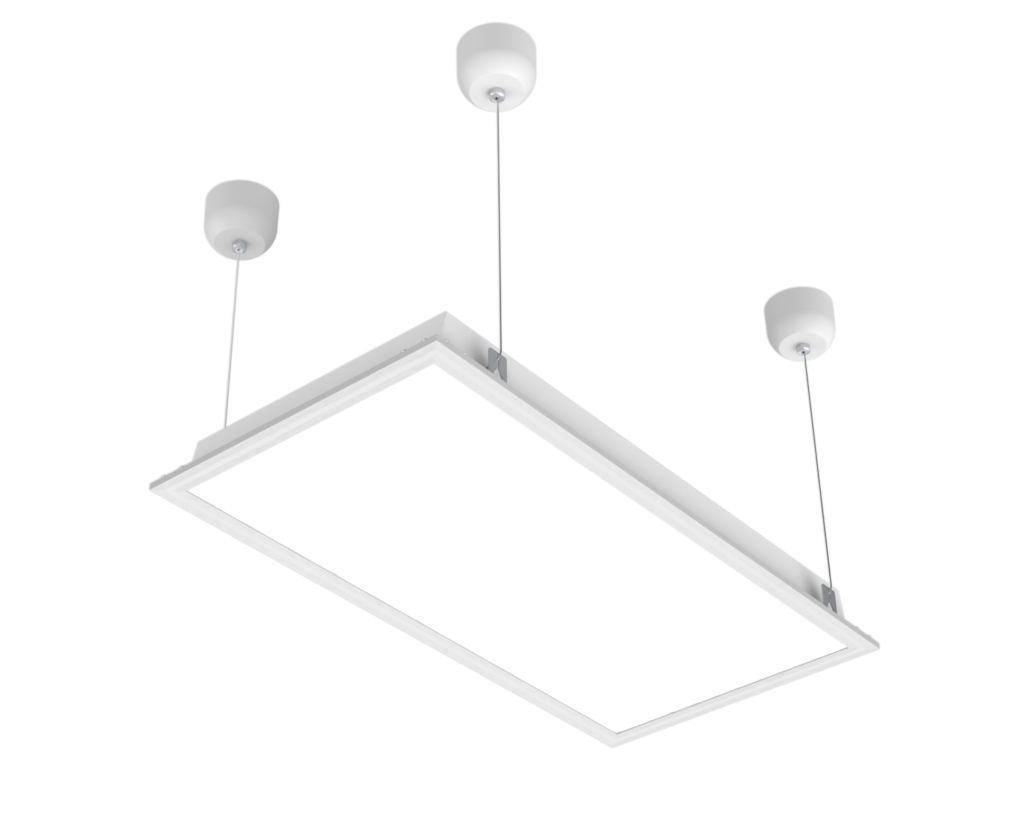

| VIP PV12/SP | 19 W | 1 x VITALITE VLD 35/700/50 | 1 x PV-SQ-128-xxxxK-G2 | 3000K/ 4000K/ 6500K |
595 mm | 297 mm | 54 mm |

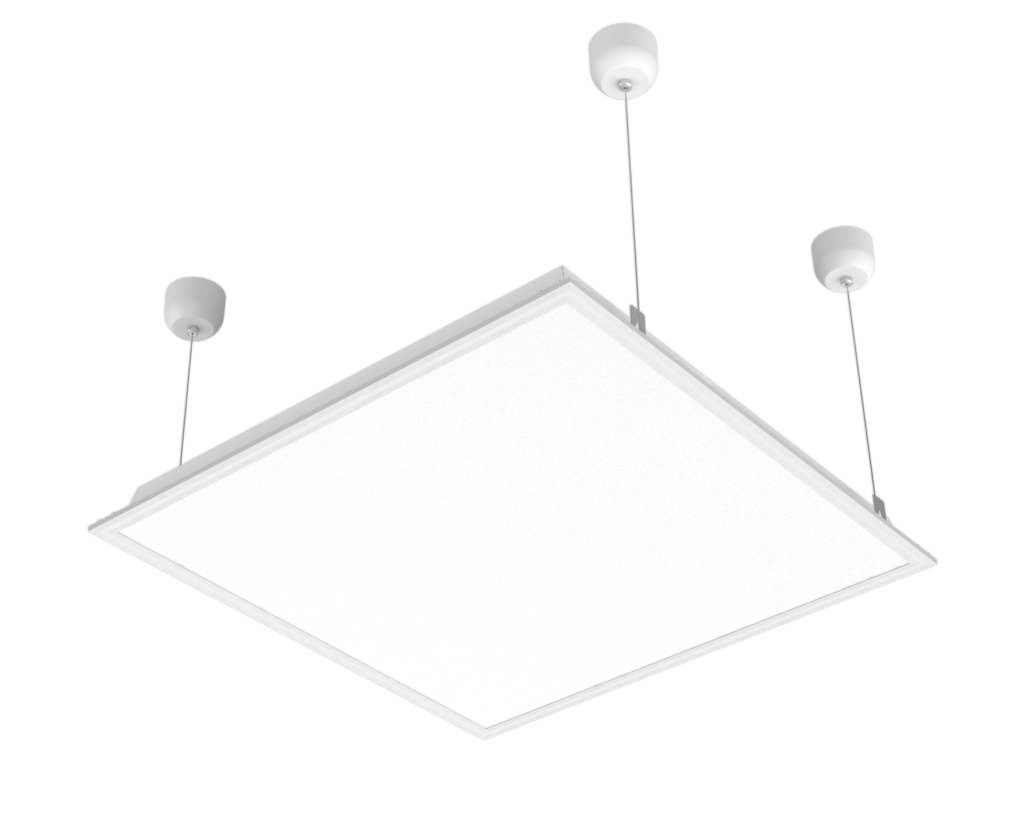

| VIP PV22/SP | 26 W | 1 x VITALITE VLD 25/500/50 | 2 x PV-SQ-128-xxxxK-G2 | 3000K/ 4000K/ 6500K |
595 mm | 595 mm | 54 mm |
| 36 W | 1 x VITALITE VLD 35/700/50 | ||||||

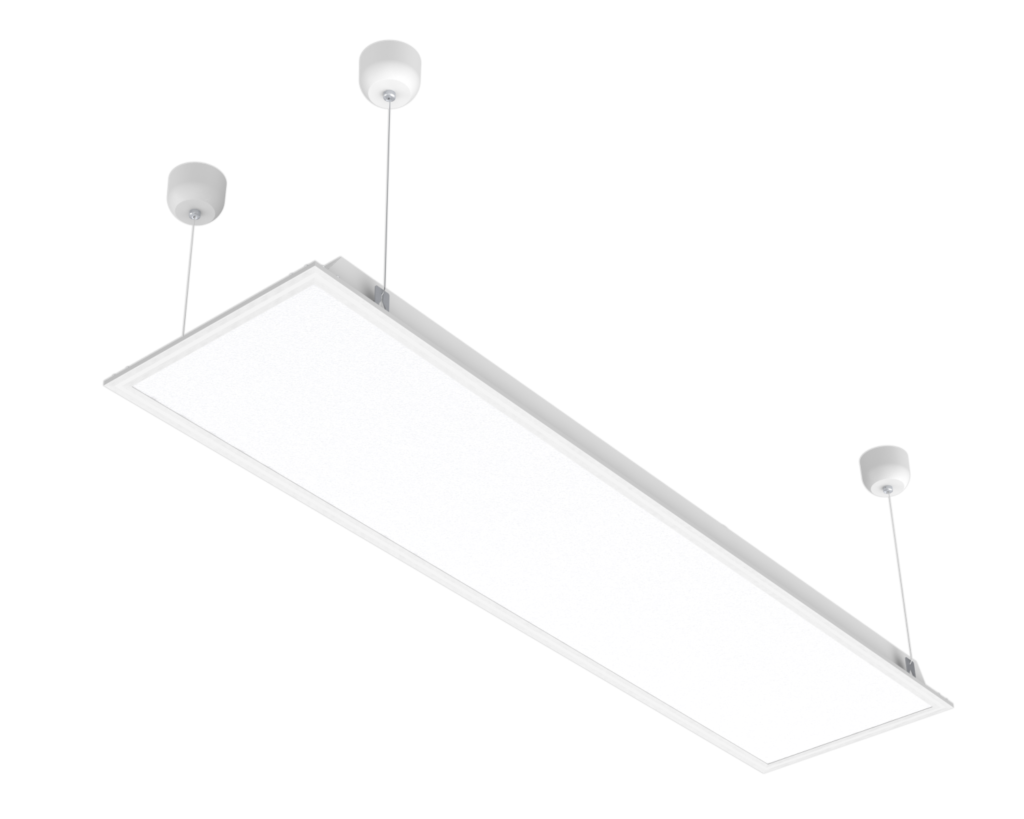

| VIP PV14/SP | 26 W | 1 x VITALITE VLD 25/500/50 | 2 x PV-SQ-128-xxxxK-G2 | 3000K/ 4000K/ 6500K |
1195 mm | 297 mm | 54 mm |
| 36 W | 1 x VITALITE VLD 35/700/50 | ||||||

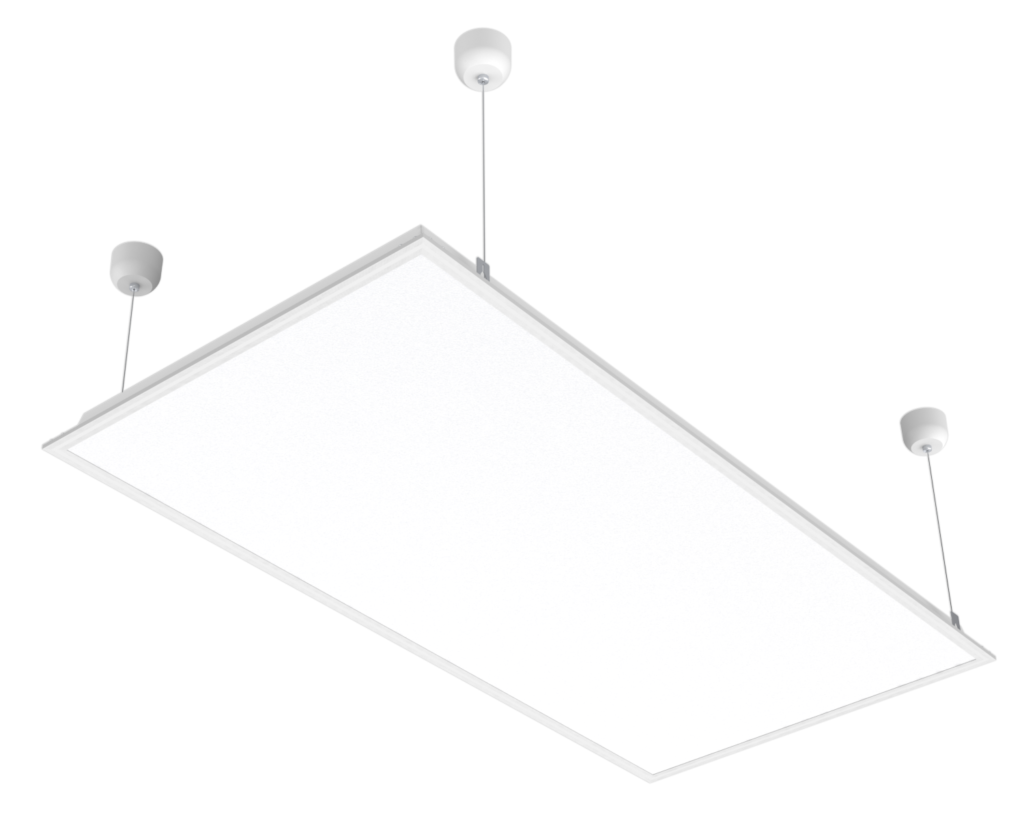

| VIP PV24/SP | 52 W | 2 x VITALITE VLD 25/500/50 | 4 x PV-SQ-128-xxxxK-G2 | 3000K/ 4000K/ 6500K |
1195 mm | 595 mm | 54 mm |
| 72 W | 2 x VITALITE VLD 35/700/50 | ||||||
| Powerpack | |||
 |
|||
| VITALITE VEL 120/ECK |
