VIP PL Series (Recessed T-Bar)
Indoor Luminaries
BACKLIT LED PANEL LIGHT (Recessed T-Bar) – VIP PL Series
The VIP PL Series Backlit LED Panel Light is designed for recessed T-Bar ceilings, offering uniform and consistent lighting. It features a secure LED attachment to the base, ensuring long-term stability without concerns of the LED detaching over time. This series is registered with an industrial design, guaranteeing both functionality and a sleek aesthetic.
| R refer to Imperial Size (measured in Feet, Inches) R-MM refer to Metric Size (measured in Meters, Millimeters) |
||
| Application | : | Office, School, Laboratory, Hospitals, Restaurants, Libraries, Living Areas, Shops, Supermarket, Shopping Complexes |
| Certificate | : | SNI |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.3mm) |
| Diffuser | Polystyrene (PS) Opal Diffuser |
| Connector | Nylon 3 Way Connecting Device |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Recessed T-Bar Ceiling |
| Driver | VITALITE VLD Series |
| Lamp | OS LED Linear Strip |
| Model | VIP PL12/R or R-MM | VIP PL22/R or R-MM | VIP PL14/R or R-MM | VIP PL24/R or R-MM |
| Size | 1′ x 2′ | 2′ x 2′ | 1′ x 4′ | 2′ x 4′ |
| VITALITE Driver | 1 x VLD 15/350/43 | 1 x VLD 35/700/50 | 1 x VLD 35/700/50 | 2 x VLD 35/700/50 |
| System Lumen (lm) | 1600 | 3300 | 3200 | 6600 |
| System Power (W) | 17 | 32 | 34 | 64 |
| System Current (A) | 0.14 | 0.14 | 0.15 | 0.28 |
| Efficacy (lm/W) | 94 | 103 | 94 | 103 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |||
| IP Grade | IP 20 | |||
| Classification | Class II | |||
| Power Factor | PF ≥ 0.5 | PF ≥ 0.9 | ||
| Operating Temperature (ta) | 0°C ~ 35°C | |||
| Max. Casing Temperature (tc) | 70°C | |||
| Rated Lifespan | 30,000 hrs | |||
| CRI | > 80 Ra | |||
| SDCM | ≤ 5 | |||
| Beam Angle | 110° | |||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6000K) | |||
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| Imperial Size | ||||||
| VIP PL12/R | 1.20 Kg | 630 mm | 340 mm | 88 mm | 2.40 Kg | 2 pcs / Carton |
| VIP PL22/R | 2.12 Kg | 645 mm | 645 mm | 88 mm | 4.25 Kg | 2 pcs / Carton |
| VIP PL14/R | 2.20 Kg | 1235 mm | 340 mm | 88 mm | 4.40 Kg | 2 pcs / Carton |
| VIP PL24/R | 4.02 Kg | 1245 mm | 645 mm | 88 mm | 8.05 Kg | 2 pcs / Carton |
| Metric Size | ||||||
| VIP PL12/R-MM | 1.16 Kg | 630 mm | 340 mm | 88 mm | 2.32 Kg | 2 pcs / Carton |
| VIP PL22/R-MM | 2.10 Kg | 645 mm | 645 mm | 88 mm | 4.20 Kg | 2 pcs / Carton |
| VIP PL14/R-MM | 2.16 Kg | 1235 mm | 340 mm | 88 mm | 4.32 Kg | 2 pcs / Carton |
| VIP PL24/R-MM | 4.00 Kg | 1245 mm | 645 mm | 88 mm | 8.00 Kg | 2 pcs / Carton |

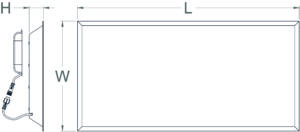

| Model | Luminaires | Dimension (mm) | ||||||
| VITALITE Driver | LED Module | Colour Temperature, CCT (K) | L | W | H | |||
| Imperial Size | ||||||||
| VIP PL12/R | 1 x VLD 15/350/43 | 3 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 605 mm | 300 mm | 40 mm |
| VIP PL22/R | 1 x VLD 35/700/50 | 7 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 605 mm | 605 mm | 40 mm |
| VIP PL14/R | 1 x VLD 35/700/50 | 6 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 1215 mm | 300 mm | 40 mm |
| VIP PL24/R | 2 x VLD 35/700/50 | 14 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 1215 mm | 605 mm | 40 mm |
| Metric Size | ||||||||
| VIP PL12/R-MM | 1 x VLD 15/350/43 | 3 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 595 mm | 295 mm | 40 mm |
| VIP PL22/R-MM | 1 x VLD 35/700/50 | 7 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 595 mm | 595 mm | 40 mm |
| VIP PL14/R-MM | 1 x VLD 35/700/50 | 6 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 1195 mm | 295 mm | 40 mm |
| VIP PL24/R-MM | 2 x VLD 35/700/50 | 14 x LED STRIP-7-xxxxK-G2 | 3000K | 4000K | 6000K | 1195 mm | 595 mm | 40 mm |
| Surface Frame | Recessed Plaster Frame | Powerpack | |
 |
 |
 |
|
| ASF Series | PRF Series | VITALITE VEL 120/ECK |
