VIP LSB Series
Indoor Luminaries

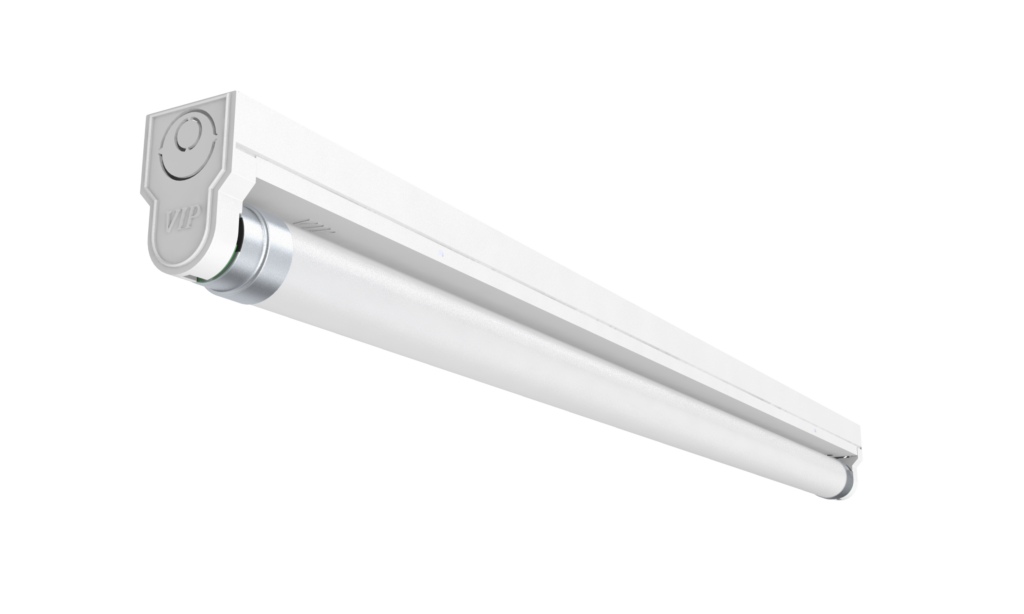

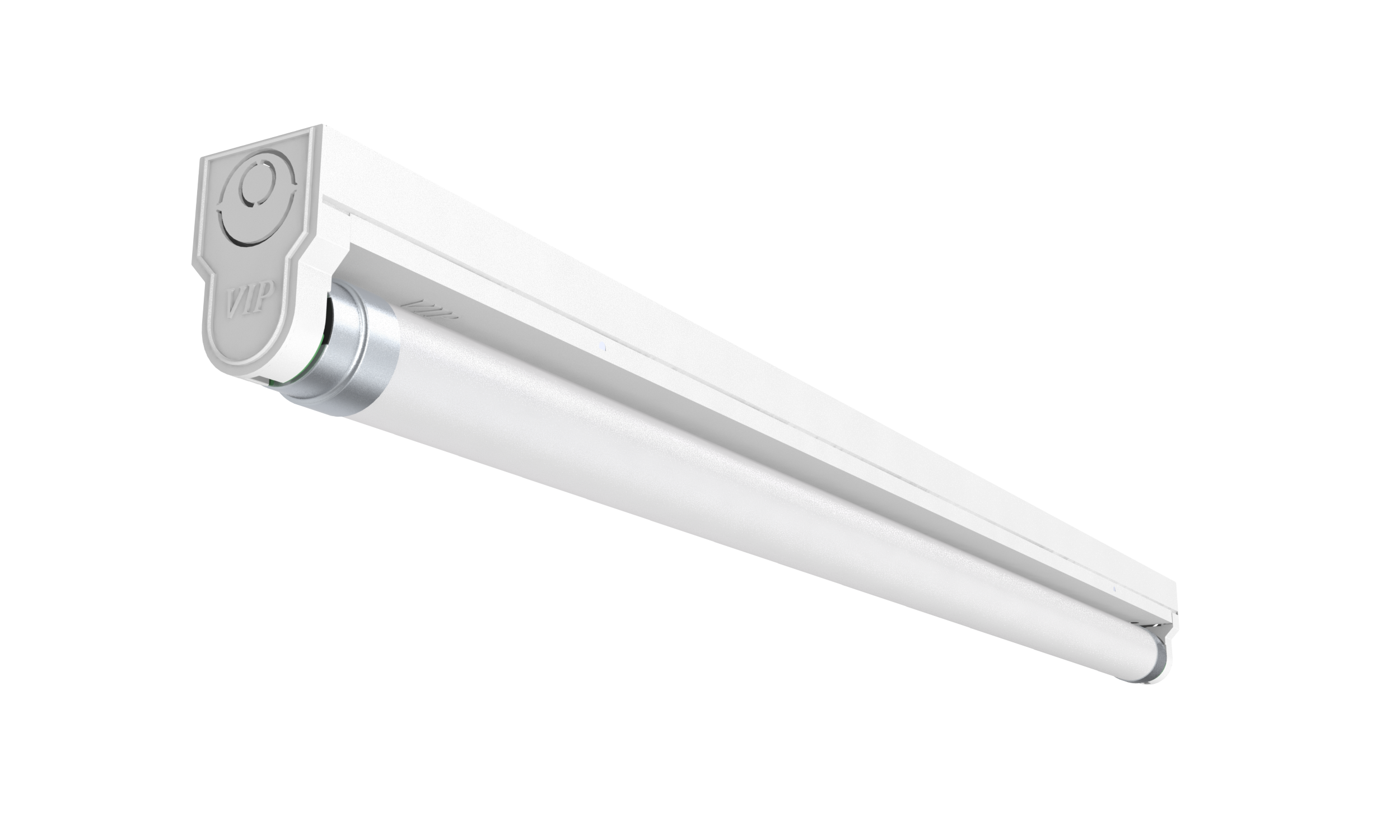

T8 LED ULTRA SLIM BATTEN FITTING – VIP LSB Series
Experience unmatched durability and timeless sophistication with our T8 Batten Fitting, featuring an ultra-slim design and reinforced materials for a perfect blend of resilience and style.
| Application | : | Office, School, Warehouse, Restaurants Supermarkets, Workshops, Corridors, Car Porch |
| Certificate | : | SNI |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.17mm) |
| Lampholder | Polycarbonate and Bronze Lampholder |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall / Suspension |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Carton Size | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| VIP LSB-2 | 0.17 Kg | 630 mm | 180 mm | 78 mm | 1.70 Kg | 10 pcs / Carton |
| VIP LSB-4 | 0.34 Kg | 1240 mm | 180 mm | 78 mm | 3.44 Kg | 10 pcs / Carton |
| Model | Luminaires | Dimension (mm) | ||||
| No. of Lamp | Type | Base | L | W | H | |
| VIP LSB-2 | 1 | Slim Batten | G13 | 613 mm | 33 mm | 50 mm |
| VIP LSB-4 | 2 | Slim Batten | G13 | 1222 mm | 33 mm | 50 mm |
| T8 LED Tube | T8 LED Tube | ||
 |
 |
||
| TOSHIBA GLASS TUBE RLDL8 | TOSHIBA PRO TUBE RLDL028 |
