VIP 8MF Series

Indoor Luminaries

LED ADJUSTABLE RECESSED SQUARE DOWNLIGHT – VIP 8MF Series

The VIP 8MF Series LED Adjustable Recessed Square Downlight combines sleek aesthetics with functionality. Its adjustable design allows you to direct light precisely where it’s needed, making it ideal for highlighting specific areas or objects. This modern, no-housing-required solution ensures both style and efficiency.

Application	:	Home, Hospitality, Hotels, Offices, Retail, Supermarkets, Restaurants, Shop Lighting, Museums, Galleries, Public & Commercial Building
Certificate	:	Nil
Colour	:	Black Texture, White Texture

Specification
Technical Data
Packaging Information
Order Information
Optional
Datasheets
IES Files

Rim	Fabricated from Mild Steel
Adjustable Ring	Die Casted from ADC12 Aluminium Alloy
Clip	Stainless Steel Spring Clips with Cover
Connector	Nylon 3 Way x 2.5mm²
Finishing	Electrostatically Polyester Powder Coated
Mounting Type	Recessed Ceiling Mounted
Driver	VITALITE VLD Series
Lamp	OS50 LED Module

Model	VIP 8MF1		VIP 8MF2		VIP 8MF3		VIP 8MF4
Type	Single Head		Double Head		Triple Head		Quad Head
VITALITE Driver	VLD 10	VLD 15	VLD 10	VLD 15	VLD 10	VLD 15	VLD 10	VLD 15
System Lumen (lm)	1 x 900	1 x 1100	2 x 900	2 x 1100	3 x 900	3 x 1100	4 x 900	4 x 1100
System Power (W)	1 x 8W	1 x 11W	2 x 8W	2 x 11W	3 x 8W	3 x 11W	4 x 8W	4 x 11W
System Current (A)	0.07	0.08	0.13	0.16	0.2	0.24	0.28	0.32
Efficacy (lm/W)	113	100	113	100	113	100	113	100
Main Supply (V, Hz)	220~240V, 50/60Hz
IP Grade	IP 20
Classification	Class I
Power Factor	PF ≥ 0.5
Operating Temperature (ta)	0°C ~ 35°C
Rated Lifespan	30,000 hrs
CRI	> 80 Ra
SDCM	≤ 5
Beam Angle	24° / 40°
Available CCT	Warm White (3000K), Cool White (4000K), Daylight (6500K)

Model	Product Weight (Kg)	Inner Carton Size (mm)			Outer Carton Size (mm)			Gross Weight (Kg)	Quantity
Model	Product Weight (Kg)	L	W	H	L	W	H	Gross Weight (Kg)	Quantity
VIP 8MF1	Kg	mm	mm	mm	mm	mm	mm	Kg	pcs / Carton
VIP 8MF2	Kg	mm	mm	mm	mm	mm	mm	Kg	pcs / Carton
VIP 8MF3	Kg	mm	mm	mm	mm	mm	mm	Kg	pcs / Carton
VIP 8MF4	Kg	mm	mm	mm	mm	mm	mm	Kg	pcs / Carton

Model	Luminaires					Dimension (mm)			Cut-Out (mm)
Model	Shape	Driver	Colour Temperature, CCT (K)			L	W	H	Cut-Out (mm)

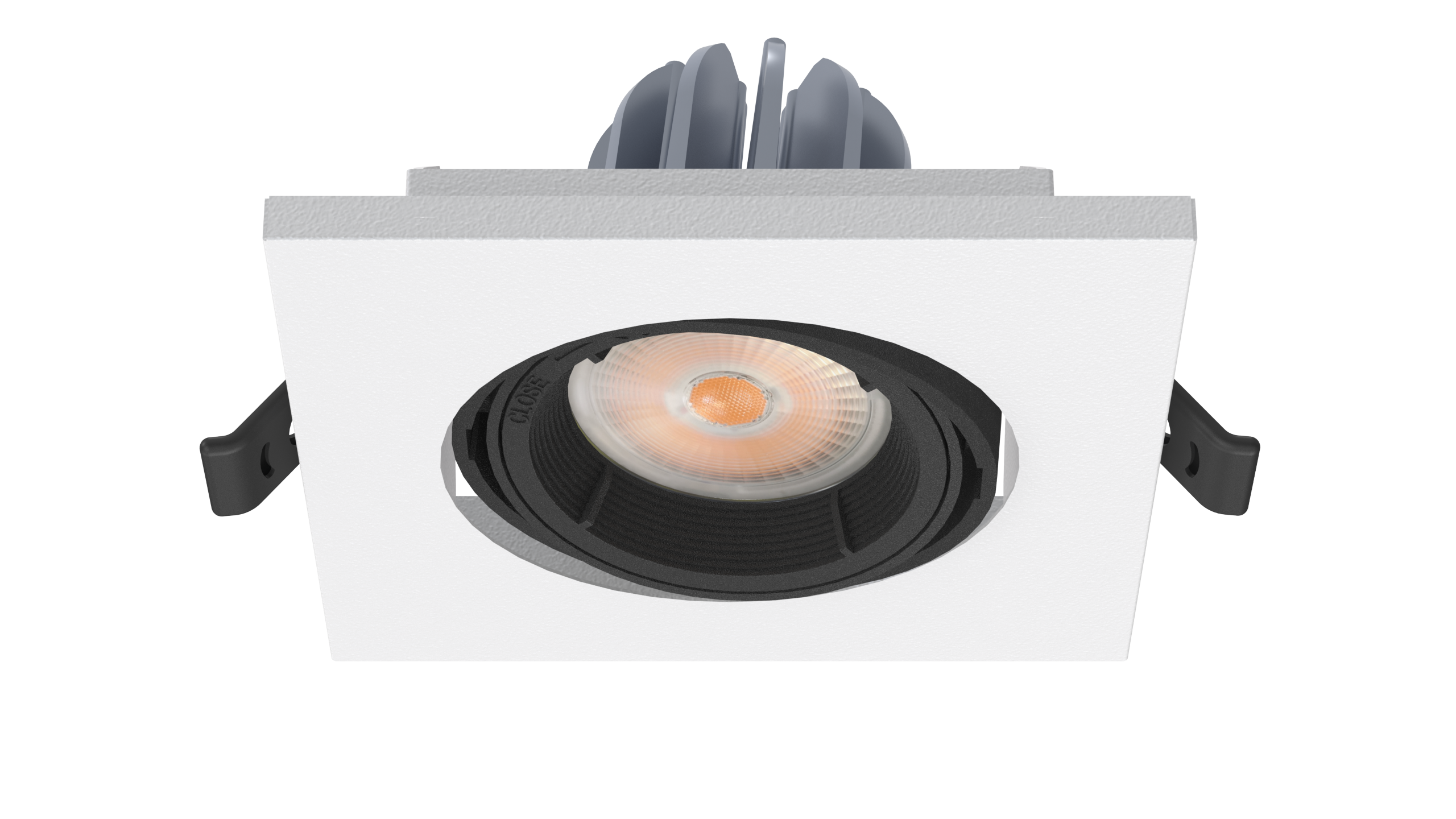

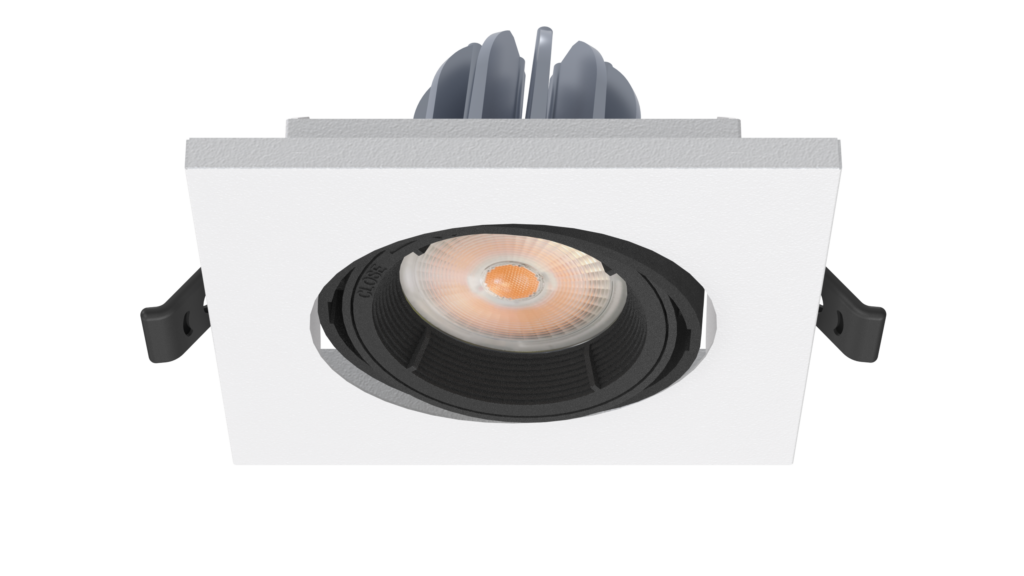

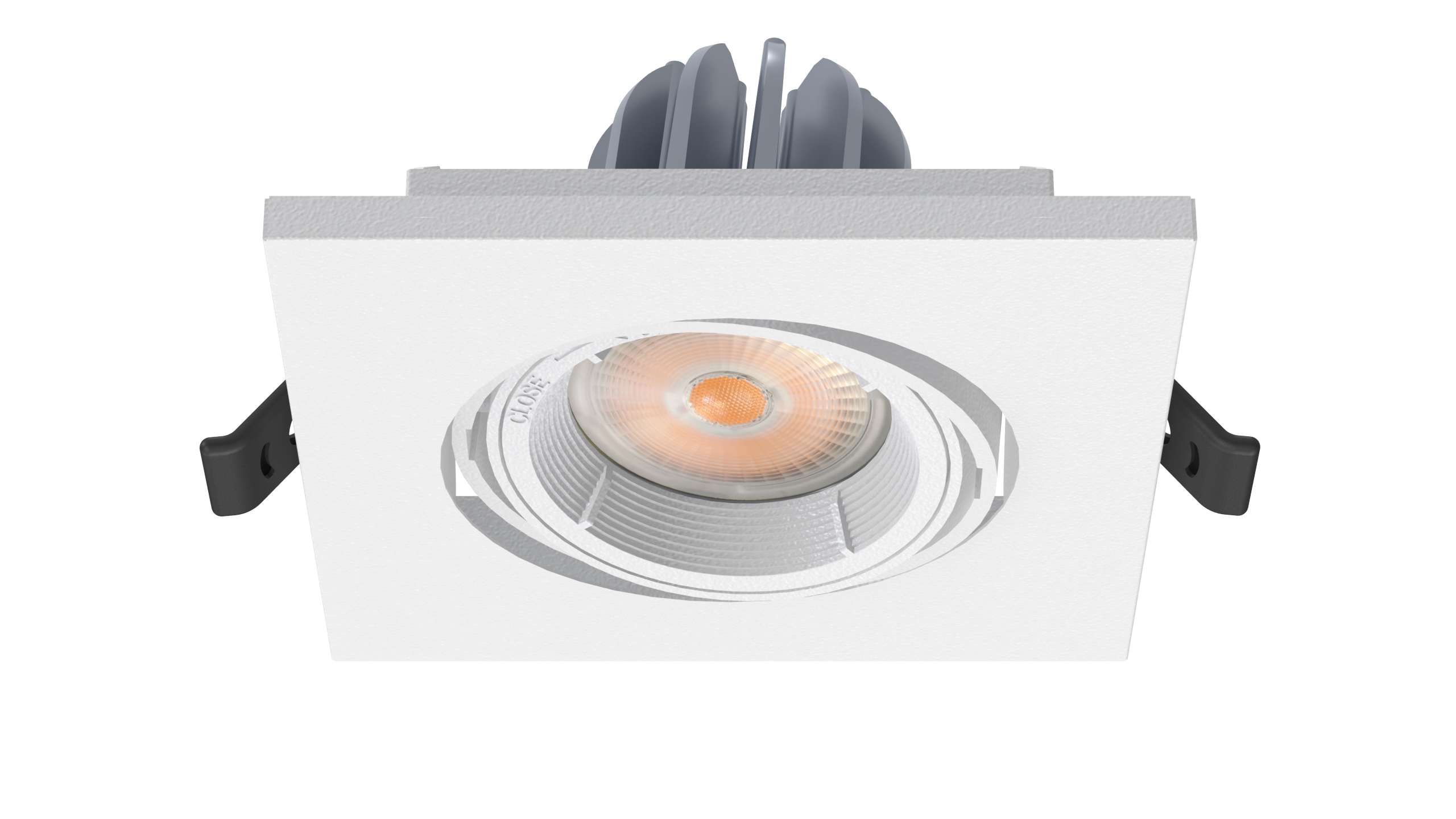

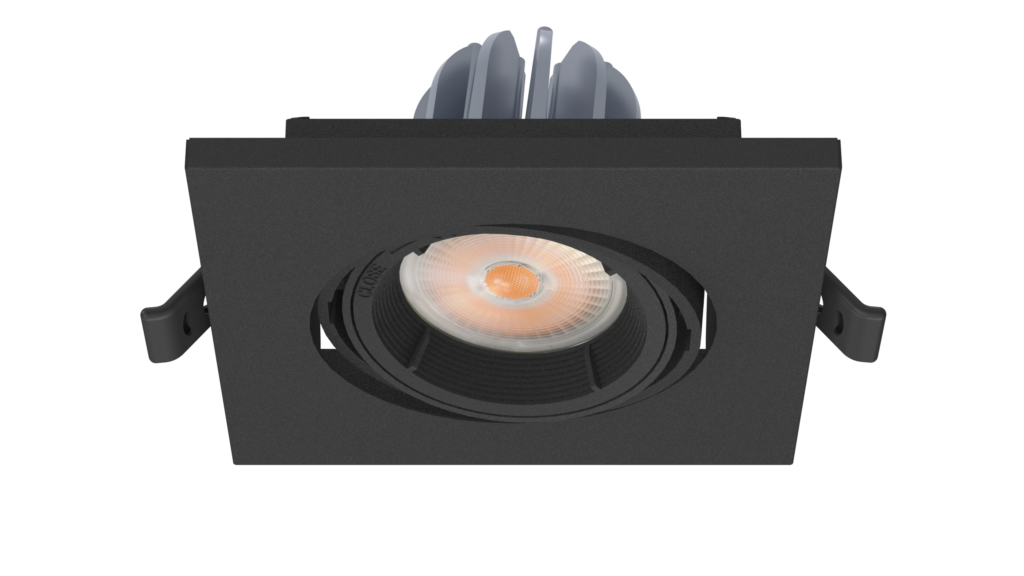

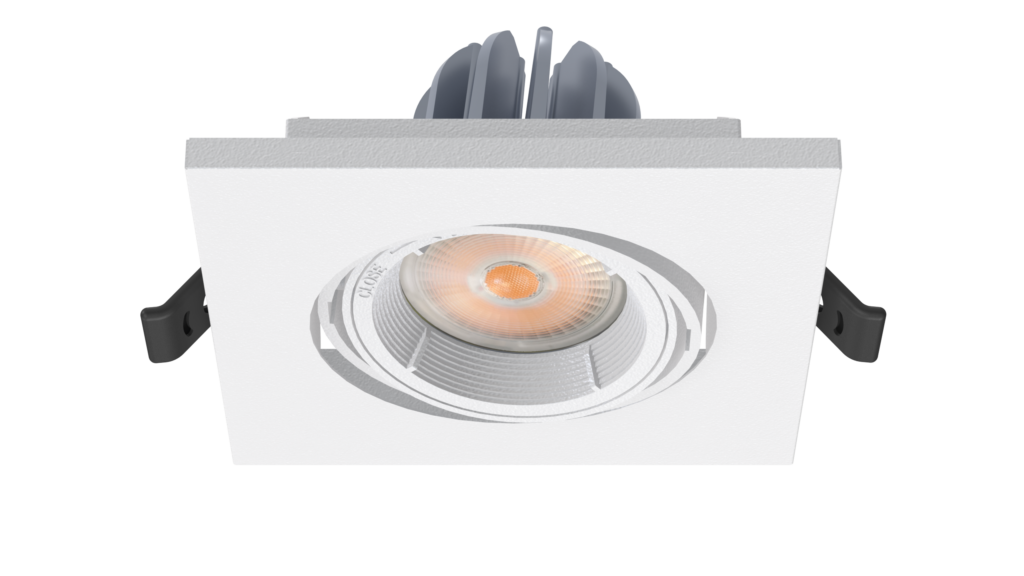

VIP 8MF1	Single Head	VLD 10/250/40 or VLD 15/350/43	3000K	4000K	6500K	110 mm	110 mm	60 mm	90 mm x 90 mm

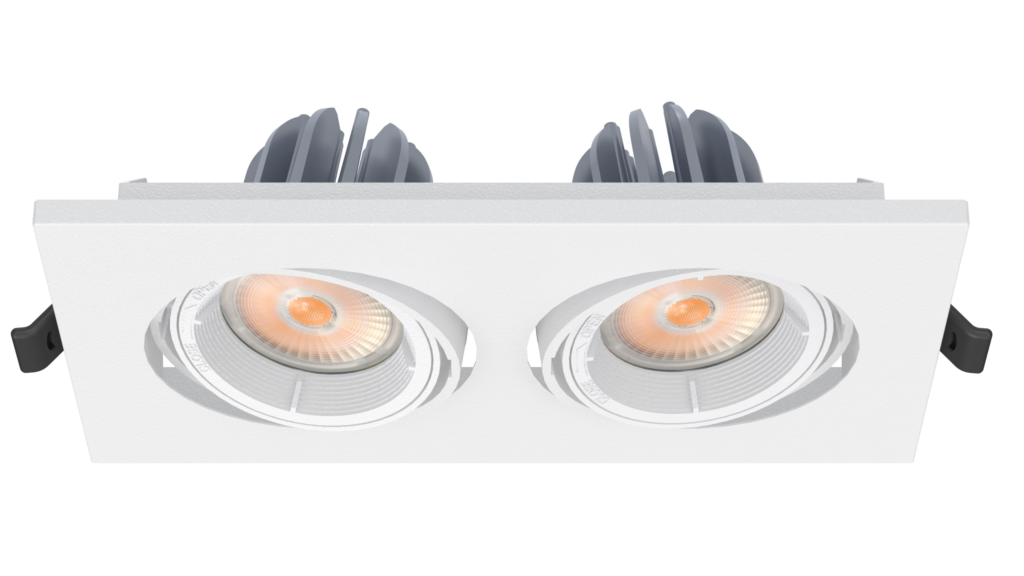

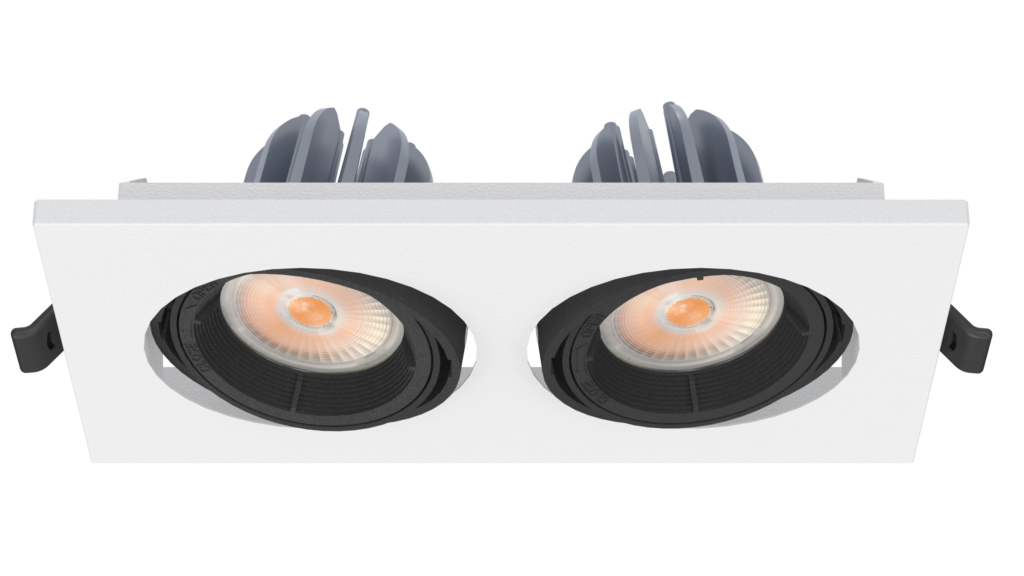

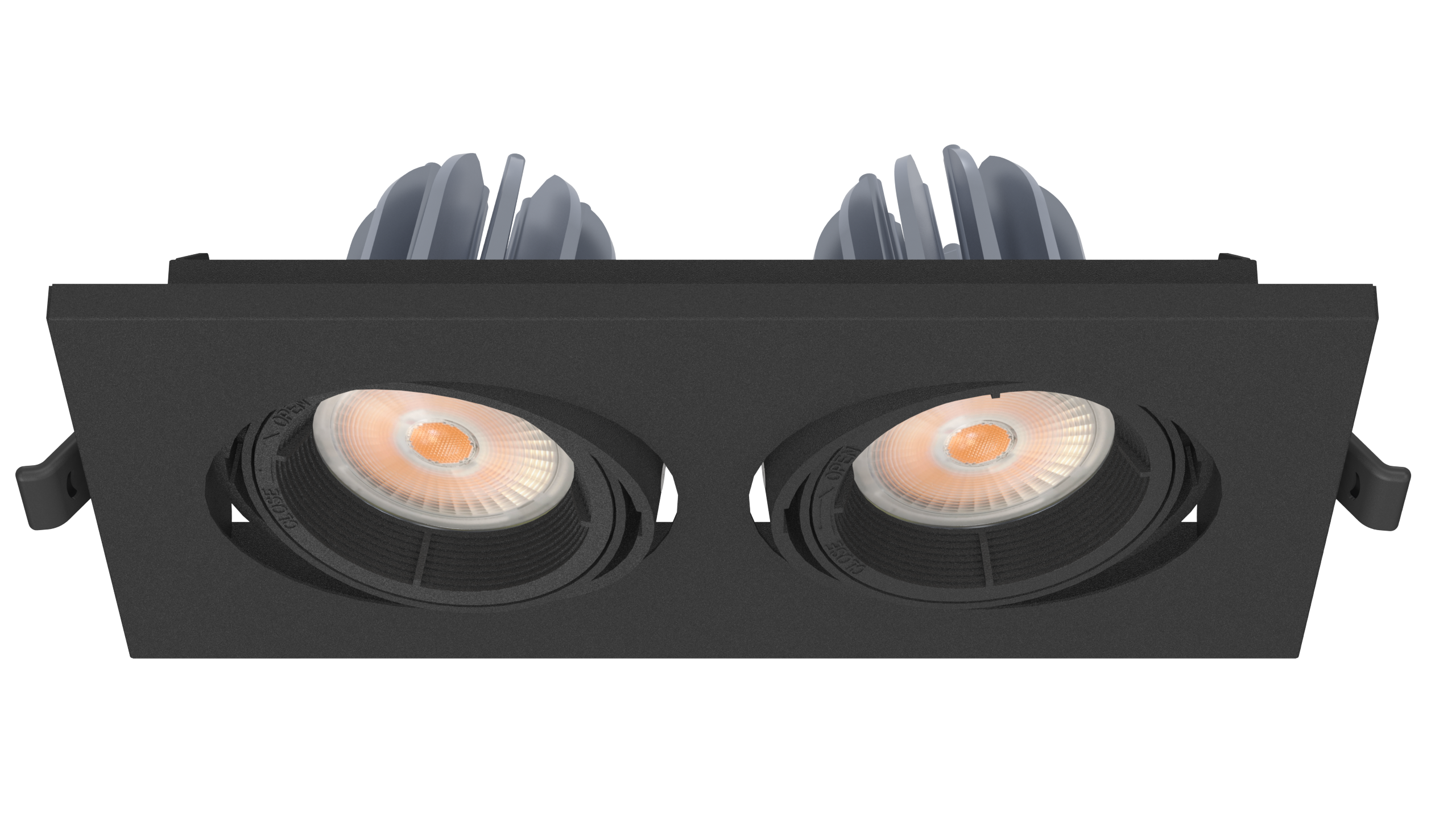

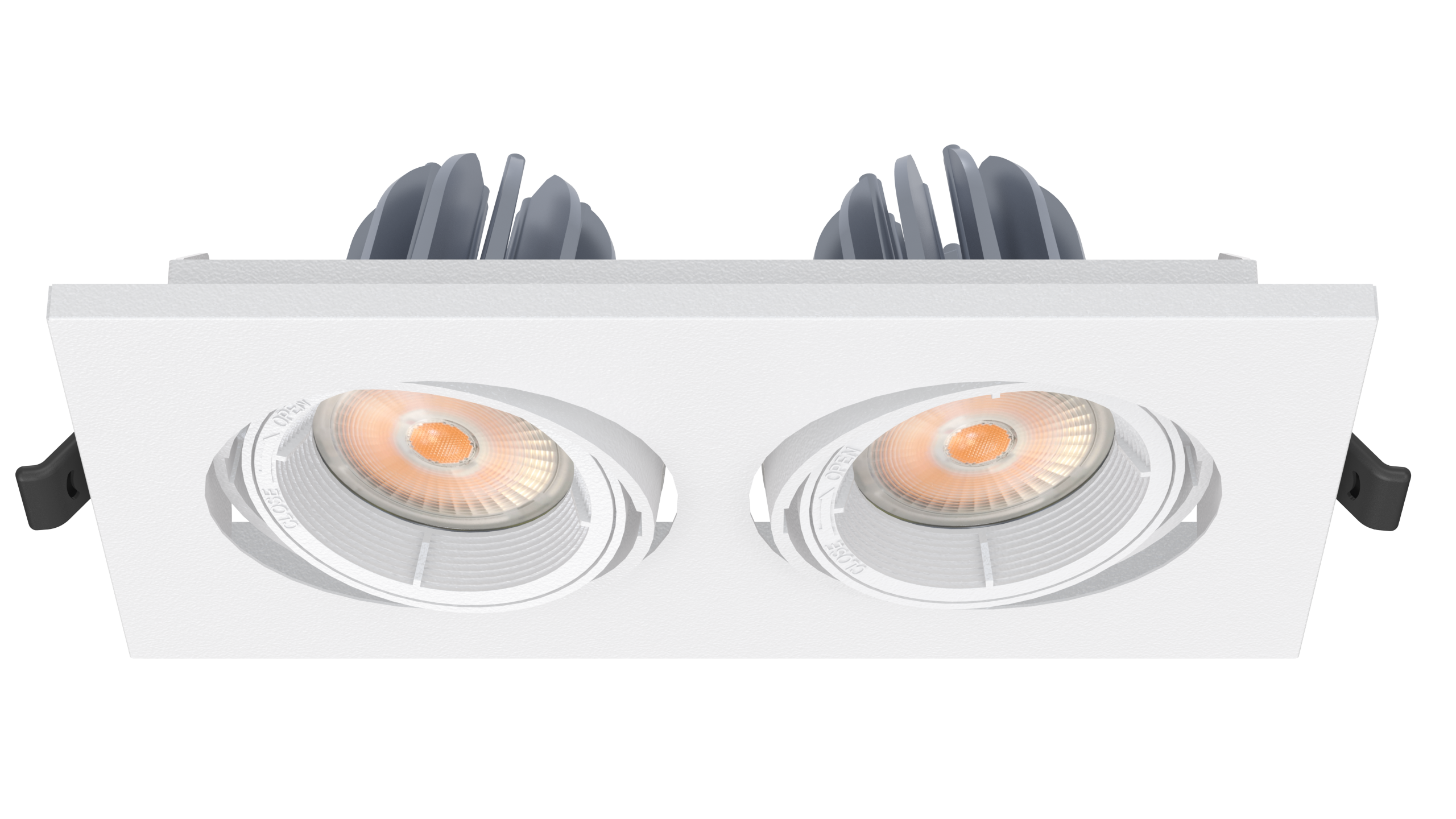

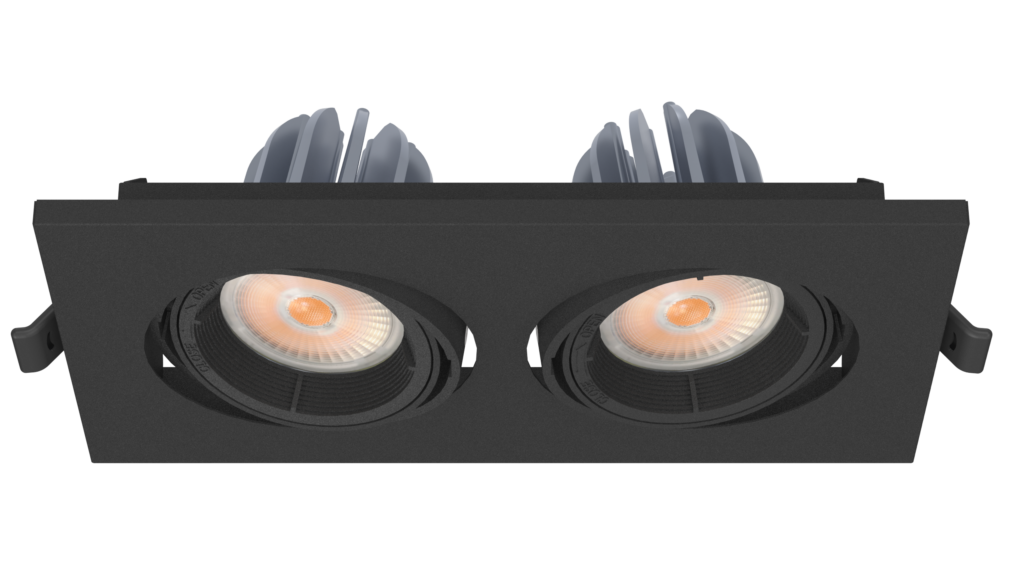

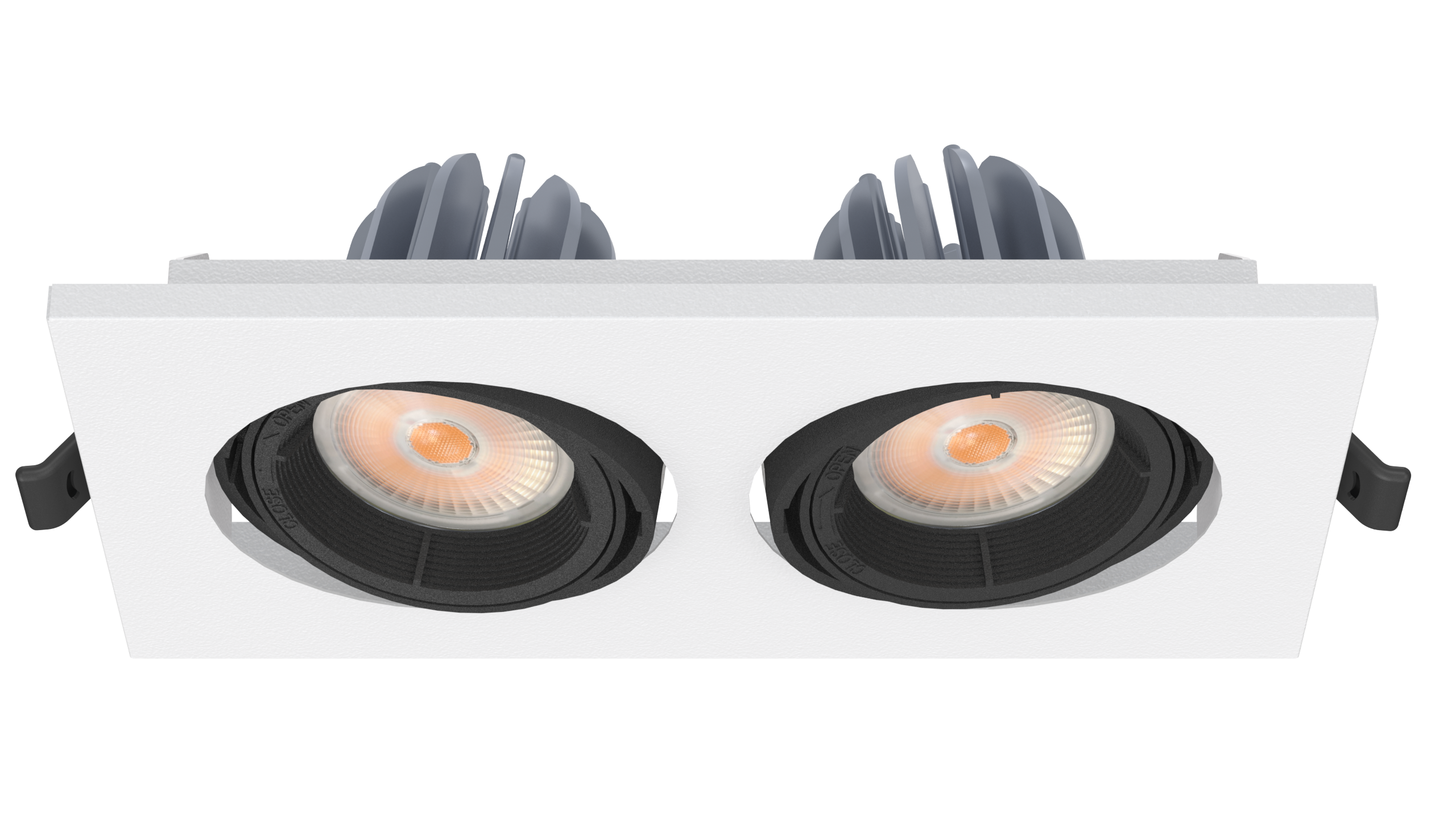

VIP 8MF2	Double Head	VLD 10/250/40 or VLD 15/350/43	3000K	4000K	6500K	195 mm	110 mm	60 mm	180 mm x 90 mm

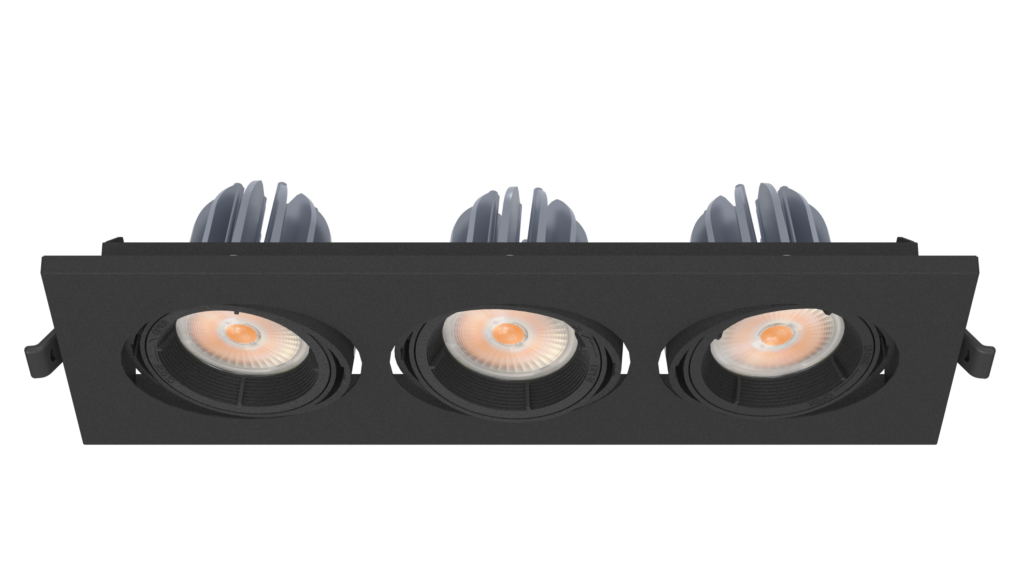

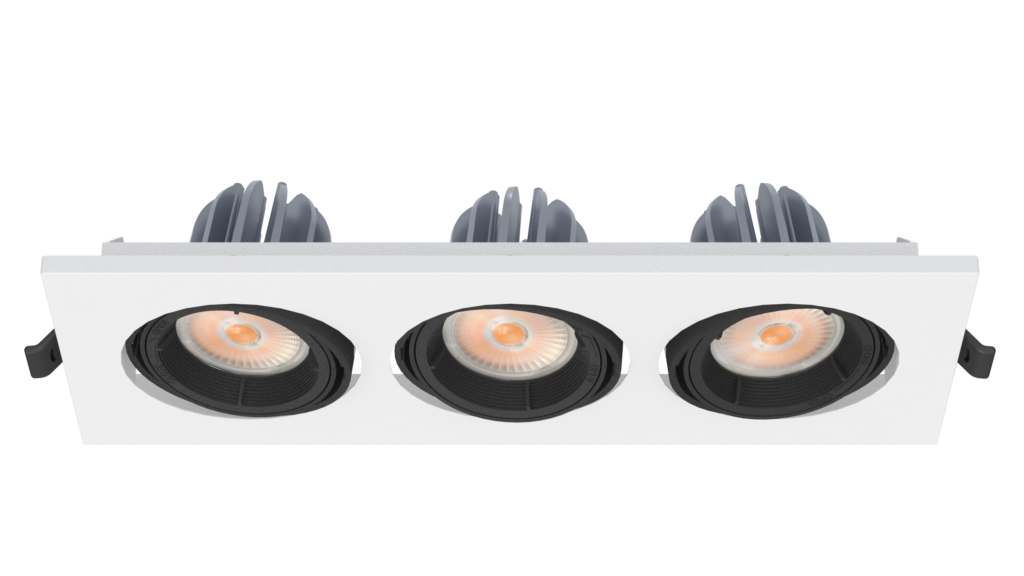

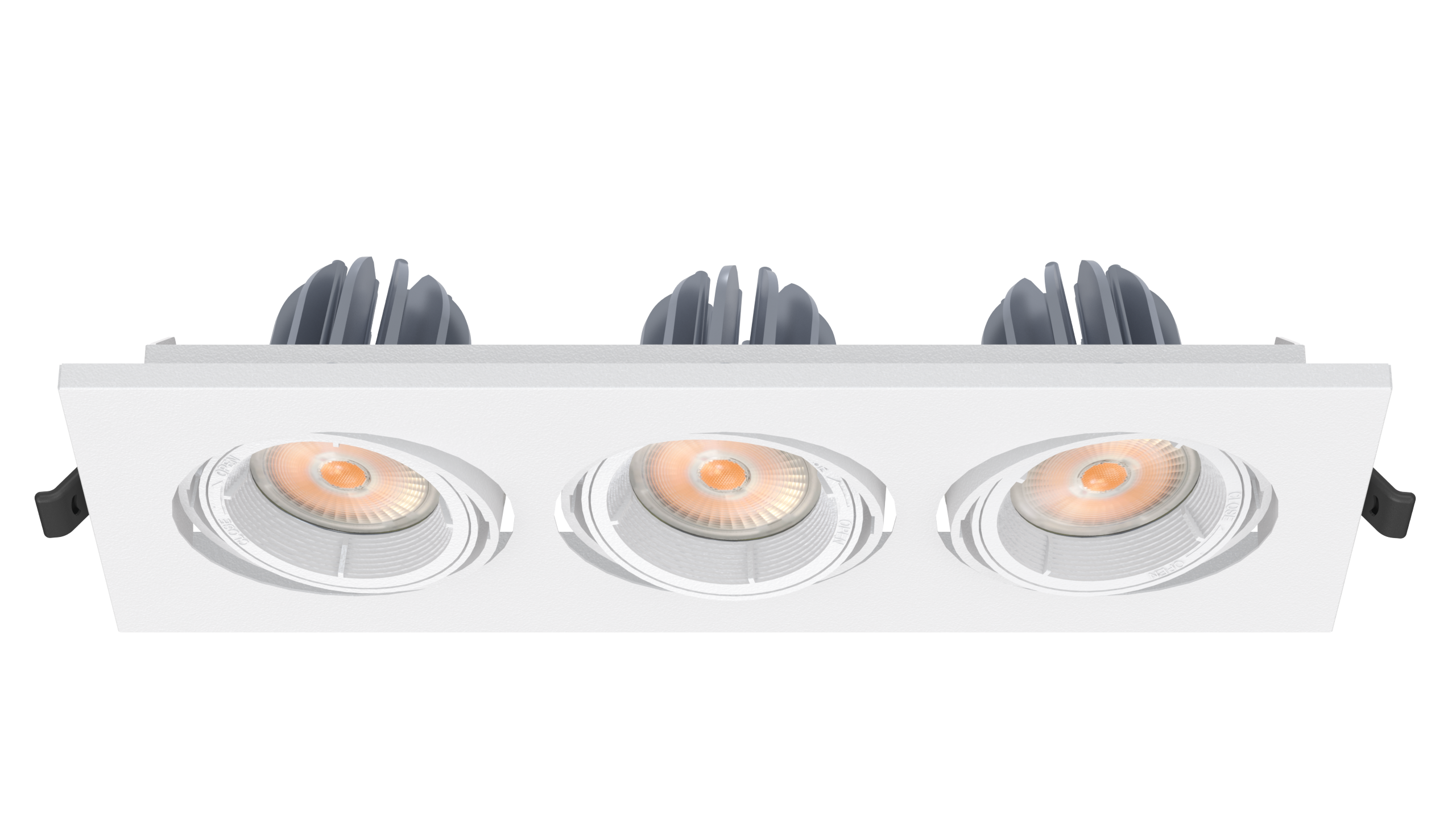

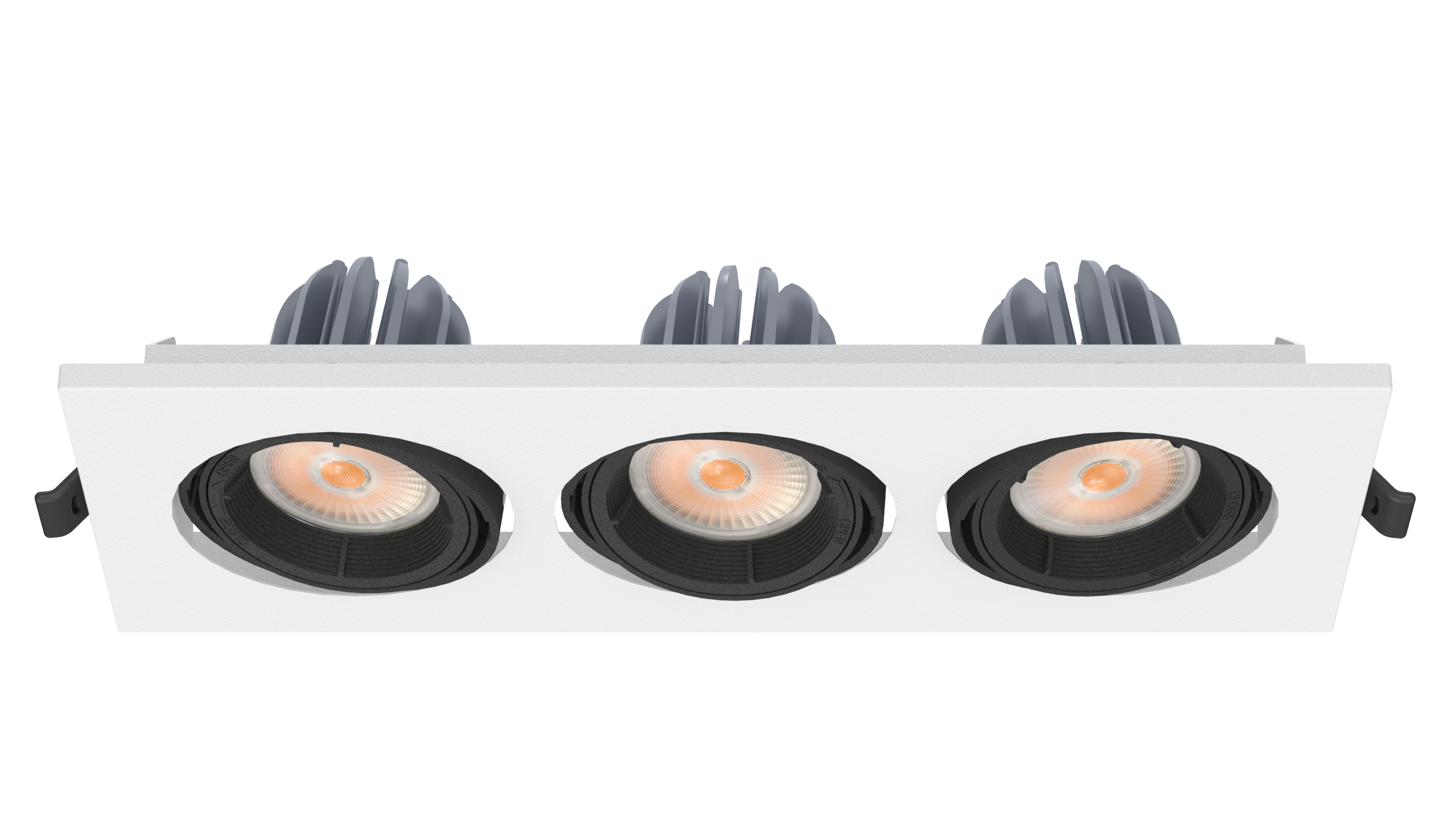

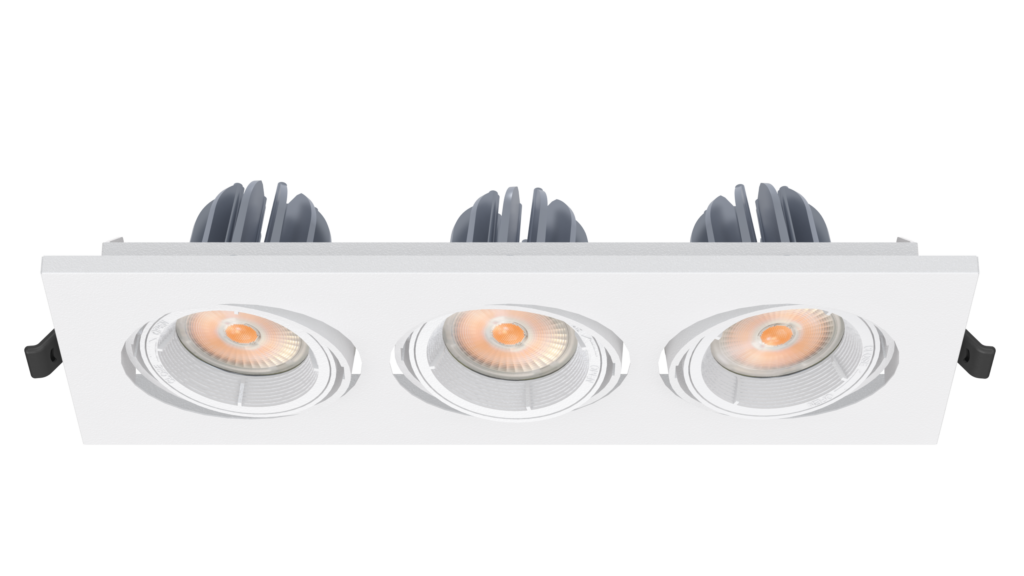

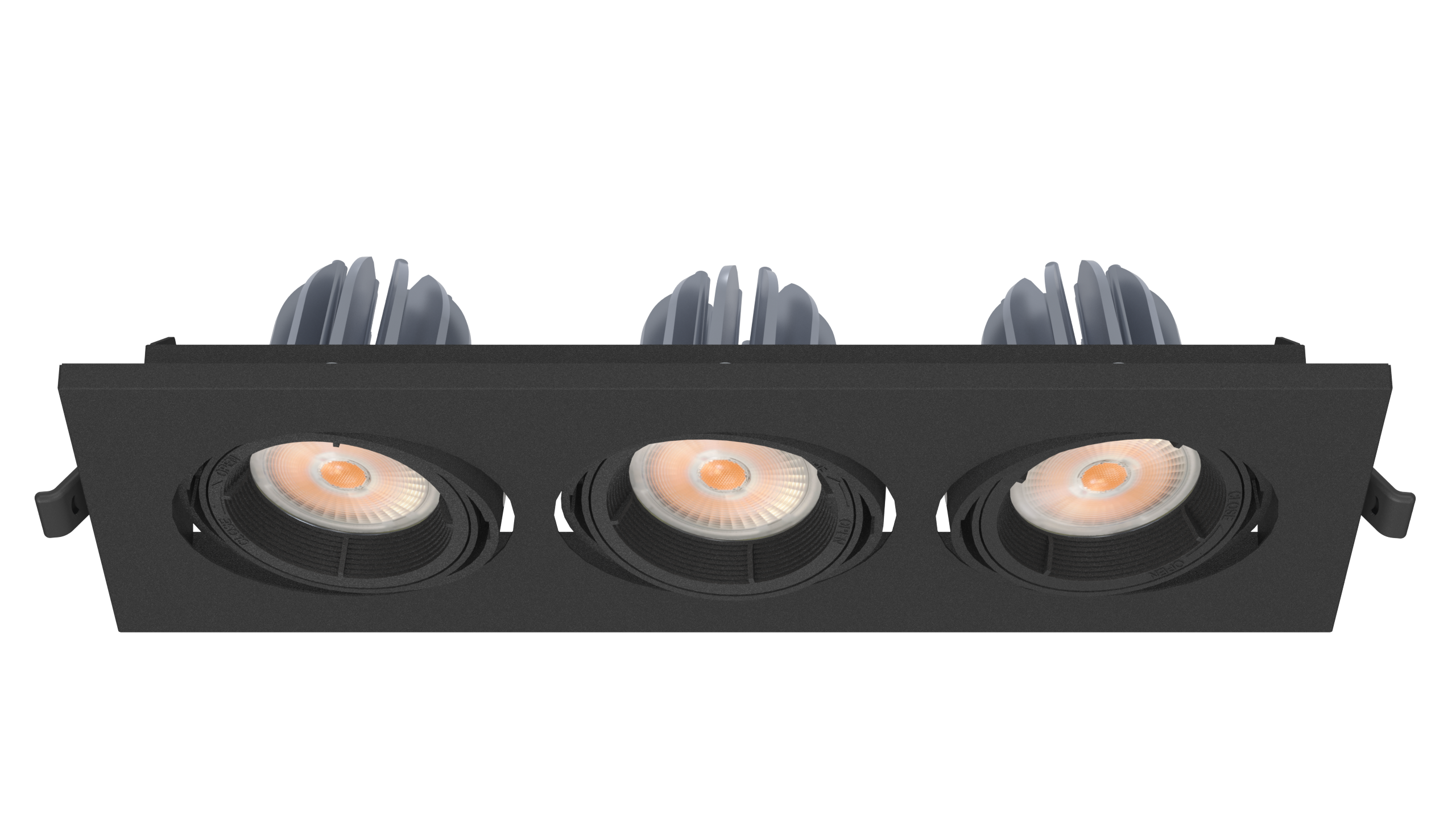

VIP 8MF3	Triple Head	VLD 10/250/40 or VLD 15/350/43	3000K	4000K	6500K	275 mm	110 mm	60 mm	260 mm x 90 mm

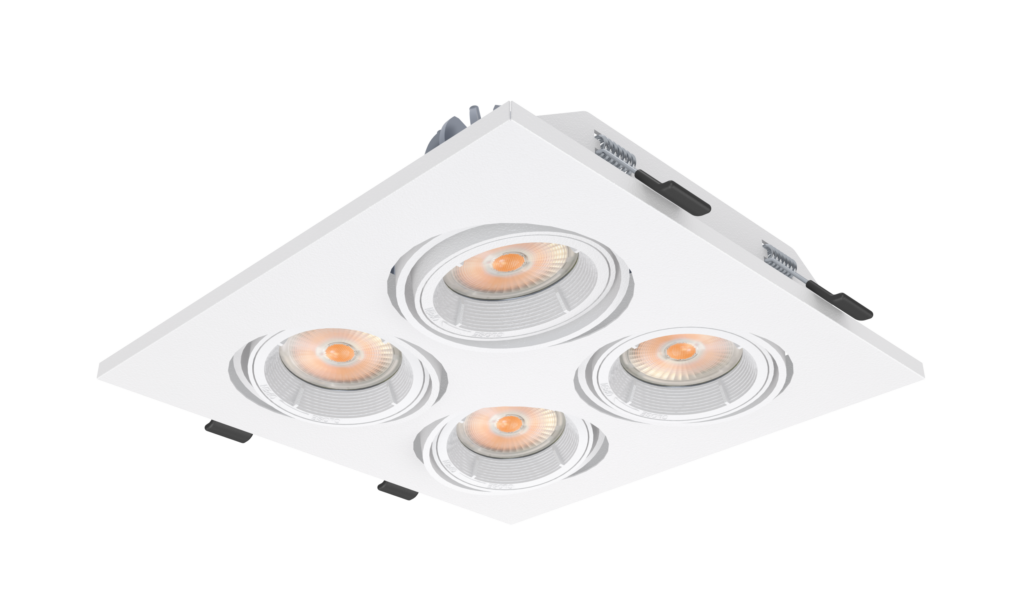

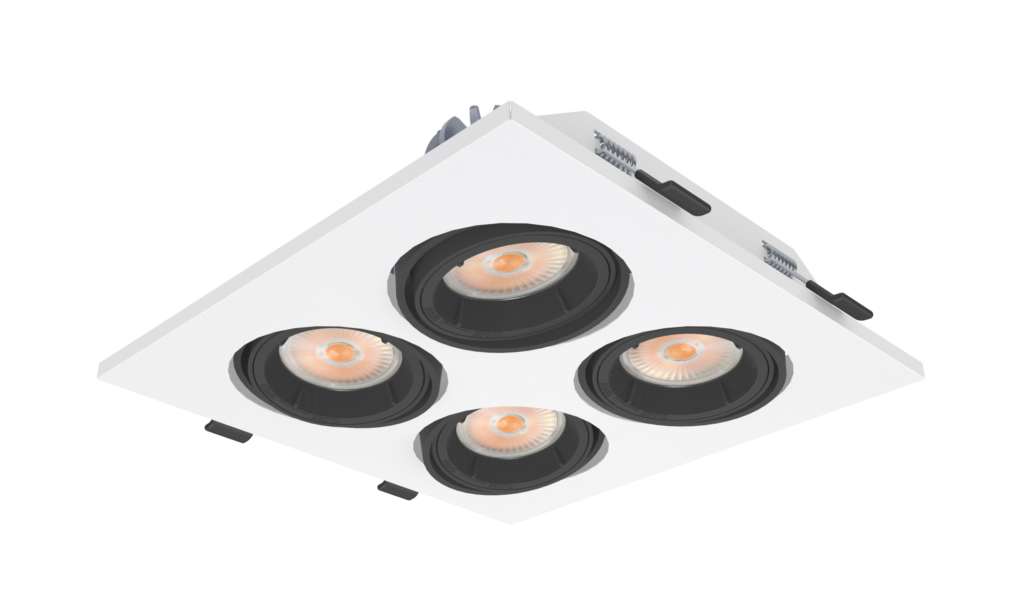

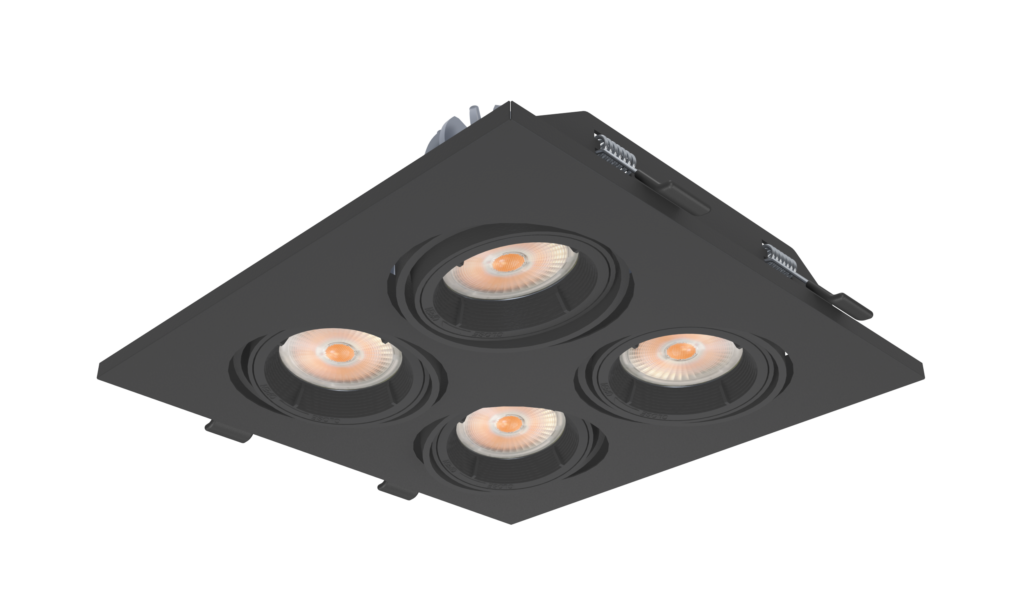

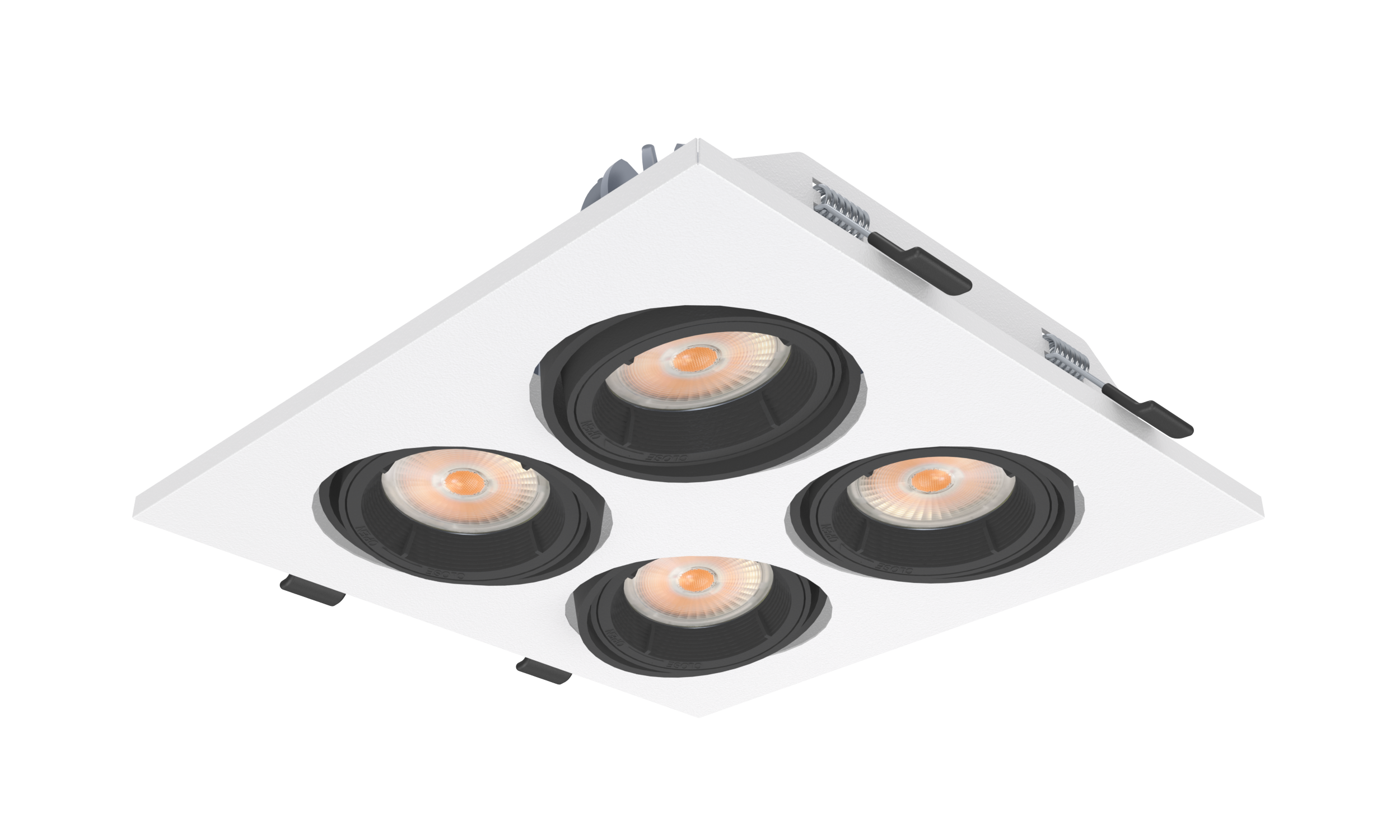

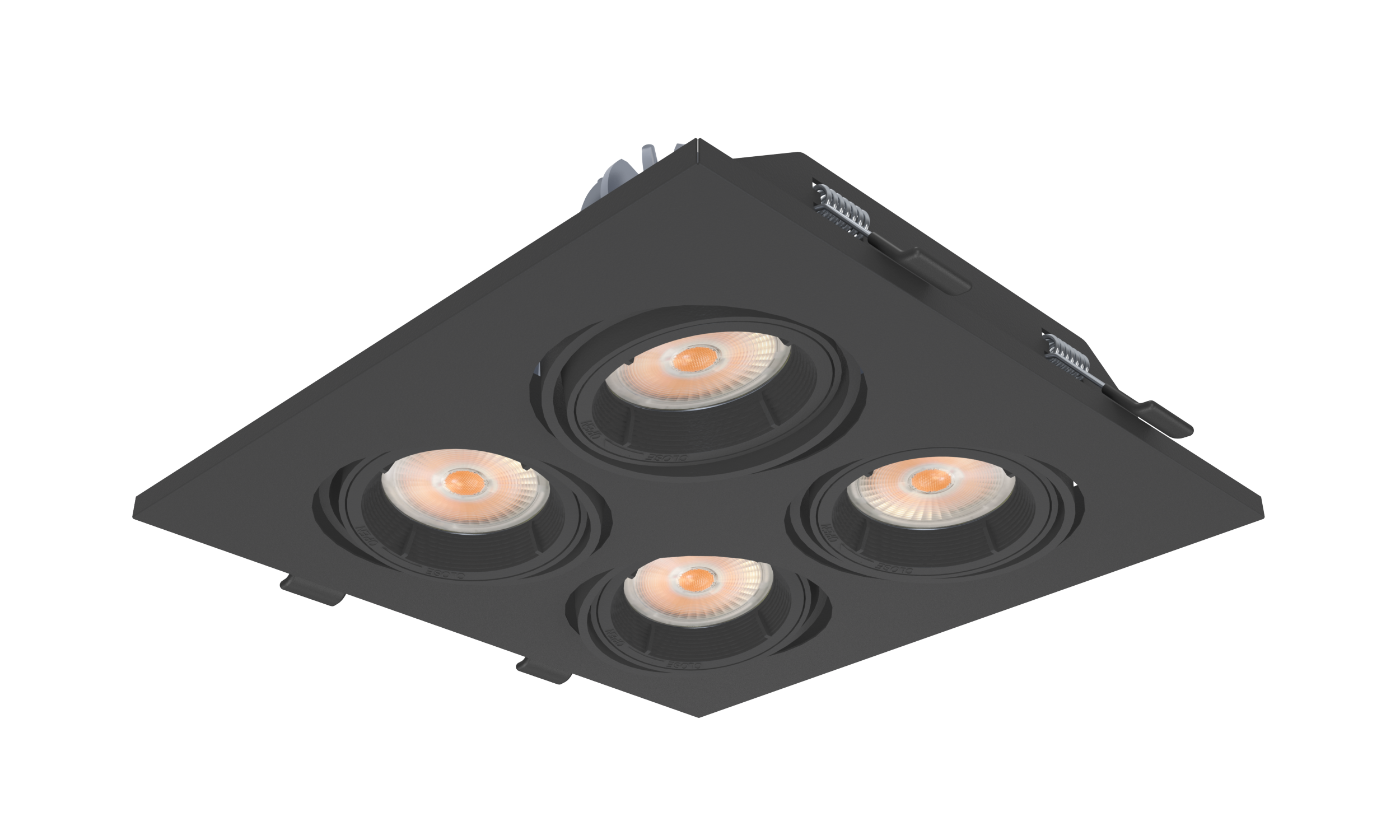

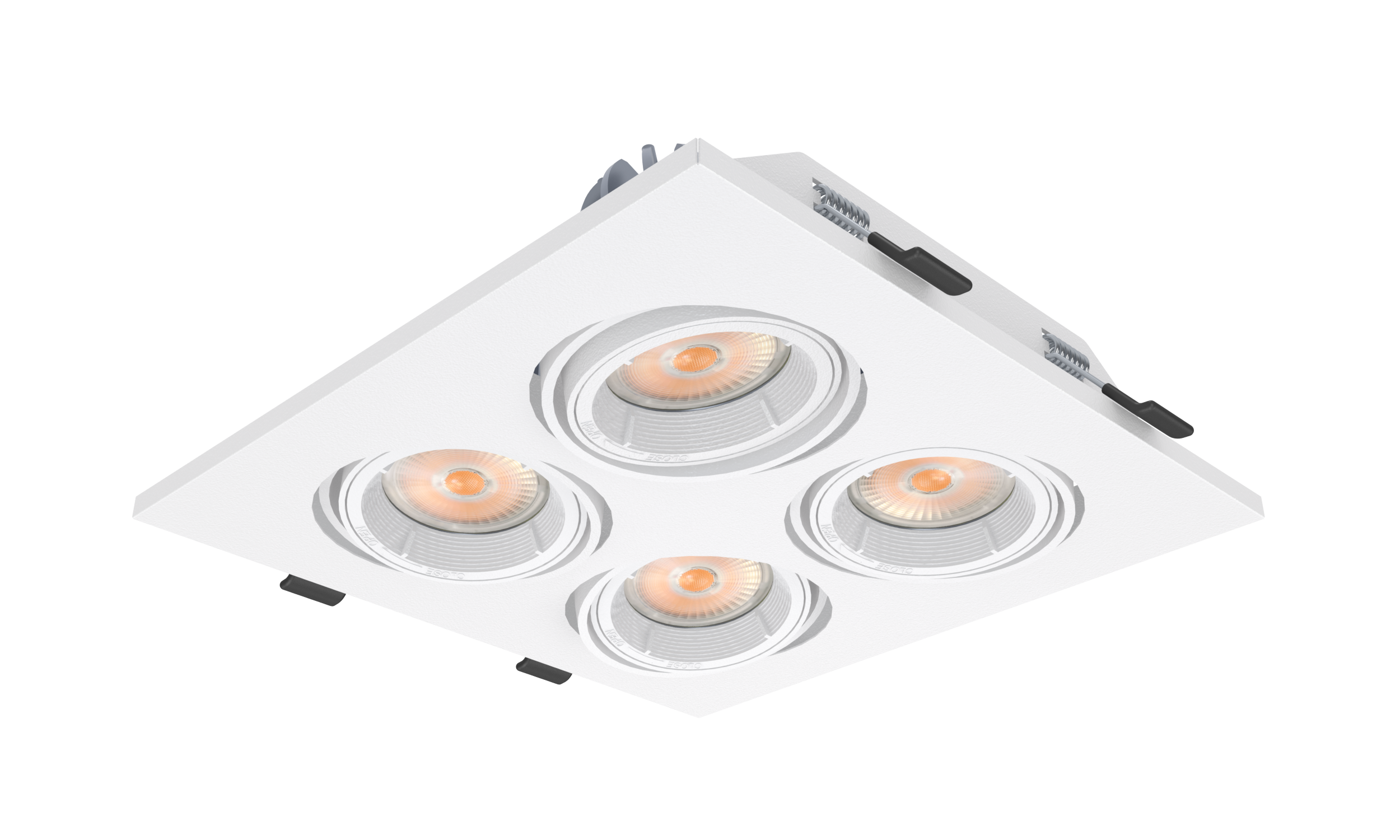

VIP 8MF4	Quad Head	VLD 10/250/40 or VLD 15/350/43	3000K	4000K	6500K	199 mm	199 mm	60 mm	185 mm x 185 mm
