VELR 76/R & VELR 116/R

Emergency Lighting

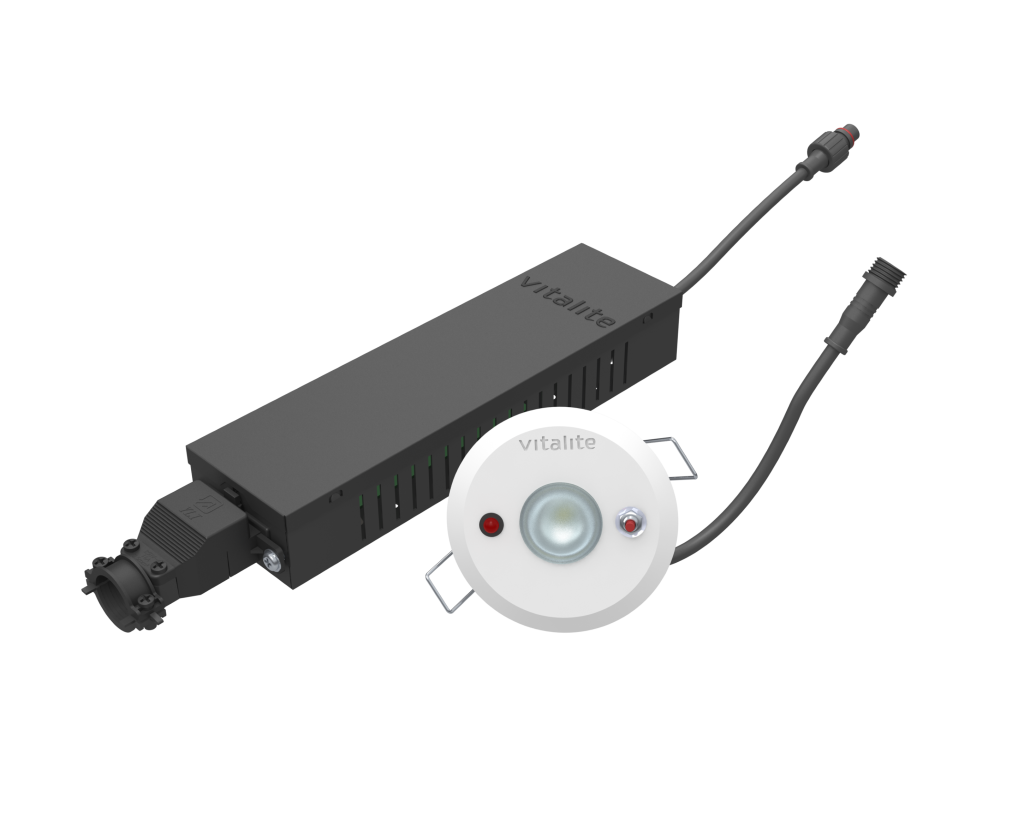

LED EMERGENCY LIGHT (Recessed Type) – VELR 76/N/R & VELR 116/N/R

The VELR 76/N/R and VELR 116/N/R models deliver reliable emergency lighting for demanding environments. Constructed from high-durability mild steel, each unit features an added PC housing that covers all exposed cables and a separate choke box, ensuring neat installation and stable long-term performance. Both models come equipped with premium accessories that meet JKR standards.

Application : Office, School, Laboratory, Hospitals, Factory, Warehouse, Retail Store, Shophouse, Cafes & Restaurants, Hotels, Supermarkets, Shopping Complexes
Certificate : Bomba, SIRIM
Colour : White Texture

Rim Fabricated from Mild Steel
Body Injection Moulded from Polycarbonate
Diffuser Frosted Polycarbonate Diffuser
Wire 105°C Heat Resistance PVC Cable
Connector Nylon 3 Way x 2.5mm2
Finishing Electrostatically Polyester Powder Coated
Mounting Type Recessed Ceiling
Indicator Red
ALWAYS ON
Charging, No fault
INDICATOR LIGHT OFF
Operating on battery mode
Lamp LED 5050 (1PC)
Battery LiFePO4 3.2V / 2.0Ah / 18650
Main Supply (V, Hz) 220~240V, 50/60Hz
Mode of Operation Non-Maintained
System Power (W) 1.5 W
System Current (A) 0.01 A
Power Factor PF ≥ 0.72
Emergency Duration 3 Hours
Recharge Period 15 Hours
Max. Operating Temperature (ta) 40°C
IP Grade IP 20
Classification Class I
Recommended Mounting Height Min. 3 m



Model Product
Weight (Kg)		 Inner Carton Size Outer Carton Size Gross
Weight (Kg)		 Quantity
L W H L W H
VELR 76/N/R 0.39 Kg 229 mm 97 mm 94 mm 476 mm 442 mm 313 mm 16.65 Kg 30 pcs / Carton
VELR 116/N/R 0.44 Kg 229 mm 125 mm 94 mm 652 mm 474 mm 313 mm 18.20 Kg 30 pcs / Carton

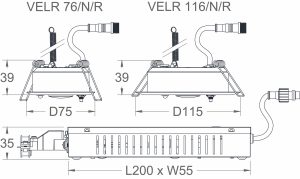

Model Dimension (mm) Cut-Out (mm)
D H D
VELR 76/N/R ⌀75 mm 39 mm ⌀67 mm
VELR 116/N/R ⌀115 mm 39 mm ⌀100 mm



DTS 1:
Data Sheet – VELR 76/N/R & VELR 116/N/R
Download File
File 1:
IES_VELR 76/N/R & VELR 116/N/R
Download File
