VELR 135/S
Emergency Lighting

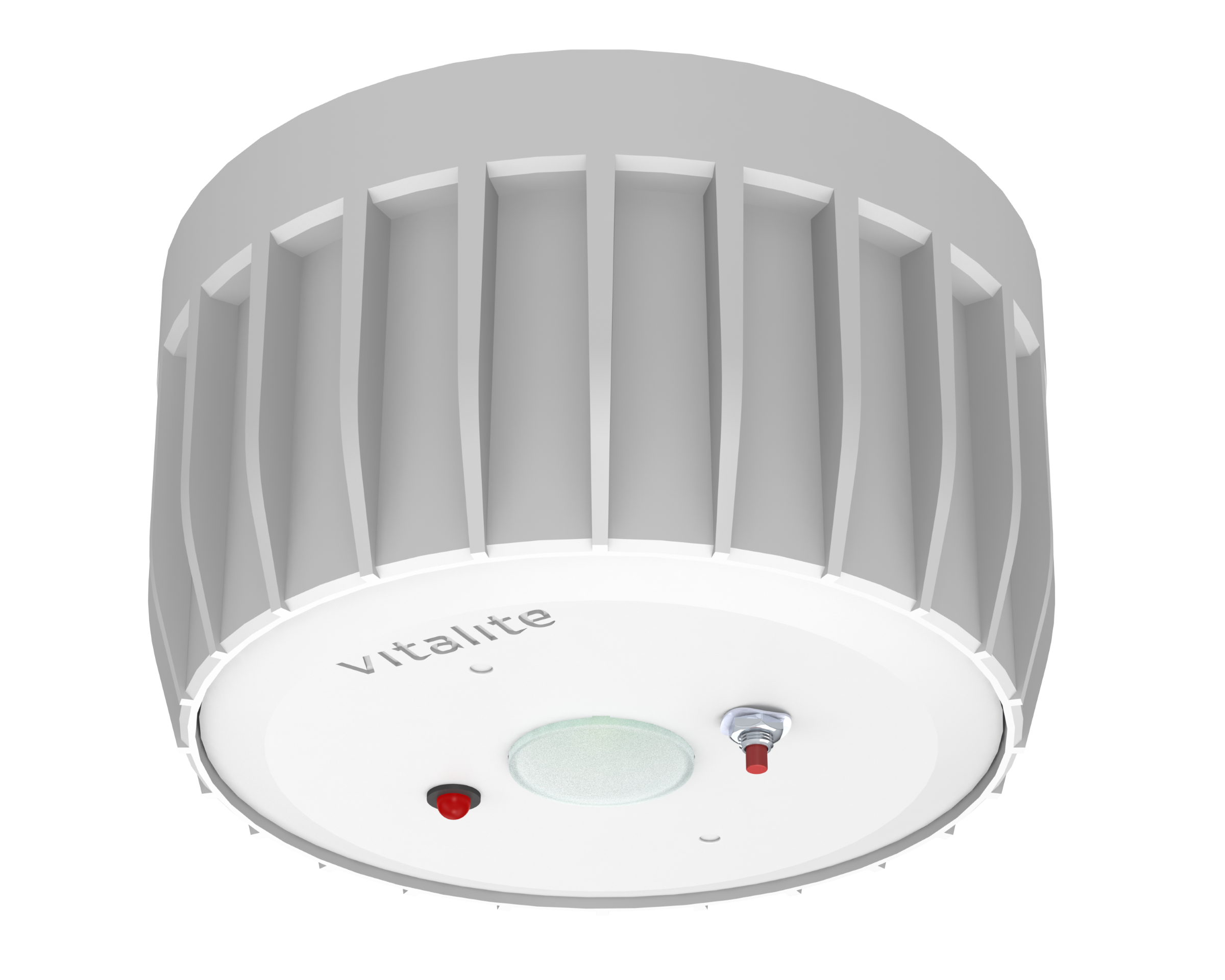

LED EMERGENCY LIGHT (Surface Type) – VELR 135/S
The VELR 135/S surface LED emergency light features a durable exterior with a mild steel rim and polycarbonate housing. It offers high cost-effectiveness, efficiency, and ease of installation, and comes with various certifications for comprehensive safety and reliability.
| Application | : | Office, School, Laboratory, Hospitals, Factory, Warehouse, Retail Store, Shophouse, Cafes & Restaurants, Hotels, Supermarkets, Shopping Complexes |
| Certificate | : | JKR, Bomba, SIRIM |
| Colour | : | White Texture |
| Rim | Fabricated from Mild Steel | |
| Body | Injection Moulded from Polycarbonate | |
| Diffuser | Frosted Polycarbonate Diffuser | |
| Mounting Bracket | Fabricated from Mild Steel | |
| Wire | 105°C Heat Resistance PVC Cable | |
| Connector | Nylon 3 Way x 2.5mm2 | |
| Finishing | (Rim) Electrostatically Polyester Powder Coated (Housing) Smooth PC Finished |
|
| Mounting Type | Surface Ceiling | |
| Indicator | Red | |
 |
ALWAYS ON Charging, No fault |
|
 |
INDICATOR LIGHT OFF Operating on battery mode |
|
| Lamp | LED 3535 (1PC) | |
| Battery | Ni-Cd SC 3.6V 1800mAh | |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Mode of Operation | Non-Maintained |
| System Power (W) | 2.0 W |
| System Current (A) | 0.01 A |
| Power Factor | PF ≥ 0.93 |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Max. Operating Temperature (ta) | 35°C |
| IP Grade | IP 20 |
| Classification | Class I |
| Recommended Mounting Height | Min. 3 m |
| Model | Product Weight (Kg) |
Inner Carton Size | Outer Carton Size | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| VELR 135/S | 0.56 Kg | 145 mm | 145 mm | 85 mm | 440 mm | 298 mm | 460 mm | 17.65 Kg | 30 pcs / Carton |

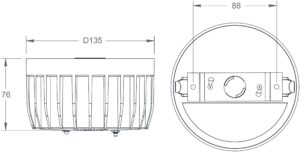

| Model | Dimension (mm) | |
| D | H | |
| VELR 135/S | ⌀135 mm | 76 mm |
