VEL 280/TLS
Emergency Lighting

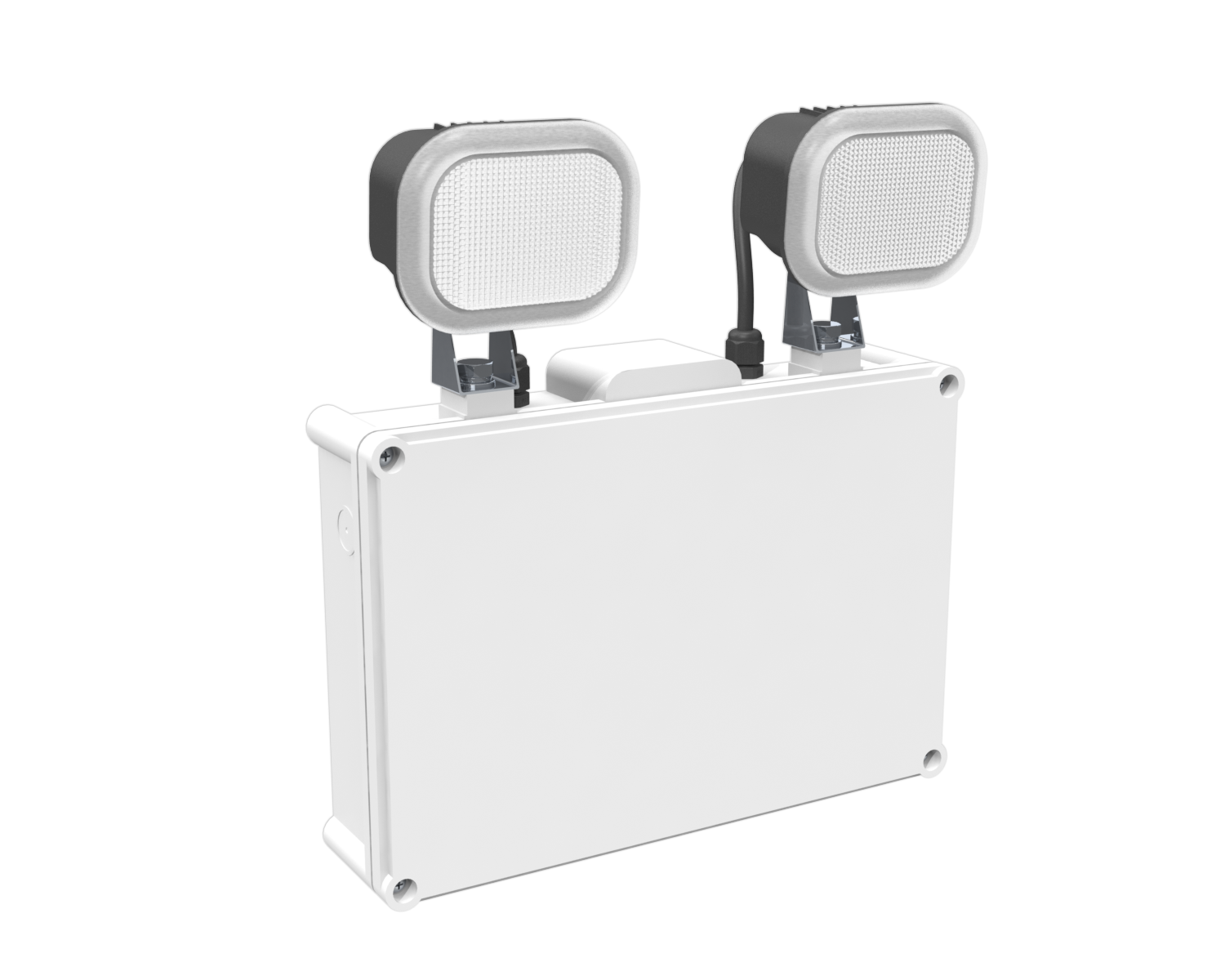

LED EMERGENCY TWIN LAMP SPOTLIGHT (Surface Type – IP65) – VEL 280/TLS
The VEL 280/TLS is a surface-mounted LED emergency twin lamp spotlight designed to withstand harsh environments with its IP65-rated protection. Featuring two powerful, adjustable rectangular light heads, it ensures optimal visibility during power outages. Engineered for durability and superior performance, this spotlight is a vital component of any reliable emergency lighting system.
| Application | : | Office, School, Laboratory, Hospitals, Factory, Warehouse, Retail Store, Shophouse, Cinema, Hotels, Supermarkets, Shopping Complexes |
| Certificate | : | Bomba, SIRIM |
| Colour | : | White |
| Body | Injection Moulded from Polycarbonate | |
| Diffuser | Acrylic Prismatic Diffuser | |
| Lamp Head | 2 x Adjustable Rectangular Shape Lamp Head | |
| Wire | 105°C Heat Resistance PVC Cable | |
| Connector | Nylon 3 Way x 2.5mm2 | |
| Finishing | Matte Finished Housing | |
| Mounting Type | Surface Wall | |
| Indicator | Red | |
 |
ALWAYS ON Charging, No fault |
|
 |
INDICATOR LIGHT OFF Operating on battery mode |
|
| Lamp | LED 2 x 15PCS | |
| Battery | Ni-Cd C 9.6V 2500mAh | |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Mode of Operation | Non-Maintained |
| System Lumen (lm) | 500 lm |
| System Power (W) | 3.2 W |
| System Current (A) | 0.017 A |
| Power Factor | PF ≥ 0.80 |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Max. Operating Temperature (ta) | 50°C |
| IP Grade | IP 65 |
| Classification | Class I |
| Recommended Mounting Height | Min. 3 m |
| Model | Product Weight (Kg) |
Inner Carton Size | Outer Carton Size | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| VEL 280/TLS | 2.08 Kg | 290 mm | 92 mm | 305 mm | 495 mm | 300 mm | 325 mm | 10.40 Kg | 5pcs / Carton |

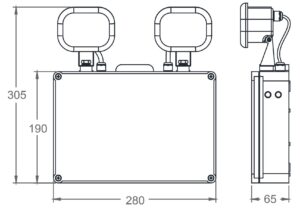

| Model | Dimension (mm) | ||
| L | W | H | |
| VEL 280/TLS | 280 mm | 65 mm | 305 mm |
