VEL 260/N/S
Emergency Lighting

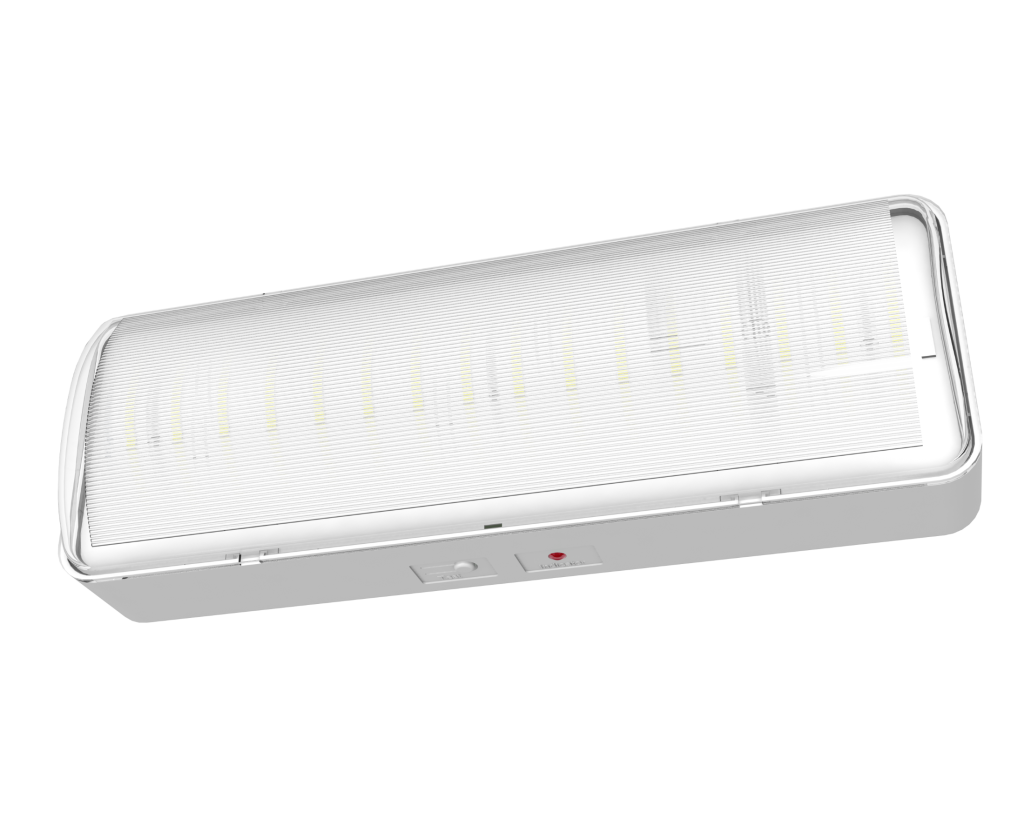

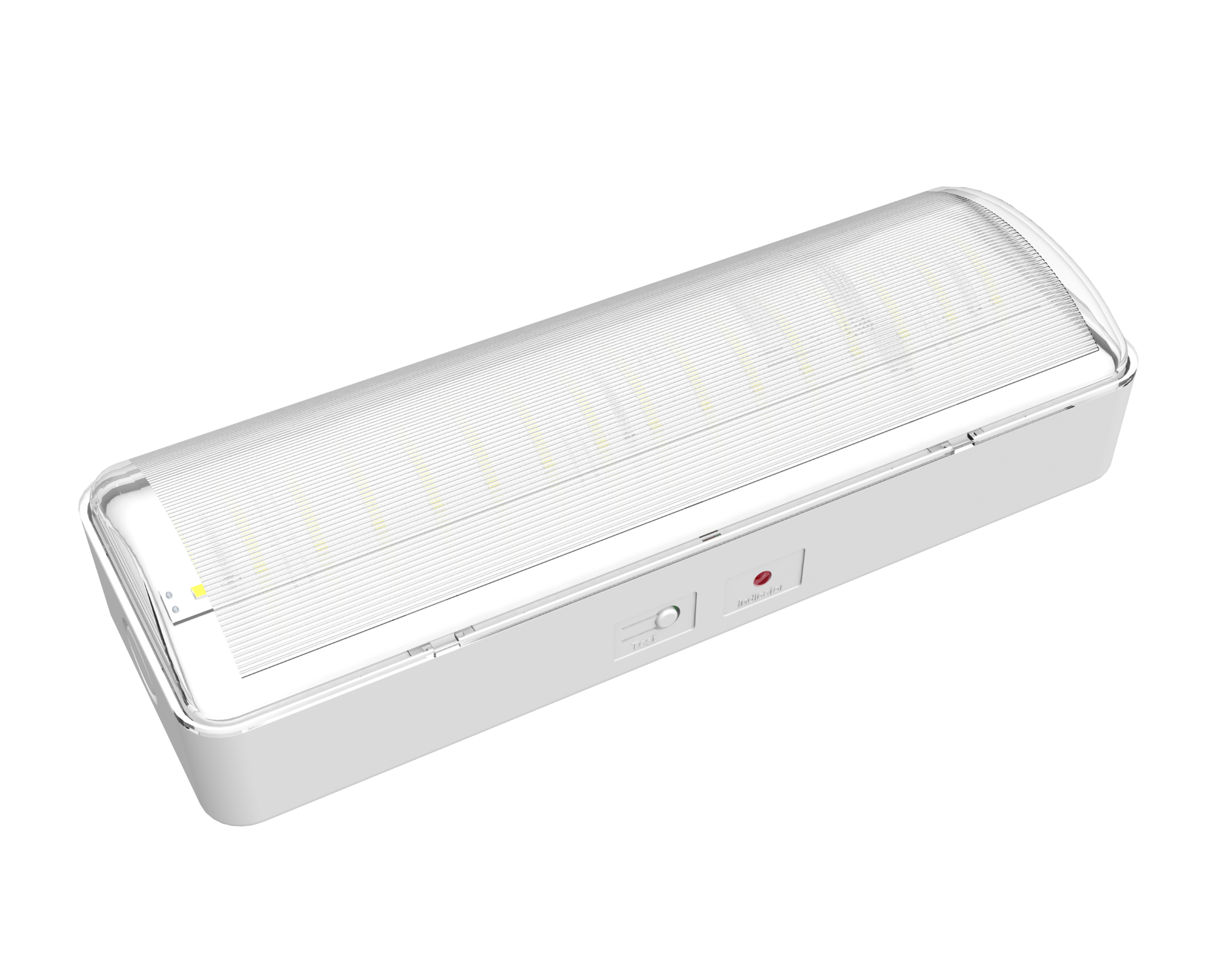

LED EMERGENCY LIGHT (Surface Type) – VEL 260/N/S
VEL 260/N/S, made from durable PC material can be used for anti-corrosive applications. Its elegant design and cost-effective nature make it a high-value option, ensuring robust performance and providing a safe, illuminated path for you.
| Application | : | Office, School, Laboratory, Hospitals, Factory, Warehouse, Retail Store, Shophouse, Cafes & Restaurants, Hotels, Supermarkets, Shopping Complexes |
| Certificate | : | Bomba, SIRIM |
| Colour | : | White Texture |
| Body | Injection Moulded from Polycarbonate | |
| Diffuser | Polycarbonate Clear Linear Diffuser | |
| Gear Tray | Fabricated from Mild Steel | |
| Wire | 105°C Heat Resistance PVC Cable | |
| Connector | Nylon 3 Way x 2.5mm2 | |
| Finishing | Gloss Diffuser Surface with Smooth Finished Housing | |
| Mounting Type | Surface Ceiling, Wall | |
| Indicator | Green | |
 |
ALWAYS ON No fault |
|
 |
FLASHING Charging |
|
 |
INDICATOR LIGHT OFF Operating on battery mode |
|
| Lamp | LED 2835 (16PCS) | |
| Battery | Ni-Cd AA 3.6V 900mAh | |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Mode of Operation | Non-Maintained |
| System Lumen (lm) | 125 lm |
| System Power (W) | 1.5 W |
| System Current (A) | 0.01 A |
| Power Factor | PF ≥ 0.74 |
| Emergency Duration | 3 Hours |
| Recharge Period | 15 Hours |
| Max. Operating Temperature (ta) | 40°C |
| IP Grade | IP 20 |
| Classification | Class I |
| Recommended Mounting Height | Min. 3 m |
| Model | Product Weight (Kg) |
Inner Carton Size | Outer Carton Size | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| VEL 260/N/S | 0.52 Kg | 270 mm | 75 mm | 105 mm | 410 mm | 340 mm | 295 mm | 8.90 Kg | 15pcs / Carton |
| Model | Dimension (mm) | ||
| L | W | H | |
| VEL 260/N/S | 260 mm | 90 mm | 60 mm |
