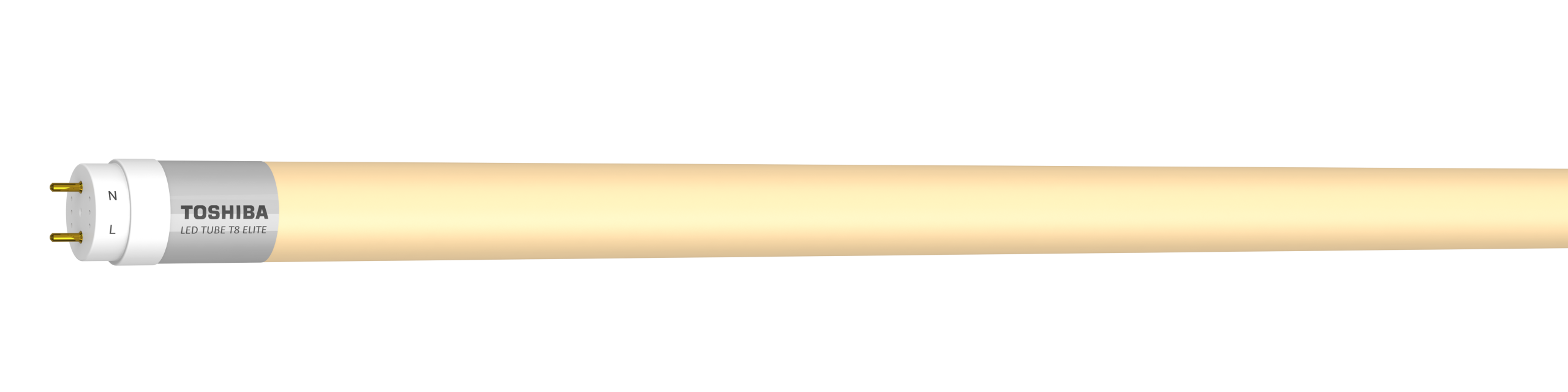

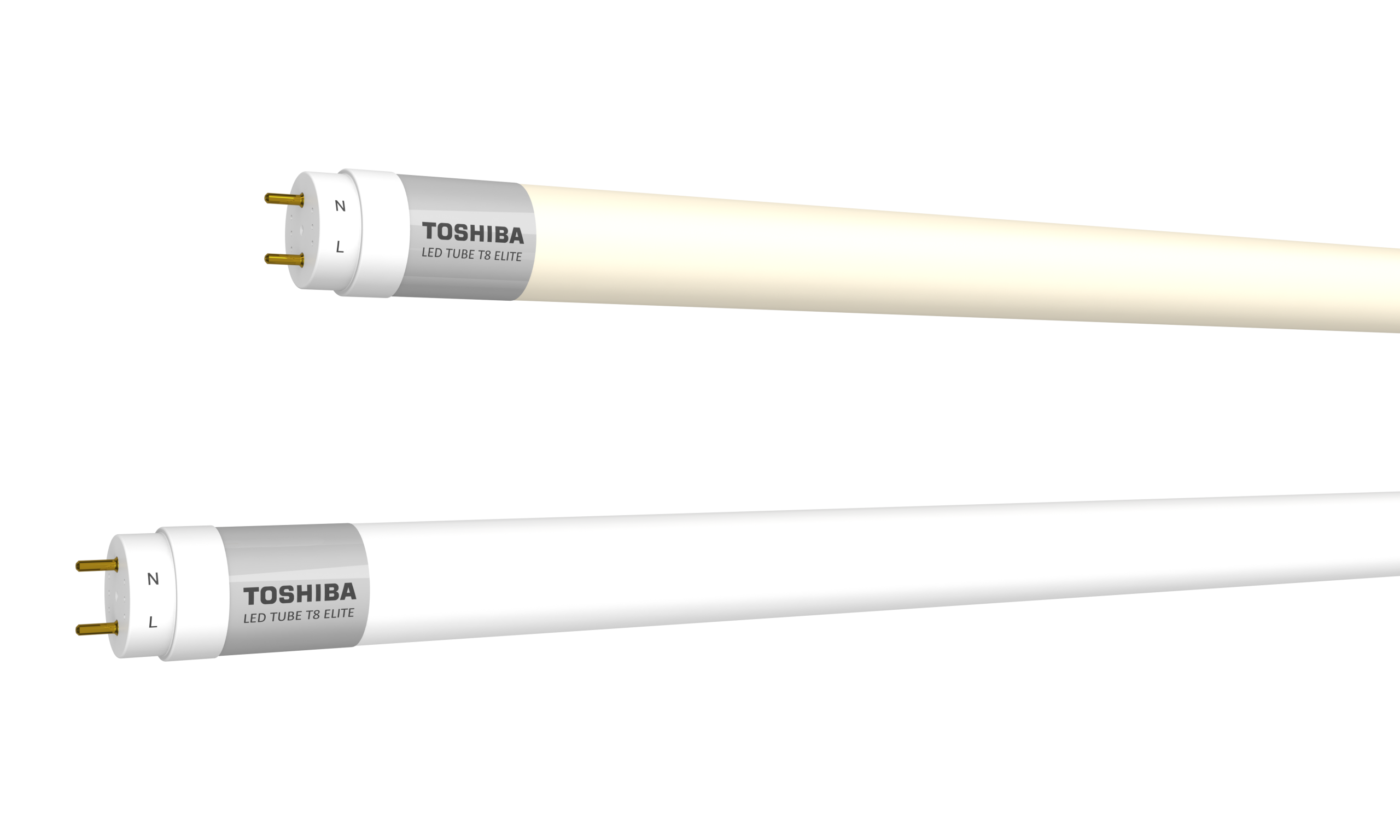

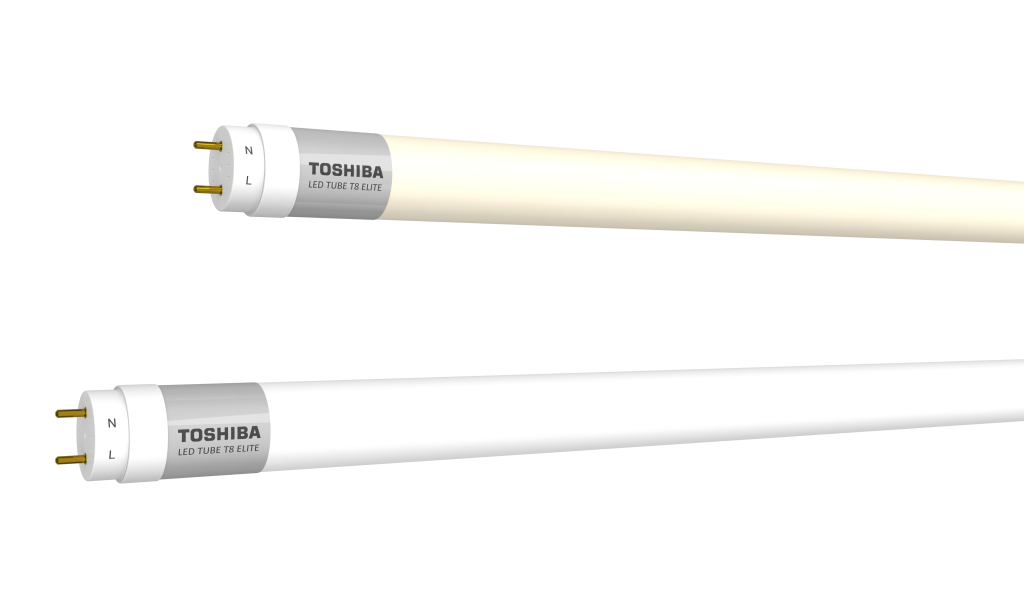

T8 LED Elite Tube – TOSHIBA RLDL038 Series

The Toshiba LED Tube T8 Elite delivers higher lumen output to meet your lighting needs while ensuring greater energy efficiency With its advanced single-end input system, it provides enhanced safety and reliable performance, giving you peace of mind in every application.

Usage Application : T8 LED Luminaires
Certificate : SIRIM, MyHijau, ST, NEA ELS

Body Glass
End Cap Polybutylene Terephthalate (PBT)
Pin Brass
Cap Base G13
Shape Rated T8
Dimmable No
Conformity IEC62776, IEC62471
Wattage Equivalent Fluorescent 18W & 36W
Circuit Diagram
Model RLDL0382J09**G1EX1G RLDL0384J18**G1EX1G
CCT Cool White (4000K) Daylight (6500K) Cool White (4000K) Daylight (6500K)
System Lumen (lm) 1120 1120 2250 2250
System Power (W) 9 9 18 18
System Current (A) 0.043 0.043 0.087 0.087
Efficacy (lm/W) 124 124 125 125
Main Supply (V, Hz) 180~240V, 50/60Hz
IP Grade IP 20
Classification Class I
Power Factor PF ≥ 0.9
Operating Temperature (ta) -20°C ~ 45°C
Rated Lifespan 50,000 hrs
CRI > 80 Ra
SDCM ≤ 6
THD ≤ 20%
Beam Angle 160°
LSF (6,000hrs) 90%
LLMF (6,000hrs) 80.00%



Model Product
Weight (Kg)		 Sleeve Size Carton Size Gross
Weight (Kg)		 Quantity
L W H L W H
RLDL0382J0940G1EX1G 0.090 Kg 600 mm 27.5 mm 27.5 mm 650 mm 195 mm 190 mm 3.0 Kg 25 pcs / Carton
RLDL0382J0965G1EX1G 0.090 Kg 600 mm 27.5 mm 27.5 mm 650 mm 195 mm 190 mm 3.0 Kg 25 pcs / Carton
RLDL0384J1840G1EX1G 0.165 Kg 1200 mm 27.5 mm 27.5 mm 1250 mm 195 mm 190 mm 5.4 Kg 25 pcs / Carton
RLDL0384J1865G1EX1G 0.165 Kg 1200 mm 27.5 mm 27.5 mm 1250 mm 195 mm 190 mm 5.4 Kg 25 pcs / Carton

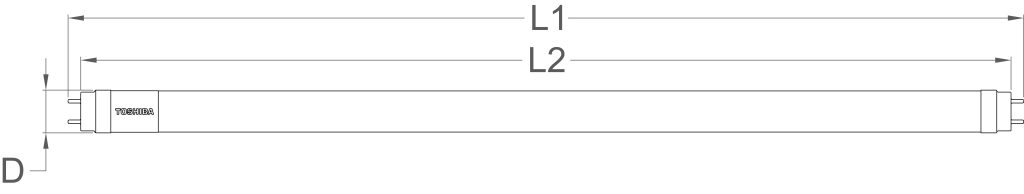

Model Specification Dimension (mm)
Power (W) CCT (K) D L1 L2
RLDL0382J0940G1EX1G 9 W 4000 K ⌀27.6 mm 603 mm 589 mm
RLDL0382J0965G1EX1G 9 W 6500 K ⌀27.6 mm 603 mm 589 mm
RLDL0384J1840G1EX1G 18 W 4000 K ⌀27.6 mm 1212 mm 1198 mm
RLDL0384J1865G1EX1G 18 W 6500 K ⌀27.6 mm 1212 mm 1198 mm
