TOSHIBA LED PAR30 Lamp
Lamps and Tubes

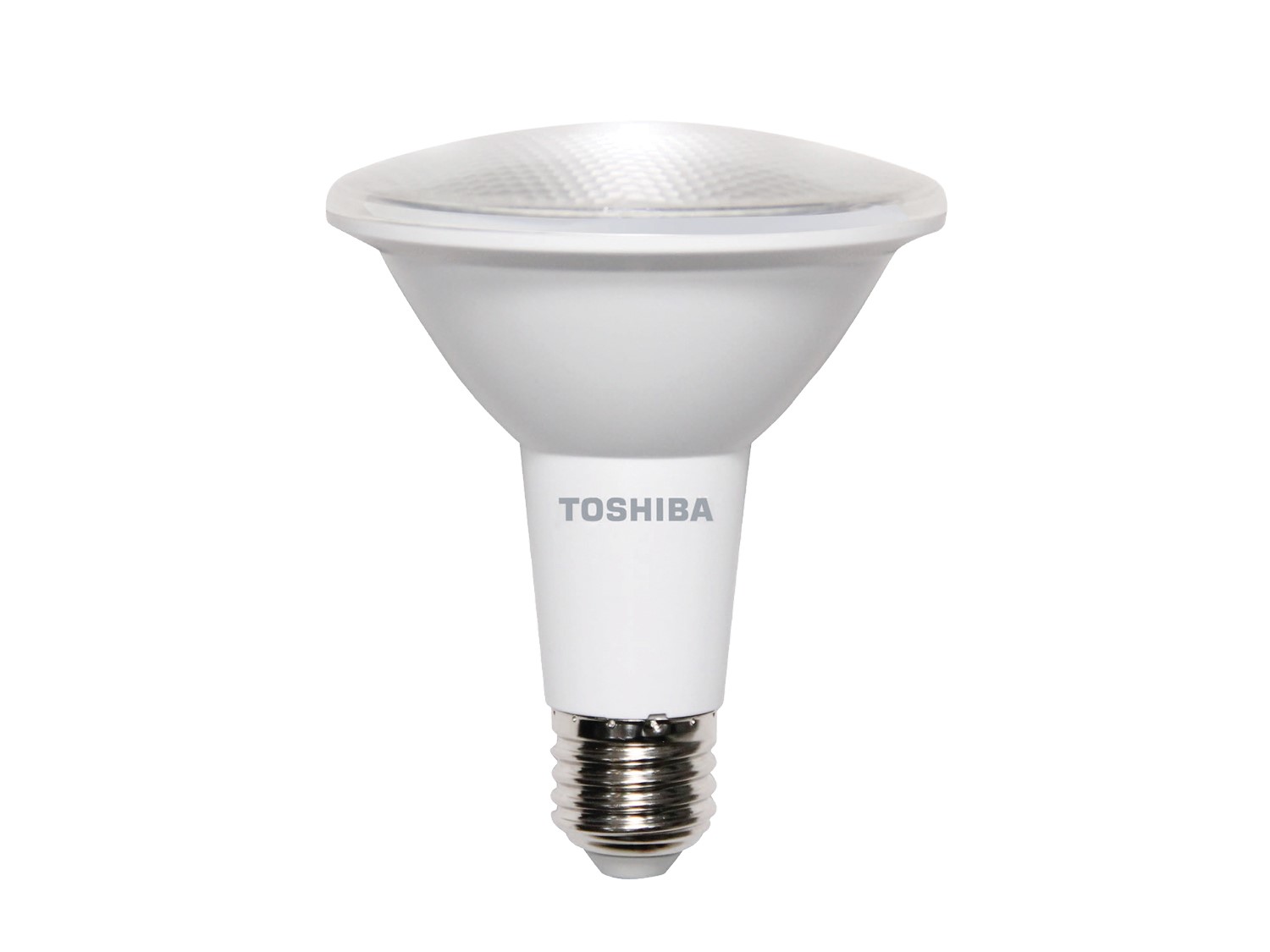

LED PAR30 Lamp – TOSHIBA RLDPC Series
Remarkable and unique area by new Toshiba LED PAR lamp for indoor using such as Building, Restaurant, Departmental store and Gallery or use outdoor with weatherproof socket fixture for Garden, Tree decoration and outdoor landscape.
| Usage Application | : | E27 Fixture |
| Certificate | : | SIRIM, ST |
| Lampshade | Polycarbonate (PC) |
| Body | Polycarbonate (PC) |
| Base | Metal |
| Shape Rated | PAR30 |
| Dimmable | No |
| Conformity | IEC62560, RoHS |
| Wattage Equivalent | Halogen 75W |
| Model | RLDPC1027WE7EX1 | RLDPC1065WE7EX1 |
| Shape | PAR30 | |
| CCT | Warm White (2700K) | Daylight (6500K) |
| System Lumen (lm) | 750 | 800 |
| System Power (W) | 10 | 10 |
| System Current (A) | 0.087 | 0.087 |
| Efficacy (lm/W) | 75 | 80 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |
| IP Grade | IP 65 | |
| Classification | Class I | |
| Power Factor | PF ≥ 0.5 | |
| Operating Temperature (ta) | -20°C ~ 40°C | |
| Rated Lifespan | 25,000 hrs | |
| CRI | > 80 Ra | |
| SDCM | ≤ 6 | |
| Beam Angle | 25° | |
| LSF (6,000hrs) | 90% | |
| LLMF (6,000hrs) | 86.70% | |
| Model | Product | Individual Box Size (mm) | Inner Carton Size (mm) | Outer Carton Size (mm) | Gross | Quantity | ||||||
| Weight (Kg) | L | W | H | L | W | H | L | W | H | Weight (Kg) | ||
| RLDPC1027WE7EX1 | 0.135 Kg | 102 mm | 102 mm | 135 mm | 310 mm | 210 mm | 150 mm | 440 mm | 330 mm | 180 mm | 3.15 Kg | 12 pcs / Carton |
| RLDPC1065WE7EX1 | 0.135 Kg | 102 mm | 102 mm | 135 mm | 310 mm | 210 mm | 150 mm | 440 mm | 330 mm | 180 mm | 3.15 Kg | 12 pcs / Carton |

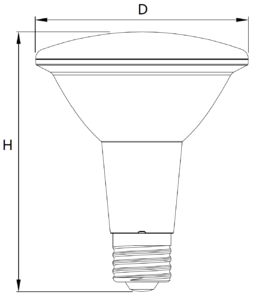

| Model | Specification | Dimension (mm) | |||
| Shape | Power (W) | CCT (K) | D | H | |
| RLDPC1027WE7EX1 | PAR30 | 10 W | 2700 K | ⌀95 mm | 119 mm |
| RLDPC1065WE7EX1 | 10 W | 6500 K | ⌀95 mm | 119 mm | |
