TOSHIBA LED High Watt T-Lamp
Lamps and Tubes
LED High Wattage T Lamp – TOSHIBA RLDTK Series
LED High Watt T-Lamp suitable to install in high area of factory or warehouse, replaceable with lowbay fixtures which could be used in restaurant, night market, retail store, comes with advantage heat reducing system and surge protection.
| Usage Application | : | E27 Fixture |
| Certificate | : | SKEM |
| Lampshade | Polycarbonate (PC) |
| Body | Polyamide (PA) |
| Base | Aluminium Nickel |
| Shape Rated | T100 – 30W T120 – 40W T140 – 50W |
| Dimmable | No |
| Conformity | IEC62560, IEC62471 |
| Wattage Equivalent | Incandescent 200W, 290W & 360W |
| Model | RLDTK3065E7EX1 | RLDTK4065E7EX1 | RLDTK5065E7EX1 |
| Shape | T100 | T120 | T140 |
| CCT | Daylight (6500K) | ||
| System Lumen (lm) | 3300 | 4400 | 5500 |
| System Power (W) | 30 | 40 | 50 |
| System Current (A) | 0.261 | 0.348 | 0.435 |
| Efficacy (lm/W) | 110 | 110 | 110 |
| Main Supply (V, Hz) | 170~240V, 50/60Hz | ||
| IP Grade | IP 20 | ||
| Classification | Class I | ||
| Power Factor | PF ≥ 0.5 | ||
| Operating Temperature (ta) | -20°C ~ 40°C | ||
| Rated Lifespan | 15,000 hrs | ||
| CRI | > 80 Ra | ||
| SDCM | ≤ 6 | ||
| Beam Angle | 200° | ||
| Model | Product Weight (Kg) |
Individual Box Size (mm) | Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| RLDTK3065E7EX1 | 0.150 Kg | 103 mm | 103 mm | 180 mm | 437 mm | 329 mm | 200 mm | 1.27 Kg | 12 pcs / Carton |
| RLDTK4065E7EX1 | 0.211 Kg | 122 mm | 122 mm | 210 mm | 513 mm | 386 mm | 230 mm | 1.80 Kg | 12 pcs / Carton |
| RLDTK5065E7EX1 | 0.296 Kg | 141 mm | 141 mm | 230 mm | 589 mm | 443 mm | 250 mm | 2.41 Kg | 12 pcs / Carton |

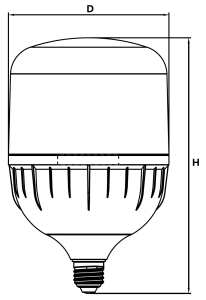

| Model | Specification | Dimension (mm) | |||
| Shape | Power (W) | CCT (K) | D | H | |
| RLDTK3065E7EX1 | T100 | 30 W | 6500 K | ⌀100 mm | 165 mm |
| RLDTK4065E7EX1 | T120 | 40 W | ⌀118 mm | 196 mm | |
| RLDTK5065E7EX1 | T140 | 50 W | ⌀138 mm | 221 mm | |
