TOSHIBA LED GU10 (Gen 1)
Lamps and Tubes

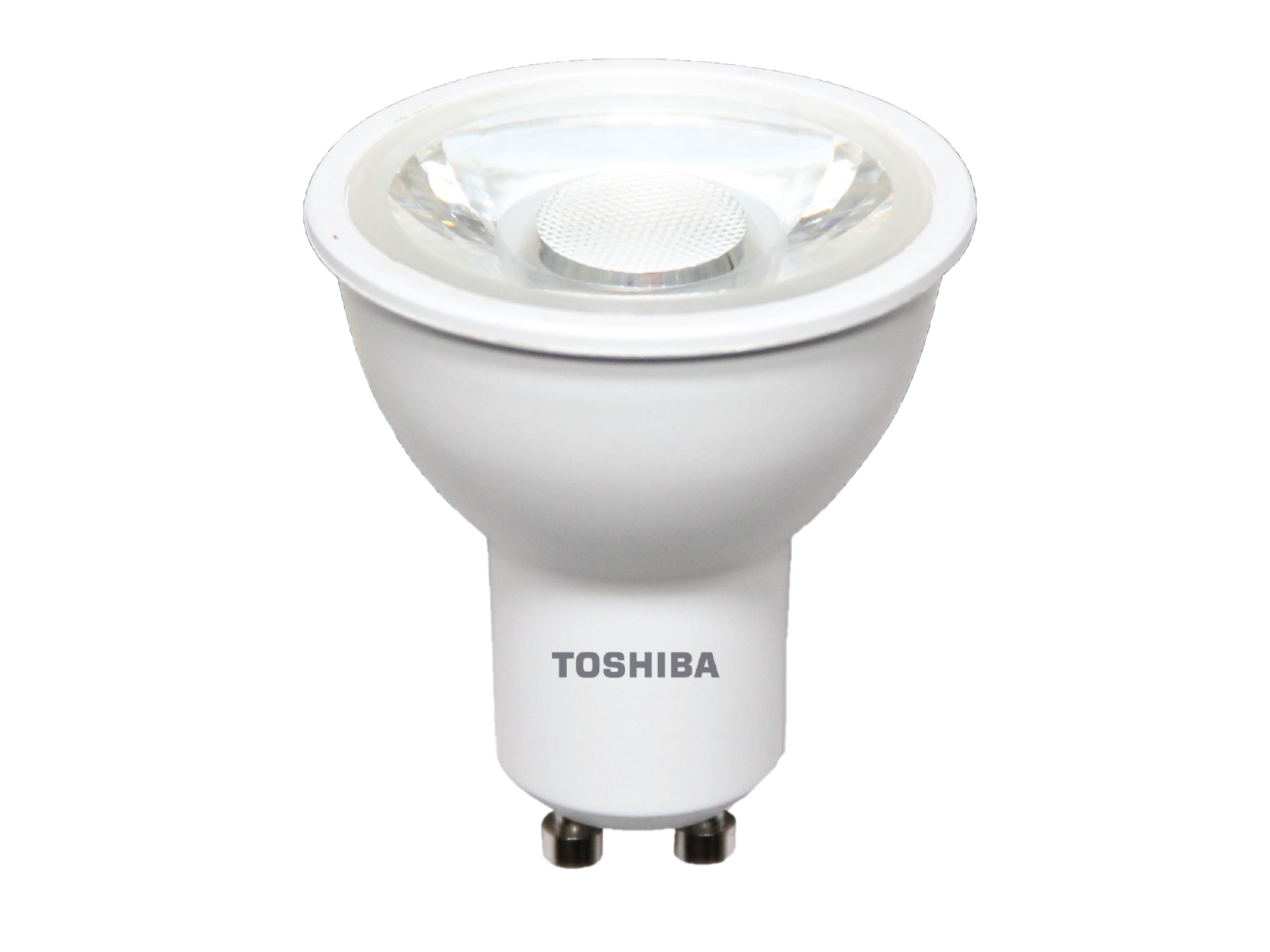

LED GU10 – TOSHIBA RLDMC Series
Outstanding reflector lamp design with narrow beam angle 24 degree. Compatible with EU standard GU10 fixture. It is perfect product to replace any halogen lamp and saves up to 86% energy consumption. The range of different colour temperatures will adapt to any installation requirement.
| Usage Application | : | GU10 Fixture |
| Certificate | : | SNI |
| Lampshade | Polycarbonate (PC) |
| Body | Polybutylene (PBT) |
| Base | Metal |
| Shape Rated | MR16 – GU10 |
| Dimmable | No |
| Conformity | IEC62560, IEC62471, IEC62493, RoHS |
| Wattage Equivalent | Incandescent 35W & 50W |
| Model | RLDMC05273U1EX1 | RLDMC08273U1EX1 |
| Base | GU10 | |
| CCT | Warm White (2700K) | |
| System Lumen (lm) | 380 | 600 |
| System Power (W) | 5 | 7.5 |
| System Current (A) | 0.040 | 0.065 |
| Efficacy (lm/W) | 76 | 80 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |
| IP Grade | IP 20 | |
| Classification | Class I | |
| Power Factor | PF ≥ 0.5 | |
| Operating Temperature (ta) | -20°C ~ 40°C | |
| Rated Lifespan | 15,000 hrs | |
| CRI | > 80 Ra | |
| SDCM | ≤ 6 | |
| Beam Angle | 36° | |
| LSF (6,000hrs) | 90% | |
| LLMF (6,000hrs) | 86.7% | |
| Model | Product Weight (Kg) |
Individual Box Size (mm) | Inner Carton Size (mm) | Outer Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||||||
| L | W | H | L | W | H | L | W | H | ||||
| RLDMC05274U1EX1 | 0.046 Kg | 51 mm | 51 mm | 62 mm | 267 mm | 108 mm | 67 mm | 277 mm | 232 mm | 158 mm | 3.20 Kg | 40 pcs / Carton |
| RLDMC08274U1EX1 | 0.046 Kg | 51 mm | 51 mm | 62 mm | 267 mm | 108 mm | 67 mm | 277 mm | 232 mm | 158 mm | 3.20 Kg | 40 pcs / Carton |
| Model | Specification | Dimension (mm) | ||||
| Shape | Power (W) | CCT (K) | D | D2 | H | |
| RLDMC05274U1EX1 | GU10 | 5 W | 2700 K | ⌀50 mm | ⌀22 mm | 57 mm |
| RLDMC08274U1EX1 | 7.5 W | 2700 K | ⌀50 mm | ⌀22 mm | 57 mm | |
