OS50-COB-1200-9xx-xxD
Lamps and Tubes

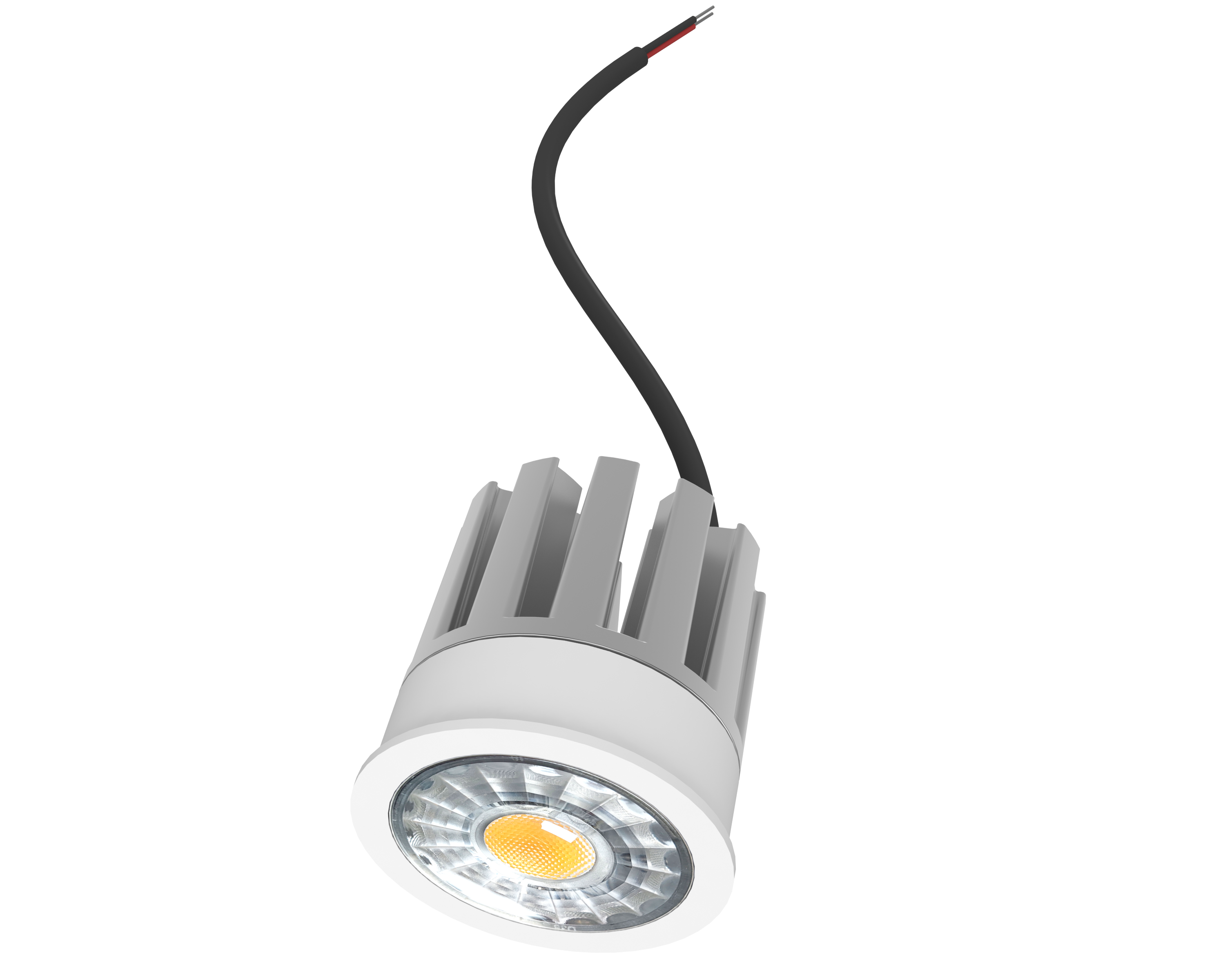

LED OS50 Module – OS50-COB-1200-9xx-xxD
The OS50-COB-1200-9xx-xxD is a high-performance LED module from the OS50 series, featuring an integrated die-cast heatsink and available with various lens angles for tailored illumination.
| Usage Application | : | MR16 Fitting |
| Certificate | : | Nil |
| Colour | : | White + Grey |
| Body | Polycarbonate (PC) |
| Heatsink | Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Polycarbonate (PC) Optical Lens |
| Finishing | Smooth Finished Housing |
| Recommended LED Driver | 250mA 1) TRIDONIC LC 10/250/42 fixC SC ADV2 2) TRIDONIC LC 10/150-250/42 flexC SC SNC4 3) VITALITE VLD 10/250/40350mA 1) TRIDONIC LC 15/350/42 fixC SC ADV2 2) TRIDONIC LC 17/250-400/42 fixC SC SNC2 3) VITALITE VLD 15/350/43 |
| Lamp | OSRAM LED COB 1204 |
| Suitable Luminaires | 1) OS 8MR Series 2) VIP 8MF Series 3) OS 224 Series 4) OS 03 Series |
| Model | OS50-COB-1200-9xx-xxD | |
| Input Current (mA) | 250 mA | 350 mA |
| Luminous Flux (lm) | 900 lm | 1200 lm |
| Power (W) | 8.3 W | 11.8 W |
| Efficacy (lm/W) | 108 lm/W | 102 lm/W |
| Voltage (V) | 33.2 V | 33.6 V |
| IP Grade | IP 20 | |
| Operating Temperature (ta) | 0°C ~ 35°C | |
| Max. Casing Temperature (tc) | 90°C | |
| Rated Lifespan | 50,000 hrs | |
| CRI | > 90 Ra | |
| SDCM | ≤ 3 | |
| Beam Angle | 24° / 45° | |
| Available CCT | Warm White (3000K), Cool White (4000K) | |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS50-COB-1200-9xx-xxD | 0.88 Kg | 80 mm | 80 mm | 80 mm | 1.00 Kg | 1 pc / Carton |

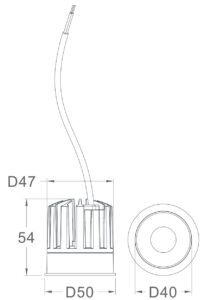

| Model | CCT (K) | Lens | Dimension (mm) | |
| D | H | |||
| OS50-COB-1200-930-24D | 3000K | 24° | ⌀50 mm | 54 mm |
| OS50-COB-1200-930-45D | 45° | |||
| OS50-COB-1200-940-24D | 4000K | 24° | ||
| OS50-COB-1200-940-45D | 45° | |||
