OS YWG Series
Indoor Luminaries

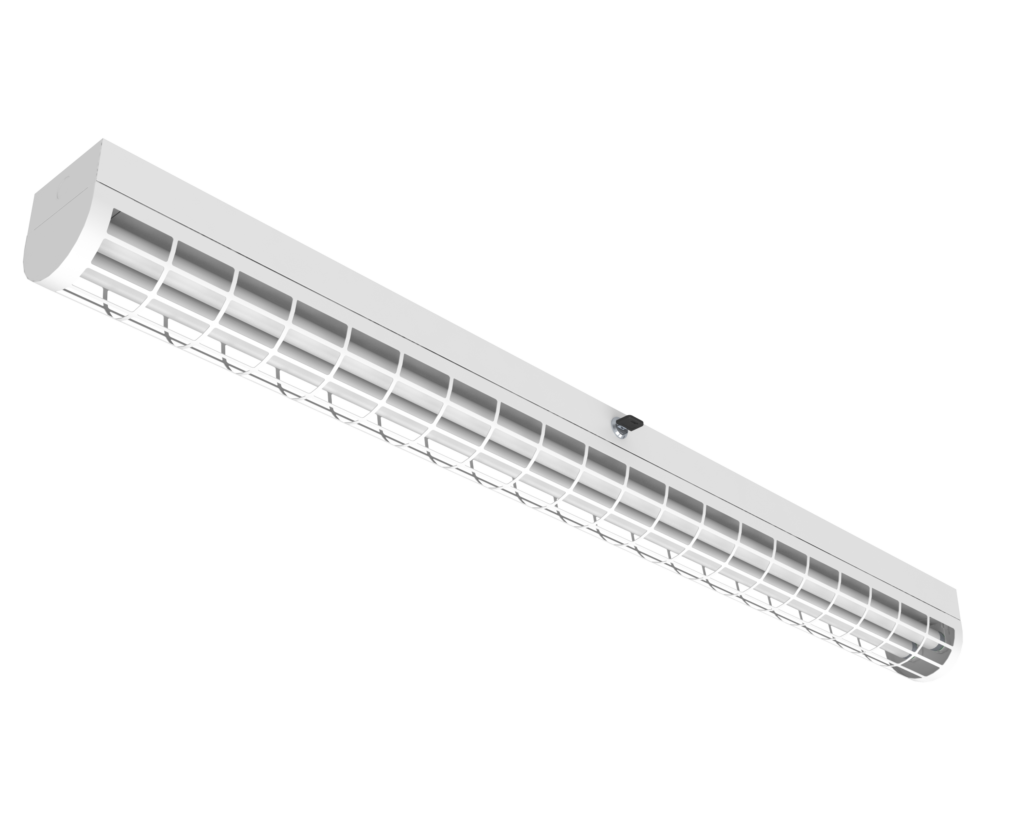

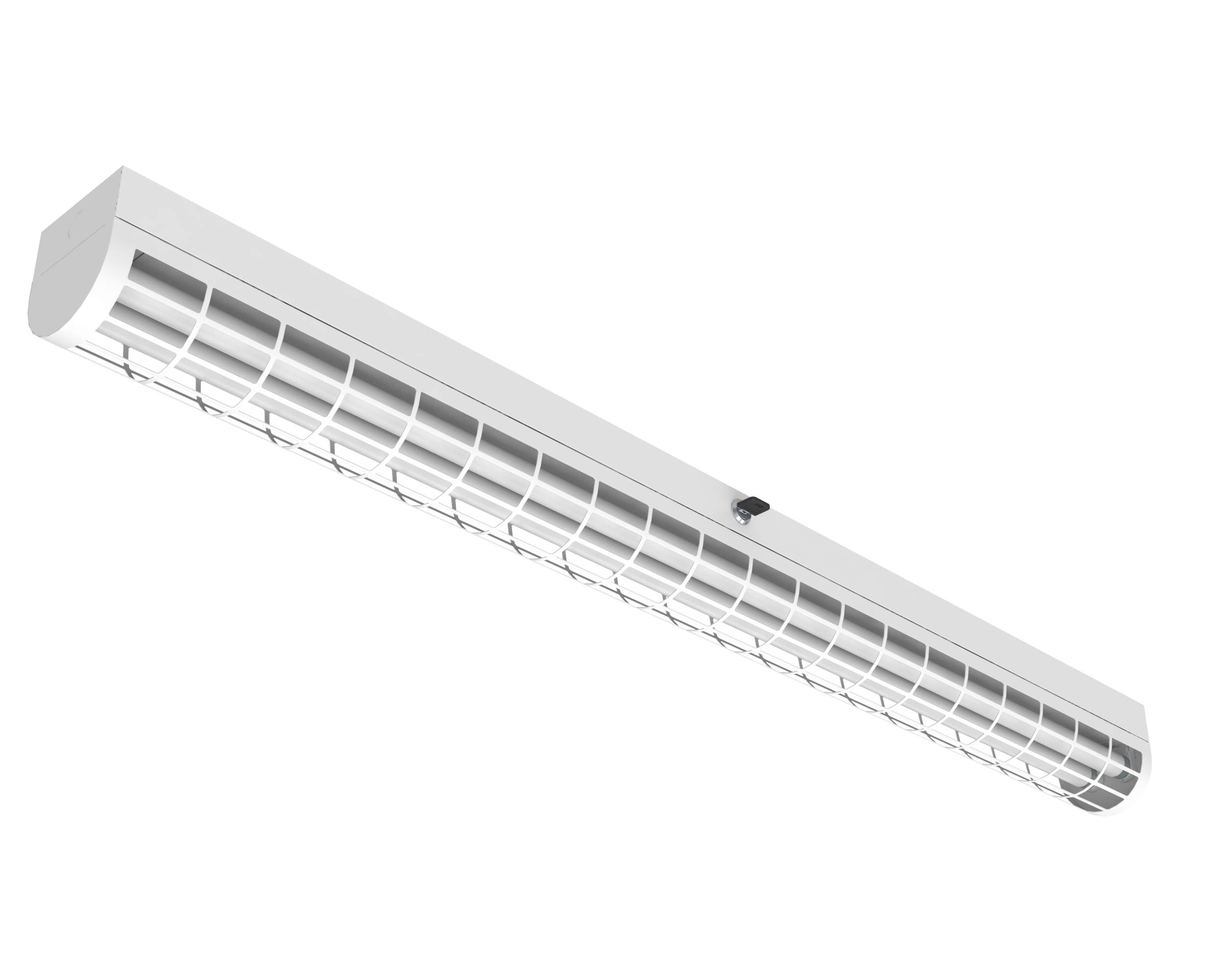

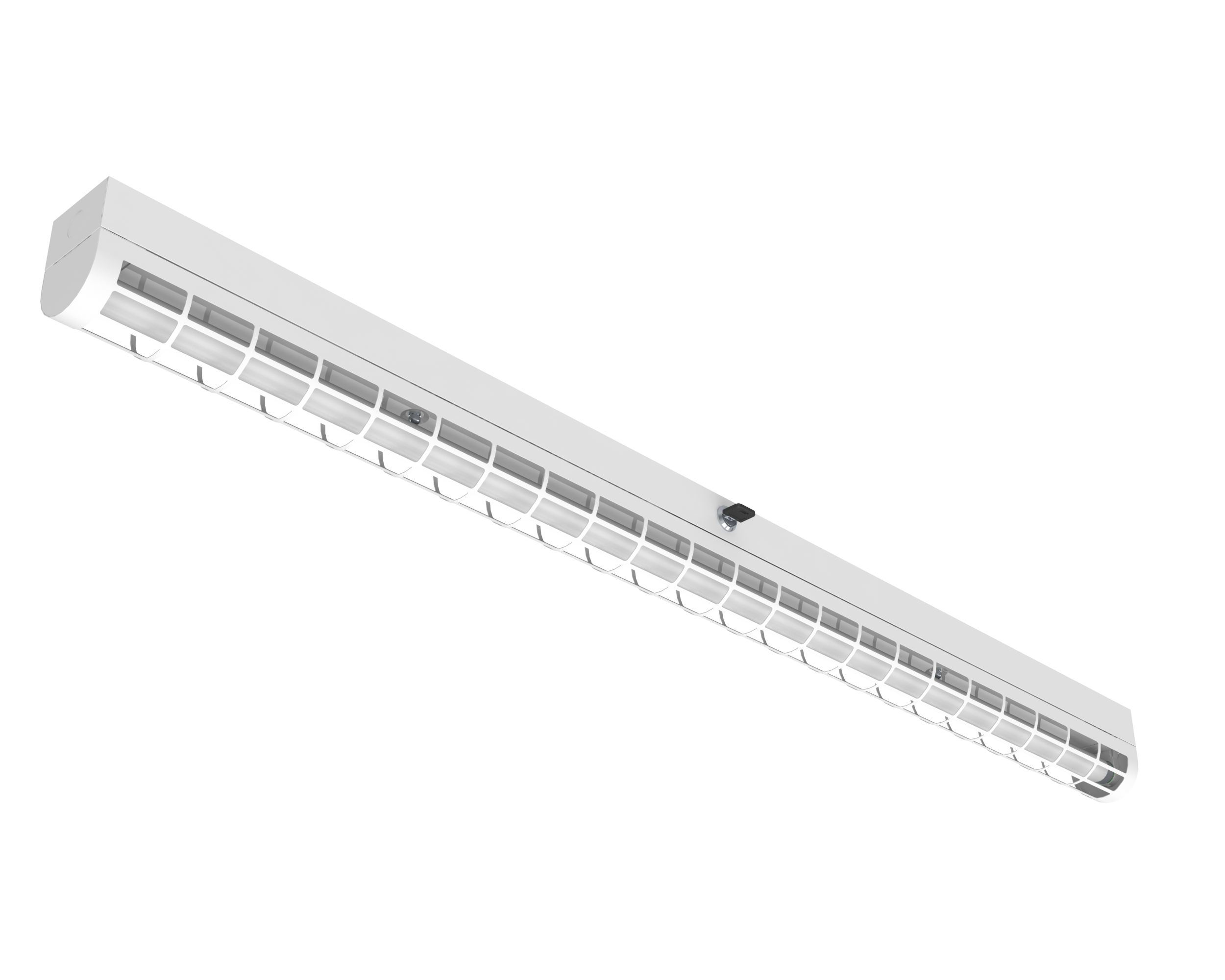

T8 LED WIRE GUARD FITTING – OS YWG Series
Introducing the OS YWG series wireguard fitting, equipped with a key lock set to deter theft and vandalism. Specifically designed for public spaces, it provides enhanced tube security and vandal resistance, offering peace of mind and robust protection.
| Application | : | Car Parks, Laboratory, Hospitals, Factory, Warehouse, Public Toilets, Workshops, Corridors, Common Areas |
| Certificate | : | JKR, MyHijau, SIRIM, ST |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.5mm) |
| Guard | Fabricated from Perforated Mild Steel |
| Lock Type | Built-In Cam Lock with key |
| Lampholder | Polycarbornate and Bronze Lampholder |
| Wire | 105⁰C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall / Suspension |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Carton Size | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS YWG 1 x 600mm | 0.95 Kg | 1240 mm | 78 mm | 100 mm | 2.15 Kg | 2pcs / Carton |
| OS YWG 2 x 600mm | 1.25 Kg | 1250 mm | 110 mm | 120 mm | 2.80 Kg | 2pcs / Carton |
| OS YWG 1 x 1200mm | 1.70 Kg | 1240 mm | 78 mm | 100 mm | 1.90 Kg | 1pc / Carton |
| OS YWG 2 x 1200mm | 2.10 Kg | 1250 mm | 110 mm | 120 mm | 2.35 Kg | 1pc / Carton |
| Model | Luminaires | Dimension (mm) | ||||
| No. of Lamp | Type | Base | L | W | H | |
| OS YWG 1 x 600mm | 1 | Wire Guard | G13 | 612 mm | 68 mm | 92 mm |
| OS YWG 2 x 600mm | 2 | Wire Guard | G13 | 612 mm | 100 mm | 106 mm |
| OS YWG 1 x 1200mm | 1 | Wire Guard | G13 | 1222 mm | 68 mm | 92 mm |
| OS YWG 2 x 1200mm | 2 | Wire Guard | G13 | 1222 mm | 100 mm | 106 mm |
| T8 LED Tube | T8 LED Tube | Powerpack | |
 |
 |
 |
|
| TOSHIBA PRO TUBE RLDL028 | TOSHIBA GLASS TUBE RLDL8 | VITALITE VEL 120/ECK |
