T8 LED DIFFUSED BATTEN FITTING – OS YWD Series

The OS YWD Series T8 LED Diffused Batten Fitting features an AA-12 prismatic diffuser, designed to optimize light distribution while minimizing glare. This precise prismatic design enhances the overall brightness and clarity of the T8 LED tube, providing efficient, even lighting for a variety of spaces. The fitting’s sleek and durable construction ensures easy installation and long-lasting performance, making it a versatile choice for both commercial and residential applications.

Application	:	Office, School, Laboratory, Hospitals, Factory, Warehouse, Restaurants, Public Toilets, Supermarkets, Shopping Complexes, Workshops, Corridors
Certificate	:	Nil
Colour	:	Smooth White

Specification
Technical Data
Packaging Information
Order Information
Optional
Datasheets
IES Files

Body	Fabricated from Mild Steel (Thickness: 0.5mm)
Diffuser	AA-12 Acrylic Prismatic Diffuser
End Cap	Polycarbonate (PC) in White
Lampholder	Polycarbonate and Bronze Lampholder
Wire	105°C Heat Resistance PVC Cable
Connector	Nylon 3 Way x 2.5mm²
Finishing	Electrostatically Polyester Powder Coated
Mounting Type	Surface Ceiling / Wall / Suspension
Lamp	T8 LED Tube

Main Supply (V, Hz)	220~240V, 50/60Hz
Base	G13
IP Grade	IP 20
Classification	Class I

Model	Product Weight (Kg)	Carton Size			Gross Weight (Kg)	Quantity
Model	Product Weight (Kg)	L	W	H	Gross Weight (Kg)	Quantity
OS YWD 120/LED	Kg	mm	mm	mm	Kg	2 pcs / Carton
OS YWD 220/LED	Kg	mm	mm	mm	Kg	1 pcs / Carton
OS YWD 140/LED	Kg	mm	mm	mm	Kg	2 pcs / Carton
OS YWD 240/LED	Kg	mm	mm	mm	Kg	1 pcs / Carton

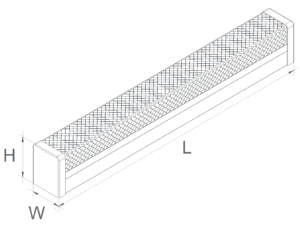

Model	Luminaires				Dimension (mm)
Model	No. of Lamp	Type	Diffuser	Base	L	W	H

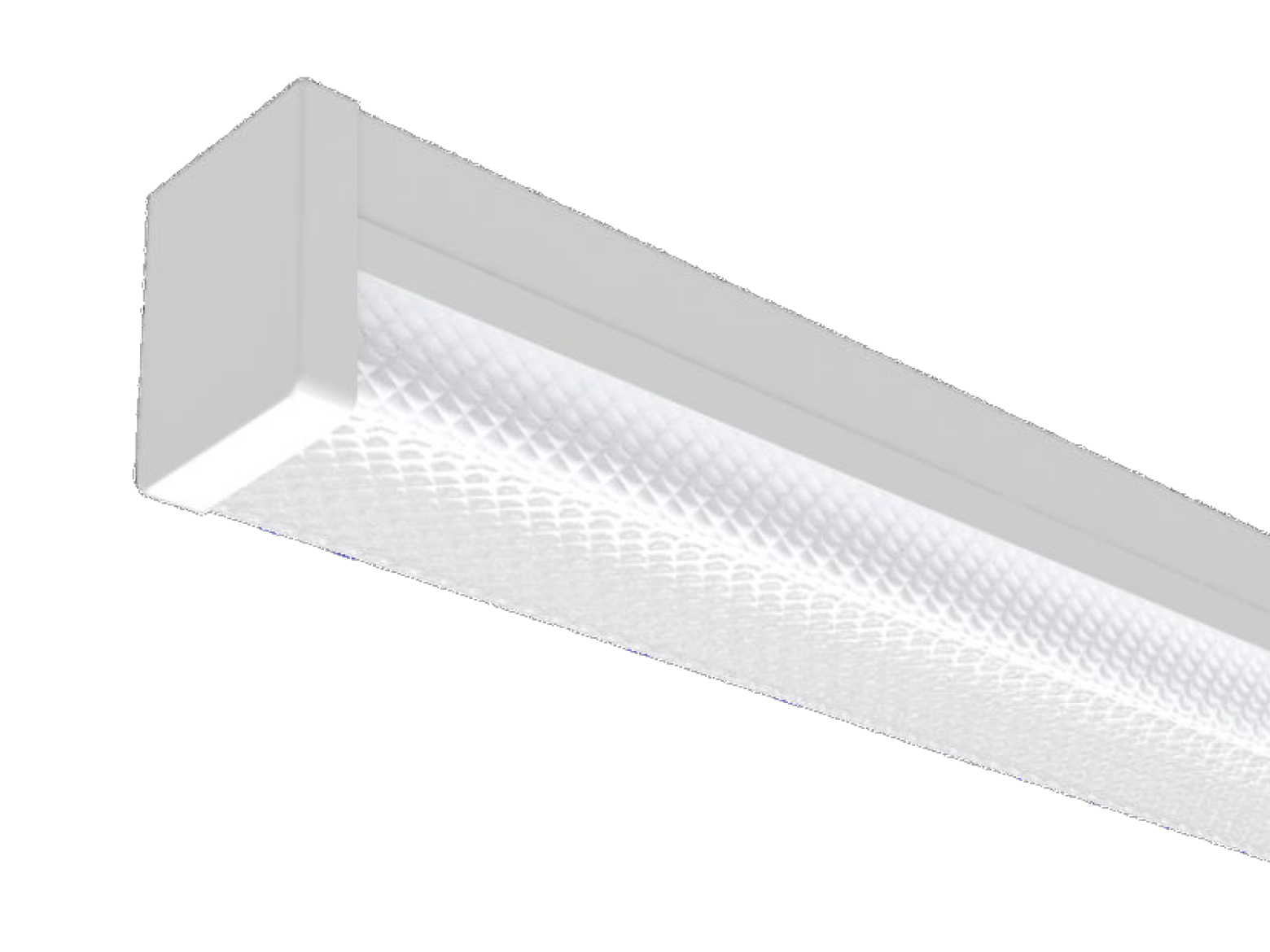

OS YWD 120/LED	1	Daikon	AA-12 Prismatic	G13	616 mm	69 mm	90 mm

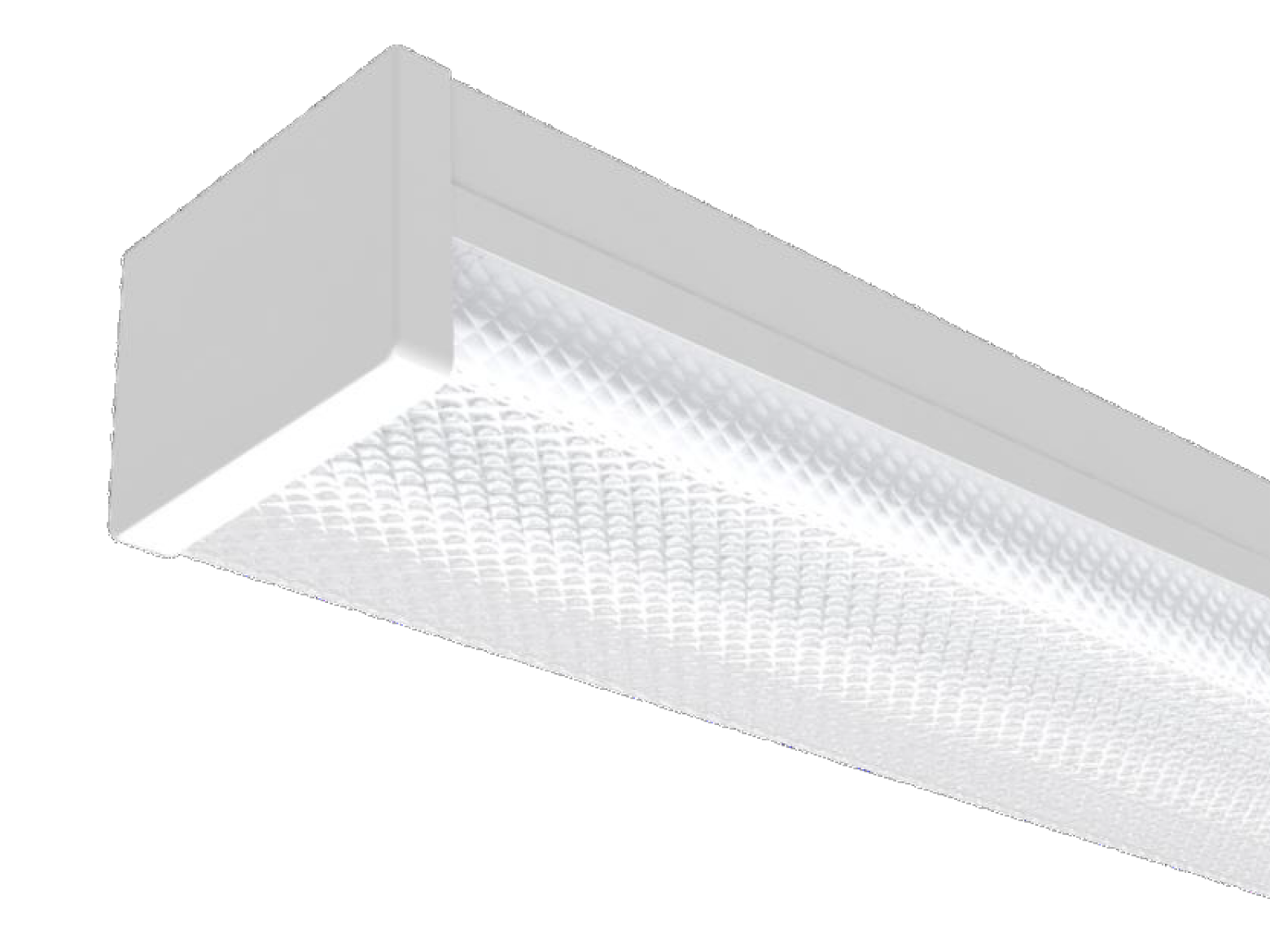

OS YWD 220/LED	2	Daikon	AA-12 Prismatic	G13	616 mm	124 mm	90 mm
OS YWD 140/LED	1	Daikon	AA-12 Prismatic	G13	1227 mm	69 mm	90 mm
OS YWD 240/LED	2	Daikon	AA-12 Prismatic	G13	1227 mm	124 mm	90 mm
