OS YML/RP Series (Recessed Plaster)

Indoor Luminaries

T8 LED MIRROR LOUVRE FITTING (Recessed Plaster) – OS YML/RP Series

Discover the durability and lasting elegance of the OS YML Series, boasting anodized louvres for superior resilience. Fabricated with thicker materials, it effortlessly merges strength with refined design.

Application	:	Office, School, Laboratory, Hospitals, Libraries, Supermarkets, Shops
Certificate	:	JKR, MyHijau, SIRIM, ST
Colour	:	Smooth White

Specification
Technical Data
Packaging Information
Order Information
Optional
Datasheets
IES Files

Body	Fabricated from Mild Steel (Thickness: 0.5mm)
Louvres	Specular Anodized Aluminium
Cross Bar	Matte Anodized Aluminium
Lampholder	Polycarbonate and Bronze Lampholder
Wire	105°C Heat Resistance PVC Cable
Connector	Nylon 3 Way x 2.5mm²
Finishing	Electrostatically Polyester Powder Coated
Mounting Type	Recessed Plaster Ceiling
Lamp	T8 LED Tube

Main Supply (V, Hz)	220~240V, 50/60Hz
Base	G13
IP Grade	IP 20
Classification	Class I

Model	Product Weight (Kg)	Individual Box Size			Bundle Size			Gross Weight (Kg)	Quantity
Model	Product Weight (Kg)	L	W	H	L	W	H	Gross Weight (Kg)	Quantity
OS YML 2212/RP	1.90 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	7.60 Kg	4 pcs / Bundle
OS YML 2222/RP	3.40 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	6.80 Kg	2 pcs / Bundle
OS YML 3222/RP	3.40 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	6.80 Kg	2 pcs / Bundle
OS YML 4222/RP	3.60 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	7.20 Kg	2 pcs / Bundle
OS YML 2414/RP	3.40 Kg	1230 mm	616 mm	81 mm	1240 mm	311 mm	346 mm	13.60 Kg	4 pcs / Bundle
OS YML 2424/RP	5.80 Kg	1230 mm	616 mm	81 mm	1230 mm	616 mm	162 mm	11.60 Kg	2 pcs / Bundle
OS YML 3424/RP	5.85 Kg	1230 mm	616 mm	81 mm	1230 mm	616 mm	162 mm	11.70 Kg	2 pcs / Bundle
OS YML 4424/RP	6.05 Kg	1230 mm	616 mm	81 mm	1230 mm	616 mm	162 mm	12.10 Kg	2 pcs / Bundle

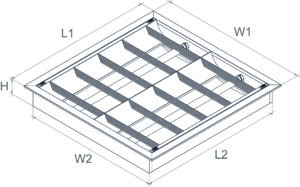

Model	Luminaires			Dimension (mm)					Cut-Out (mm)
Model	No. of Lamp	Reflector	Base	L	W	L2	W2	H	L	W

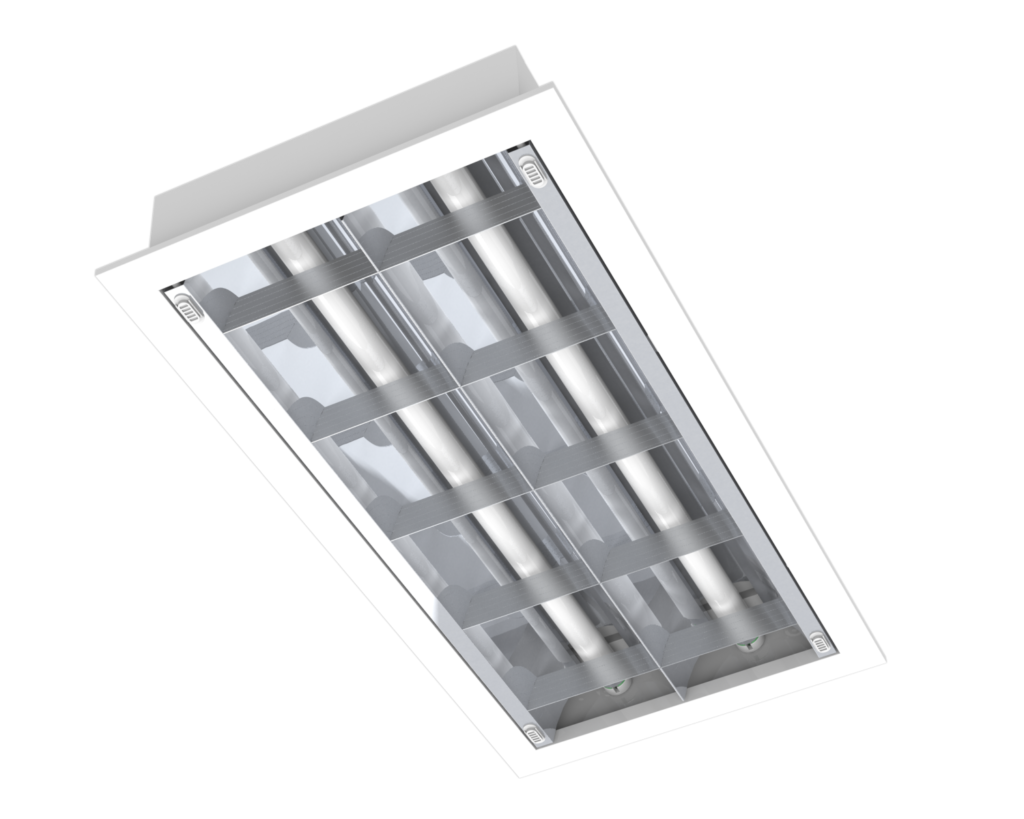

OS YML 2212/RP	2	Anodized	G13	645 mm	328 mm	614 mm	270 mm	80 mm	614 mm	300 mm

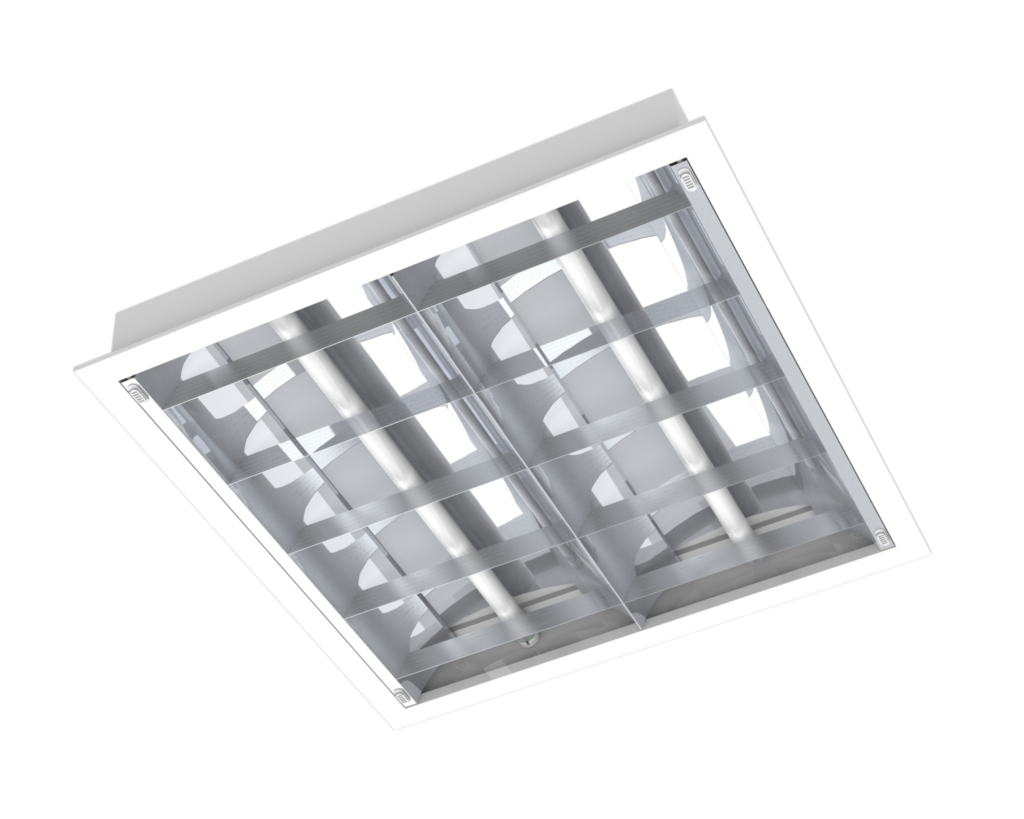

OS YML 2222/RP	2	Anodized	G13	645 mm	638 mm	614 mm	580 mm	80 mm	614 mm	604 mm

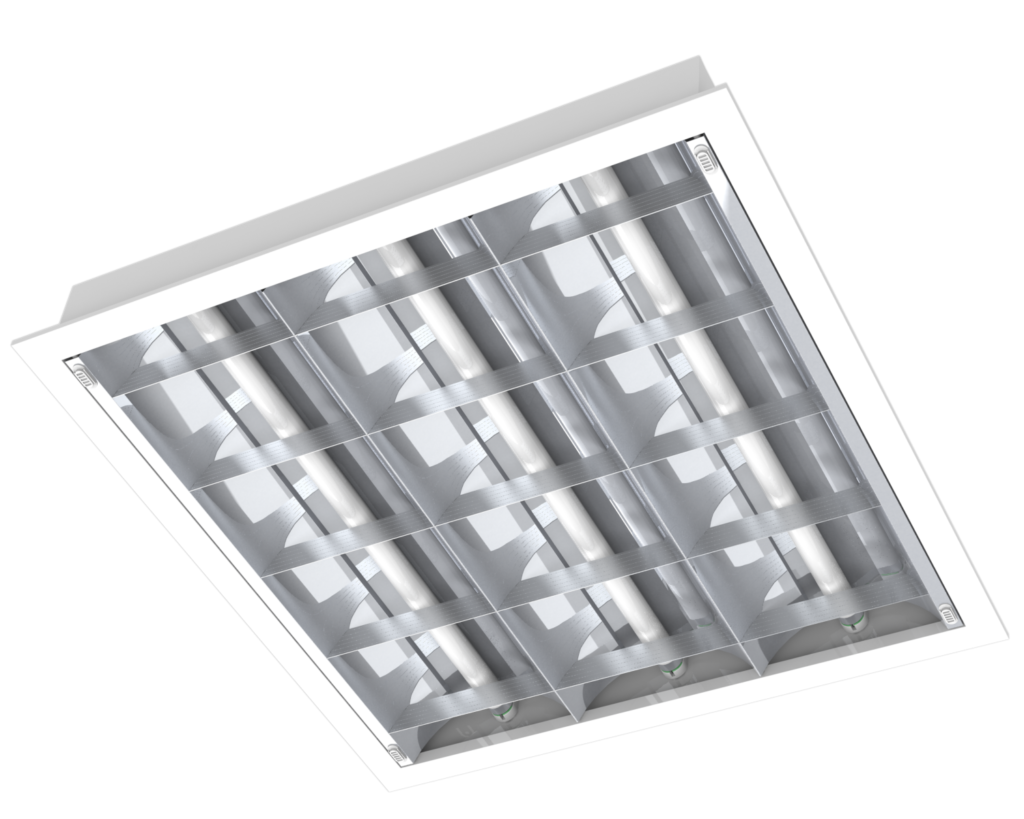

OS YML 3222/RP	3	Anodized	G13	645 mm	638 mm	614 mm	580 mm	80 mm	614 mm	604 mm

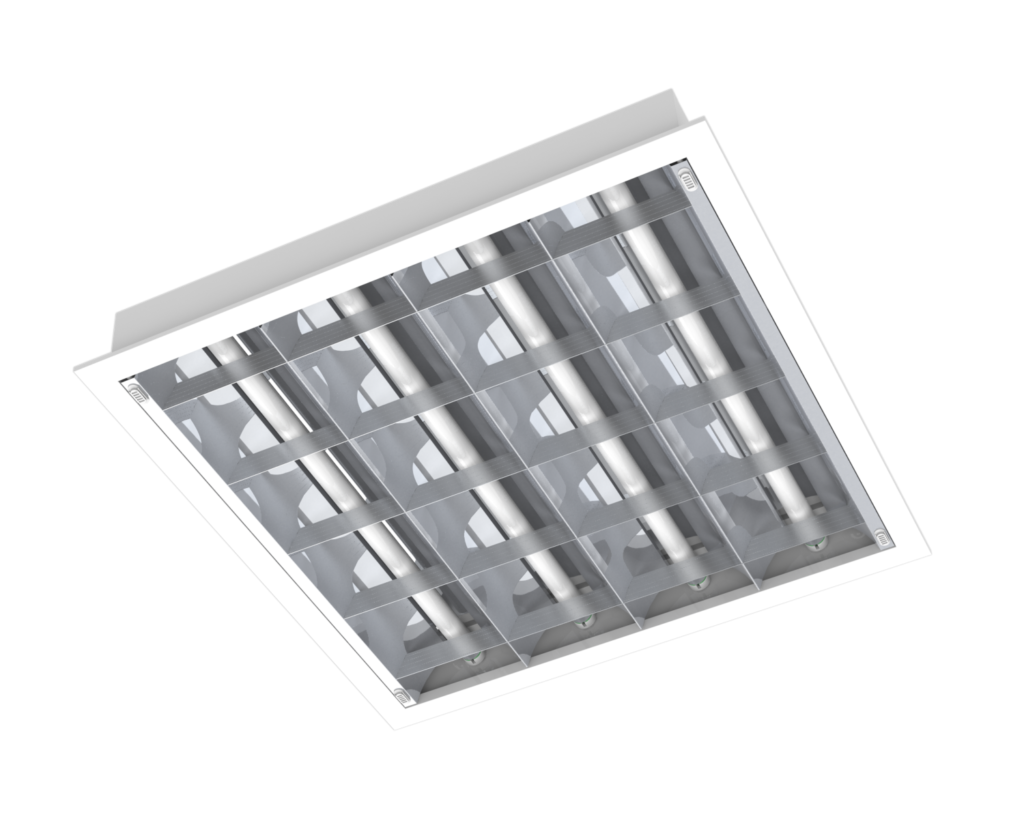

OS YML 4222/RP	4	Anodized	G13	645 mm	638 mm	614 mm	580 mm	80 mm	614 mm	604 mm

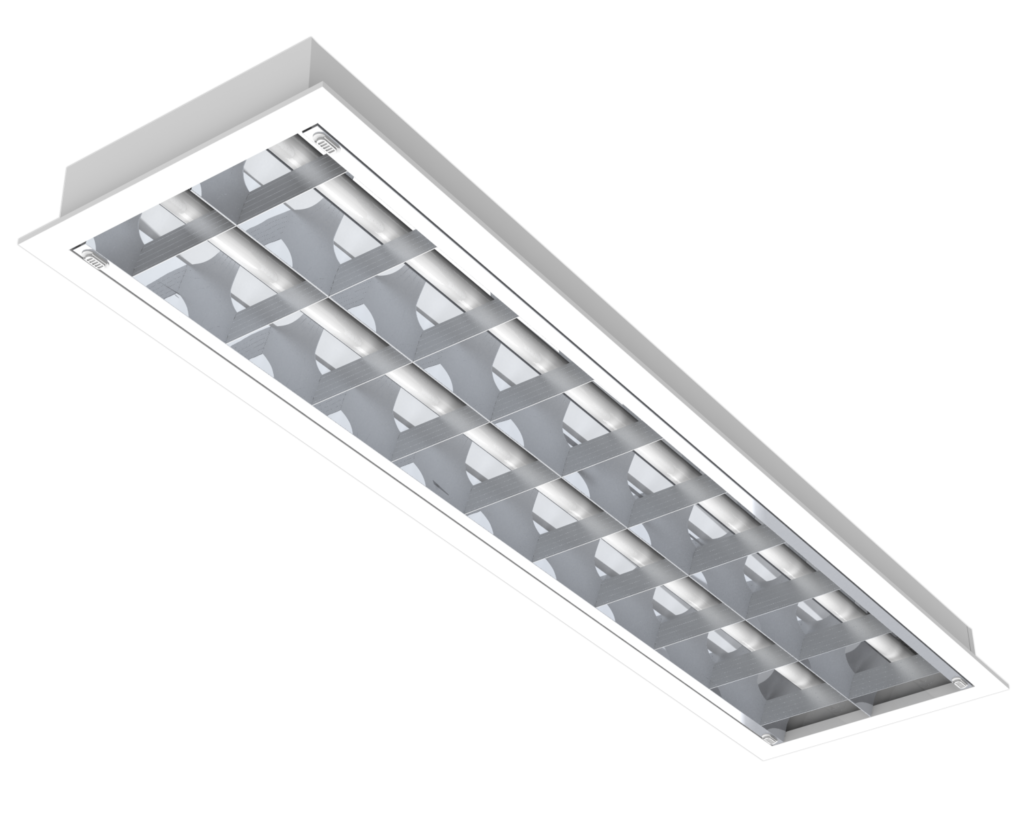

OS YML 2414/RP	2	Anodized	G13	1255 mm	328 mm	1224 mm	270 mm	80 mm	1223 mm	300 mm
OS YML 2424/RP	2	Anodized	G13	1255 mm	638 mm	1224 mm	580 mm	80 mm	1223 mm	604 mm

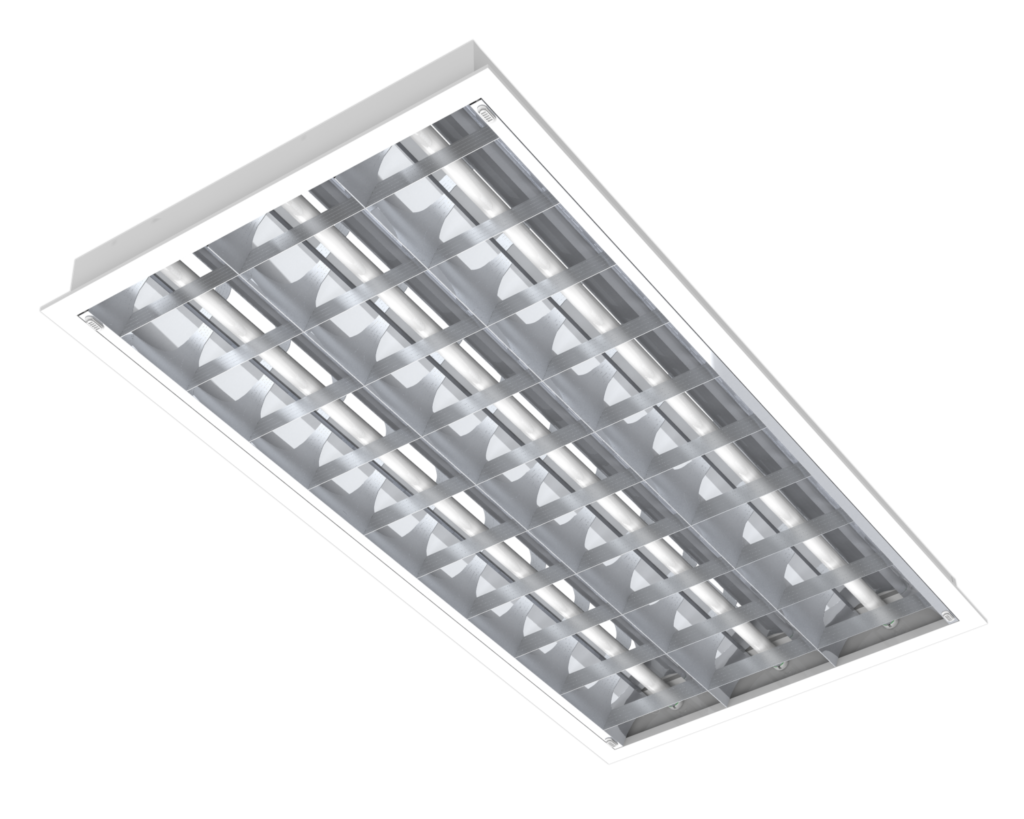

OS YML 3424/RP	3	Anodized	G13	1255 mm	638 mm	1224 mm	580 mm	80 mm	1223 mm	604 mm
OS YML 4424/RP	4	Anodized	G13	1255 mm	638 mm	1224 mm	580 mm	80 mm	1223 mm	604 mm

T8 LED Tube	T8 LED Tube	Powerpack

TOSHIBA PRO TUBE RLDL028	TOSHIBA GLASS TUBE RLDL8	VITALITE VEL 120/ECK

DTS 1:

Data Sheet – OS YML 2212 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 8W – VECK

DTS 2:

Data Sheet – OS YML 2222 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 8W – VECK

DTS 3:

Data Sheet – OS YML 3222 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 8W – VECK

DTS 4:

Data Sheet – OS YML 4222 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 8W – VECK

DTS 5:

Data Sheet – OS YML 2414 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 14W – VECK

DTS 6:

Data Sheet – OS YML 2424 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 14W – VECK

DTS 7:

Data Sheet – OS YML 3424 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 14W – VECK

DTS 8:

Data Sheet – OS YML 4424 RP-LED – Anodized – TOSHIBA T8 LED (PRO) – 14W – VECK

File 1:

IES_OS YML 2212/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 2:

IES_OS YML 2222/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 3:

IES_OS YML 3222/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 4:

IES_OS YML 4222/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 5:

IES_OS YML 2414/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 6:

IES_OS YML 2424/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 7:

IES_OS YML 3424/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 8:

IES_OS YML 4424/ S or R or RP with TOSHIBA T8 LED PRO Tube
