OS YHD/S Series (Surface)

Indoor Luminaries

T8 LED HINGED DIFFUSER FITTING (Surface) – OS YHD/S Series

Discover the durability and lasting elegance of the OS YHD Series, boasting a hinged diffuser for uniform light distribution and easy maintenance. Fabricated with thicker materials, it effortlessly merges strength with refined design.

Application	:	Office, School, Laboratory, Factories, Warehouses, Hospitals, Libraries, Supermarkets, Shops
Certificate	:	SIRIM, ST, MyHijau
Colour	:	Smooth White

Specification
Technical Data
Packaging Information
Order Information
Optional
Datasheets
IES Files

Body	Fabricated from Mild Steel (Thickness: 0.5mm)
Hinged Frame	Fabricated from Mild Steel
Diffuser	AA-12 Prismatic Diffuser
Lampholder	Polycarbonate and Bronze Lampholder
Wire	105°C Heat Resistance PVC Cable
Connector	Nylon 3 Way x 2.5mm²
Finishing	Electrostatically Polyester Powder Coated
Mounting Type	Surface Ceiling
Lamp	T8 LED Tube

Main Supply (V, Hz)	220~240V, 50/60Hz
Base	G13
IP Grade	IP 20
Classification	Class I

Model	Product Weight (Kg)	Individual Box Size			Bundle Size			Gross Weight (Kg)	Quantity
Model	Product Weight (Kg)	L	W	H	L	W	H	Gross Weight (Kg)	Quantity
OS YHD 2212/S	2.86 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	11.44 Kg	4 pcs / Bundle
OS YHD 2222/S	4.66 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	9.32 Kg	2 pcs / Bundle
OS YHD 3222/S	4.75 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	9.50 Kg	2 pcs / Bundle
OS YHD 4222/S	4.85 Kg	616 mm	616 mm	81 mm	616 mm	616 mm	162 mm	9.70 Kg	2 pcs / Bundle
OS YHD 2414/S	5.32 Kg	N/A			1240 mm	311 mm	346 mm	21.28 Kg	4 pcs / Bundle
OS YHD 2424/S	8.15 Kg	1230 mm	616 mm	81 mm	1230 mm	616 mm	162 mm	16.30 Kg	2 pcs / Bundle
OS YHD 3424/S	8.31 Kg	1230 mm	616 mm	81 mm	1230 mm	616 mm	162 mm	16.62 Kg	2 pcs / Bundle
OS YHD 4424/S	8.47 Kg	1230 mm	616 mm	81 mm	1230 mm	616 mm	162 mm	16.94 Kg	2 pcs / Bundle

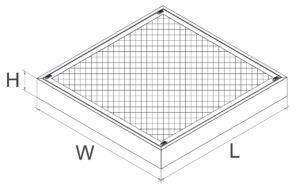

Model	Luminaires			Dimension (mm)
Model	No. of Lamp	Diffuser	Base	L	W	H

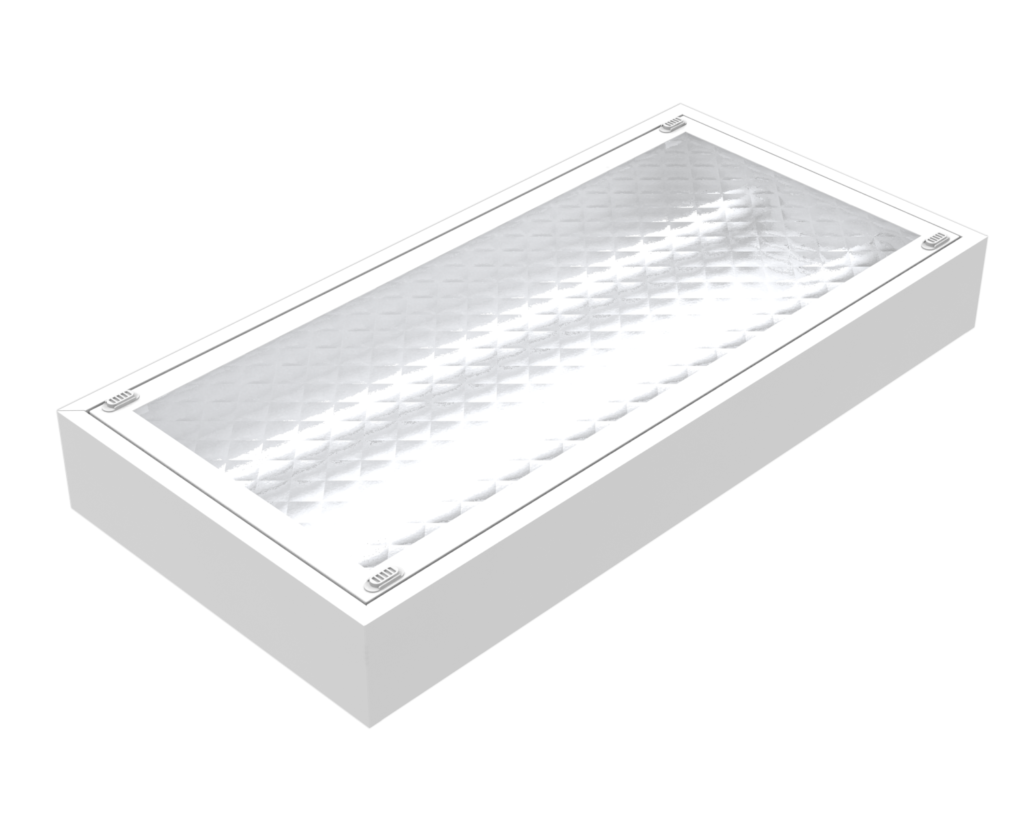

OS YHD 2212/S	2	AA-12 Prismatic	G13	613 mm	300 mm	80 mm
OS YHD 2222/S	2	AA-12 Prismatic	G13	613 mm	603 mm	80 mm

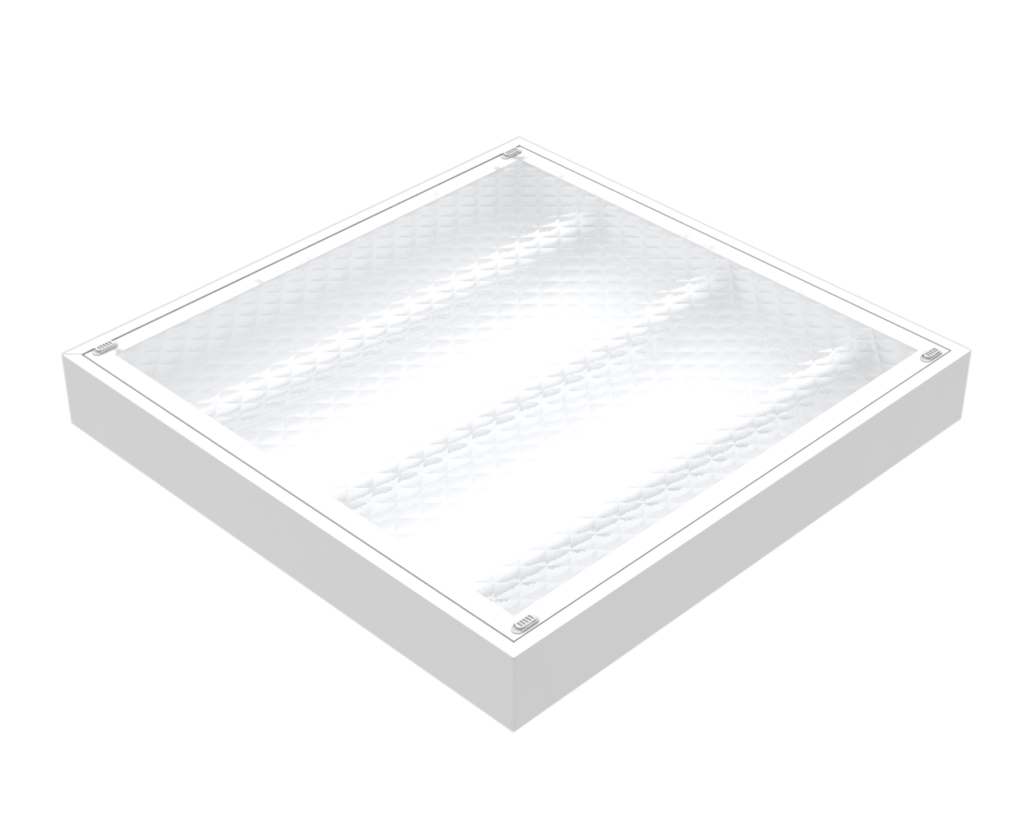

OS YHD 3222/S	3	AA-12 Prismatic	G13	613 mm	603 mm	80 mm

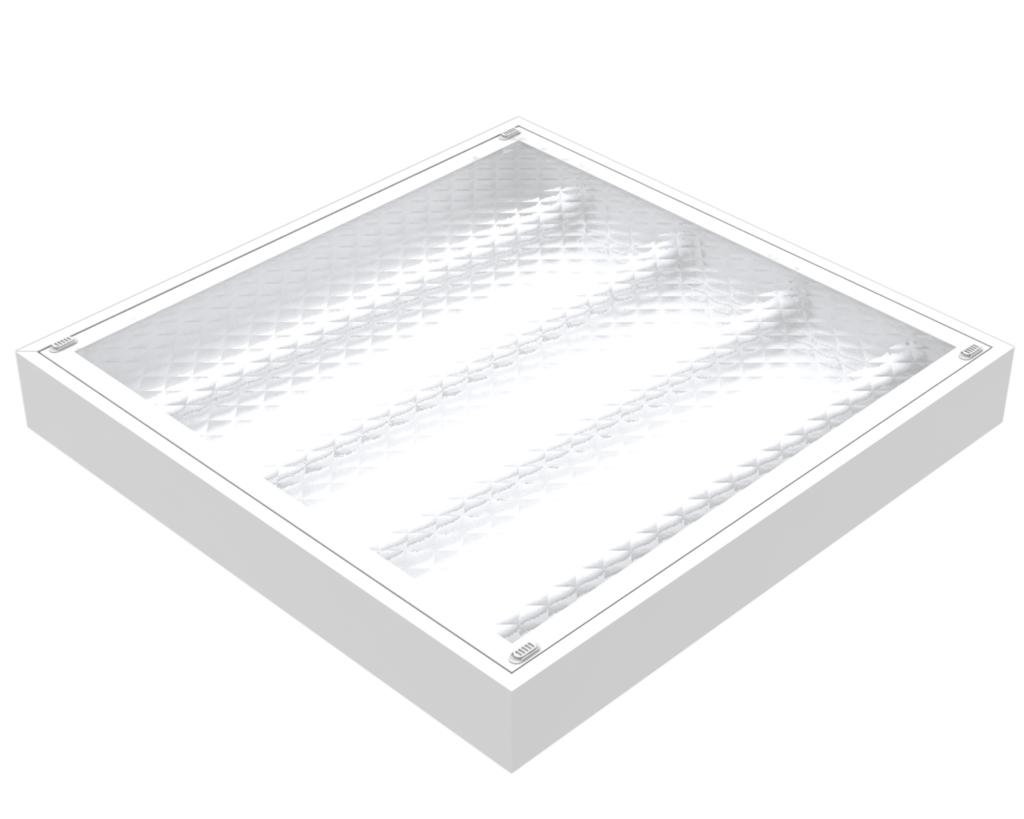

OS YHD 4222/S	4	AA-12 Prismatic	G13	613 mm	603 mm	80 mm

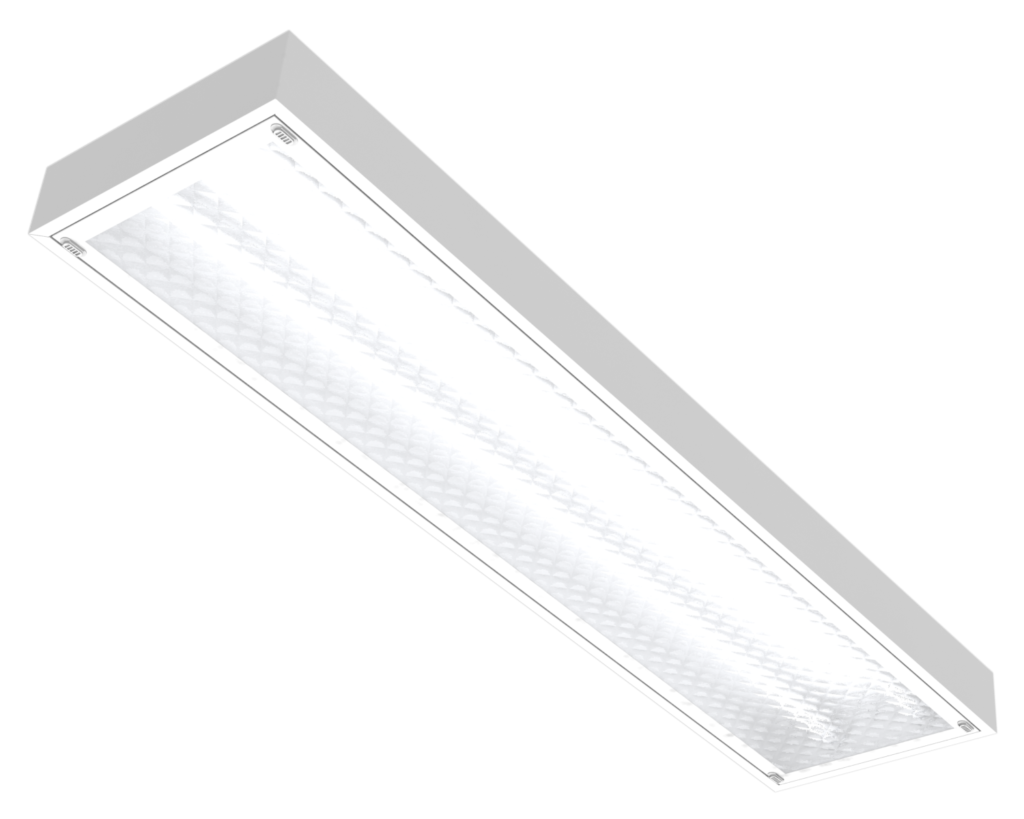

OS YHD 2414/S	2	AA-12 Prismatic	G13	1223 mm	300 mm	80 mm
OS YHD 2424/S	2	AA-12 Prismatic	G13	1223 mm	603 mm	80 mm

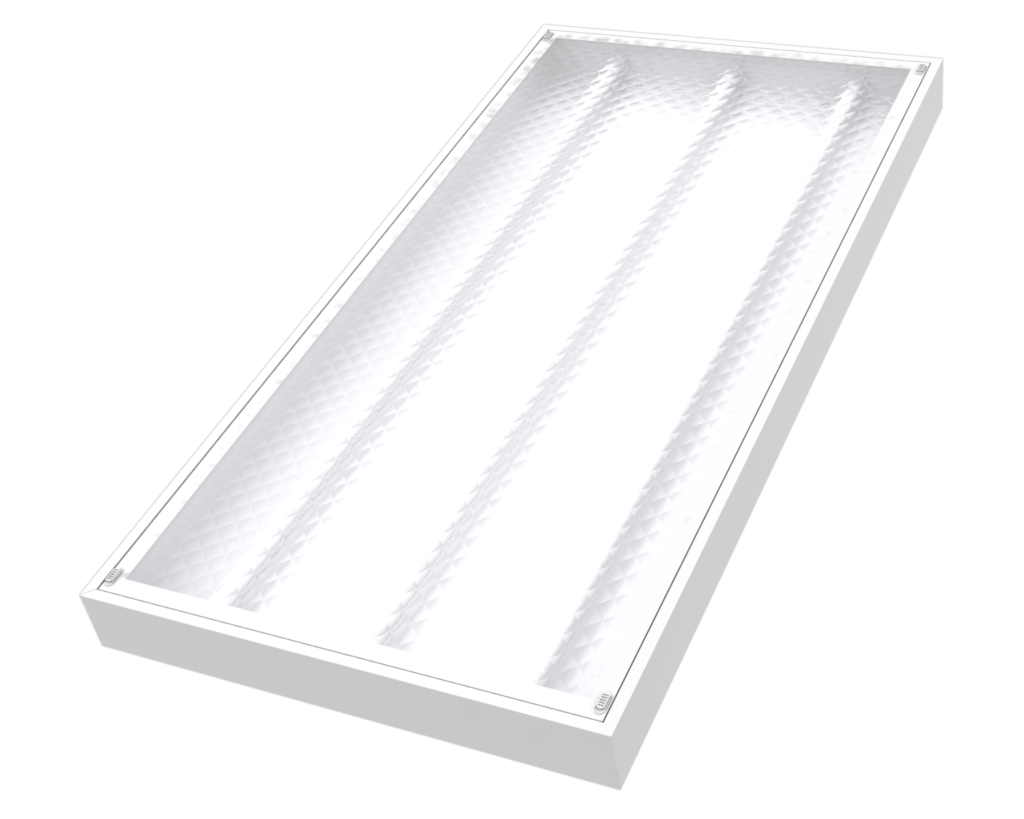

OS YHD 3424/S	3	AA-12 Prismatic	G13	1223 mm	603 mm	80 mm

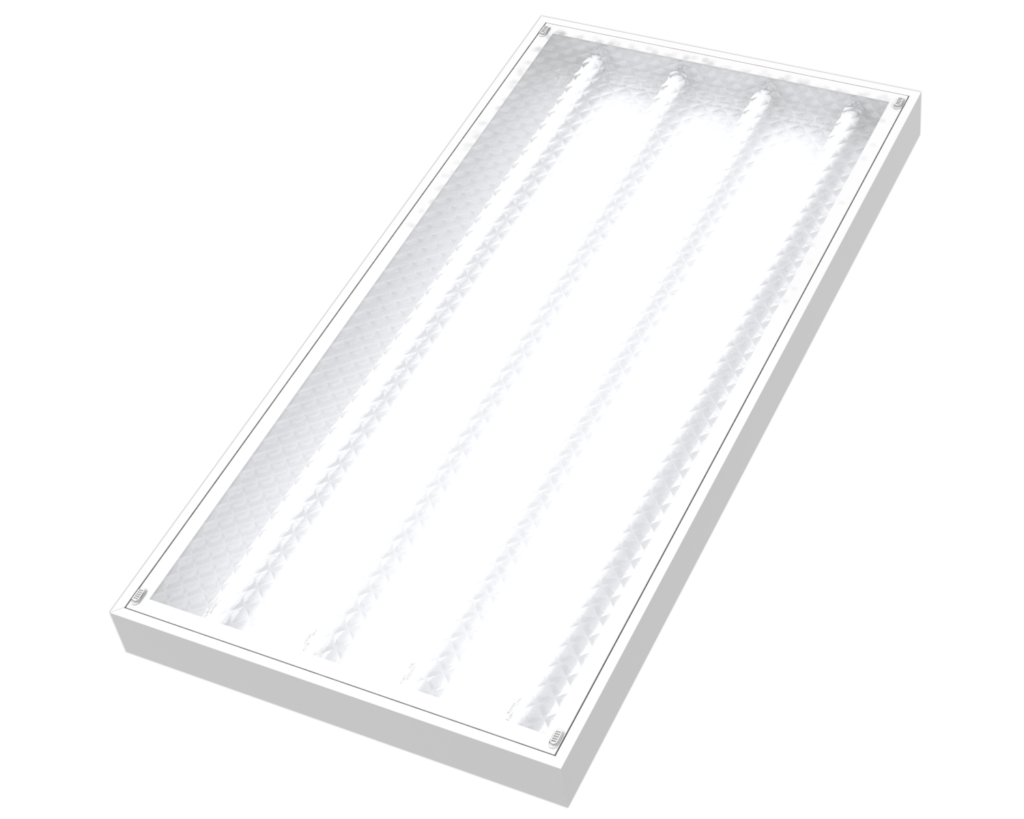

OS YHD 4424/S	4	AA-12 Prismatic	G13	1223 mm	603 mm	80 mm

T8 LED Tube	T8 LED Tube	Powerpack

TOSHIBA PRO TUBE RLDL028	TOSHIBA GLASS TUBE RLDL8	VITALITE VEL 120/ECK

DTS 1:

Data Sheet – OS YHD 2212 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 8W

DTS 2:

Data Sheet – OS YHD 2222 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 8W

DTS 3:

Data Sheet – OS YHD 3222 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 8W

DTS 4:

Data Sheet – OS YHD 4222 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 8W

DTS 5:

Data Sheet – OS YHD 2414 S-LED – AA12-Prismatic – TOSHIBA T8 LED (PRO) – 14W

DTS 6:

Data Sheet – OS YHD 2424 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 14W

DTS 7:

Data Sheet – OS YHD 3424 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 14W

DTS 8:

Data Sheet – OS YHD 4424 S-LED – AA12 Prismatic – TOSHIBA T8 LED (PRO) – 14W

File 1:

IES_OS YHD 2212/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 2:

IES_OS YHD 2222/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 3:

IES_OS YHD 3222/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 4:

IES_OS YHD 4222/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 5:

IES_OS YHD 2414/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 6:

IES_OS YHD 2424/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 7:

IES_OS YHD 3424/ S or R or RP with TOSHIBA T8 LED PRO Tube

File 8:

IES_OS YHD 4424/ S or R or RP with TOSHIBA T8 LED PRO Tube
