OS YHD/R or R-mm Series (Recessed T-Bar)

Indoor Luminaries

T8 LED HINGED DIFFUSER FITTING (Recessed T-Bar) – OS YHD/R or R-mm Series

Discover the durability and lasting elegance of the OS YHD Series, boasting a hinged diffuser for uniform light distribution and easy maintenance. Fabricated with thicker materials, it effortlessly merges strength with refined design.

R refer to Imperial Size (measured in Feet, Inches)
R-MM refer to Metric Size (measured in Meters, Millimeters)
Application : Office, School, Laboratory, Factories, Warehouses, Hospitals, Libraries, Supermarkets, Shops
Certificate : SIRIM, ST, MyHijau
Colour : Smooth White

Body Fabricated from Mild Steel (Thickness: 0.5mm)
Hinged Frame Fabricated from Mild Steel
Diffuser AA-12 Prismatic Diffuser
Lampholder Polycarbonate and Bronze Lampholder
Wire 105°C Heat Resistance PVC Cable
Connector Nylon 3 Way x 2.5mm2
Finishing Electrostatically Polyester Powder Coated
Mounting Type Recessed T-Bar Ceiling
Lamp T8 LED Tube



Main Supply (V, Hz) 220~240V, 50/60Hz
Base G13
IP Grade IP 20
Classification Class I
Model Product
Weight (Kg)		 Individual Box Size Bundle Size Gross
Weight (Kg)		 Quantity
L W H L W H
Imperial Size
OS YHD 2212/R 2.81 Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm 11.24 Kg 4 pcs / Bundle
OS YHD 2222/R 4.41 Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm 8.82 Kg 2 pcs / Bundle
OS YHD 3222/R 4.50 Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm 9.00 Kg 2 pcs / Bundle
OS YHD 4222/R 4.60 Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm 9.20 Kg 2 pcs / Bundle
OS YHD 2414/R 5.16 Kg N/A 1240 mm 311 mm 346 mm 20.64 Kg 4 pcs / Bundle
OS YHD 2424/R 7.85 Kg 1230 mm 616 mm 81 mm 1230 mm 616 mm 162 mm 15.70 Kg 2 pcs / Bundle
OS YHD 3424/R 8.01 Kg 1230 mm 616 mm 81 mm 1230 mm 616 mm 162 mm 16.02 Kg 2 pcs / Bundle
OS YHD 4424/R 8.17 Kg 1230 mm 616 mm 81 mm 1230 mm 616 mm 162 mm 16.34 Kg 2 pcs / Bundle
Metric Size
OS YHD 2212/R-MM – Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm – Kg 4 pcs / Bundle
OS YHD 2222/R-MM – Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm – Kg 2 pcs / Bundle
OS YHD 3222/R-MM – Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm – Kg 2 pcs / Bundle
OS YHD 4222/R-MM – Kg 616 mm 616 mm 81 mm 616 mm 616 mm 162 mm – Kg 2 pcs / Bundle
OS YHD 2414/R-MM – Kg N/A 1240 mm 311 mm 346 mm – Kg 4 pcs / Bundle
OS YHD 2424/R-MM – Kg 1230 mm 616 mm 81 mm 1230 mm 616 mm 162 mm – Kg 2 pcs / Bundle
OS YHD 3424/R-MM – Kg 1230 mm 616 mm 81 mm 1230 mm 616 mm 162 mm – Kg 2 pcs / Bundle
OS YHD 4424/R-MM – Kg 1230 mm 616 mm 81 mm 1230 mm 616 mm 162 mm – Kg 2 pcs / Bundle



Model Luminaires Dimension (mm)
No. of Lamp Diffuser Base L L2 W H H2
Imperial Size
OS YHD 2212/R 2 AA-12 Prismatic G13 613 mm 603 mm 298 mm 75 mm 42 mm

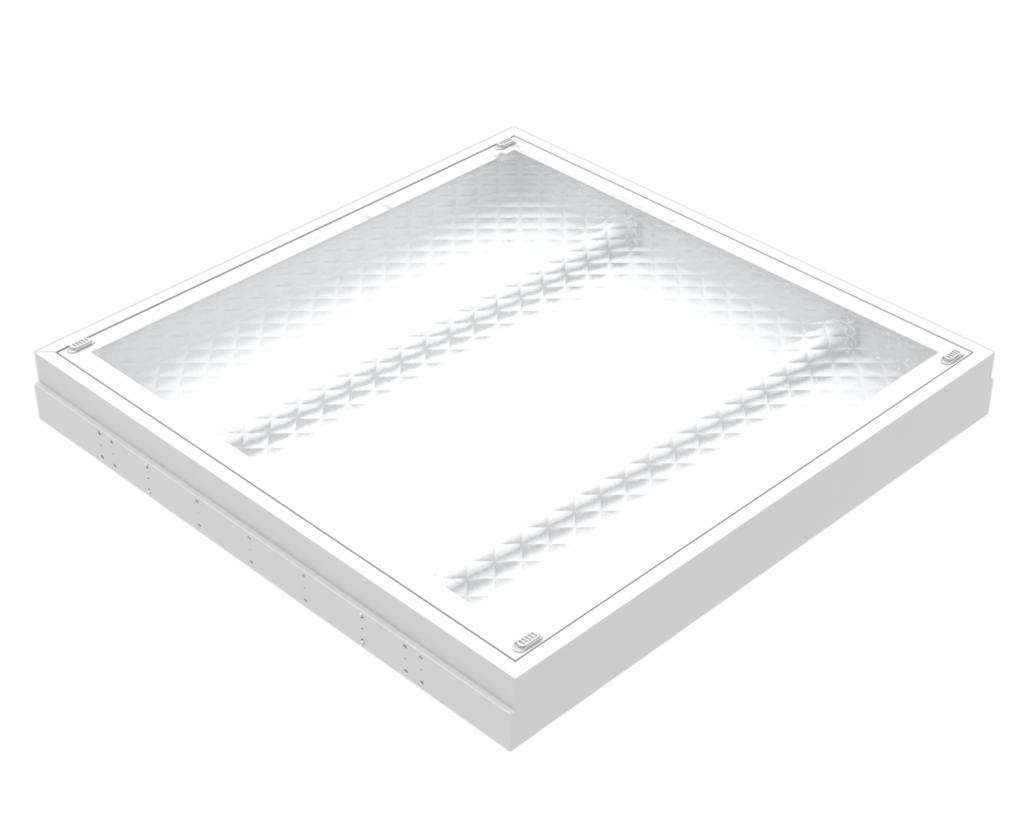

OS YHD 2222/R 2 AA-12 Prismatic G13 613 mm 603 mm 603 mm 75 mm 42 mm

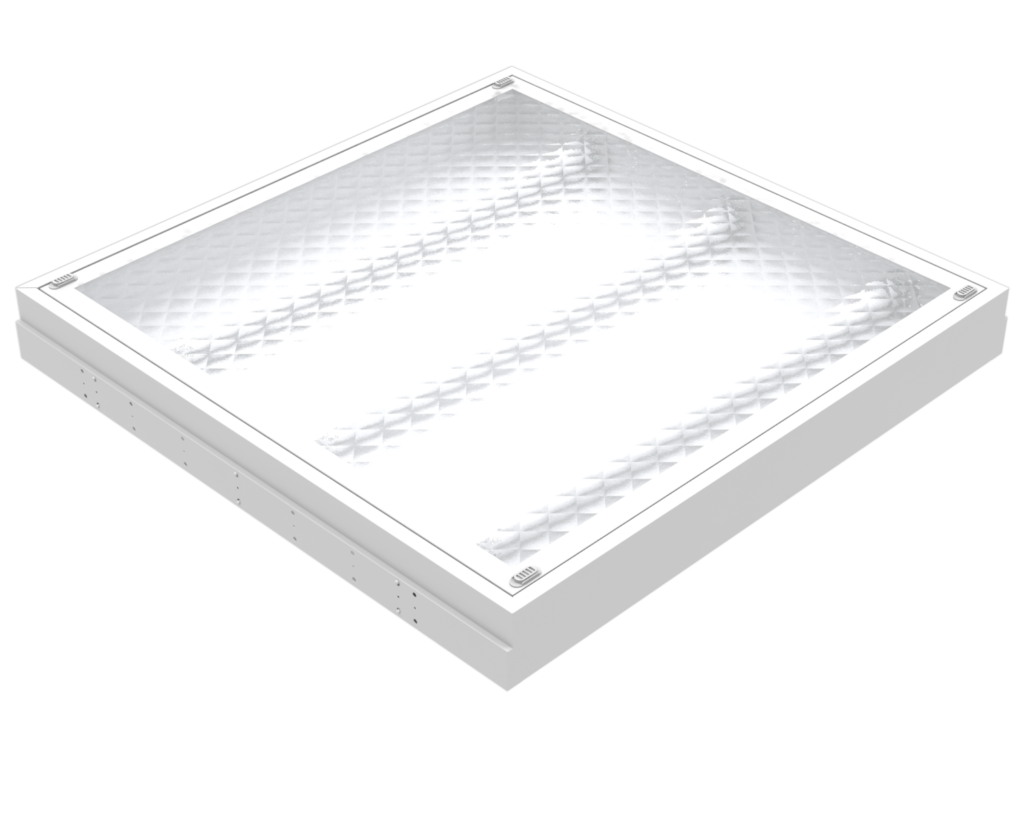

OS YHD 3222/R 3 AA-12 Prismatic G13 613 mm 603 mm 603 mm 75 mm 42 mm

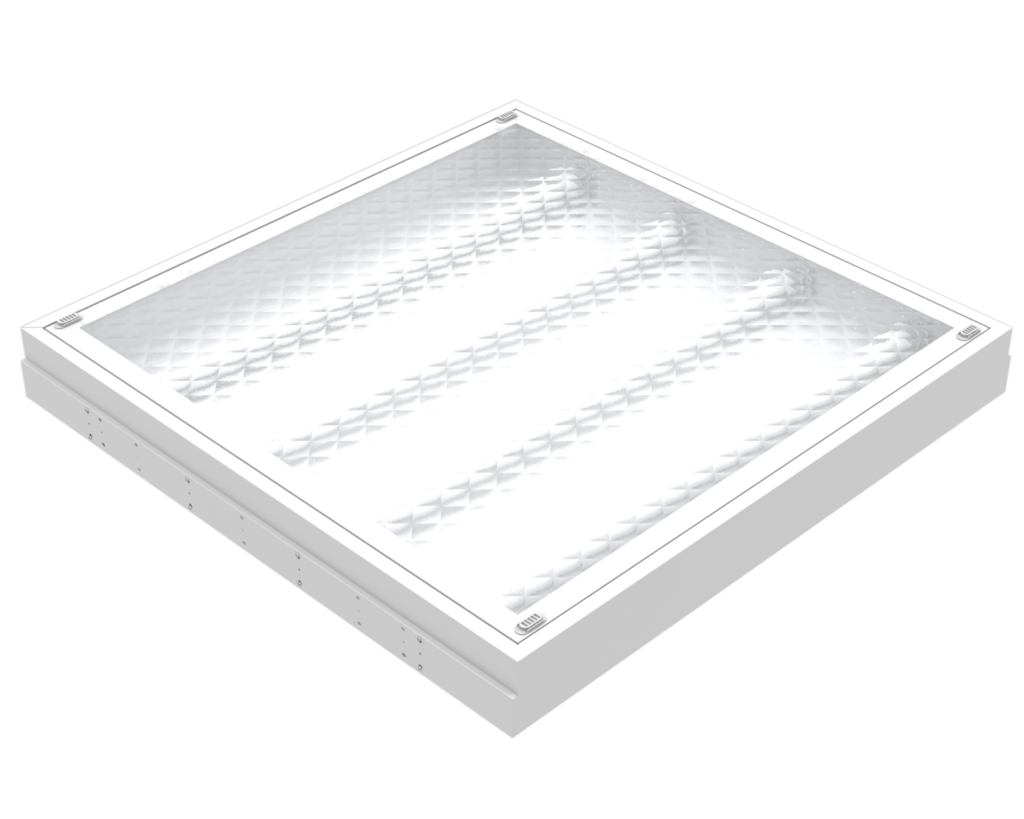

OS YHD 4222/R 4 AA-12 Prismatic G13 613 mm 603 mm 603 mm 75 mm 42 mm

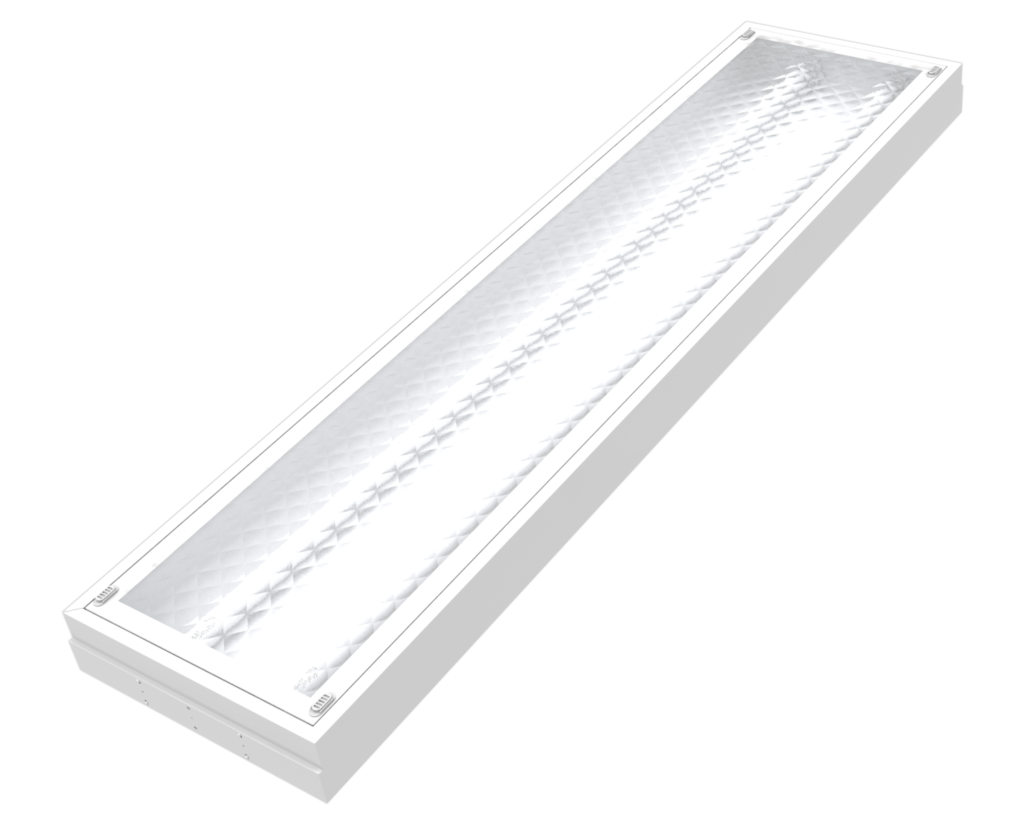

OS YHD 2414/R 2 AA-12 Prismatic G13 1223 mm 1213 mm 298 mm 75 mm 42 mm
OS YHD 2424/R 2 AA-12 Prismatic G13 1223 mm 1213 mm 603 mm 75 mm 42 mm

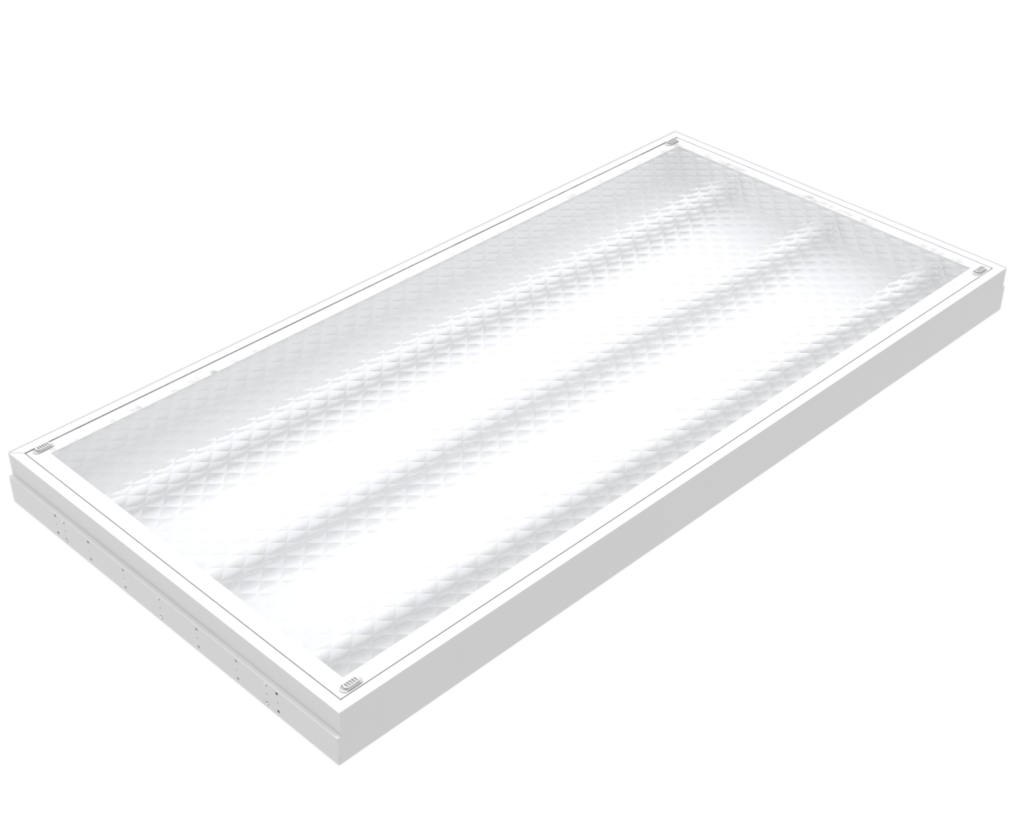

OS YHD 3424/R 3 AA-12 Prismatic G13 1223 mm 1213 mm 603 mm 75 mm 42 mm

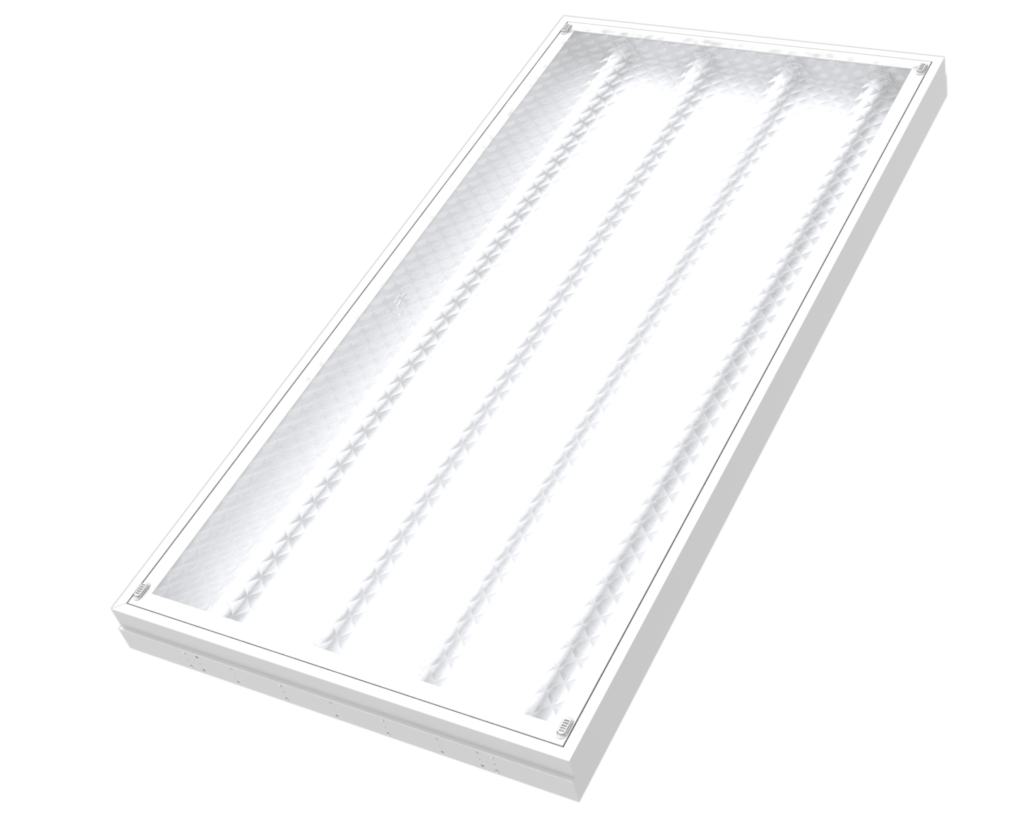

OS YHD 4424/R 4 AA-12 Prismatic G13 1223 mm 1213 mm 603 mm 75 mm 42 mm
Metric Size
OS YHD 2212/R-MM 2 AA-12 Prismatic G13 613 mm 595 mm 295 mm 75 mm 42 mm
OS YHD 2222/R-MM 2 AA-12 Prismatic G13 613 mm 595 mm 595 mm 75 mm 42 mm
OS YHD 3222/R-MM 3 AA-12 Prismatic G13 613 mm 595 mm 595 mm 75 mm 42 mm
OS YHD 4222/R-MM 4 AA-12 Prismatic G13 613 mm 595 mm 595 mm 75 mm 42 mm
OS YHD 2414/R-MM 2 AA-12 Prismatic G13 1223 mm 1195 mm 295 mm 75 mm 42 mm
OS YHD 2424/R-MM 2 AA-12 Prismatic G13 1223 mm 1195 mm 595 mm 75 mm 42 mm
OS YHD 3424/R-MM 3 AA-12 Prismatic G13 1223 mm 1195 mm 595 mm 75 mm 42 mm
OS YHD 4424/R-MM 4 AA-12 Prismatic G13 1223 mm 1195 mm 595 mm 75 mm 42 mm
T8 LED Tube T8 LED Tube Powerpack
TOSHIBA PRO TUBE RLDL028 TOSHIBA GLASS TUBE RLDL8 VITALITE VEL 120/ECK
