OS YBC + MER Series
Indoor Luminaries
T8 LED BATTEN FITTING c/w WHITE METAL REFLECTOR- OS YBC + MER Series
Experience the durability and refined design of the OS YBC Batten Fitting. Made from thick mild steel with a smooth finish, it seamlessly integrates power packs. The addition of a white metal reflector enhances light output, making it ideal for various applications.
| Application | : | Office, School, Laboratory, Hospitals, Factory, Warehouse, Restaurants, Public Toilets, Supermarkets, Shopping Complexes, Workshops, Corridors |
| Certificate | : | JKR, MyHijau, SIRIM, ST |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.5mm) |
| End Cap | Fabricated from Mild Steel |
| Reflector | Fabricated from Mild Steel (Thickness: 0.3mm) |
| Lampholder | Polycarbonate and Bronze Lampholder |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall / Suspension |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product | Bundle Size | Gross | Quantity | ||
| Weight (Kg) | L | W | H | Weight (Kg) | ||
| OS YBC 1 x 600mm + MER 120 | ||||||
| Fitting | 0.55 Kg | 612 mm | 130 mm | 105 mm | 3.30 Kg | 6 pcs / Bundle |
| Reflector | 0.25 Kg | 620 mm | 160 mm | 40 mm | 2.80 Kg | 10 pcs / Bundle |
| OS YBC 2 x 600mm + MER 220 | ||||||
| Fitting | 0.60 Kg | 612 mm | 130 mm | 105 mm | 3.65 Kg | 6 pcs / Bundle |
| Reflector | 0.40 Kg | 620 mm | 230 mm | 40 mm | 4.05 Kg | 10 pcs / Bundle |
| OS YBC 1 x 1200mm + MER 140 | ||||||
| Fitting | 1.00 Kg | 1220 mm | 130 mm | 105 mm | 6.15 Kg | 6 pcs / Bundle |
| Reflector | 0.55 Kg | 1225 mm | 160 mm | 40 mm | 5.55 Kg | 10 pcs / Bundle |
| OS YBC 2 x 1200mm + MER 240 | ||||||
| Fitting | 1.05 Kg | 1220 mm | 130 mm | 105 mm | 6.25 Kg | 6 pcs / Bundle |
| Reflector | 0.75 Kg | 1225 mm | 240 mm | 40 mm | 8.00 Kg | 10 pcs / Bundle |
| OS YBC 1 x 600mm + MER 120A | ||||||
| Fitting | 0.55 Kg | 612 mm | 130 mm | 105 mm | 3.30 Kg | 6 pcs / Bundle |
| Reflector | 0.25 Kg | 620 mm | 120 mm | 55 mm | 2.80 Kg | 10 pcs / Bundle |
| OS YBC 2 x 600mm + MER 220A | ||||||
| Fitting | 0.60 Kg | 612 mm | 130 mm | 105 mm | 3.65 Kg | 6 pcs / Bundle |
| Reflector | 0.55 Kg | 620 mm | 180 mm | 100 mm | 6.05 Kg | 10 pcs / Bundle |
| OS YBC 1 x 1200mm + MER 140A | ||||||
| Fitting | 1.00 Kg | 1220 mm | 130 mm | 105 mm | 6.15 Kg | 6 pcs / Bundle |
| Reflector | 0.55 Kg | 1225 mm | 130 mm | 55 mm | 5.55 Kg | 10 pcs / Bundle |
| OS YBC 2 x 1200mm + MER 240A | ||||||
| Fitting | 1.05 Kg | 1220 mm | 130 mm | 105 mm | 6.25 Kg | 6 pcs / Bundle |
| Reflector | 0.75 Kg | 1225 mm | 190 mm | 100 mm | 8.00 Kg | 10 pcs / Bundle |

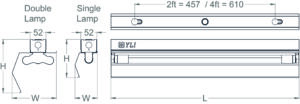

| Model | Luminaires | Dimension (mm) | |||||
| No. of Lamp | Type | Reflector | Base | L | W | H | |

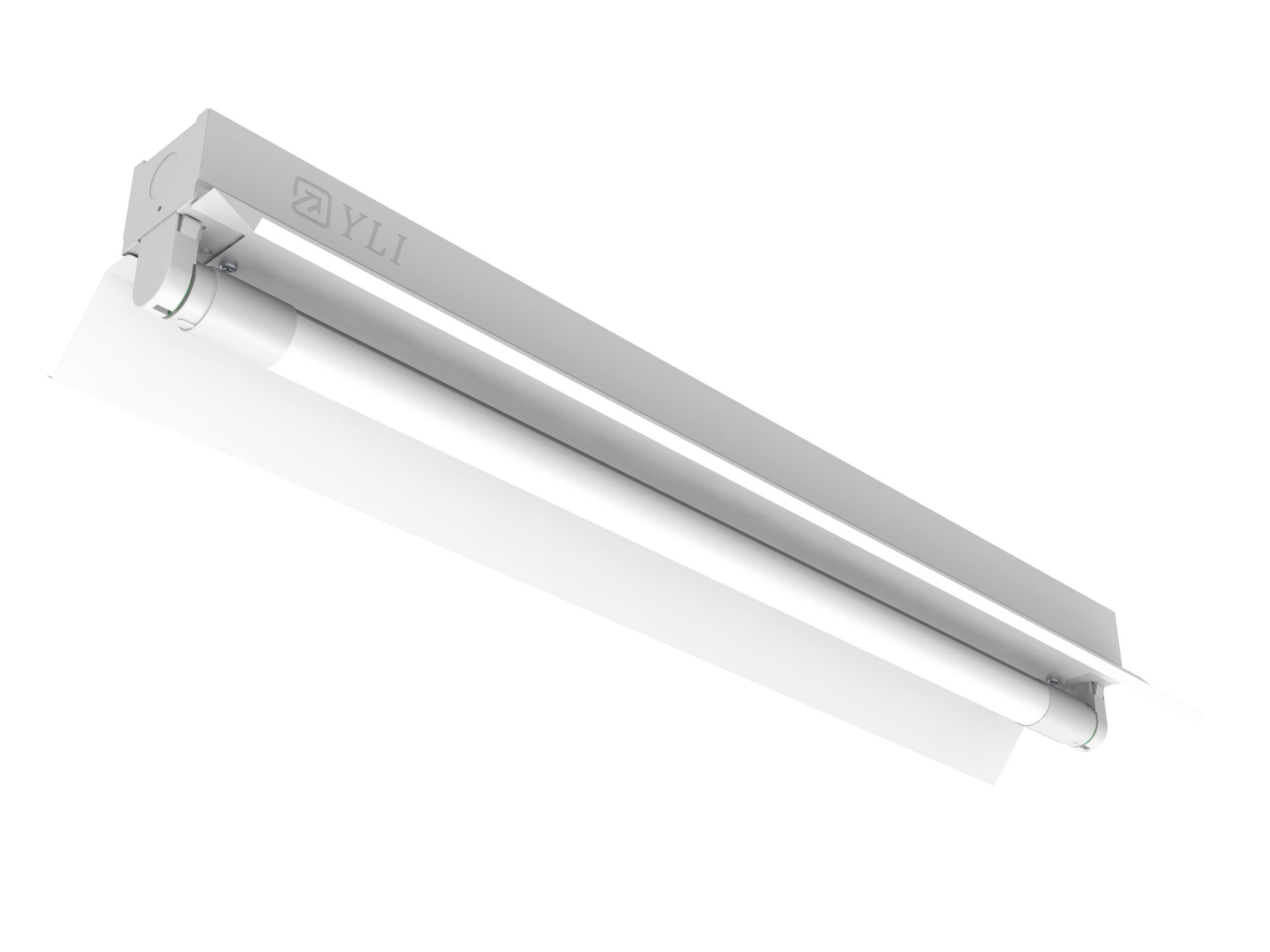

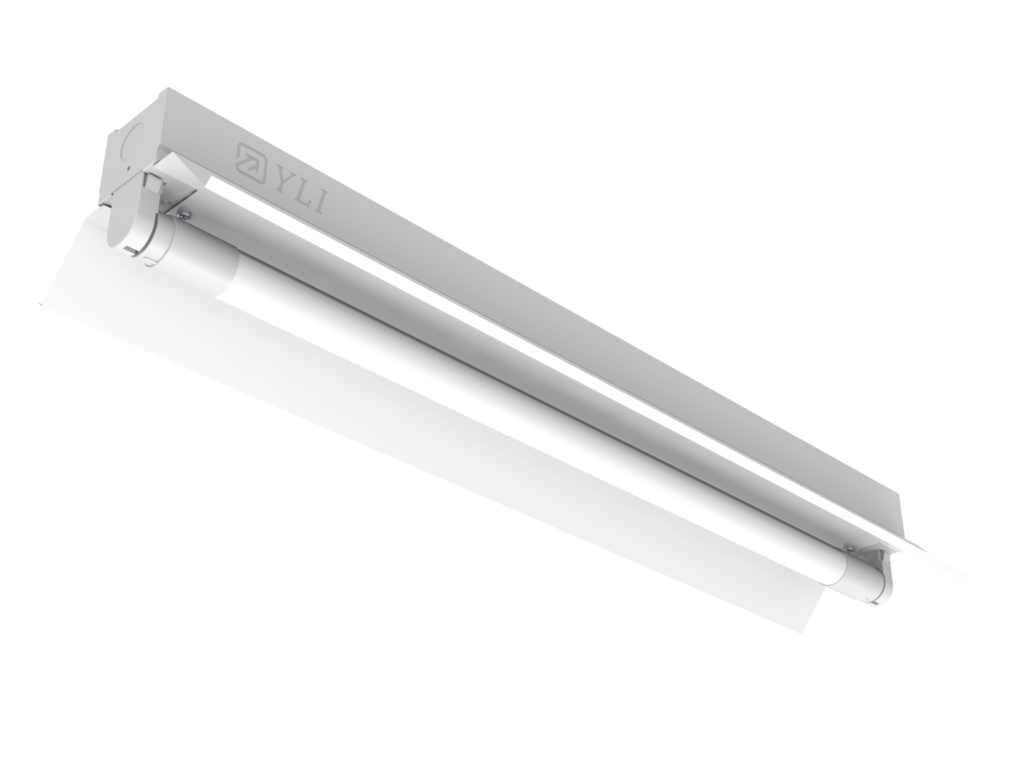

| OS YBC 1 x 600mm + MER 120 |
1 | Batten | White Metal Reflector | G13 | 612 mm | 142 mm | 80 mm |

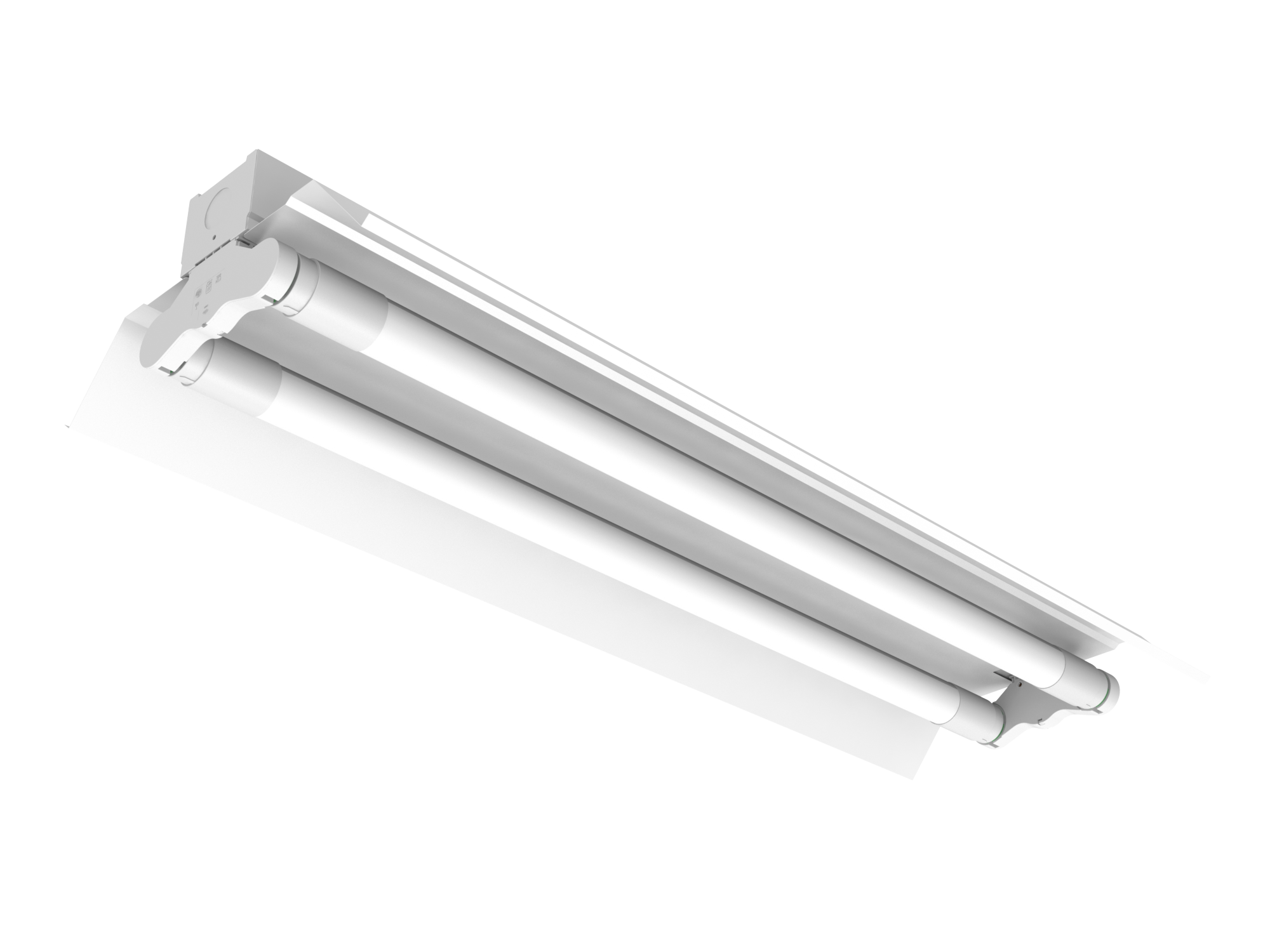

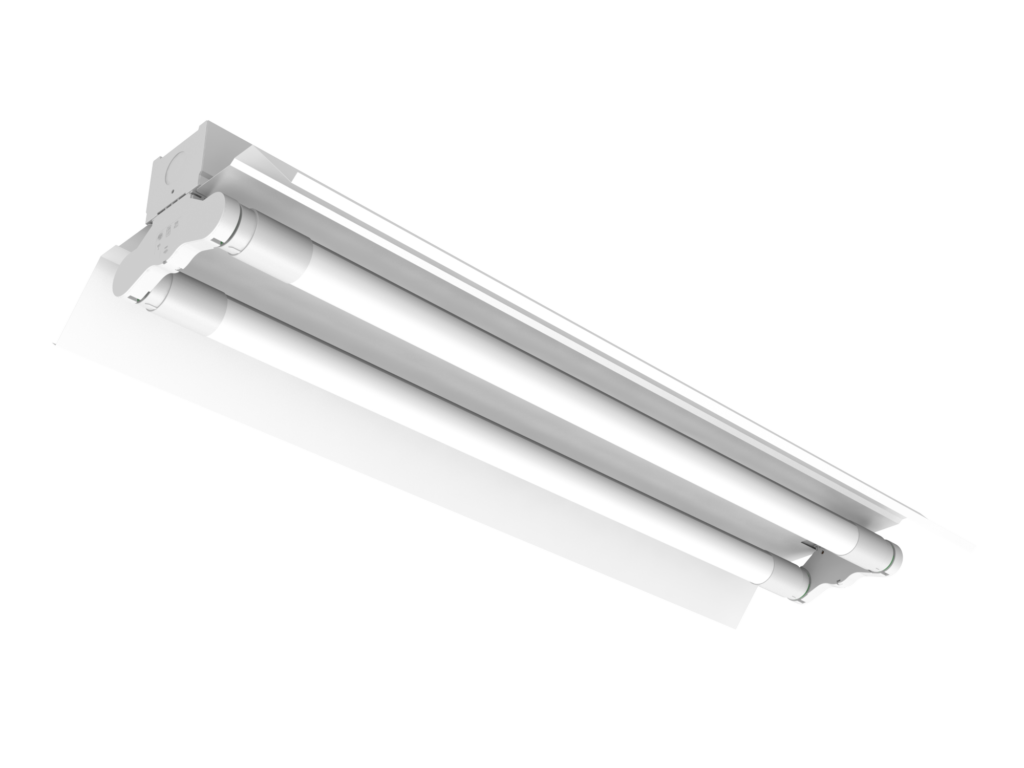

| OS YBC 2 x 600mm + MER 220 |
2 | Batten | White Metal Reflector | G13 | 612 mm | 220 mm | 84 mm |

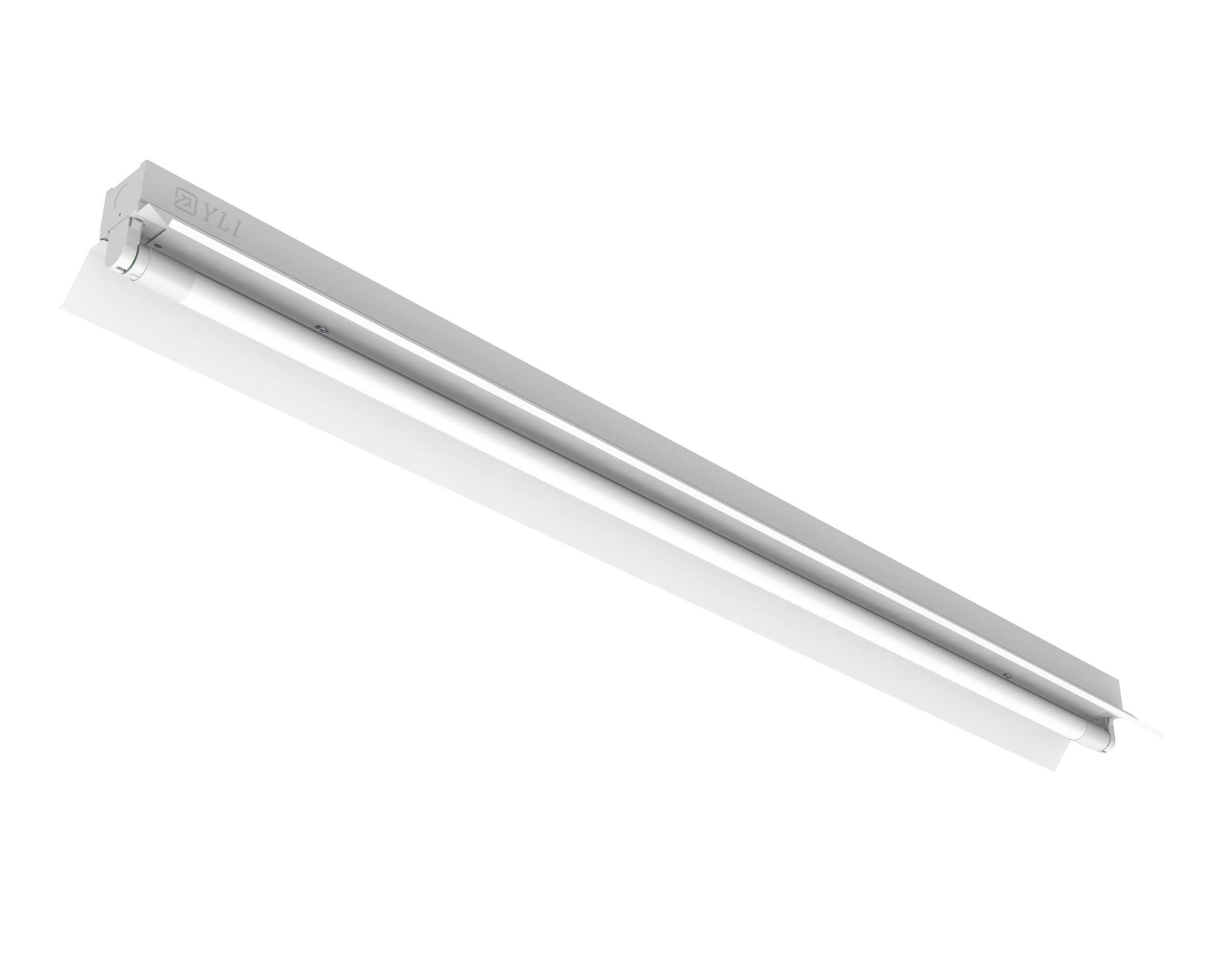

| OS YBC 1 x 1200mm + MER 140 |
1 | Batten | White Metal Reflector | G13 | 1222 mm | 142 mm | 80 mm |

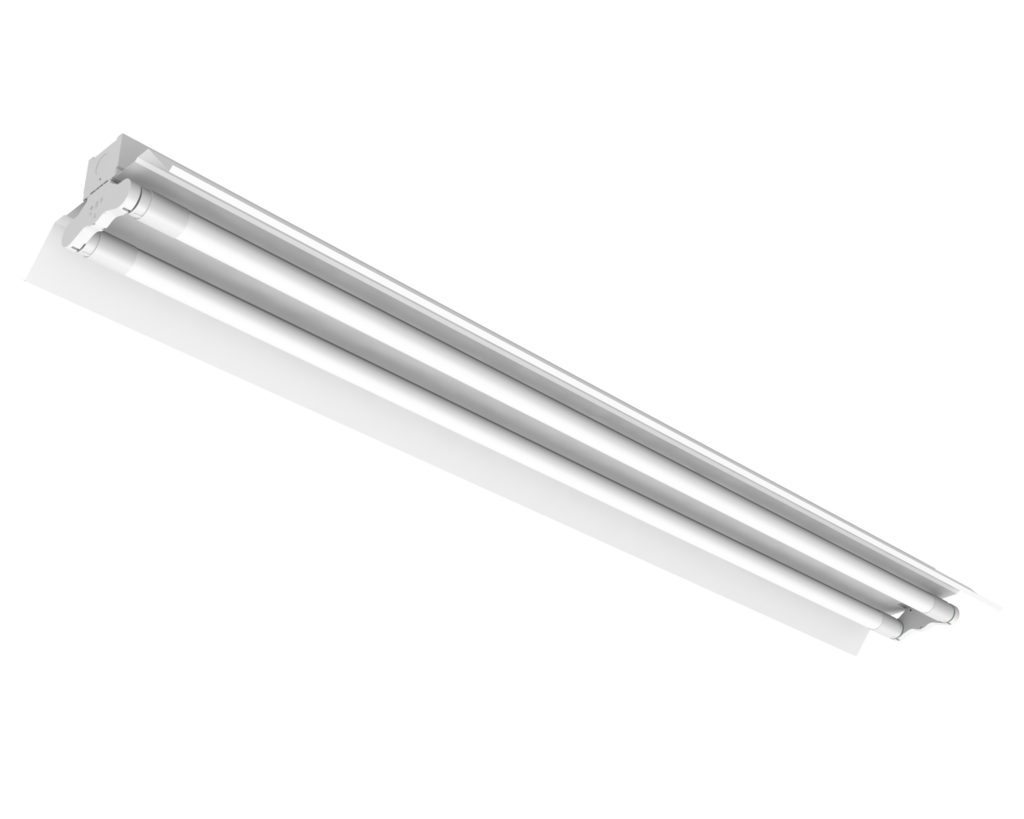

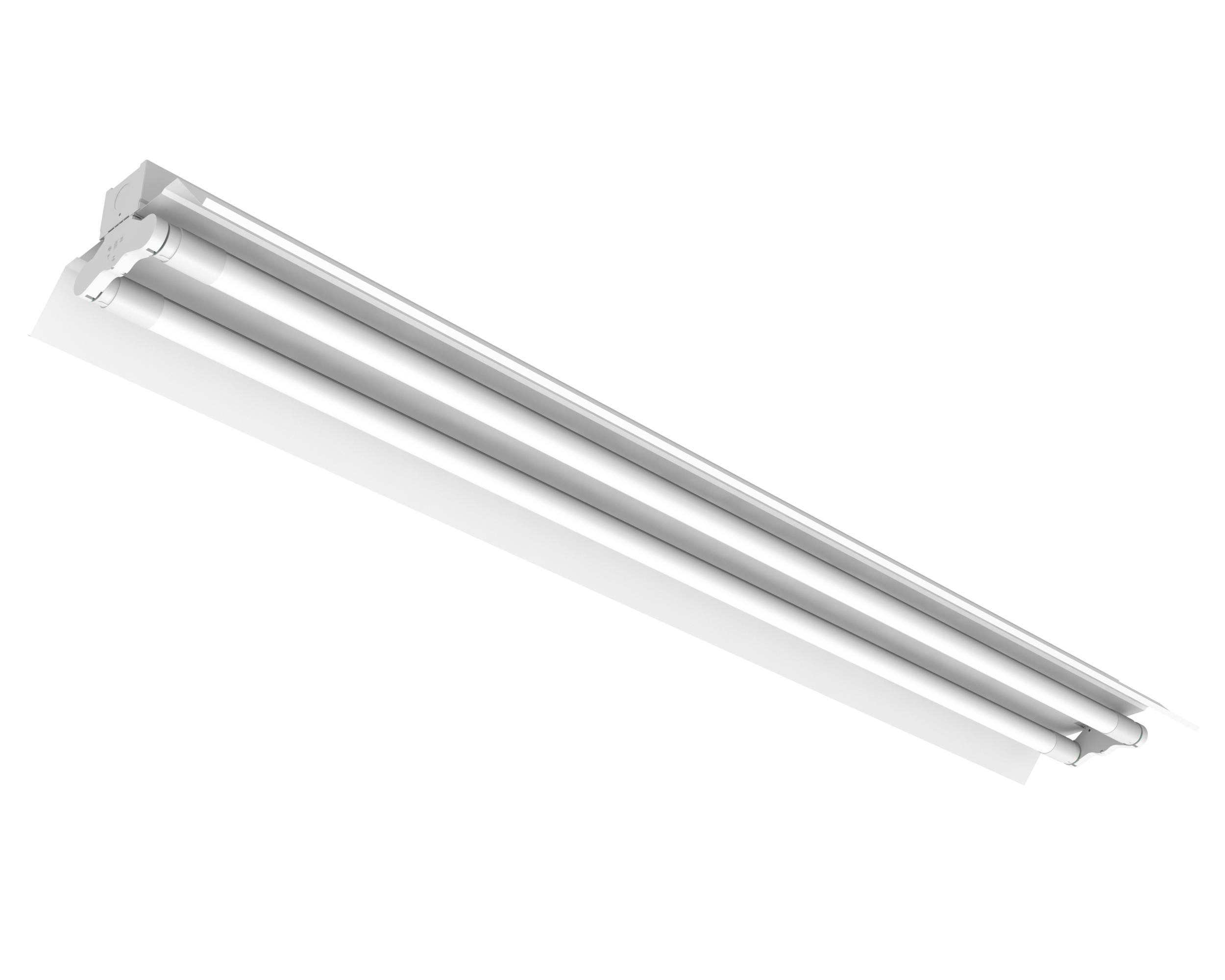

| OS YBC 2 x 1200mm + MER 240 |
2 | Batten | White Metal Reflector | G13 | 1222 mm | 220 mm | 84 mm |
| Model | Luminaires | Dimension (mm) | |||||
| No. of Lamp | Type | Reflector | Base | L | W | H | |

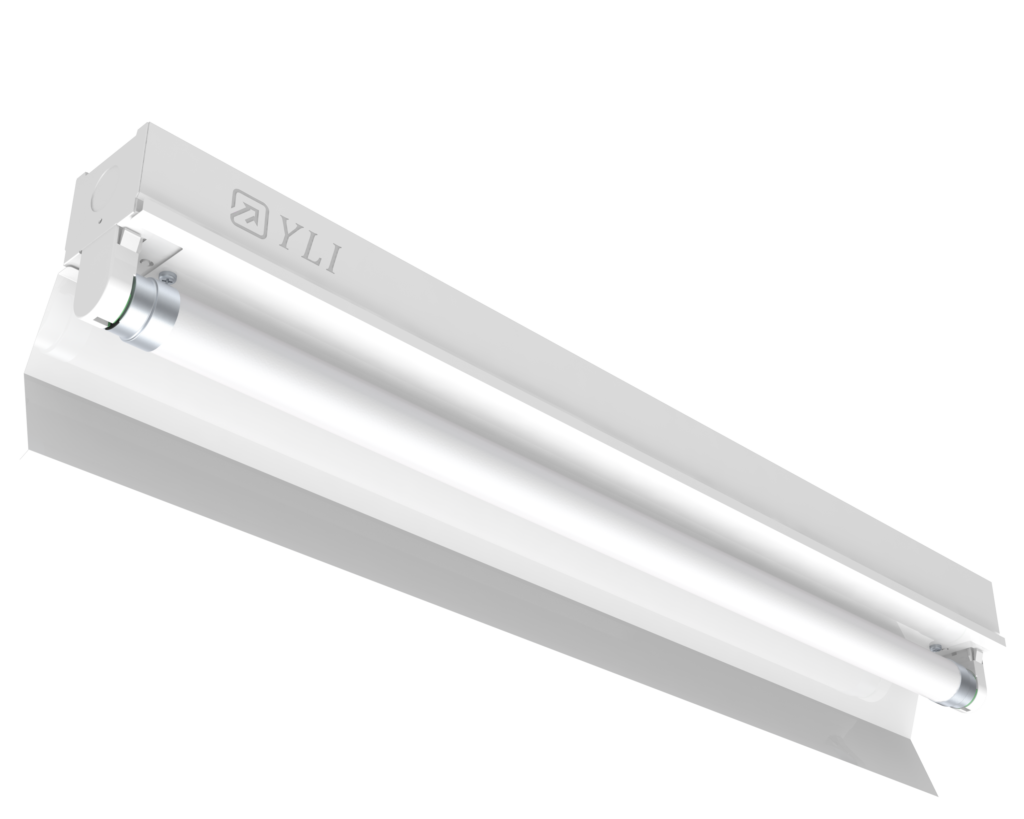

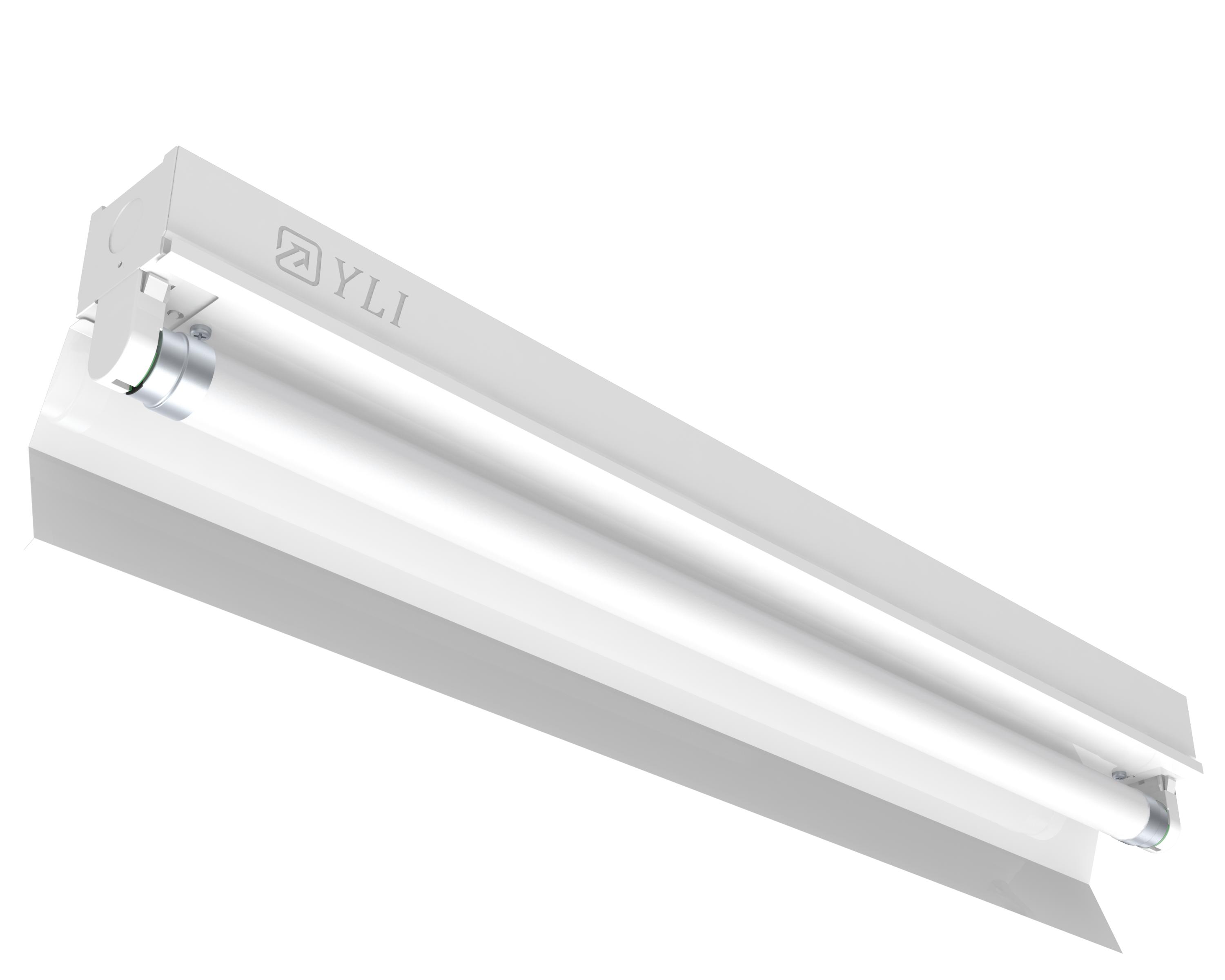

| OS YBC 1 x 600mm + MER 120A |
1 | Batten | White Metal Reflector | G13 | 612 mm | 73 mm | 124 mm |

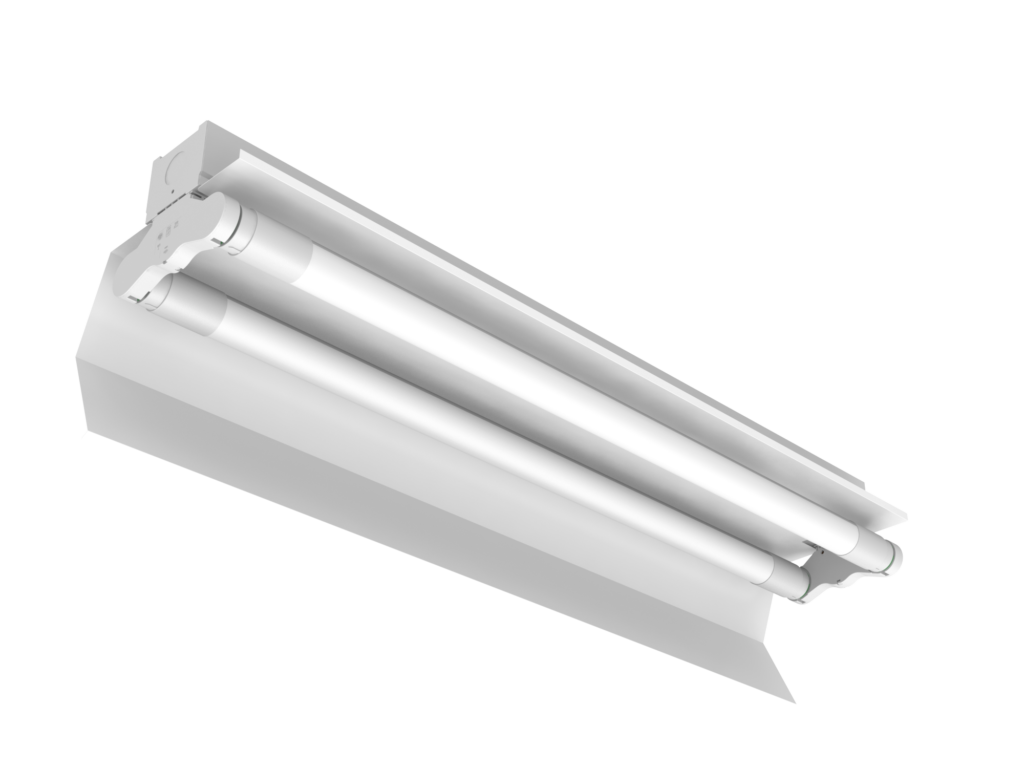

| OS YBC 2 x 600mm + MER 220A |
2 | Batten | White Metal Reflector | G13 | 612 mm | 144 mm | 174 mm |

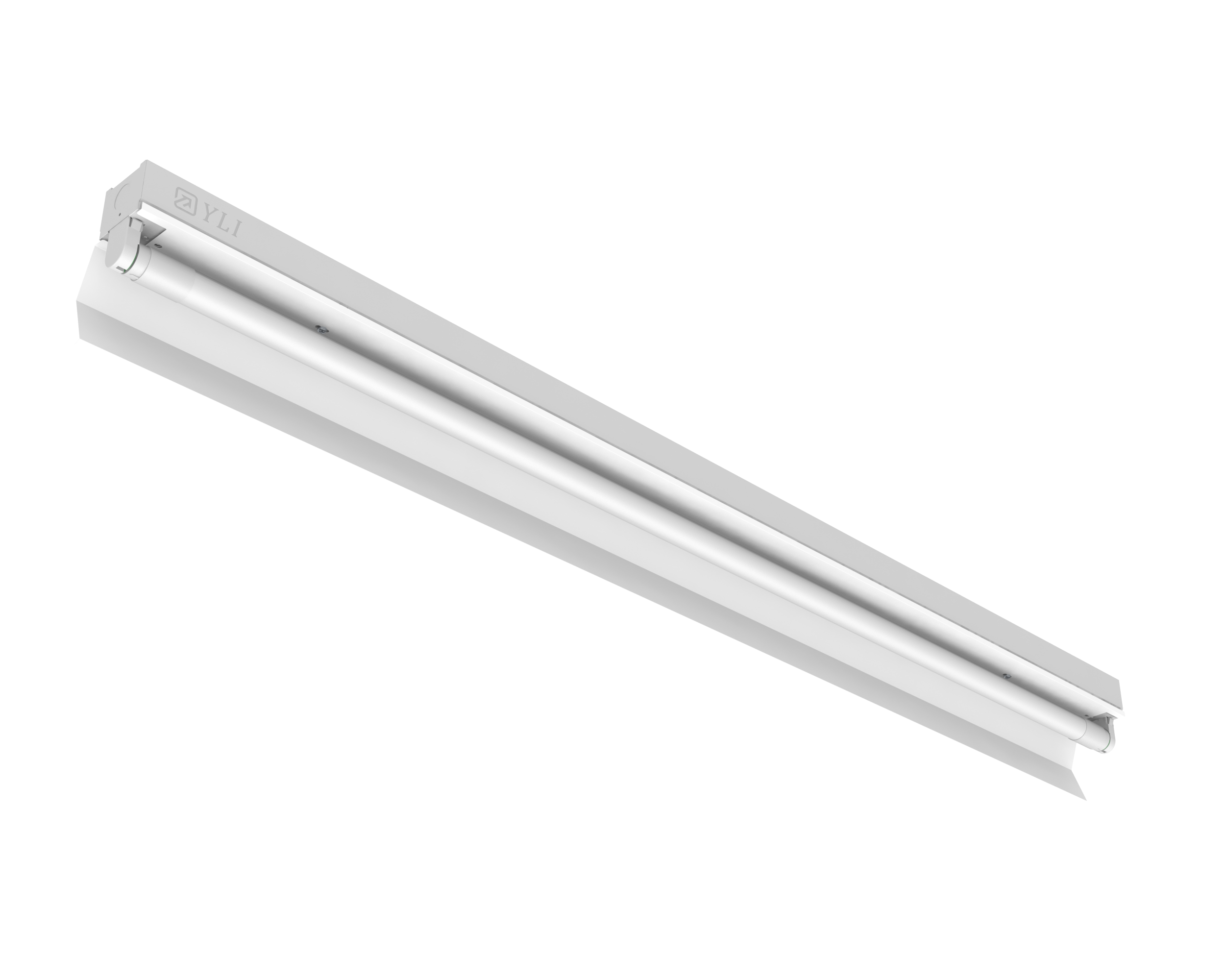

| OS YBC 1 x 1200mm + MER 140A |
1 | Batten | White Metal Reflector | G13 | 1222 mm | 73 mm | 124 mm |

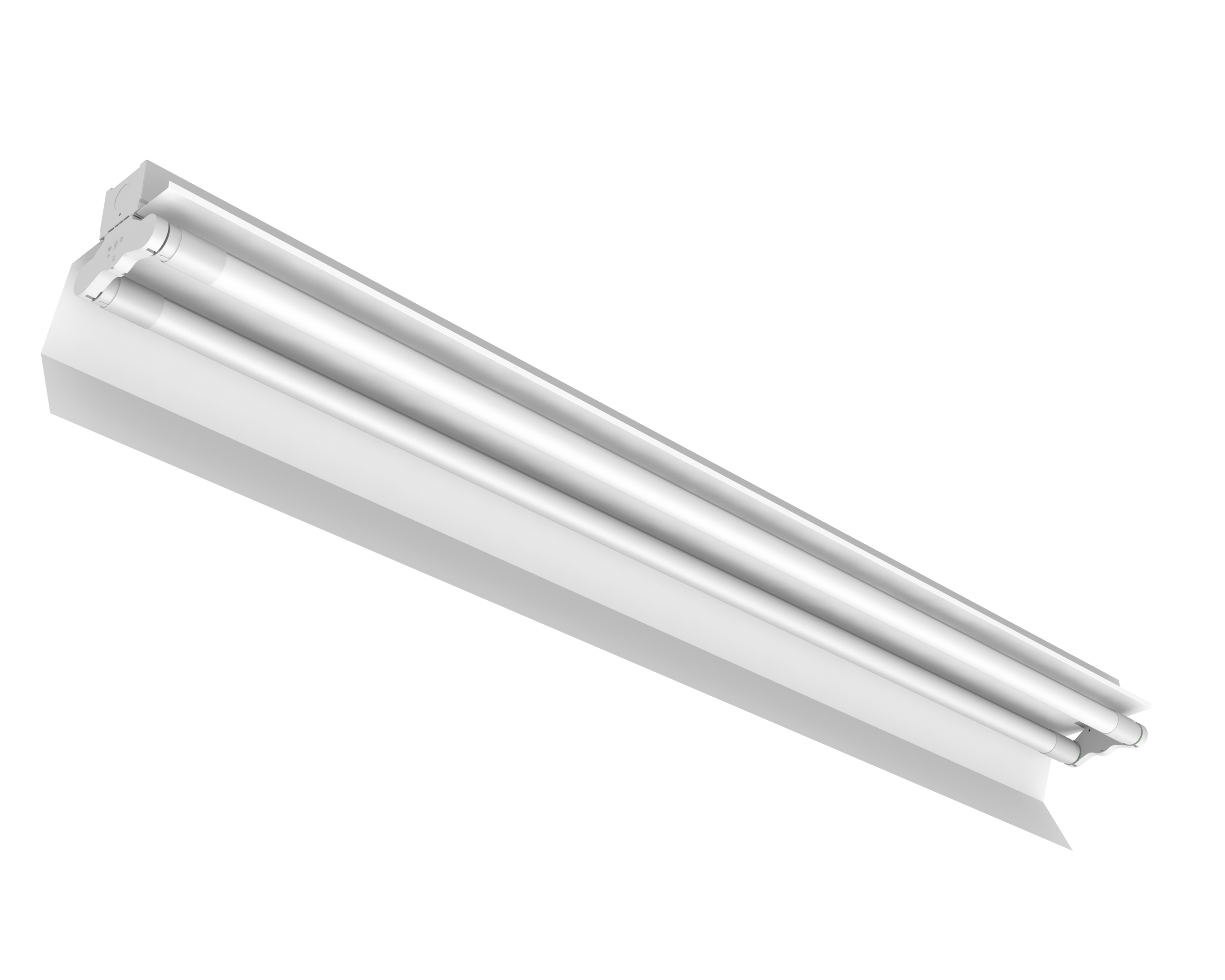

| OS YBC 2 x 1200mm + MER 240A |
2 | Batten | White Metal Reflector | G13 | 1222 mm | 144 mm | 174 mm |
| T8 LED Tube | T8 LED Tube | Powerpack | |
 |
 |
 |
|
| TOSHIBA PRO TUBE RLDL028 | TOSHIBA GLASS TUBE RLDL8 | VITALITE VEL 120/ECK |
