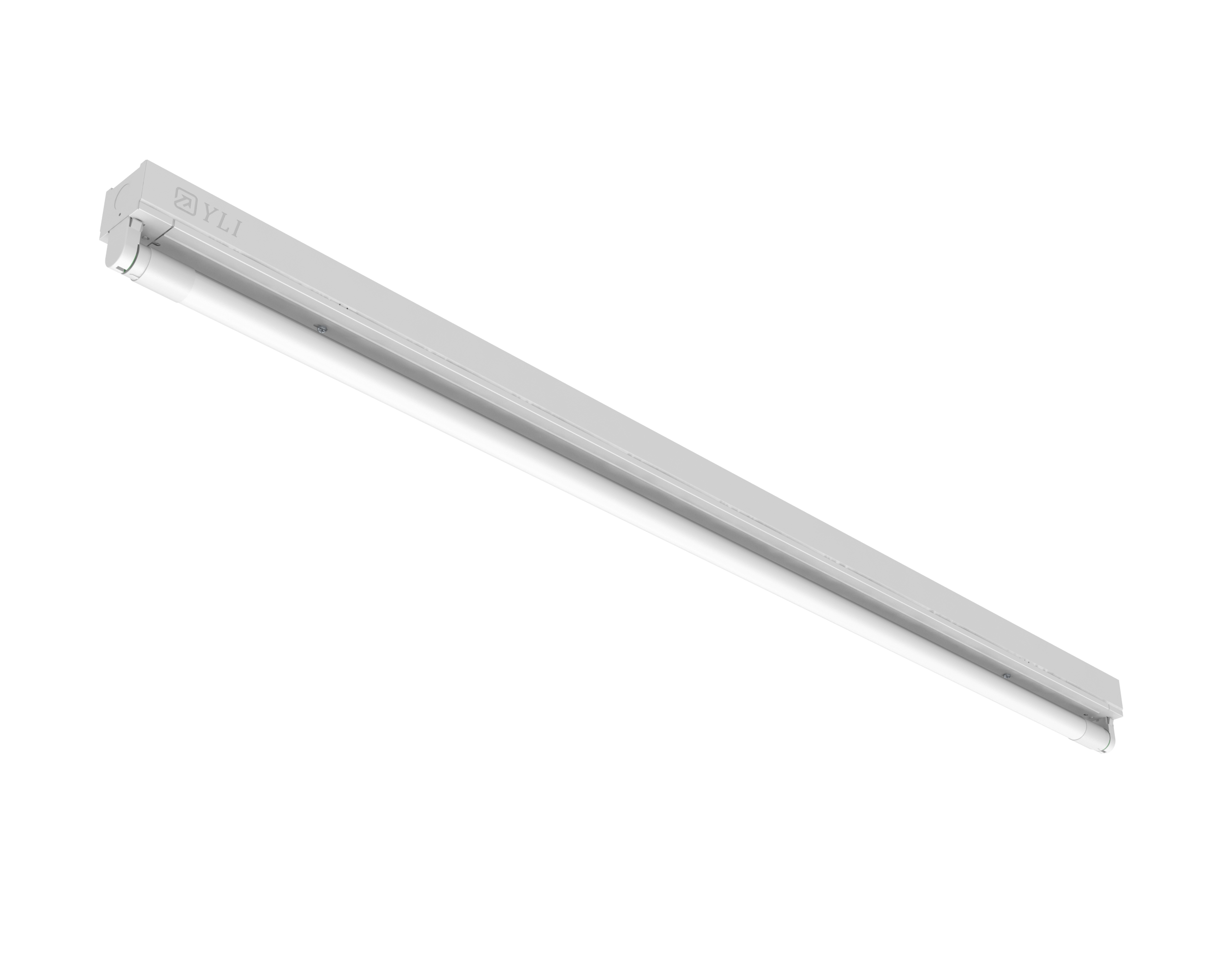

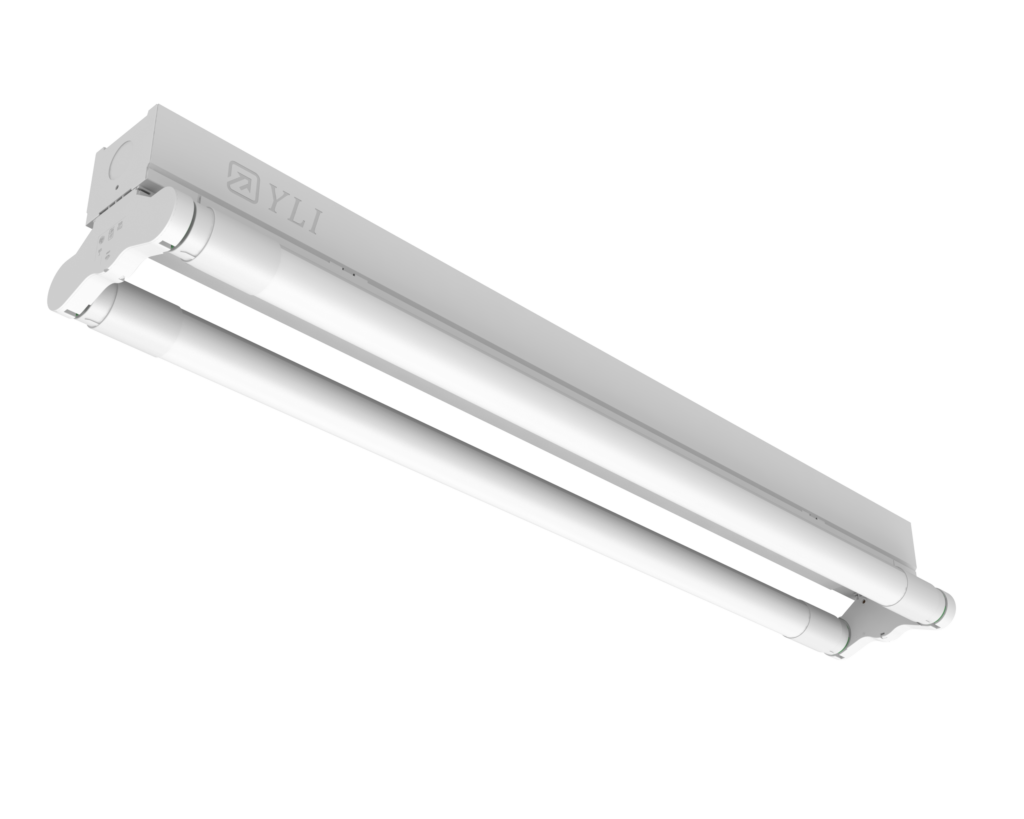

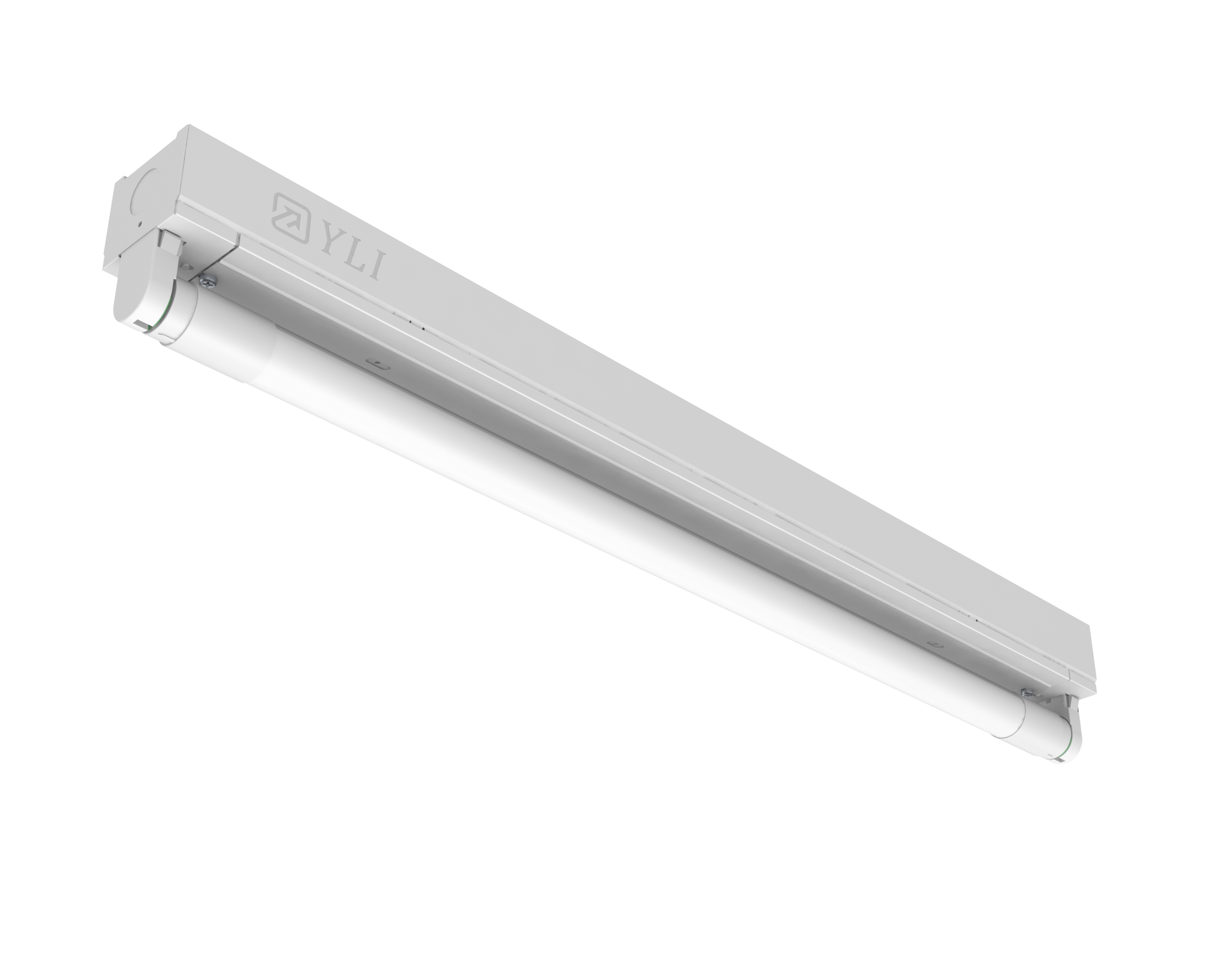

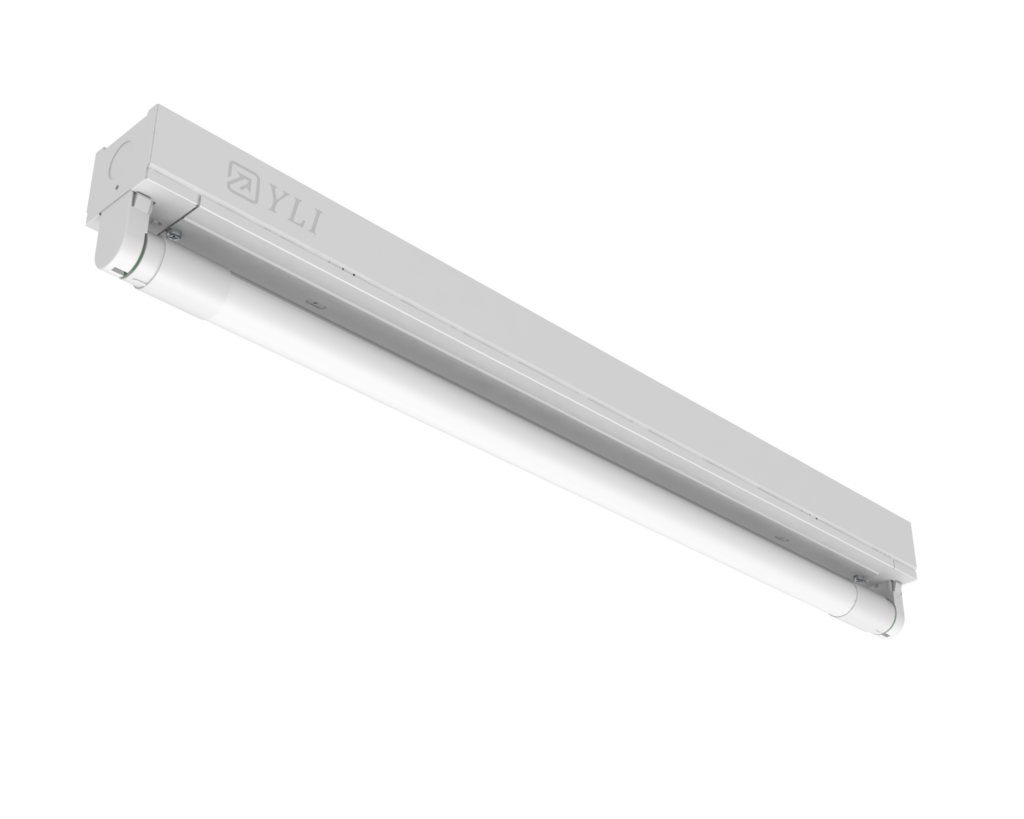

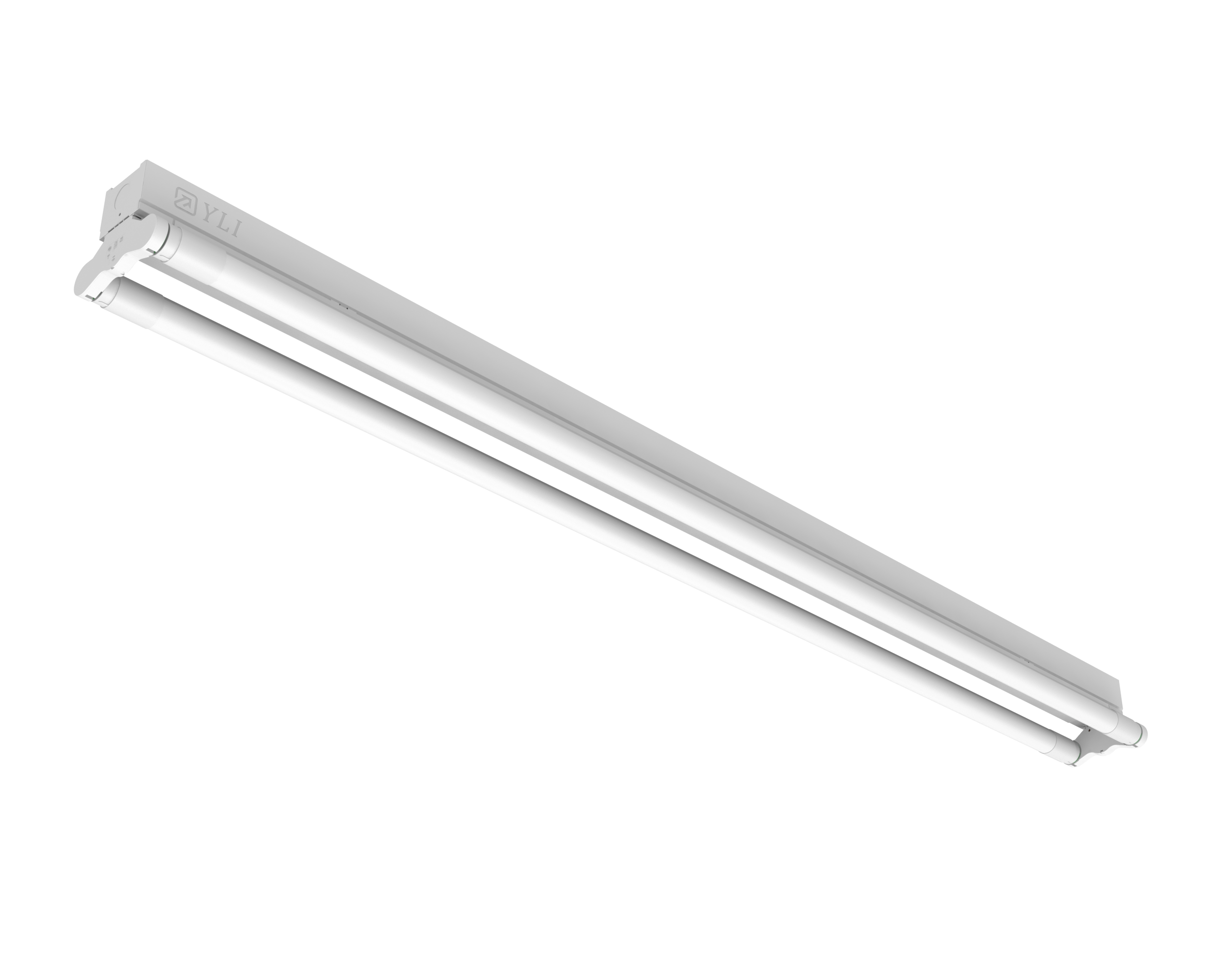

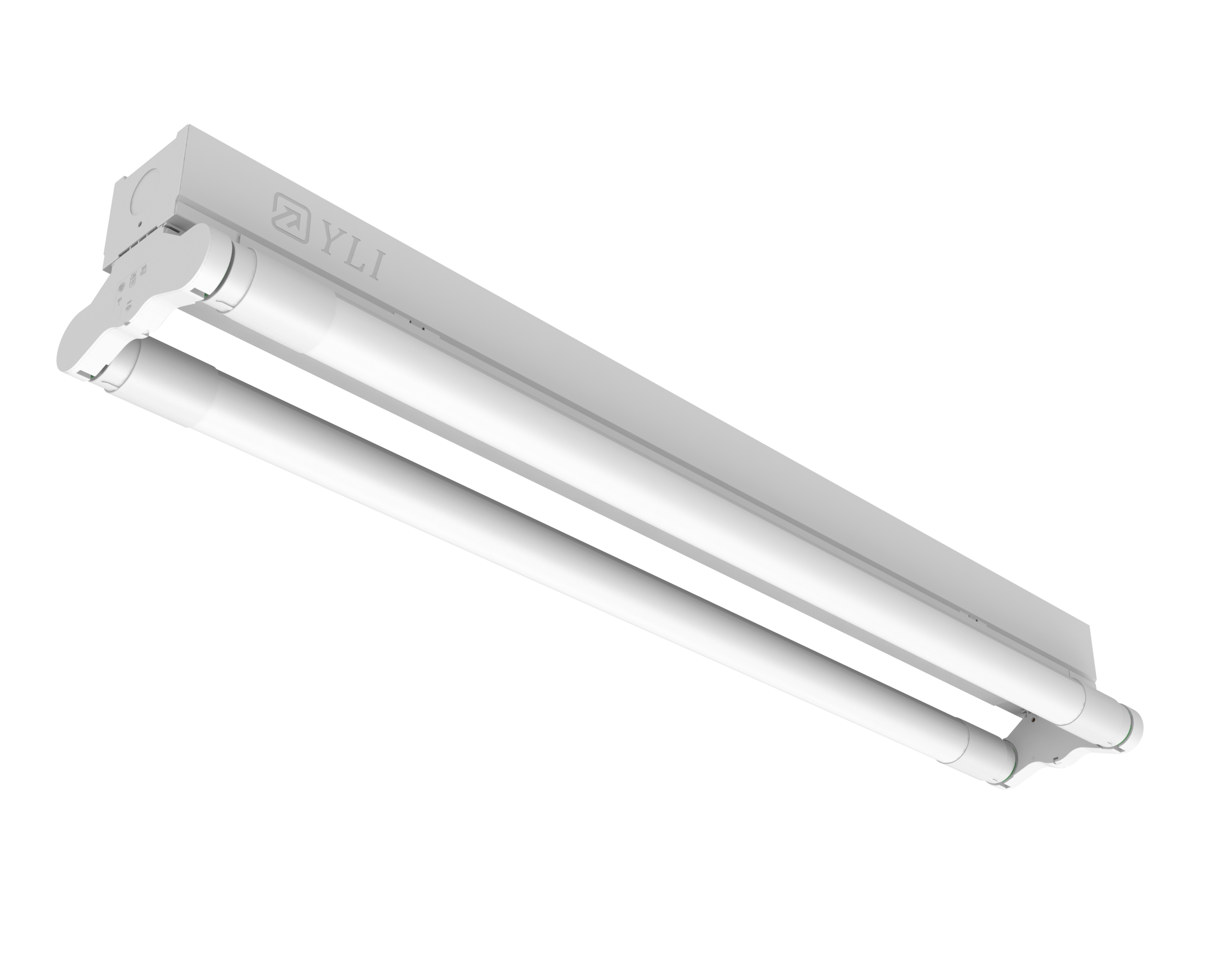

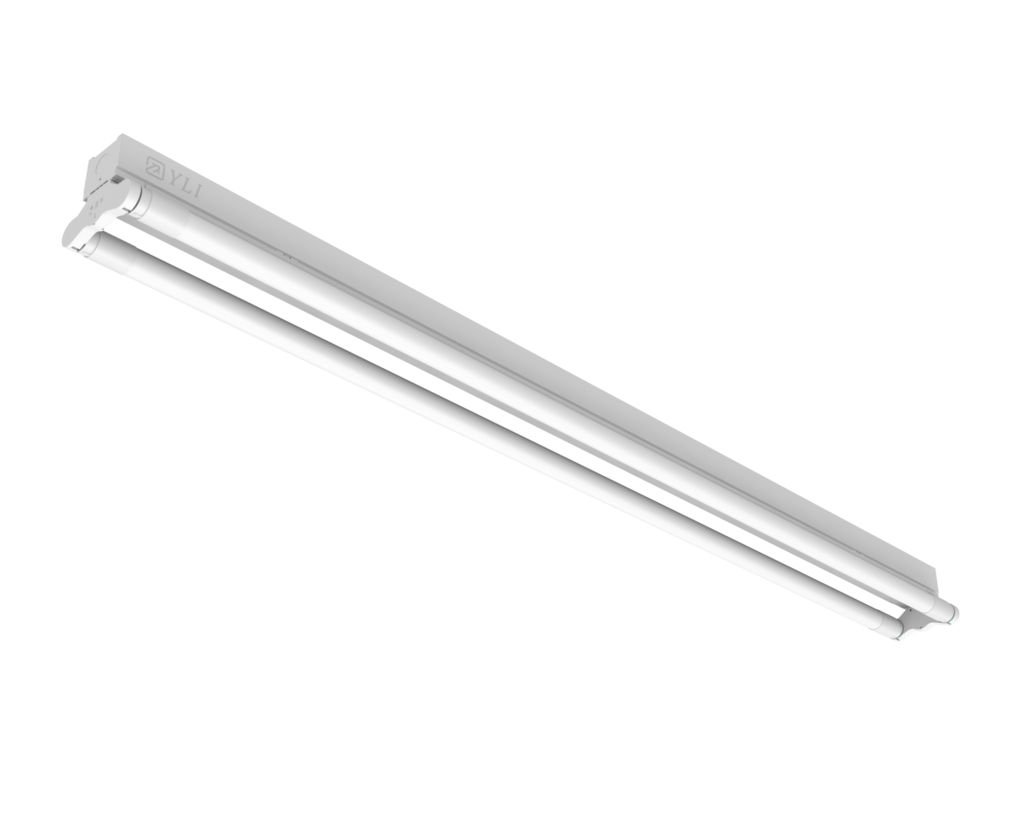

OS YBC Series
Indoor Luminaries
T8 LED BATTEN FITTING – OS YBC Series
Experience the durability and elegance of the OS YBC Batten fitting. Crafted from thick mild steel with a smooth finish, its optimized design seamlessly accommodates power packs. Ideal for various applications.
| Application | : | Office, School, Laboratory, Hospitals, Factory, Warehouse, Restaurants, Public Toilets, Supermarkets, Shopping Complexes, Workshops, Corridors |
| Certificate | : | JKR, MyHijau, SIRIM, ST |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.5mm) |
| End Cap | Fabricated from Mild Steel |
| Lampholder | Polycarbonate and Bronze Lampholder |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall / Suspension |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Bundle Size | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS YBC 1 x 600mm | 0.55 Kg | 612 mm | 130 mm | 105 mm | 3.30 Kg | 6 pcs / Bundle |
| OS YBC 2 x 600mm | 0.60 Kg | 612 mm | 130 mm | 105 mm | 3.65 Kg | 6 pcs / Bundle |
| OS YBC 1 x 1200mm | 1.00 Kg | 1220 mm | 130 mm | 105 mm | 6.15 Kg | 6 pcs / Bundle |
| OS YBC 2 x 1200mm | 1.05 Kg | 1220 mm | 130 mm | 105 mm | 6.25 Kg | 6 pcs / Bundle |
| Model | Luminaires | Dimension (mm) | ||||
| No. of Lamp | Type | Base | L | W | H | |
| OS YBC 1 x 600mm | 1 | Batten | G13 | 612 mm | 52 mm | 77 mm |
| OS YBC 2 x 600mm | 2 | Batten | G13 | 612 mm | 88 mm | 75 mm |
| OS YBC 1 x 1200mm | 1 | Batten | G13 | 1222 mm | 52 mm | 77 mm |
| OS YBC 2 x 1200mm | 2 | Batten | G13 | 1222 mm | 88 mm | 75 mm |
| T8 LED Tube | T8 LED Tube | Powerpack | |
 |
 |
 |
|
| TOSHIBA PRO TUBE RLDL028 | TOSHIBA GLASS TUBE RLDL8 | VITALITE VEL 120/ECK |
