OS YB/OL Series
Indoor Luminaries

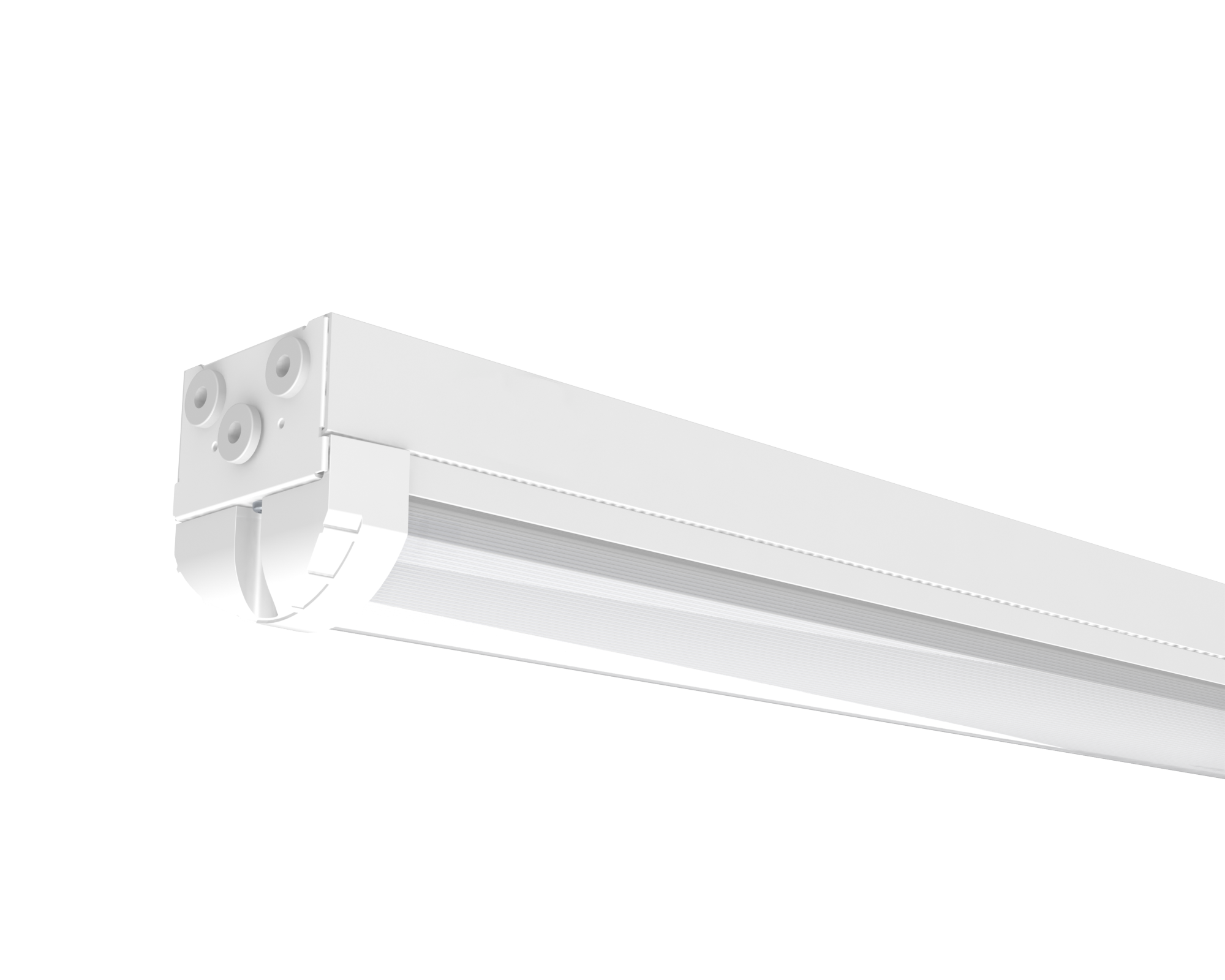

LED REEDED DIFFUSER BATTEN FITTING – OS YB/OL Series
The OS YB/OL Series LED Reeded Diffuser Batten Fitting is designed for ease of maintenance and offers the option to include a sensor and emergency pack. The sensor can be configured to provide 100% brightness when motion is detected and dim to 30% or turn off when no motion is detected, optimizing energy efficiency while ensuring reliable performance.
| Application | : | Corridors, Staircases, Car Parks, Common Areas, Void Decks and Lift Lobbies, Office, School, Laboratory, Hospitals, Public & Commercial Building |
| Certificate | : | HDB |
| Colour | : | Smooth White |
| Body | Extruded from Aluminium Alloy |
| Diffuser | Polycarbonate (PC) Opal Linear Diffuser |
| End Cap | Die Casted from ADC12 Aluminium Alloy |
| Connector | Nylon 3 Way Connecting Devices |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall |
| Driver | YLI YLD Series |
| Lamp | OS LED Linear Strip |
| Sensor | Infrared Motion Sensor |
| Dimming Type | Sensor Dimming |
| Model | OS YB2/OL | OS YB2/OL-IMS | OS YB4/OL | OS YB4/OL-IMS | |
| Driver | YLI YLD 9/350/IMS | YLI YLD 18/700/IMS | |||
| Sensor | No | Yes | No | Yes | |
| System Lumen (lm) | Full Load (100%)Â | 1000 lm | 1000 lm | 1900 lm | 1900 lm |
| Saving Mode (30% ±5%) | – | 350 lm | – | 700 lm | |
| System Power (W) | Full Load (100%)Â | 9 W | 10 W | 18 W | 19 W |
| Saving Mode (30% ±5%) | – | 3 W | – | 5 W | |
| System Current (A) | 0.35 A | 0.7 A | |||
| Efficacy (lm/W) | 111 lm/W | 100 lm/W | 106 lm/W | 100 lm/W | |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | ||||
| IP Grade | IP 54 for LED IP 20 for Housing |
||||
| Classification | Class I | ||||
| Power Factor | PF ≥ 0.85 | ||||
| Operating Temperature (ta) | 0°C ~ 40°C | ||||
| Max. Casing Temperature (tc) | 65°C | ||||
| Rated Lifespan | 50,000 hrs | ||||
| CRI | > 80 Ra | ||||
| SDCM | ≤ 5 | ||||
| Beam Angle | 120° | ||||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | ||||
| Model | Product Weight (Kg) |
Carton Size (mm) | Bundle Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| OS YB2/OL | 1.25Â Kg | 640Â mm | 84Â mm | Â 90 mm | 640Â mm | 168Â mm | 180Â mm | 5.0 Â Kg | 4 pcs / Bundle |
| OS YB2/OL-IMS | 1.40Â Kg | 715Â mm | 84Â mm | Â 90 mm | 715Â mm | 168 mm | 180Â mm | 5.6Â Kg | 4 pcs / Bundle |
| OS YB4/OL | 2.05Â Kg | 1200Â mm | 84Â mm | 90Â mm | 1200Â mm | 168Â mm | 180Â mm | 8.2Â Kg | 4 pcs / Bundle |
| OS YB4/OL-IMS | 2.25 Kg | 1275Â mm | 84Â mm | 90Â mm | 1275Â mm | 168Â mm | 180Â mm | 9.0Â Kg | 4 pcs / Bundle |
| Model | Luminaires | Dimension (mm) | ||||||
| LED Driver | LED Module | Colour Temperature, CCT (K) | L | W | H | |||
| OS YB2/OL | 1 x YLI YLD 9/350/IMS | 1 x OS-HDB-2ft-Strip-49 | 3000K | 4000K | 6500K | 631 mm | 75 mm | 80 mm |
| OS YB2/OL-IMS | 1 x YLI YLD 9/350/IMS | 1 x OS-HDB-2ft-Strip-49 | 3000K | 4000K | 6500K | 707 mm | 75 mm | 86 mm |
| OS YB4/OL | 1 x YLI YLD 18/700/IMS | 1 x OS-HDB-4ft-Strip-98 | 3000K | 4000K | 6500K | 1191 mm | 75 mm | 80 mm |
| OS YB4/OL-IMS | 1 x YLI YLD 18/700/IMS | 1 x OS-HDB-4ft-Strip-98 | 3000K | 4000K | 6500K | 1267 mm | 75 mm | 86 mm |
| Powerpack | Infrared Motion Sensor | ||
 |
 |
||
| VITALITE VEL 120/ECK | OS-IMS-01 |
