OS WL 80/R Series
Outdoor Luminaries
LED RECESSED WALL LIGHT – OS WL 80/R Series
The OS WL 80/R Series LED Wall Light is engineered for durability and versatility, featuring a rugged die-cast aluminum body that withstands extreme weather conditions, from intense sunlight to heavy rain. Designed for recessed installation, it includes a frosted glass sealed with a silicone gasket for added protection and long-lasting performance, making this wall light a dependable choice in challenging environments.
| Application | : | Outdoor Area, Terraces, Courtyards, Halls, Pathways, Corridors, Warehouses, Factory, Public and Commercial Buildings |
| Certificate | : | Nil |
| Colour | : | Black Texture, Silver Texture, White Texture |
| Body |
Die Casted from ADC12 Aluminium Alloy |
| Frame |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Frosted Glass Diffuser |

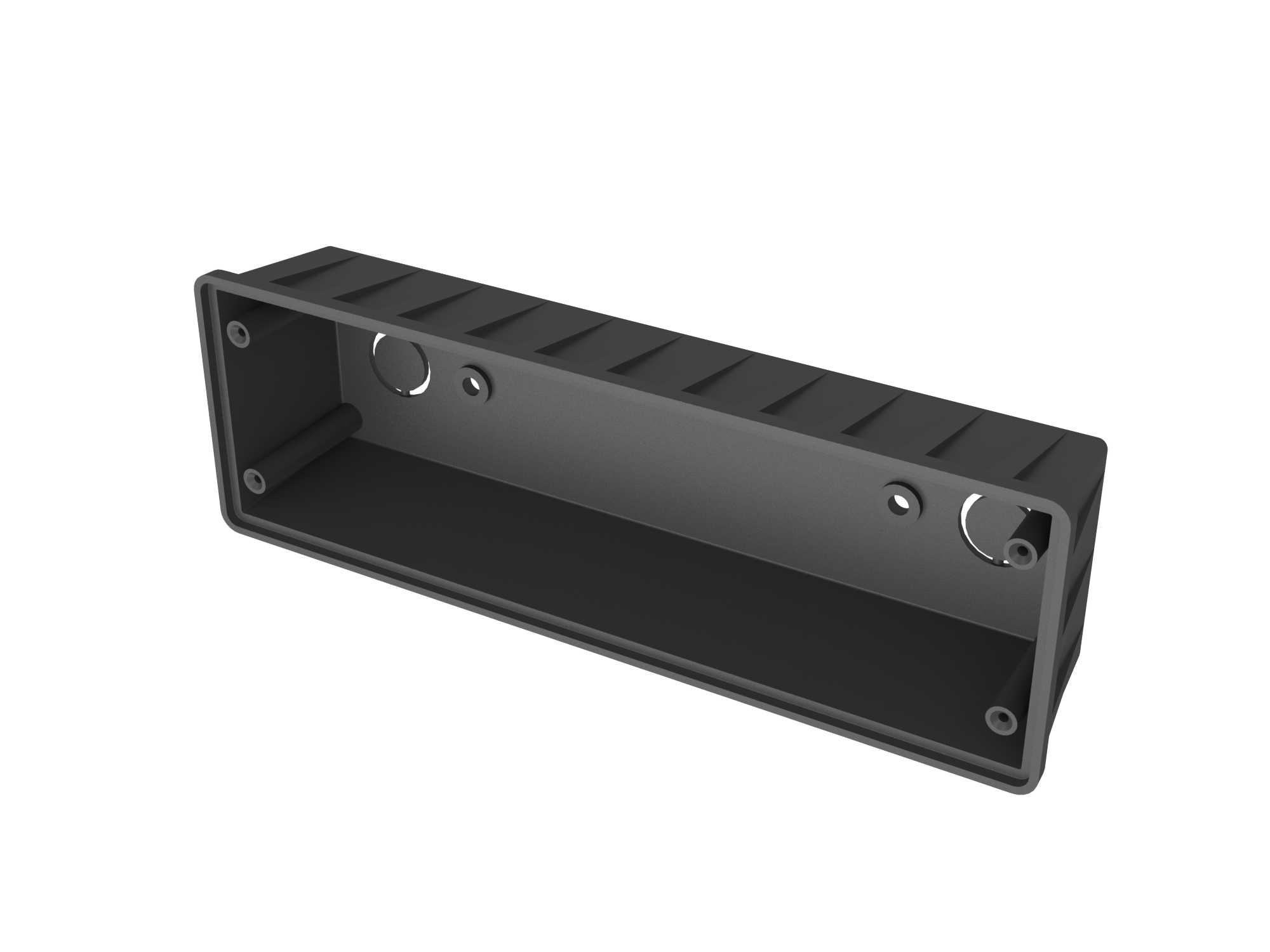

| Recessed Box | Injection Moulded from Acrylonitrile Butadiene Styrene (ABS) |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Recessed Wall Mounted |
| Driver | VITALITE LED Driver |
| Lamp | LED Module |
| Model | OS WL 80/R-SQ-B | OS WL 80/R-SQ | OS WL 80/R-ST |
| System Lumen (lm) | 450 | 300 | 50 |
| System Power (W) | 8 | 8 | 8 |
| System Current (A) | 0.07 | 0.07 | 0.07 |
| Efficacy (lm/W) | 56 | 38 | 6 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | ||
| IP Grade | IP 65 | ||
| IK Grade | IK 08 | ||
| Classification | Class I | ||
| Power Factor | PF ≥ 0.5 | ||
| Operating Temperature (ta) | 0°C ~ 35°C | ||
| Max. Casing Temperature (tc) | 80° | ||
| Rated Lifespan | 50,000 hrs | ||
| CRI | > 80 Ra | ||
| SDCM | ≤ 5 | ||
| Beam Angle | 90° | 100° | 75° |
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | ||
| Model | Product Weight (Kg) |
Inner Carton Size (mm) | Outer Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| OS WL 80/R-SQ-B | 0.95 Kg | 255 mm | 87 mm | 80 mm | 460 mm | 270 mm | 340 mm | 18.85 Kg | 20pcs / Carton |
| OS WL 80/R-SQ | 1.00 Kg | 255 mm | 87 mm | 80 mm | 460 mm | 270 mm | 340 mm | 20.45 Kg | 20pcs / Carton |
| OS WL 80/R-ST | 1.05 Kg | 255 mm | 87 mm | 80 mm | 460 mm | 270 mm | 340 mm | 21.45 Kg | 20pcs / Carton |

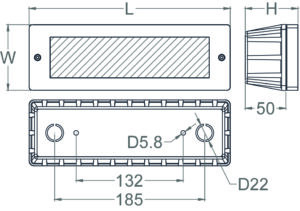

| Model | Luminaires | Dimension (mm) | Cut-Out (mm) | ||||||
| Frame Design | Diffuser | CCT (K) | L | W | H | L | W | H | |

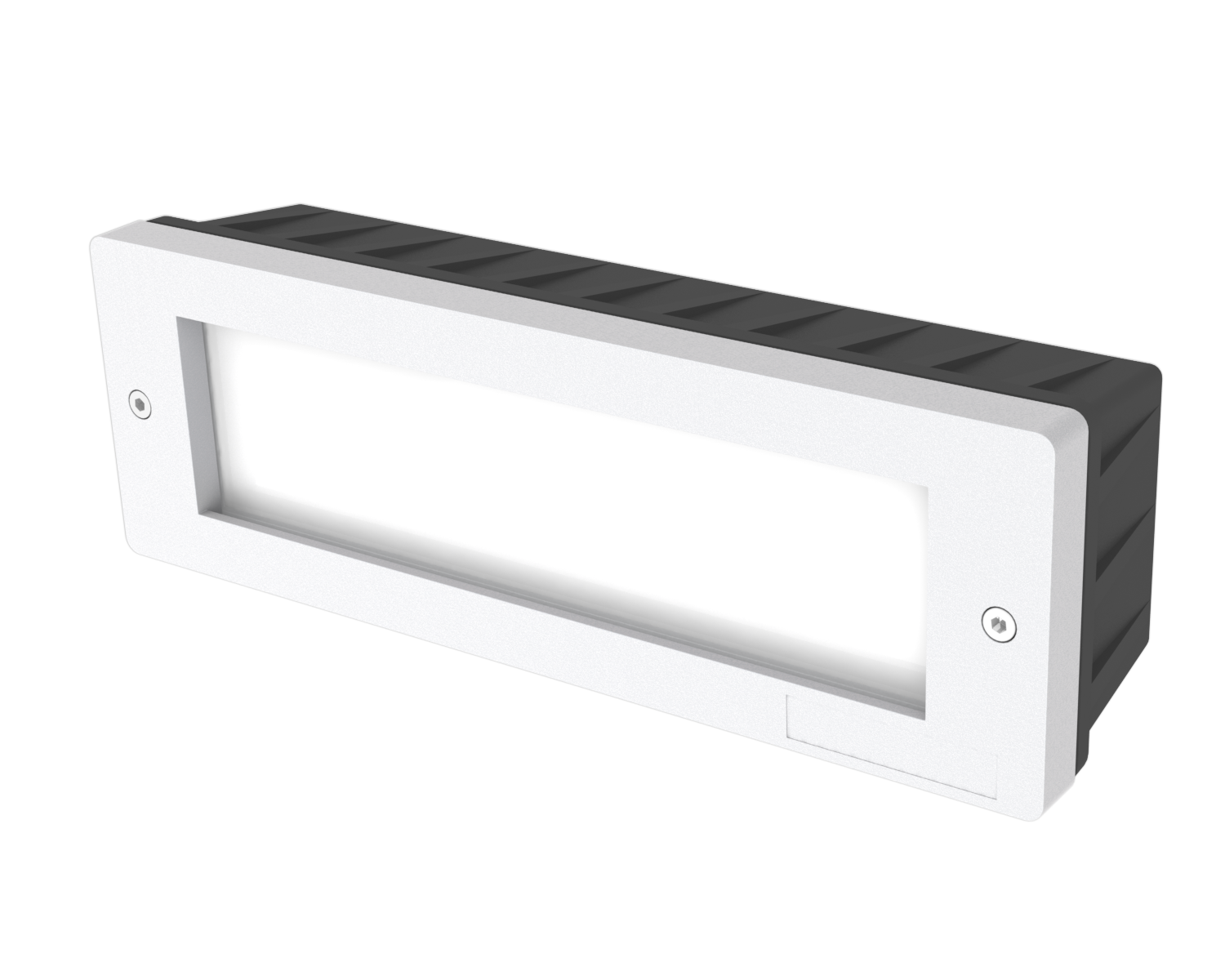

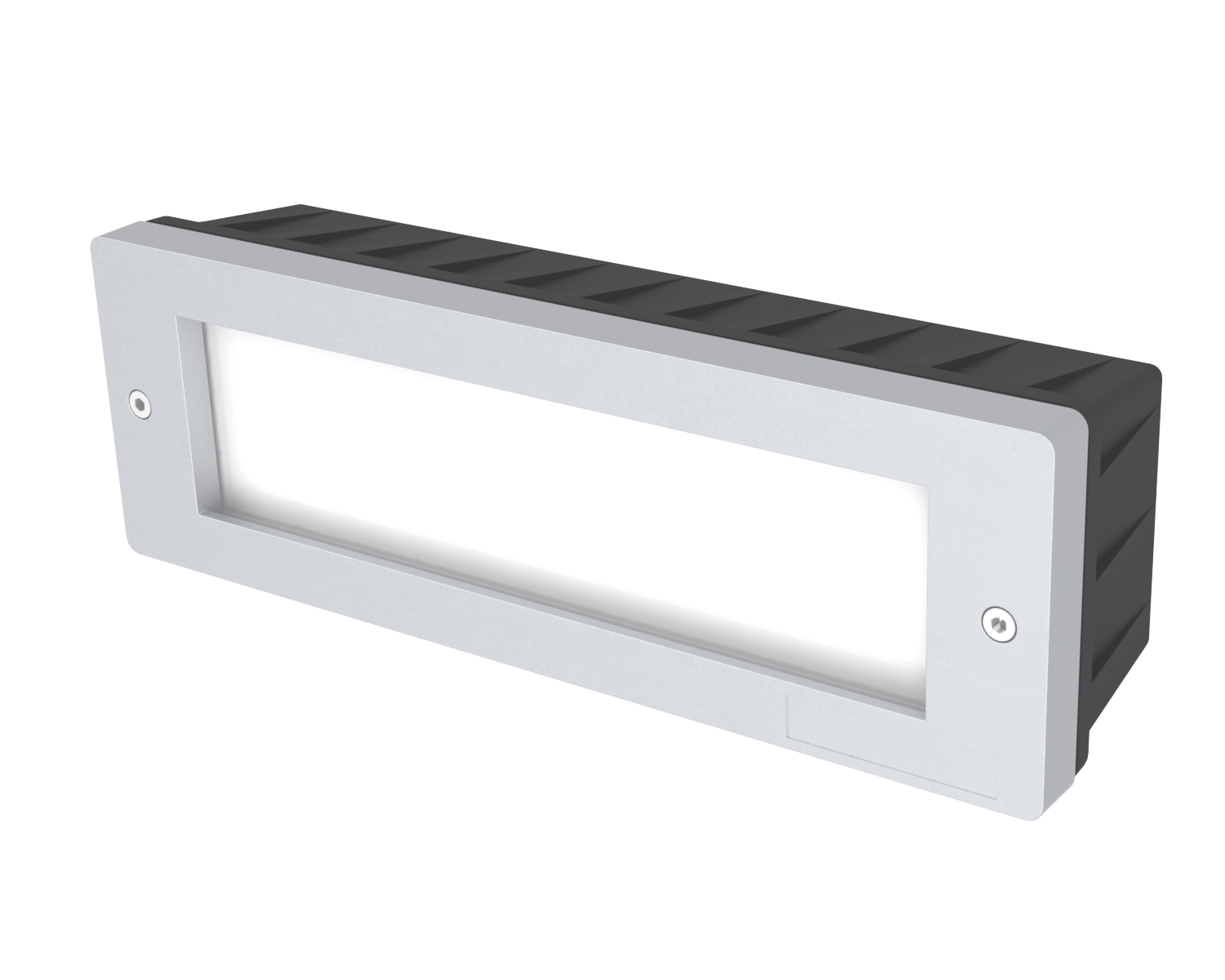

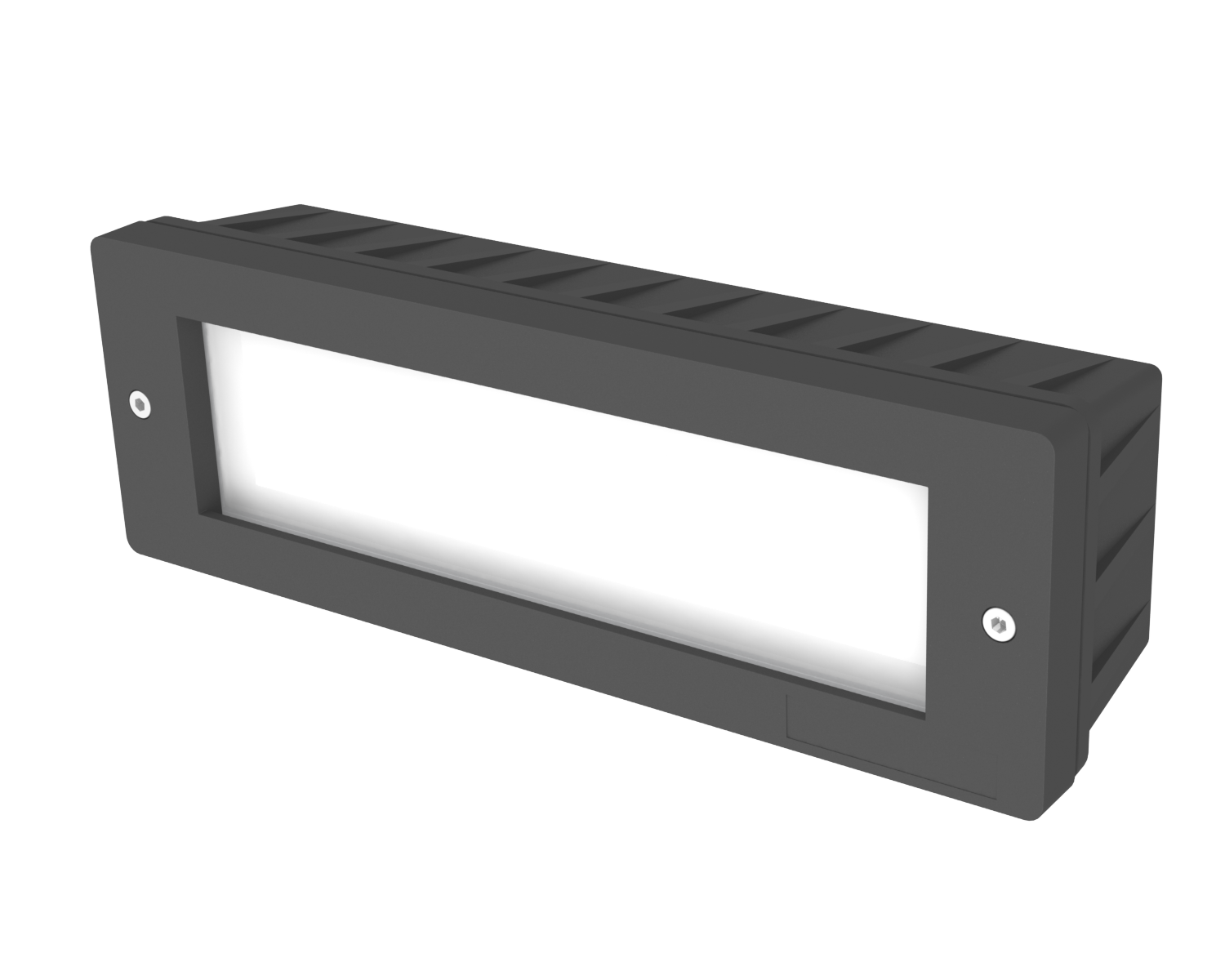

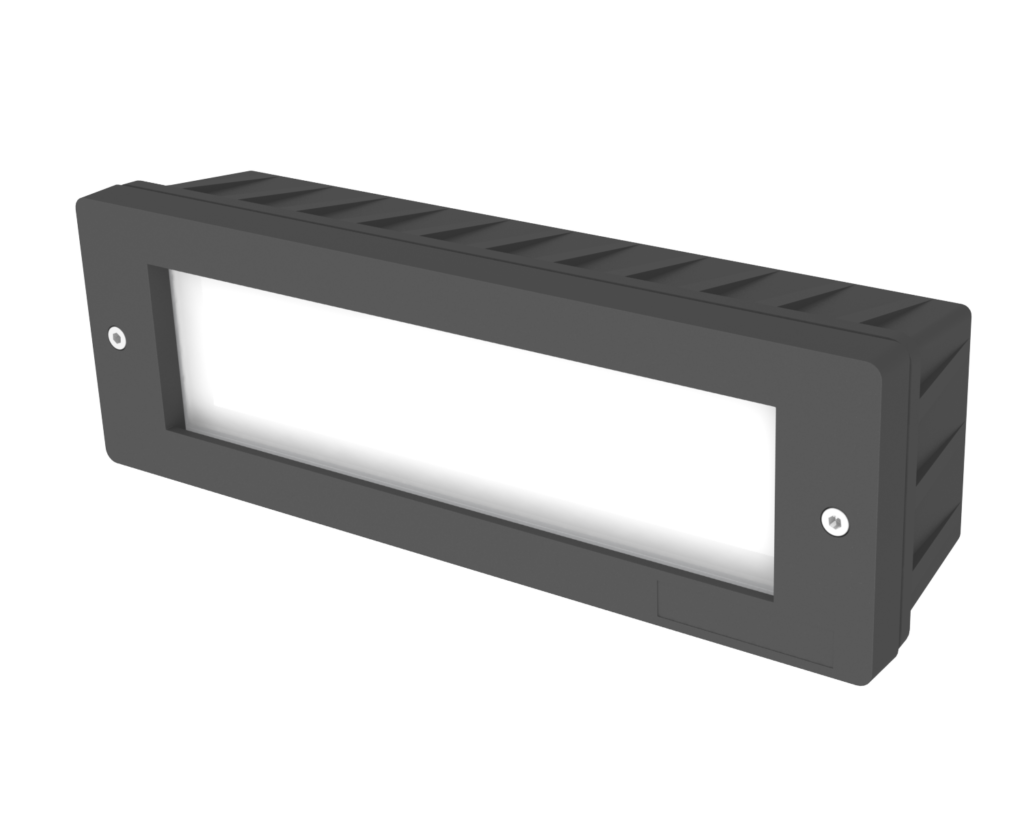

| OS WL 80/R-SQ-B | Plain Frame | Frosted Glass | 3000K/ 4000K/ 6500K |
248 mm | 81 mm | 65 mm | 249 mm | 82 mm | 50 mm |

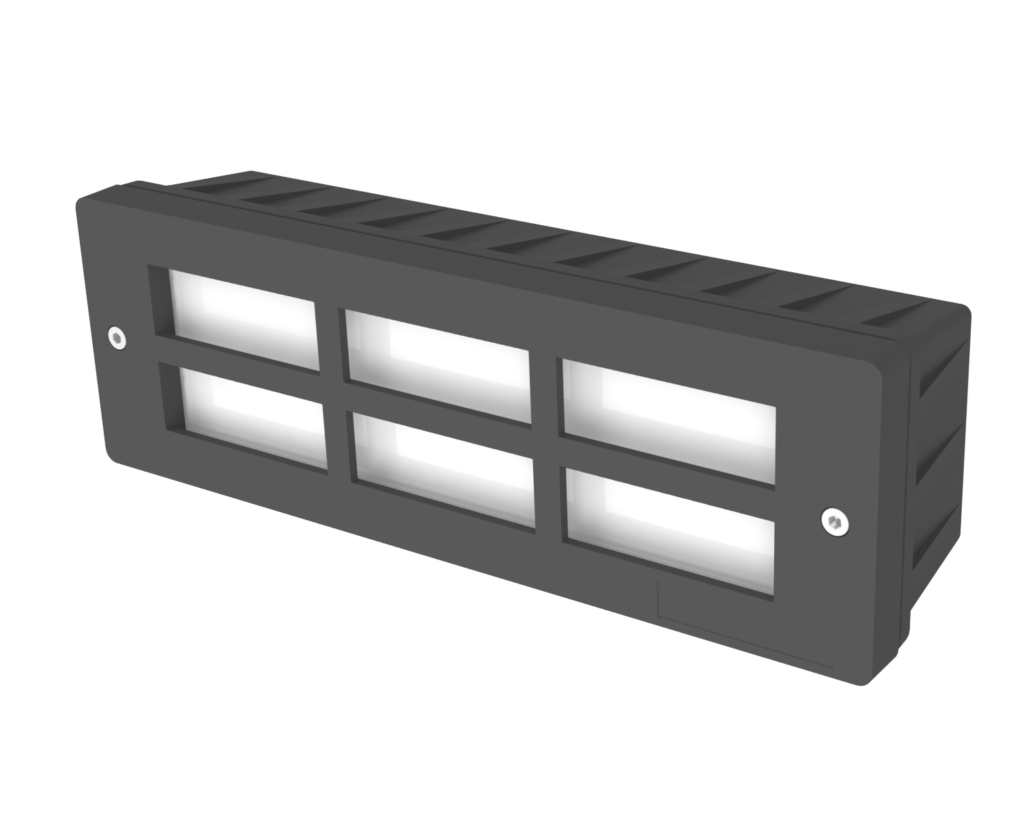

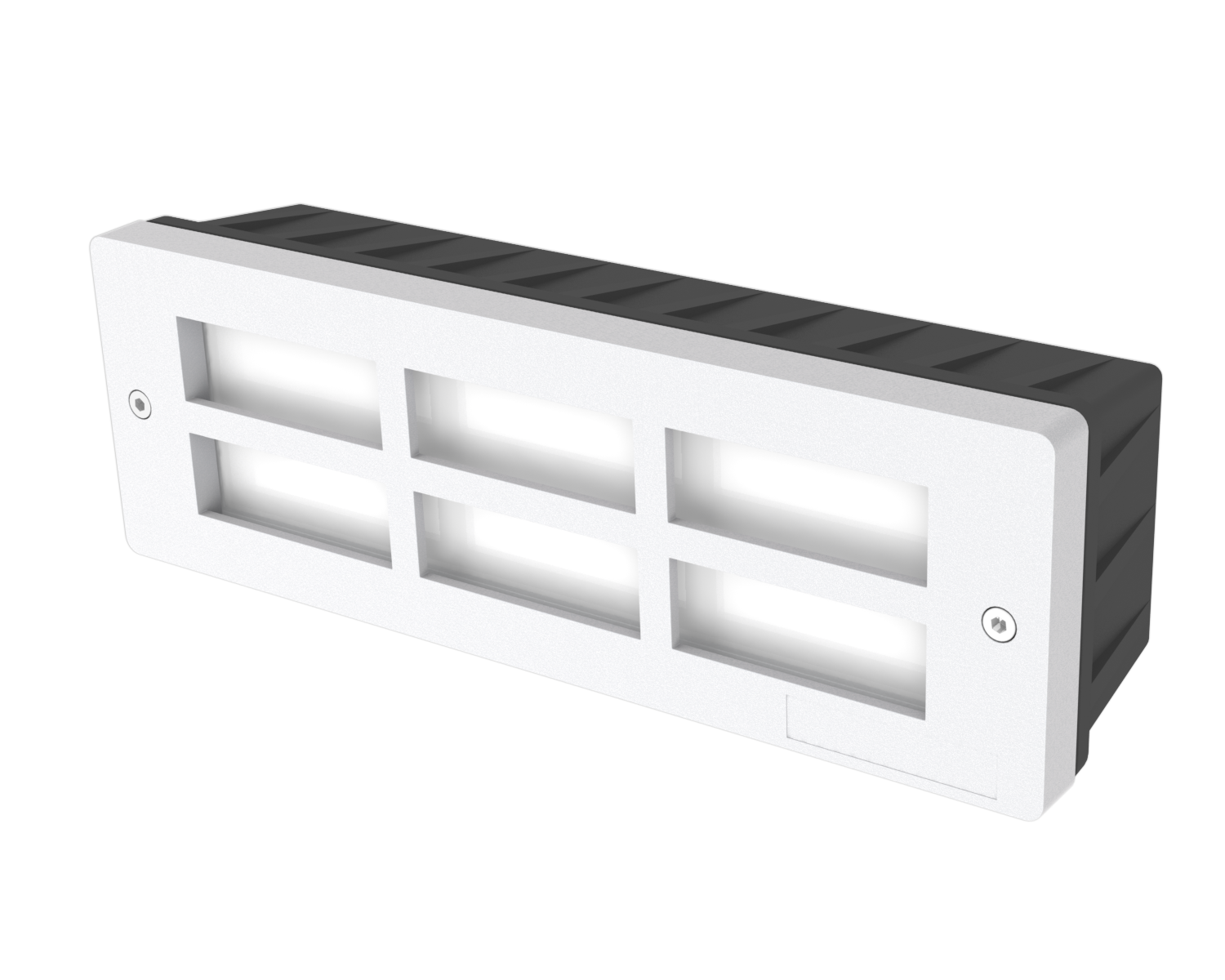

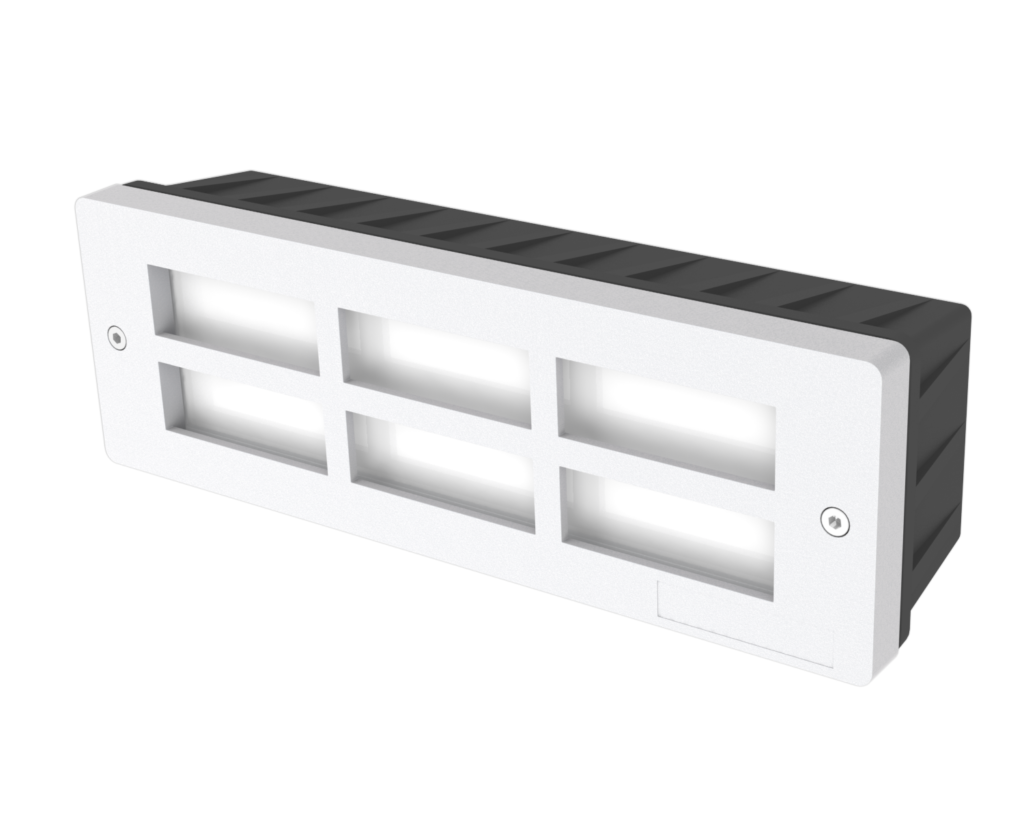

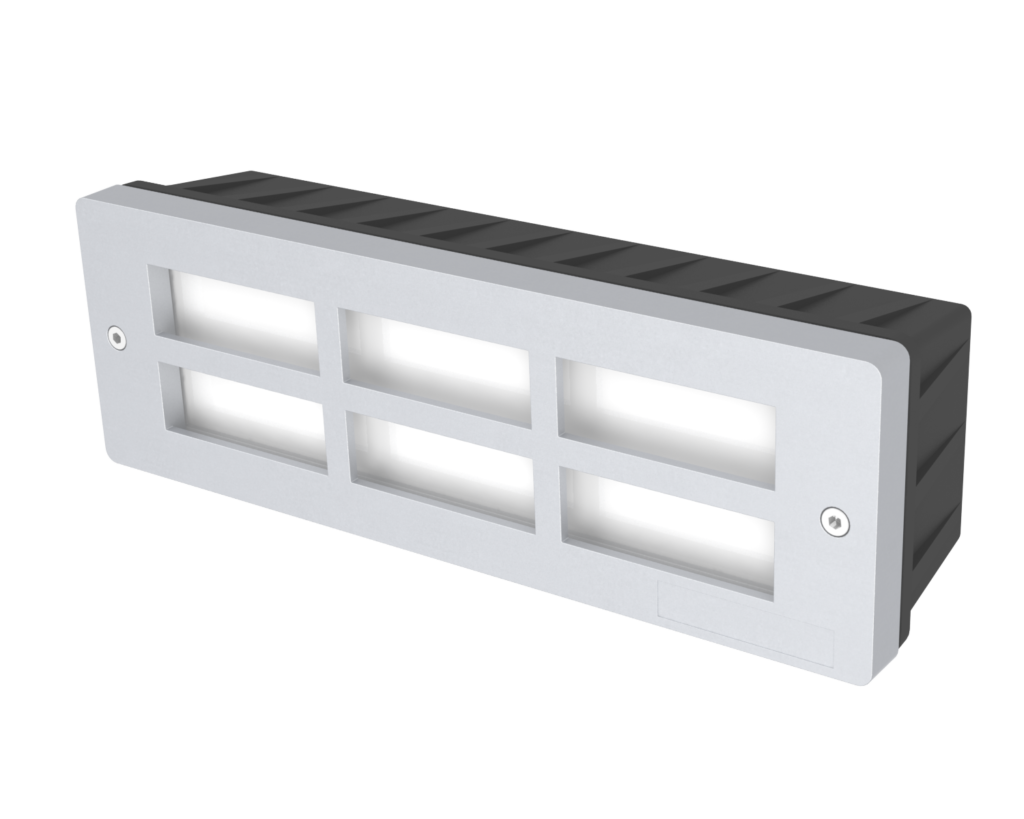

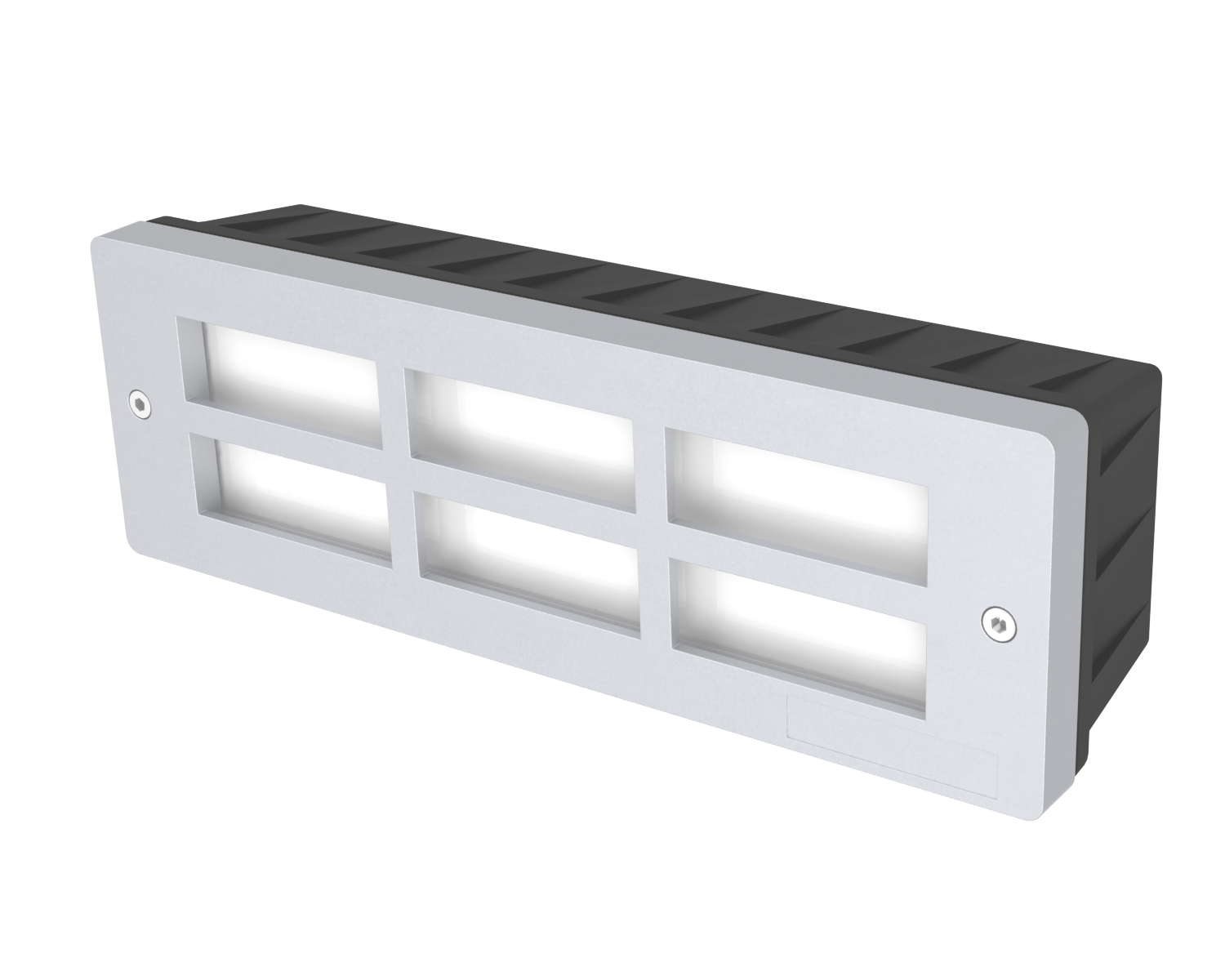

| OS WL 80/R-SQ | Grid Frame | Frosted Glass | 3000K/ 4000K/ 6500K |
248 mm | 81 mm | 65 mm | 249 mm | 82 mm | 50 mm |

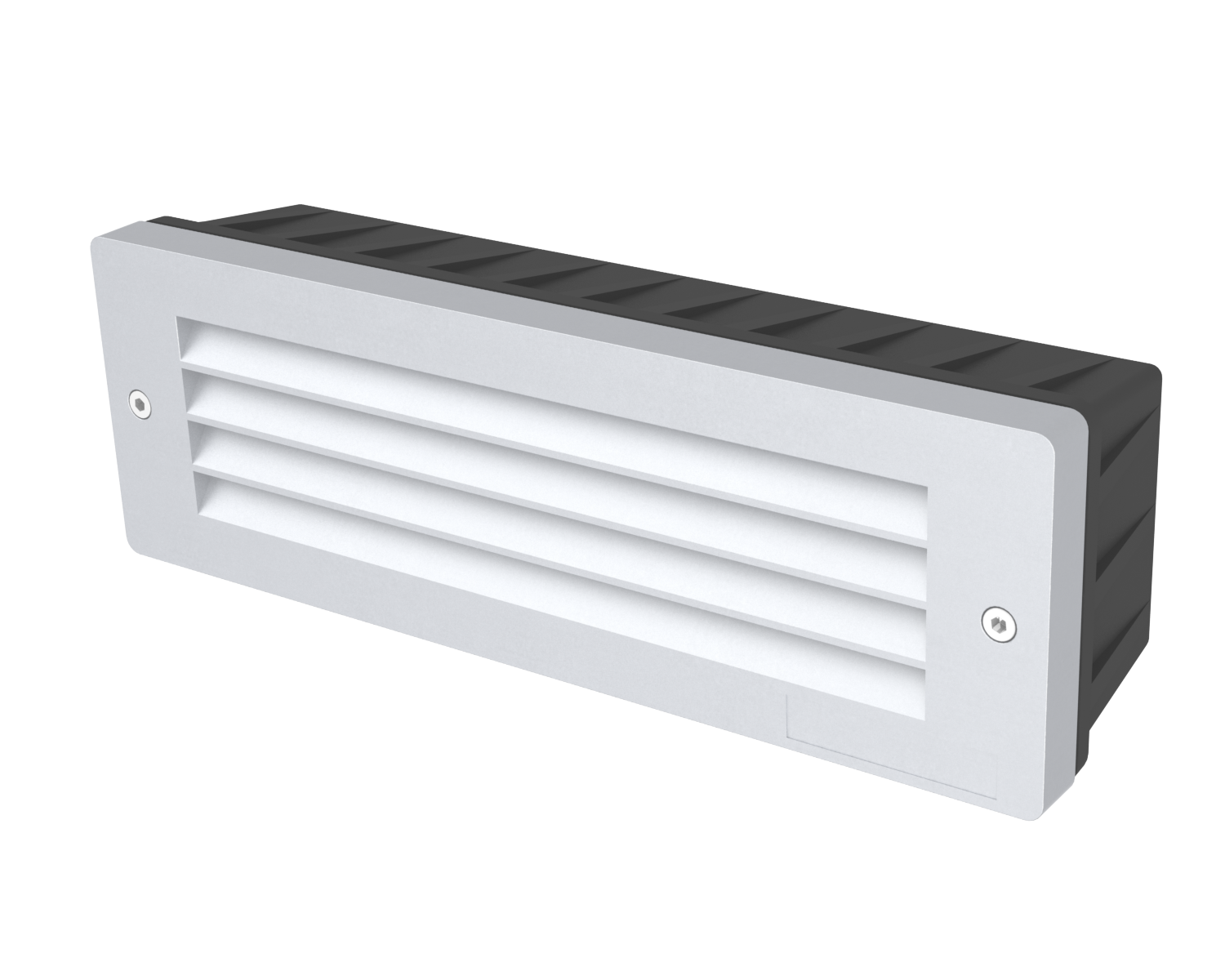

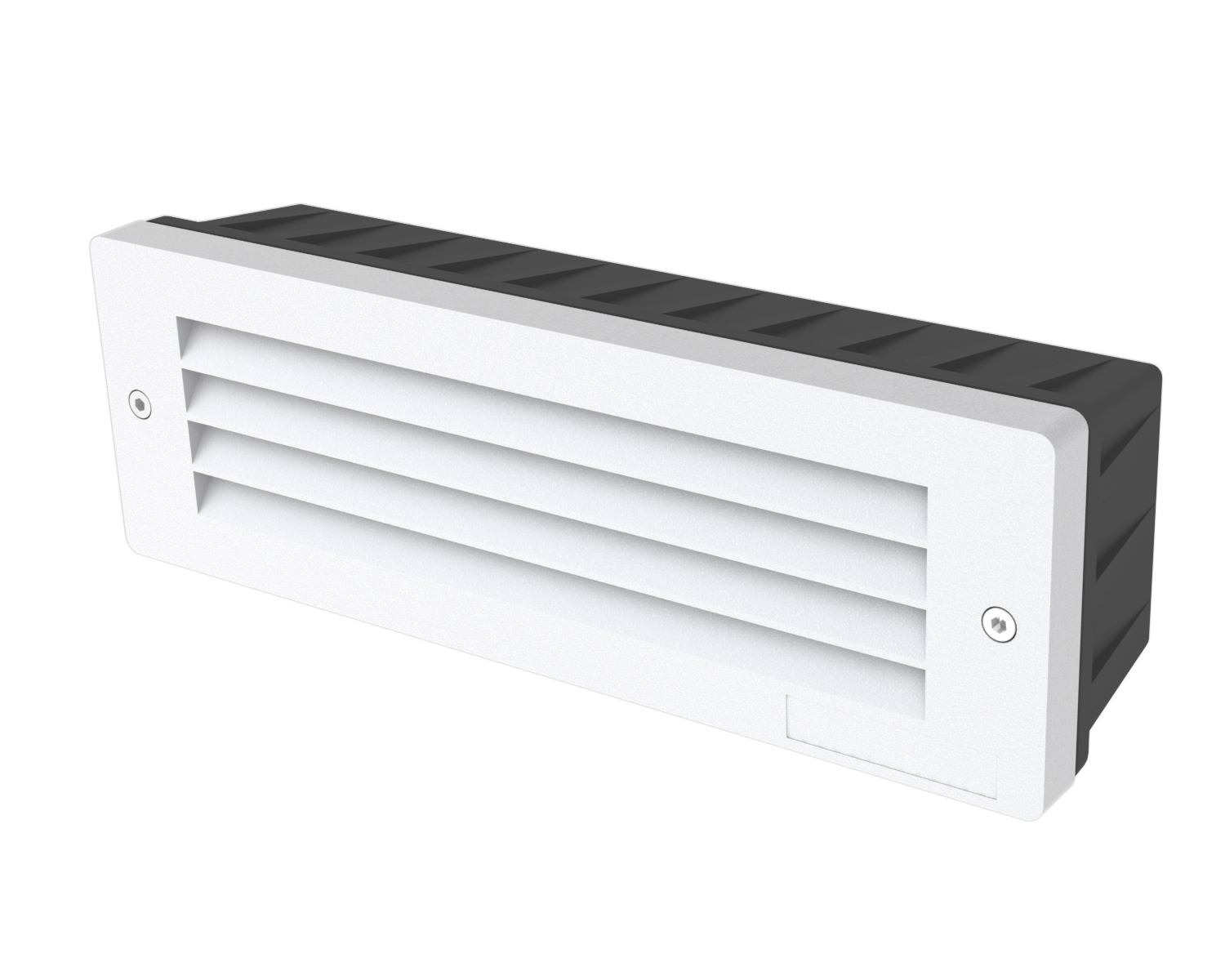

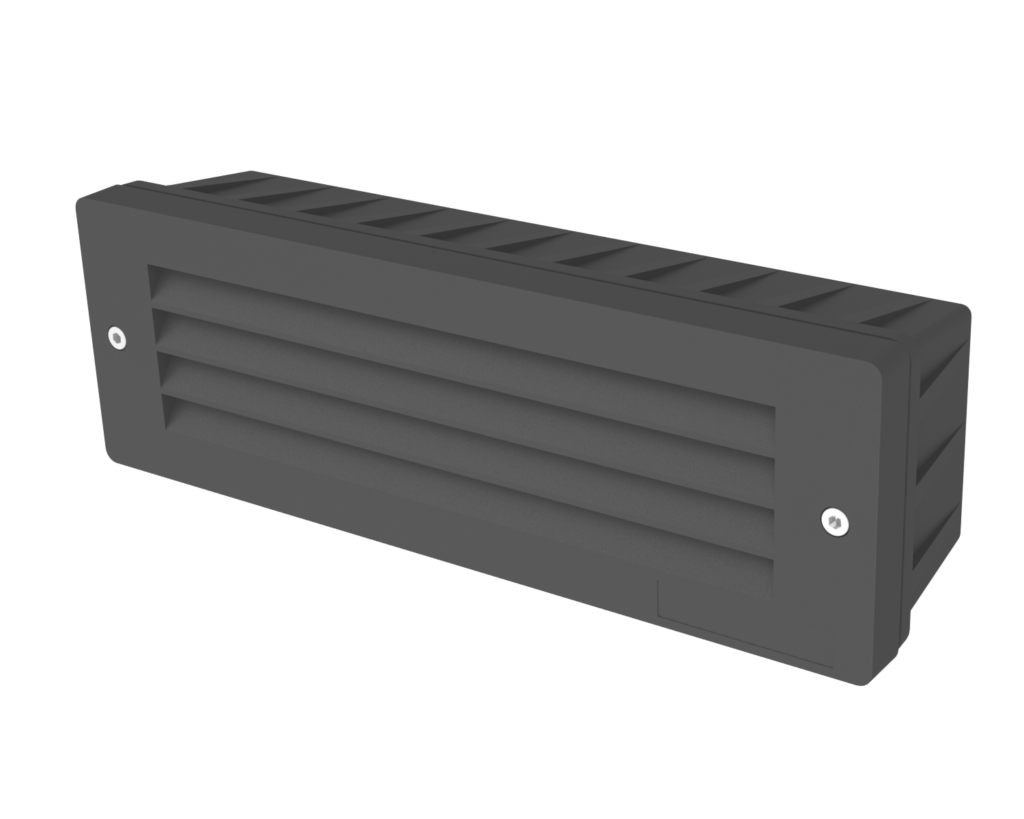

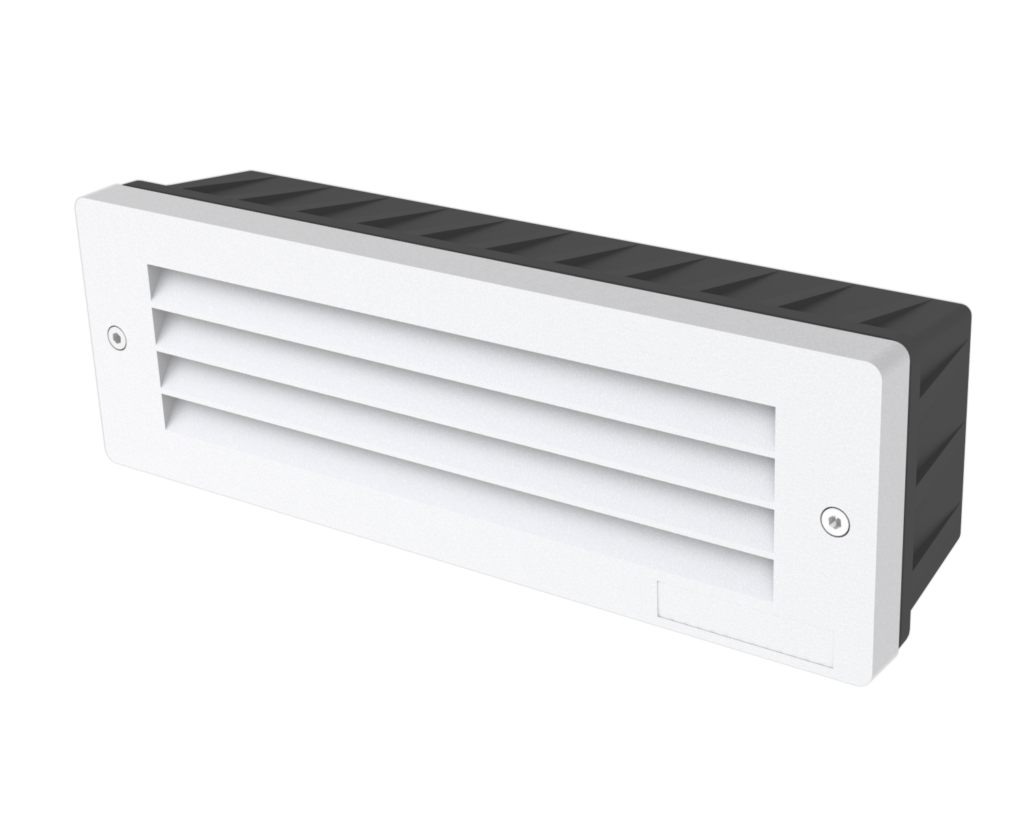

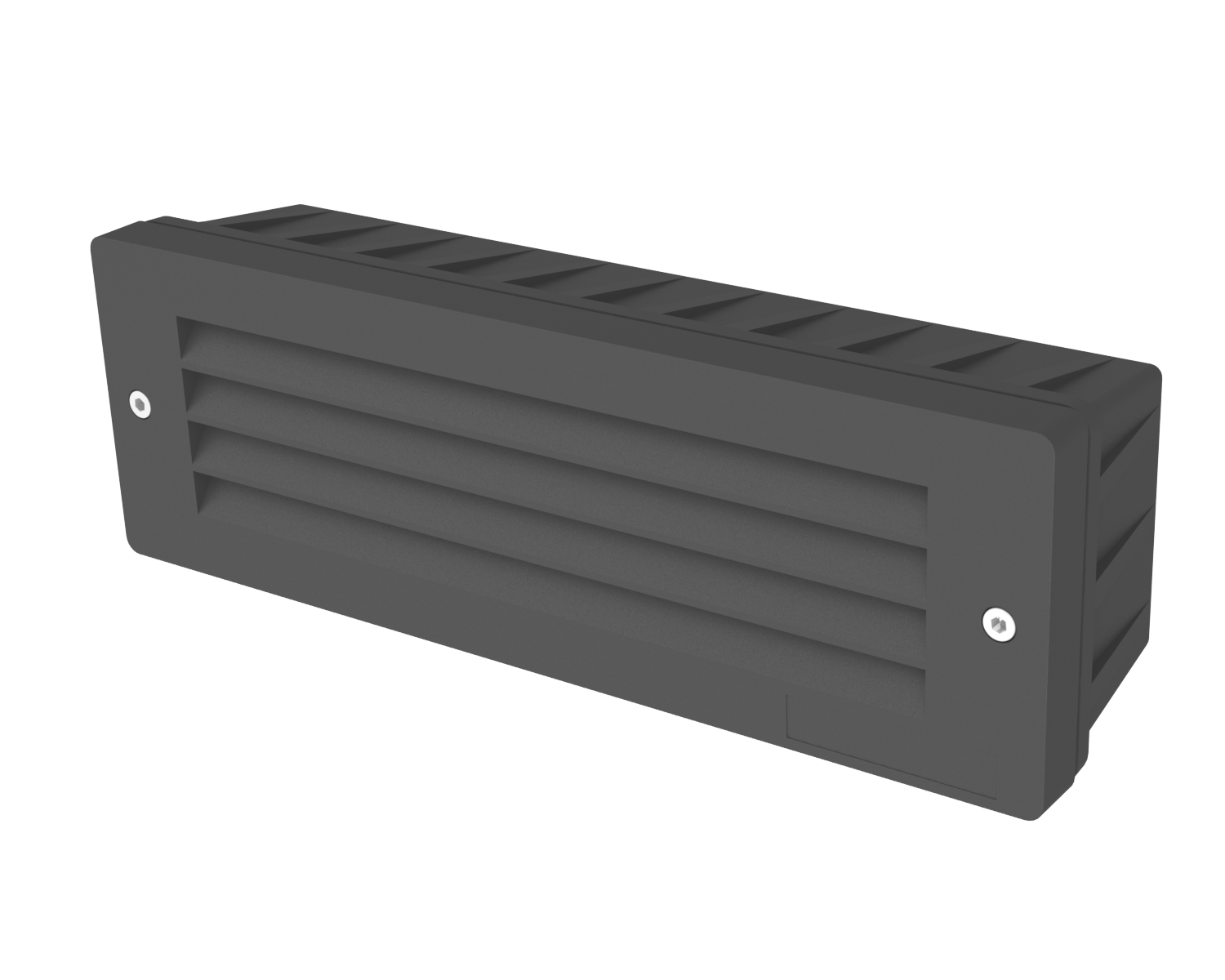

| OS WL 80/R-ST | Louvered Frame | Frosted Glass | 3000K/ 4000K/ 6500K |
248 mm | 81 mm | 65 mm | 249 mm | 82 mm | 50 mm |
