OS WL 006/S-SQ
Outdoor Luminaries
LED SURFACE WALL LIGHT – OS WL 006/S-SQ
The OS WL 006/S-SQ LED Surface Wall Light features a durable die-cast aluminum housing, offering reliable performance in outdoor environments. Its robust construction ensures longevity and resistance to harsh conditions.
| Application | : | Outdoor Area, Terraces, Courtyards, Halls, Pathways, Corridors, Warehouses, Factory, Public and Commercial Buildings |
| Certificate | : | Nil |
| Colour | : | Black Texture |
| Body |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Linear Diffuser Moulded from Acrylic |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Wall Mounted |
| Driver | VITALITE LED Driver |
| Lamp | LED Module |
| Model | OS WL 006/S-SQ |
| System Lumen (lm) | 900 |
| System Power (W) | 8 |
| System Current (A) | 0.07 |
| Efficacy (lm/W) | 112.5 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| IP Grade | IP 65 |
| IK Grade | IK 07 |
| Classification | Class I |
| Power Factor | PF ≥ 0.5 |
| Operating Temperature (ta) | 0°C ~ 35°C |
| Max. Casing Temperature (tc) | 90°C |
| Rated Lifespan | 50,000 hrs |
| CRI | > 80 Ra |
| SDCM | ≤ 5 |
| Beam Angle | 110° |
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS WL 006/S-SQ | 0.95 Kg | 305 mm | 125 mm | 110 mm | 1.00 Kg | 1pc / Carton |

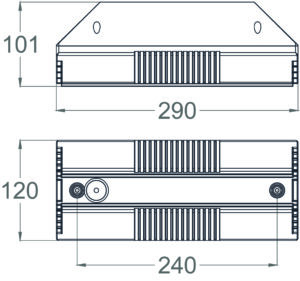

| Model | Luminaires | Dimension (mm) | |||||
| Diffuser | Colour Temperature, CCT (K) | L | W | H | |||
| OS WL 006/S-SQ | Acrylic Linear | 3000K | 4000K | 6500K | 290 mm | 120 mm | 101 mm |
