OS UFO Series (Gen 2)
Outdoor Luminaries

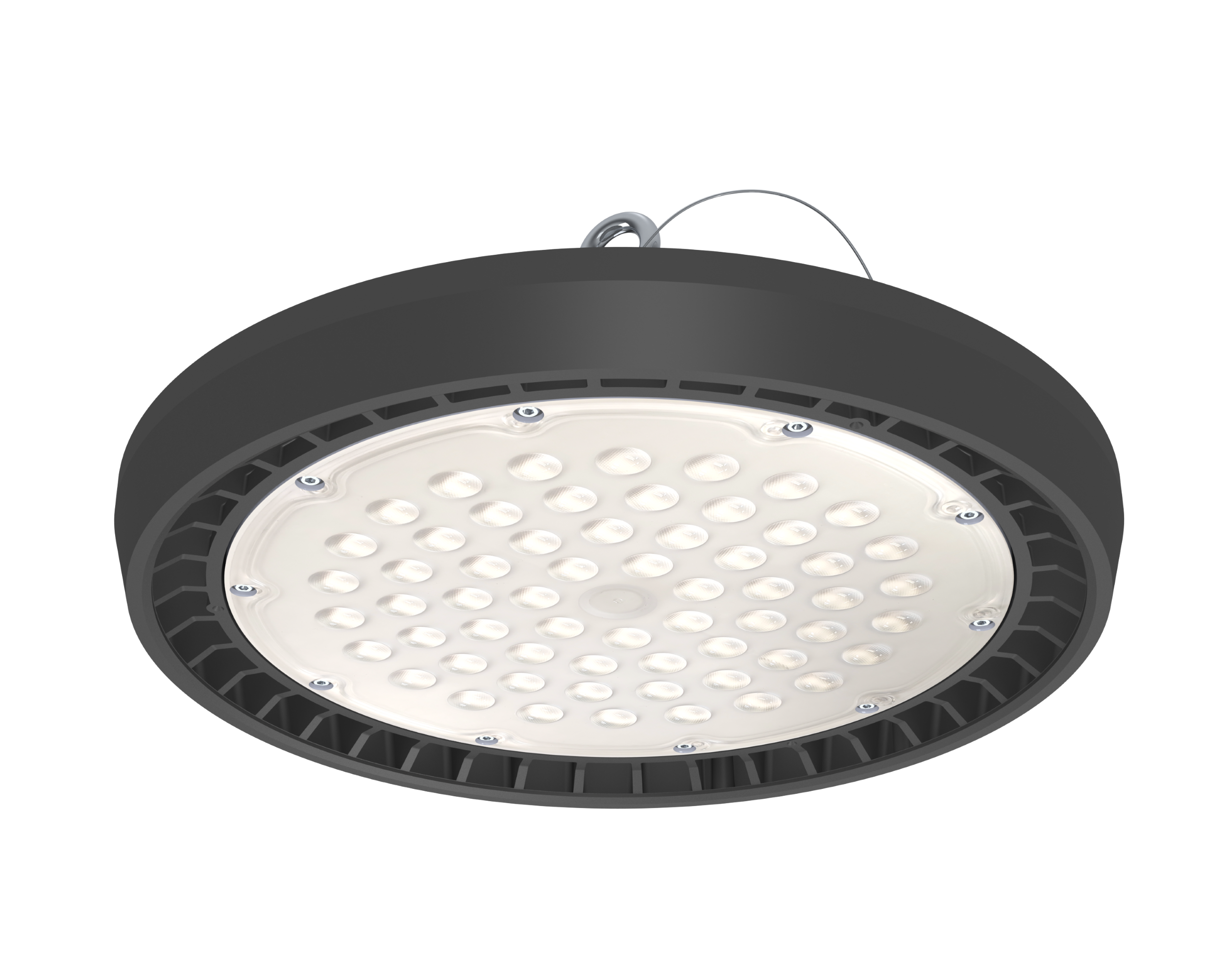

LED HIGHBAY LIGHT – OS UFO Series (Gen 2)
The LED Highbay Light OS UFO Series (Gen 2) is designed for high-ceiling areas that require strong and reliable illumination. Featuring a round LED driver, it offers a nicer appearance while making installation easier and neater. Built with a die-cast aluminum body for effective heat dissipation, the fitting can be installed by hanging or suspension to suit different ceiling conditions. With power options up to 200W, it is well suited for warehouses, factories, and other demanding environments.
| Application | : | Warehouses, Factory, Halls, High Ceiling Zone, Public and Commercial Buildings |
| Certificate | : | SIRIM |
| Colour | : | Black Texture |
| Body |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Polycarbonate (PC) Optical Lens |
| Gear Chamber | Control Gear With Lifting Eye Bolt |
| Heatsink | Die Casted from ADC12 Aluminium Alloy |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Hanging / Suspension |
| Driver | SOSEN CNL-E |
| Lamp | LED Module |
| Surge Protection | CM: 10kV, DM: 6kV |
| Model | OS UFO 340-xxxW-80D | |||
| Beam Angle | 80° | |||
| Equivalent Power (W) | 100 | 200 | 300 | 400 |
| System Lumen (lm) | 7600 | 14000 | 19000 | 22000 |
| System Power (W) | 50 | 100 | 150 | 200 |
| System Current (A) | 0.22 | 0.45 | 0.68 | 0.85 |
| Efficacy (lm/W) | 152 | 140 | 127 | 110 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |||
| IP Grade | IP 65 | |||
| IK Grade | IK 08 | |||
| Classification | Class I | |||
| Power Factor | PF ≥ 0.90 | |||
| Operating Temperature (ta) | 0°C ~ 35°C | |||
| Max. Casing Temperature (tc) | 105°C | |||
| Rated Lifespan | 50,000 hrs | |||
| CRI | > 80 Ra | |||
| SDCM | ≤ 5 | |||
| Available CCT | Daylight (6000K) | |||
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS UFO 340-50W-80D | 3.20 Kg | 350 mm | 350 mm | 185 mm | 3.70 Kg | 1 pc / Carton |
| OS UFO 340-100W-80D | 3.20 Kg | 350 mm | 350 mm | 185 mm | 3.70 Kg | 1 pc / Carton |
| OS UFO 340-150W-80D | 3.20 Kg | 350 mm | 350 mm | 185 mm | 3.70 Kg | 1 pc / Carton |
| OS UFO 340-200W-80D | 3.20 Kg | 350 mm | 350 mm | 185 mm | 3.70 Kg | 1 pc / Carton |

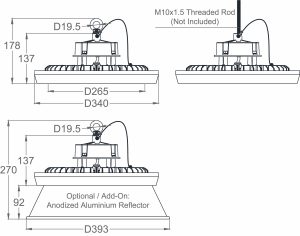

| Model | Luminaires | Dimension (mm) | |||
| Driver | Lens | Colour Temperature, CCT (K) | D | H | |
| OS UFO 340-50W-80D | SOSEN SS-80CNL-E260 | 80° | 6500K | ⌀340 mm | 178 mm |
| OS UFO 340-100W-80D | SOSEN SS-120CNL-E260 | 80° | 6500K | ⌀340 mm | 178 mm |
| OS UFO 340-150W-80D | SOSEN SS-150CNL-E260 | 80° | 6500K | ⌀340 mm | 178 mm |
| OS UFO 340-200W-80D | SOSEN SS-200CNL-E260 | 80° | 6500K | ⌀340 mm | 178 mm |

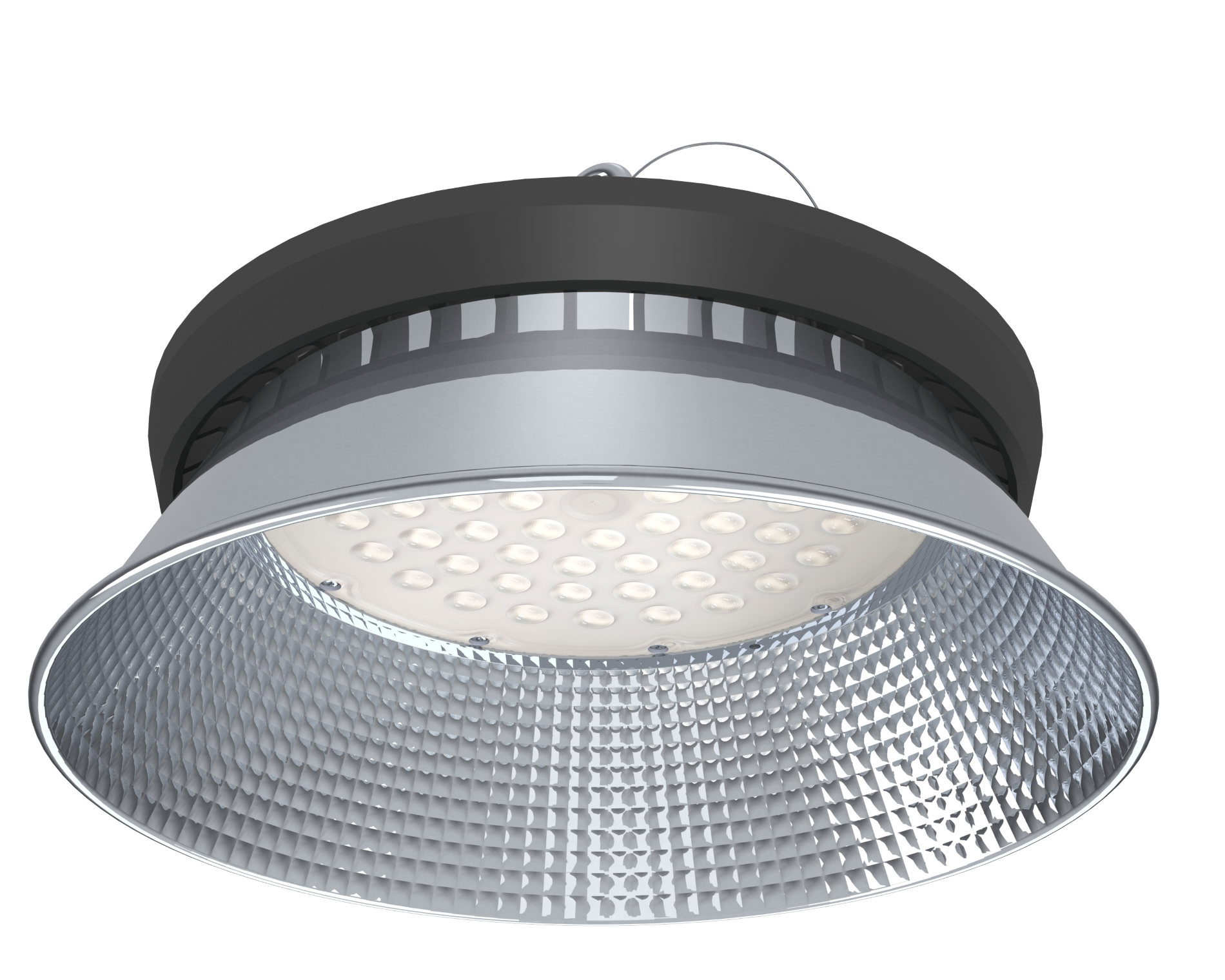

| Anodized Reflector | Recessed Frame | ||
 |
 |
||

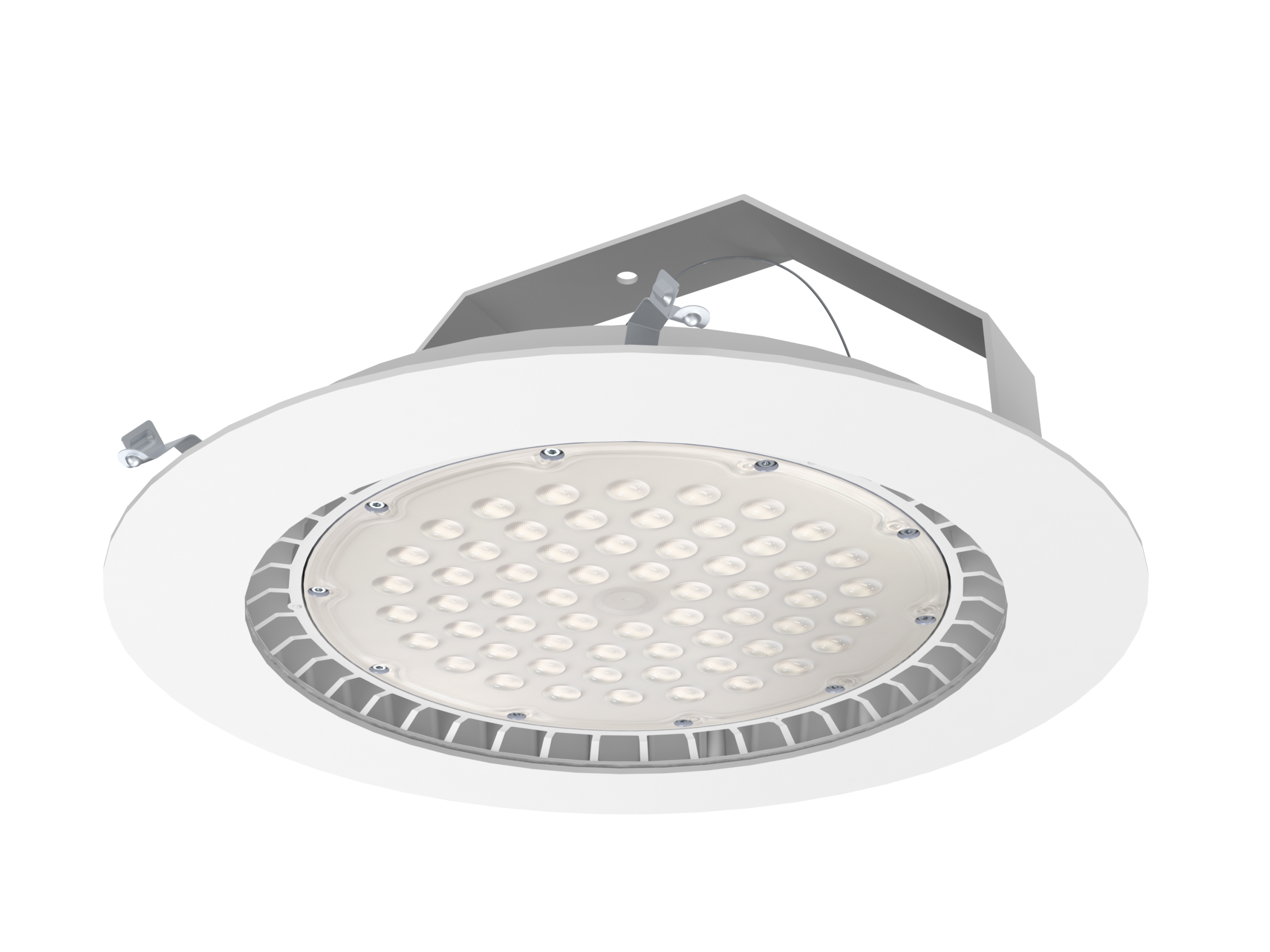

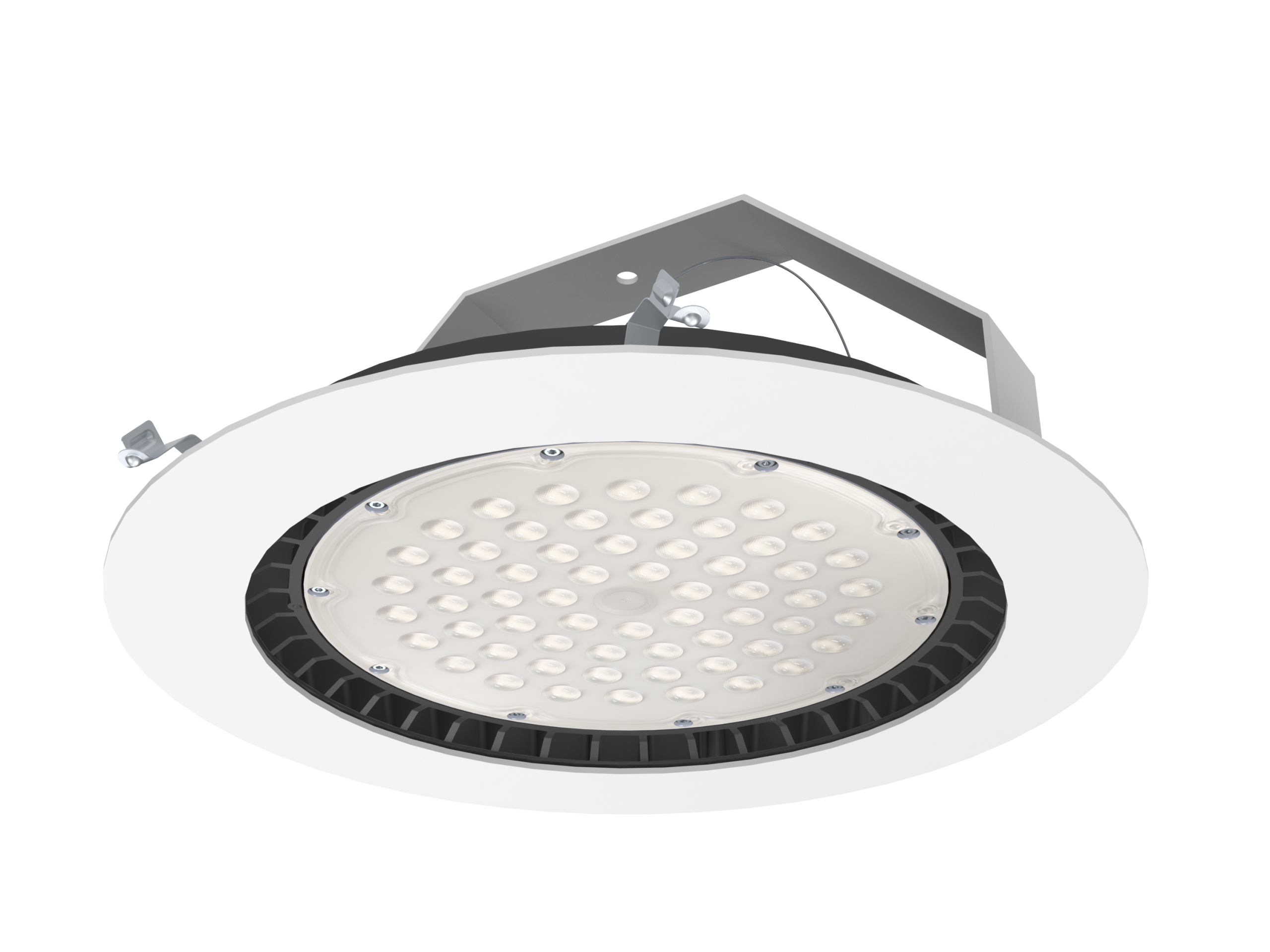

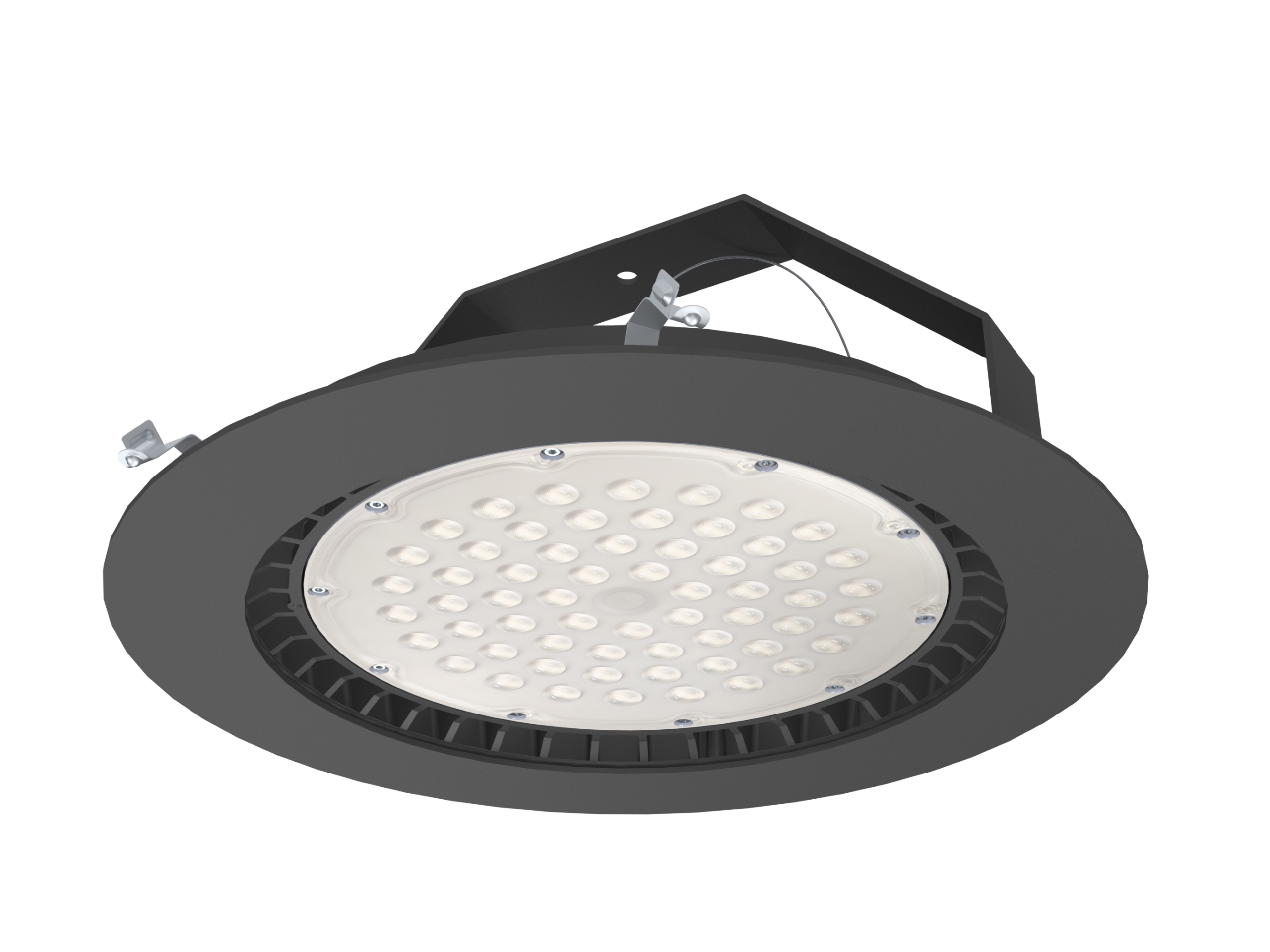

| Reflector 1504-SS-A | Recessed Frame – UFO 340 |
