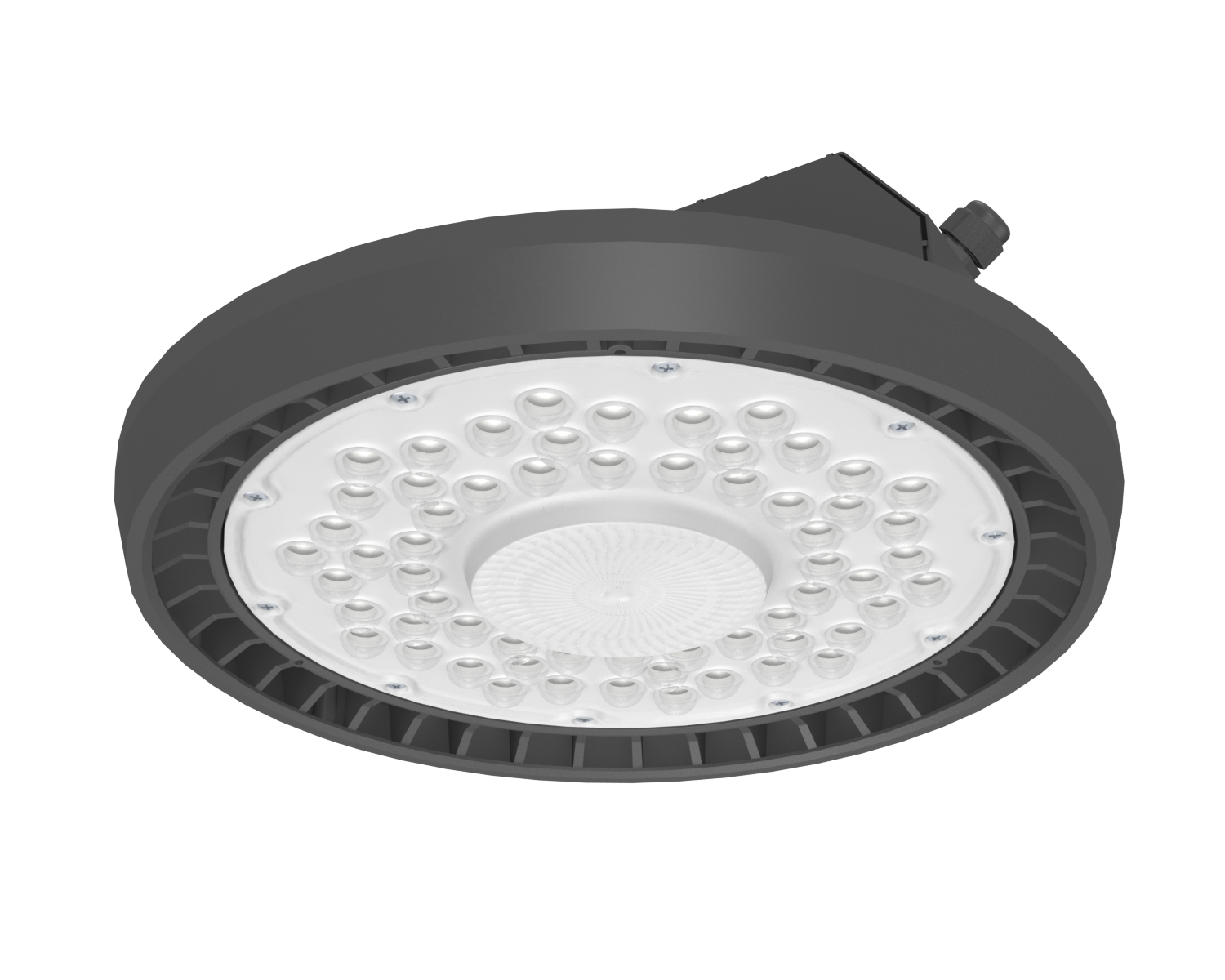

LED HIGHBAY LIGHT – OS UFO Series
The LED Highbay Light OS UFO Series is the ideal choice for high-ceiling zones requiring high output. Designed for heavy industrial use, it offers a long lifespan, minimizing the hassle of frequent maintenance in hard-to-reach areas. Crafted with a sleek die-cast aluminum design, this light can be installed either by hanging or suspension, depending on ceiling conditions. With power options up to 200W, it delivers reliable performance in demanding environments.
| Application | : | Warehouses, Factory, Halls, High Ceiling Zone, Public and Commercial Buildings |
| Certificate | : | SIRIM |
| Colour | : | Black Texture |
| Body |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Polycarbonate (PC) Optical Lens |
| Gear Chamber | Fabricated from Mild Steel |
| Heatsink | Die Casted from ADC12 Aluminium Alloy |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Hanging / Suspension |
| Driver | SOSEN VA-L / VH-E |
| Lamp | LED Module |
| Surge Protection | CM: 10kV, DM: 6kV |
| Model | OS UFO 340 | |||||||
| Beam Angle | 60° | 90° | ||||||
| Equivalent Power (W) | 200 | 250 | 300 | 400 | 200 | 250 | 300 | 400 |
| System Lumen (lm) | 14000 | 16000 | 18500 | 22000 | 14000 | 17000 | 19000 | 23000 |
| System Power (W) | 100 | 125 | 150 | 200 | 100 | 125 | 150 | 200 |
| System Current (A) | 0.45 | 0.55 | 0.65 | 0.78 | 0.45 | 0.55 | 0.65 | 0.78 |
| Efficacy (lm/W) | 140 | 128 | 123 | 110 | 140 | 136 | 127 | 115 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |||||||
| IP Grade | IP 65 | |||||||
| IK Grade | IK 08 | |||||||
| Classification | Class I | |||||||
| Power Factor | PF ≥ 0.90 | |||||||
| Operating Temperature (ta) | 0°C ~ 35°C | |||||||
| Max. Casing Temperature (tc) | 90°C | |||||||
| Rated Lifespan | 50,000 hrs | |||||||
| CRI | > 80 Ra | |||||||
| SDCM | ≤ 5 | |||||||
| Available CCT | Cool White (4000K), Daylight (6000K) | |||||||
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS UFO 340-100W | 3.80 Kg | 350 mm | 350 mm | 185 mm | 4.35 Kg | 1 pc / Carton |
| OS UFO 340-125W | 3.80 Kg | 350 mm | 350 mm | 185 mm | 4.35 Kg | 1 pc / Carton |
| OS UFO 340-150W | 3.80 Kg | 350 mm | 350 mm | 185 mm | 4.35 Kg | 1 pc / Carton |
| OS UFO 340-200W | 3.81 Kg | 350 mm | 350 mm | 185 mm | 4.36 Kg | 1 pc / Carton |

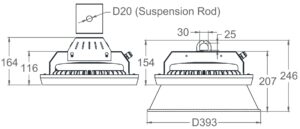

| Model | Luminaires | Dimension (mm) | |||||
| Driver | Lens | Colour Temperature, CCT (K) | D | H | |||
| OS UFO 340-100W | SOSEN SS-150GA-E215B | 60° | 90° | 4000K | 6500K | ⌀340 mm | 164 mm |
| OS UFO 340-125W | SOSEN SS-150GA-E215B | 60° | 90° | 4000K | 6500K | ⌀340 mm | 164 mm |
| OS UFO 340-150W | SOSEN SS-150GA-E215B | 60° | 90° | 4000K | 6500K | ⌀340 mm | 164 mm |
| OS UFO 340-200W | SOSEN SS-200GA-E286B | 60° | 90° | 4000K | 6500K | ⌀340 mm | 164 mm |

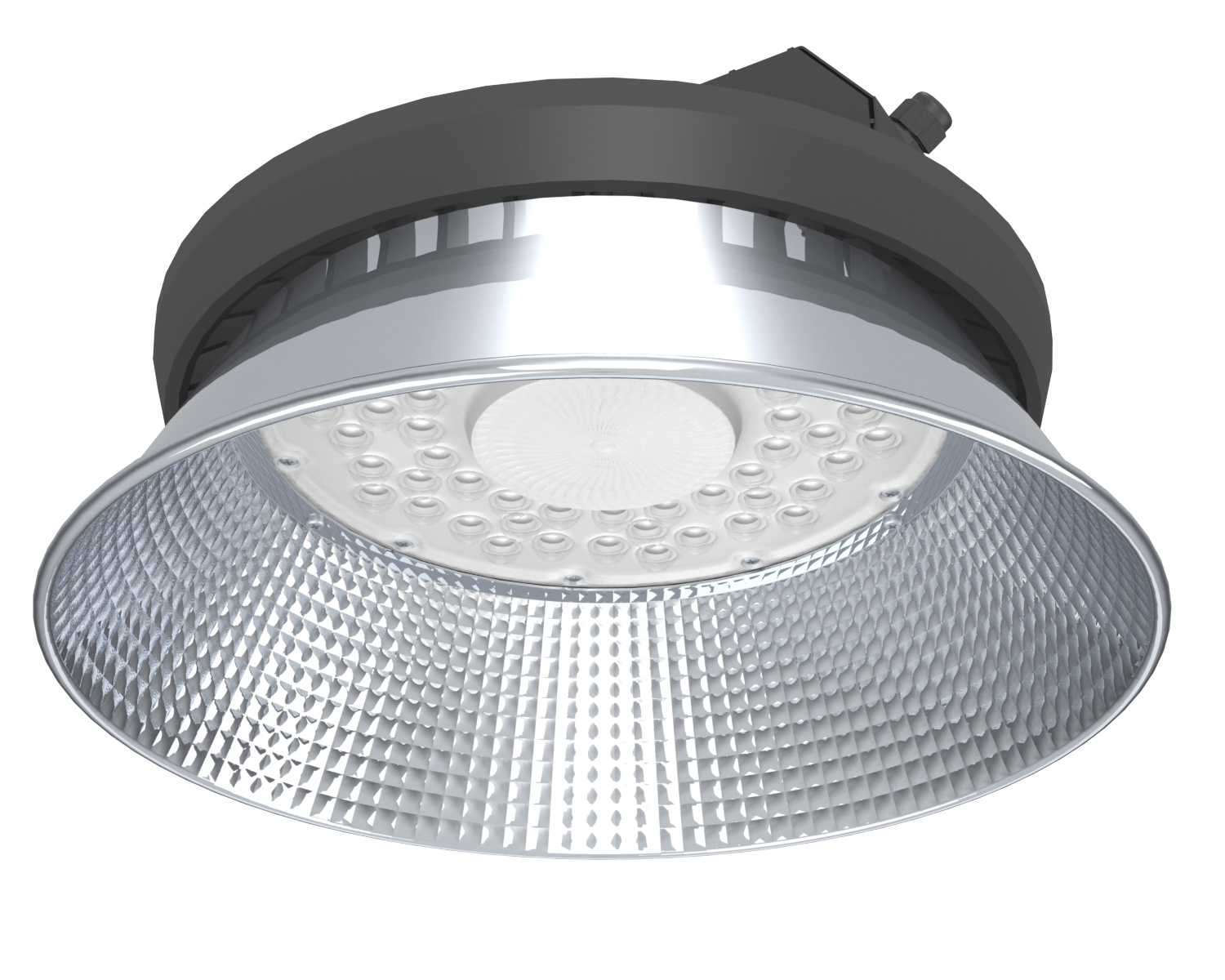

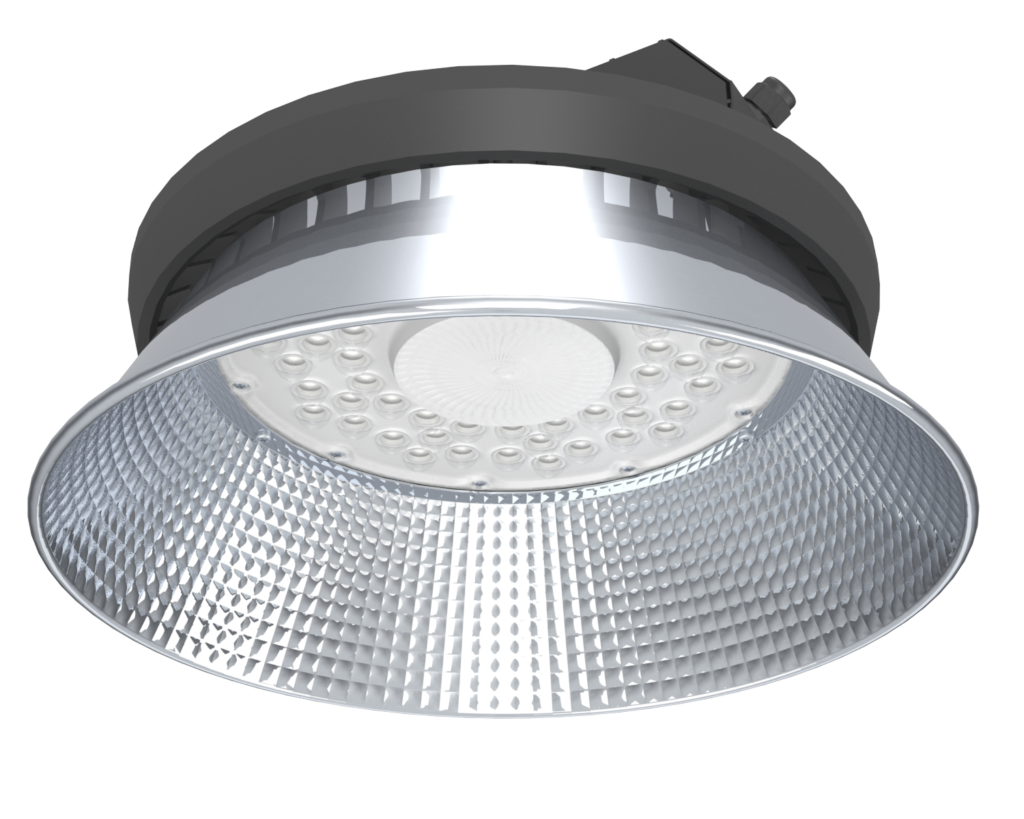

| Anodized Reflector | Recessed Frame | ||
 |
 |
||

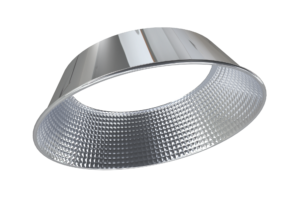

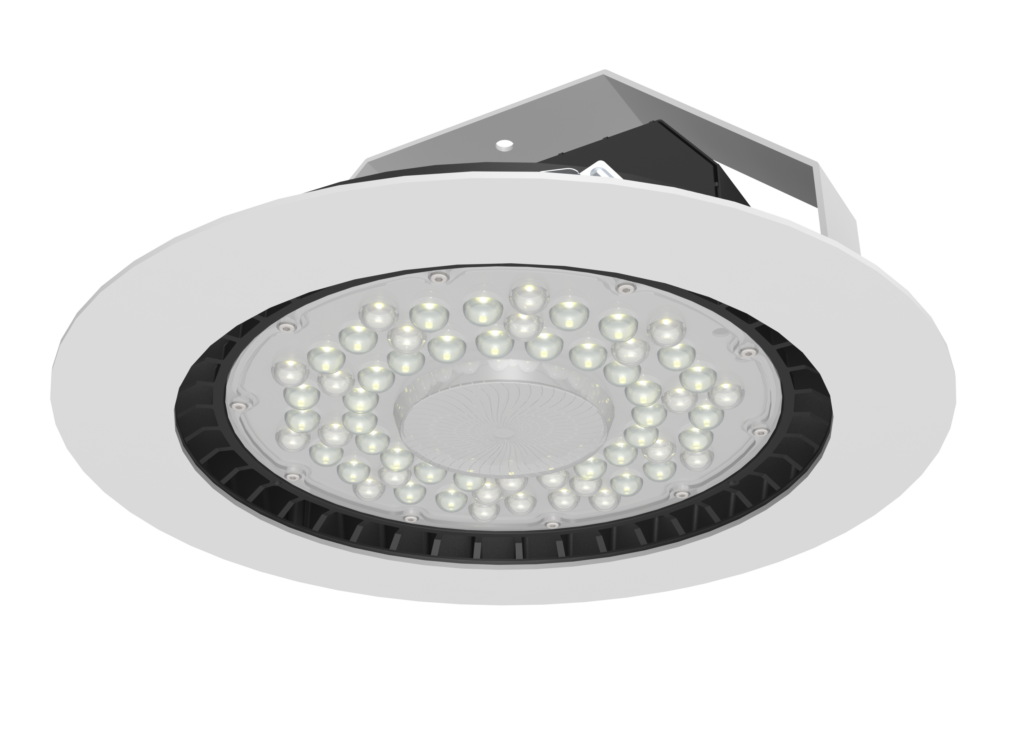

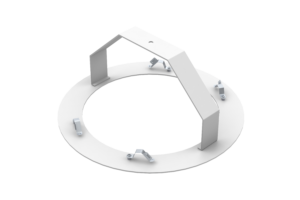

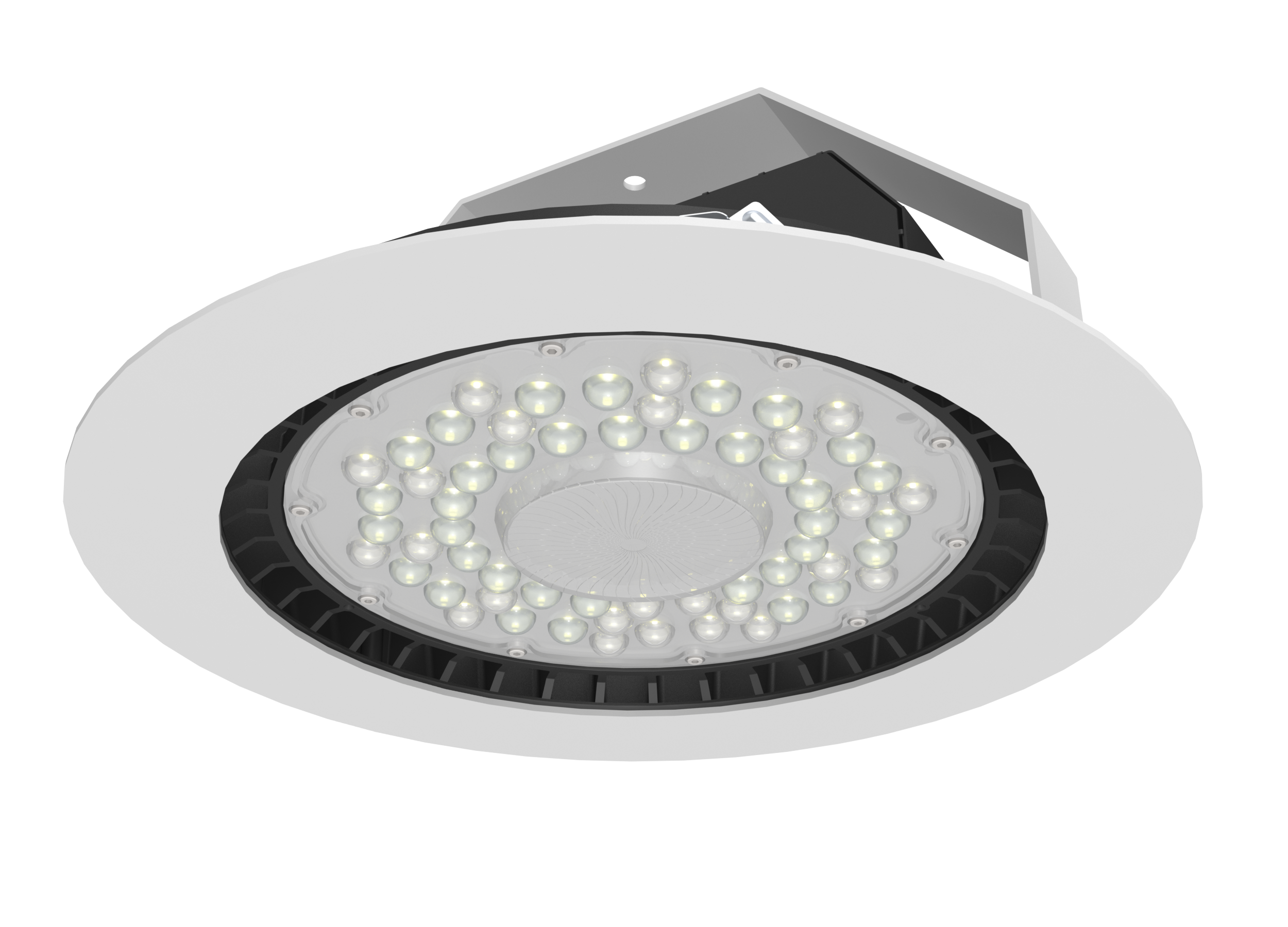

| Reflector 1504-SS-A | Recessed Frame – UFO 340 |
