OS UDL-90 Series (GU10)
Outdoor Luminaries
LED UP-DOWN LIGHT – OS UDL-90 Series
The OS UDL-90 Series LED Up-Down Light is ideal for installation on columns or walls, enhancing the aesthetics of the building with its elegant light projection.
| Application | : | Building Facades, Columns, Pillars, Balcony, Terraces, Courtyards, Hallways, Corridors, Garden Walls, Public and Commercial Buildings |
| Certificate | : | Nil |
| Colour | : | Black Texture, Silver Texture |
| Body |
Extruded from ADC12 Aluminium Alloy |
| Rim |
Die Casted from ADC12 Aluminium Alloy |
| Side Mounting Kit |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Clear Tempered Glass Diffuser |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Lampholder | GU10 Ceramic Lampholder |
| Lampholder Bracket | Fabricated in Mild Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Wall Mounted |
| Lamp | GU10 Lamp |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | GU10 |
| IP Grade | IP 65 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||

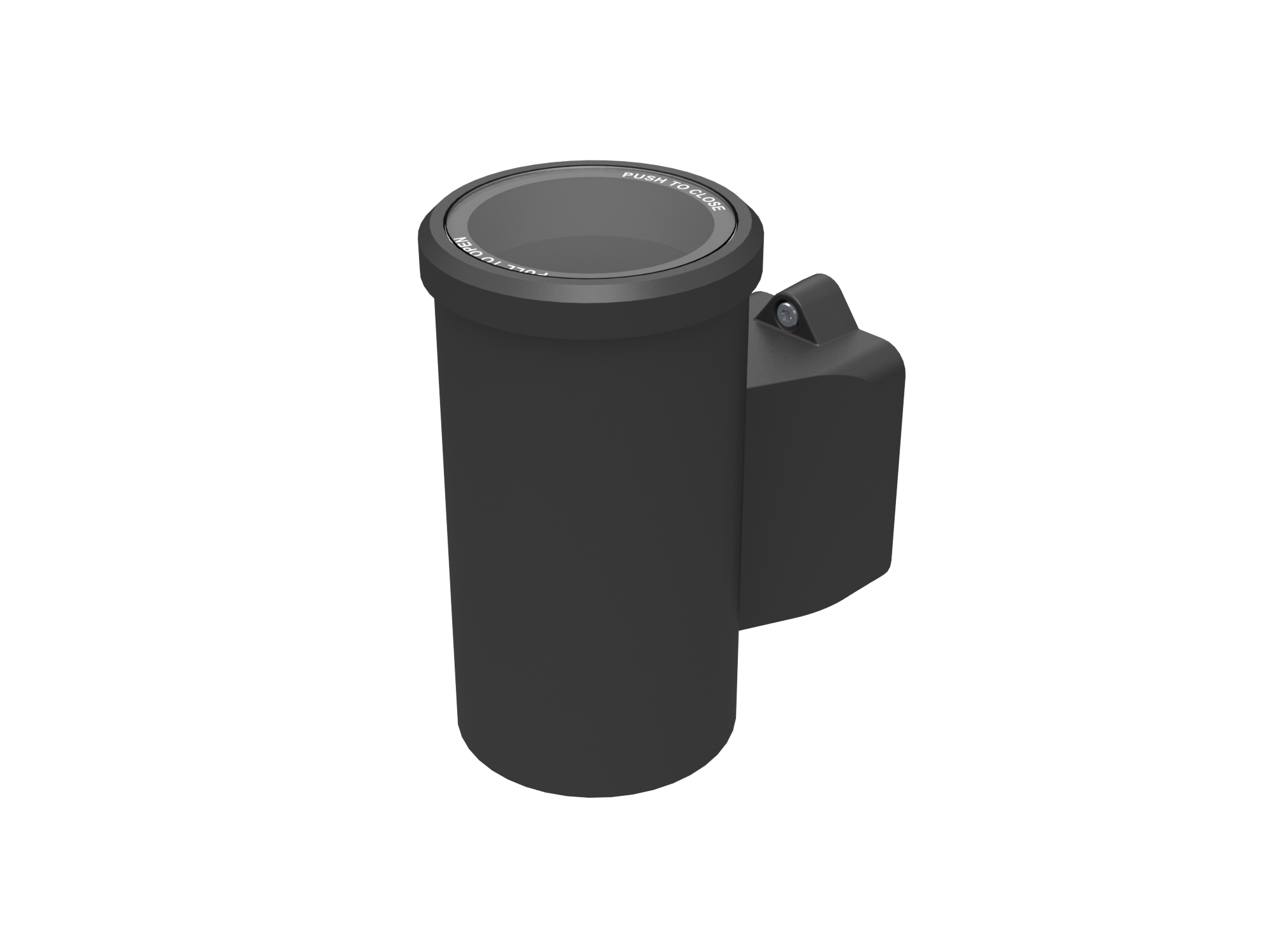

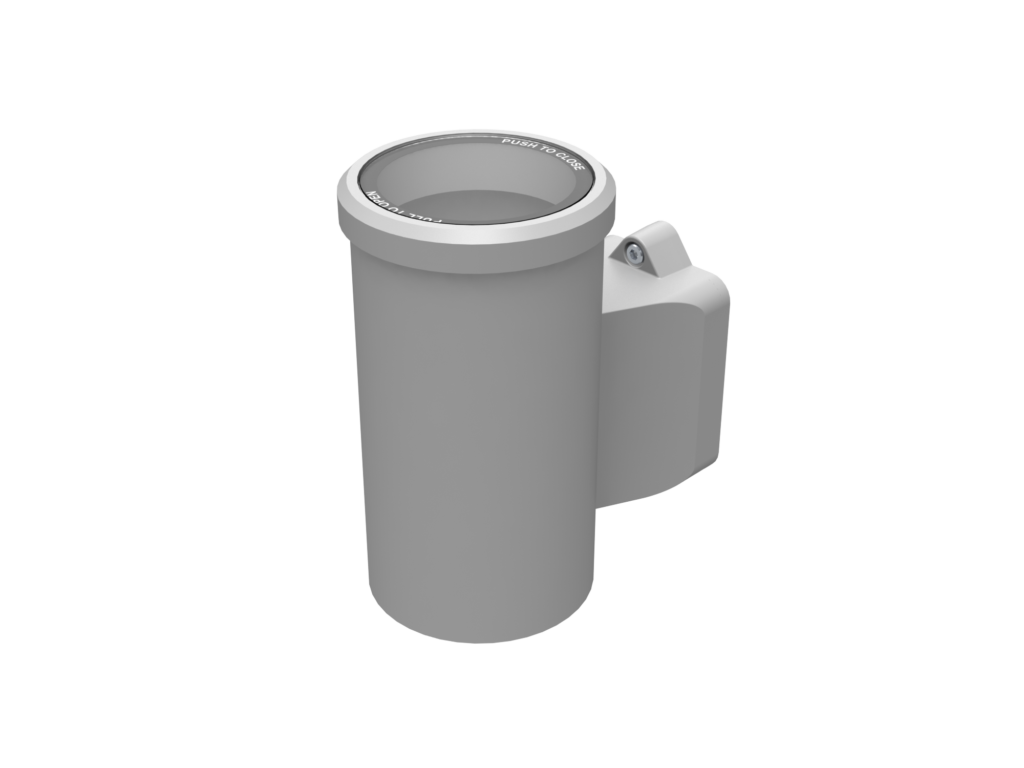

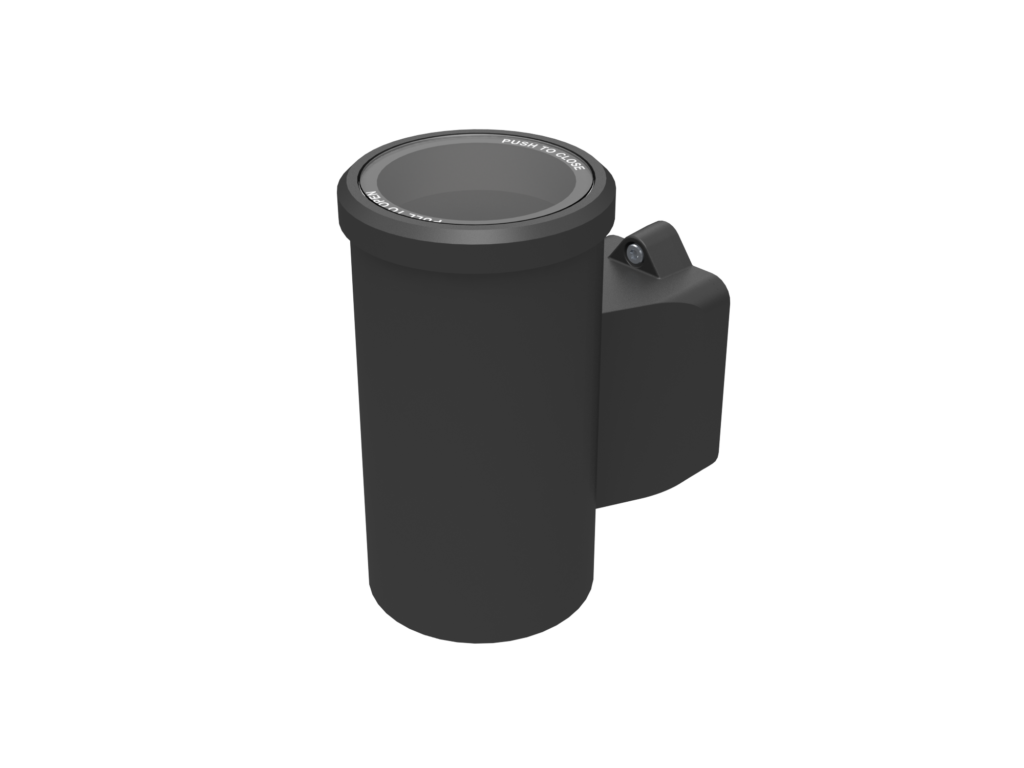

| OS UDL-90-170-1H | Kg | Kg | 1pc / Carton | |||

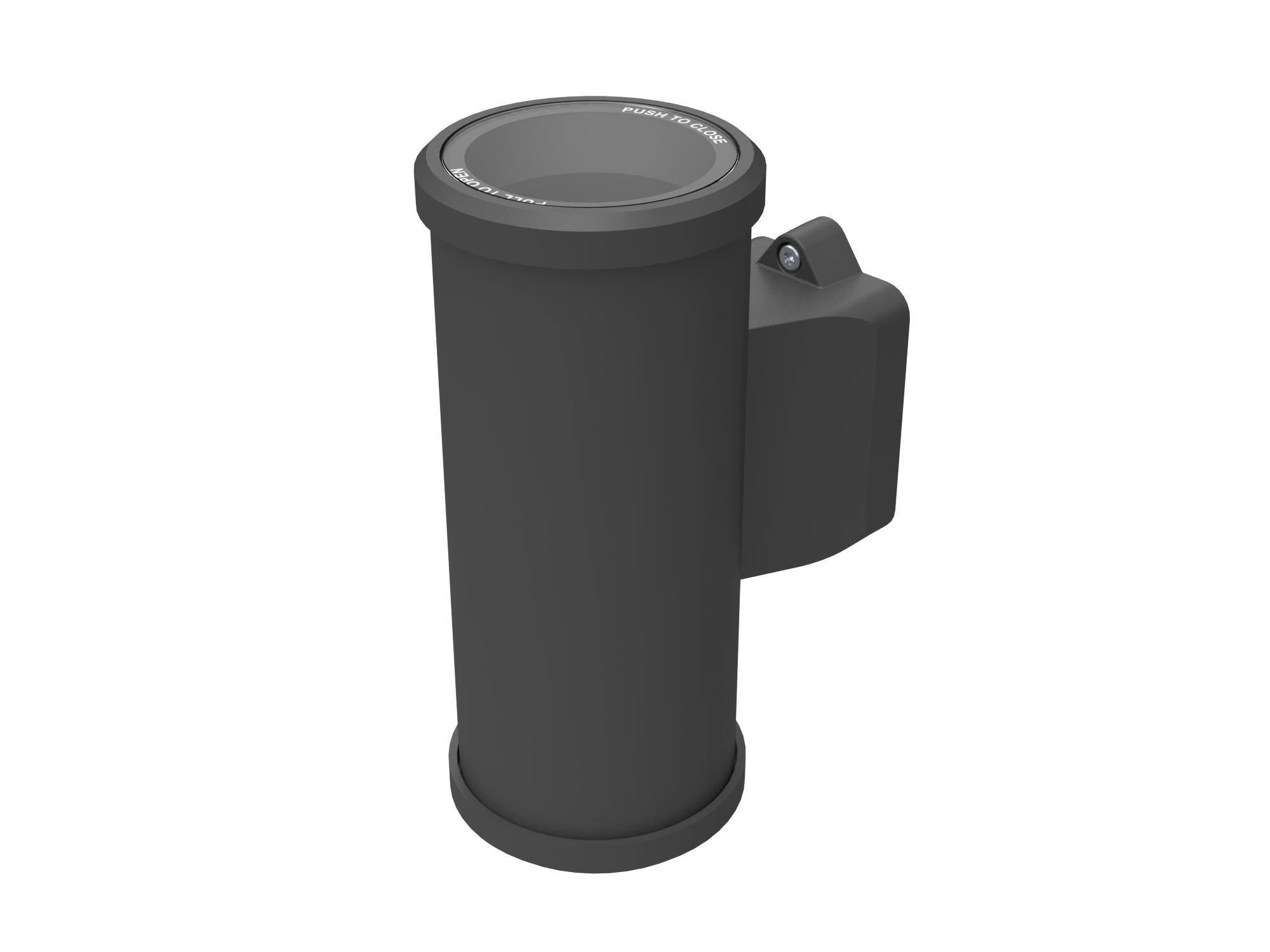

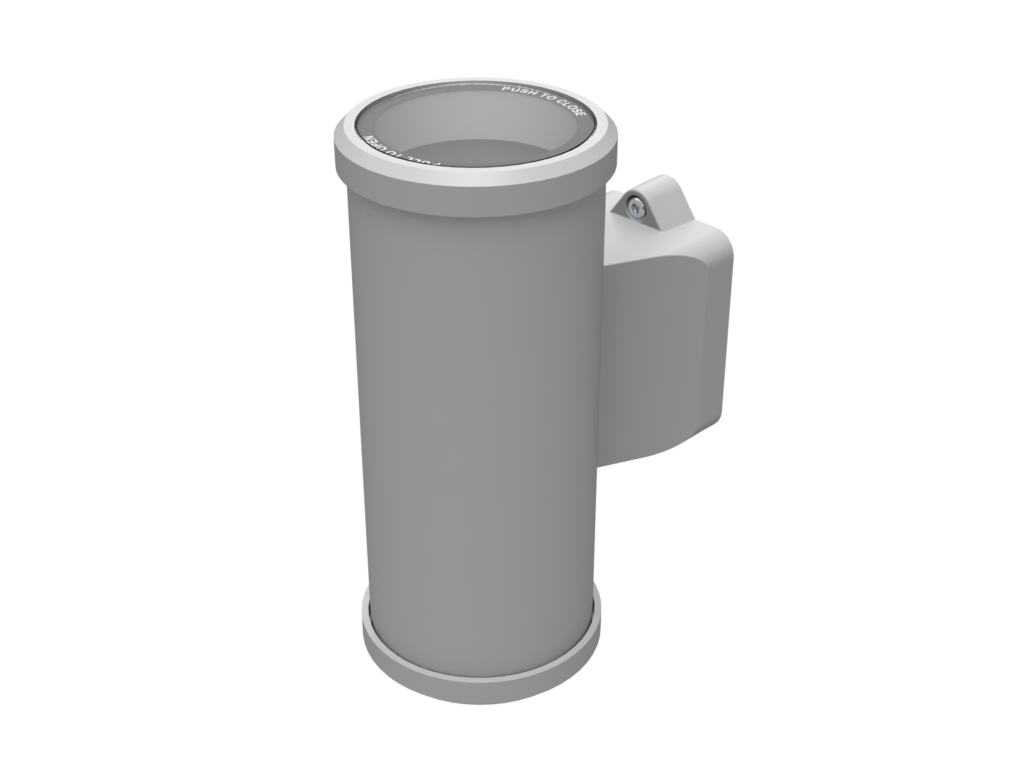

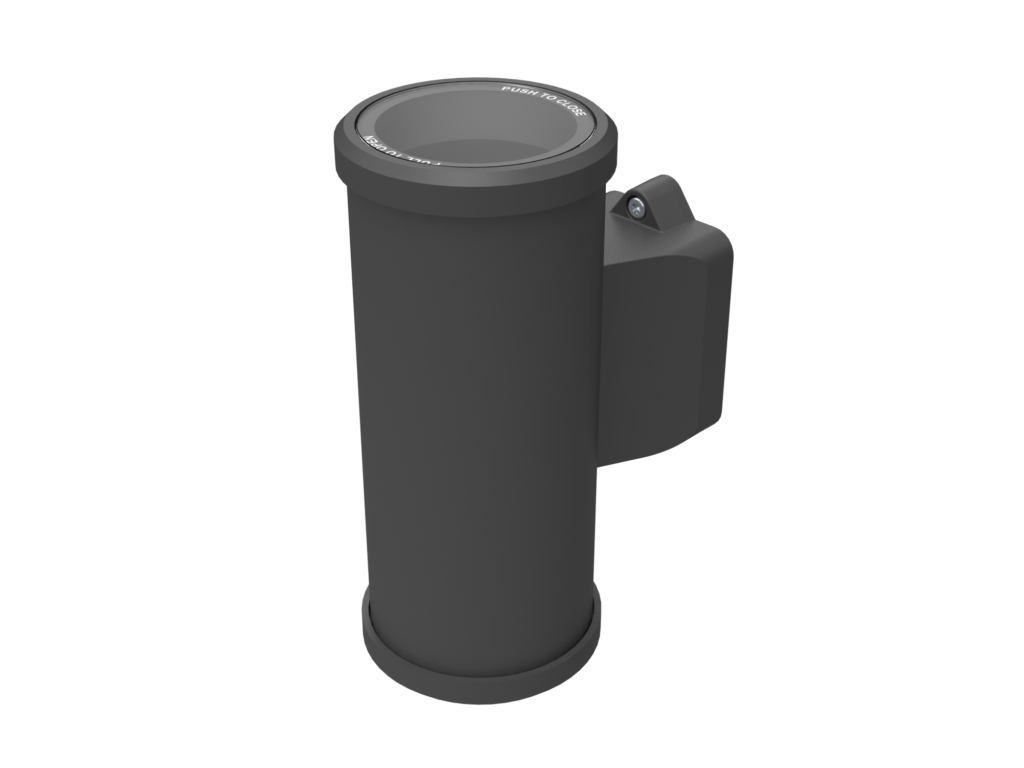

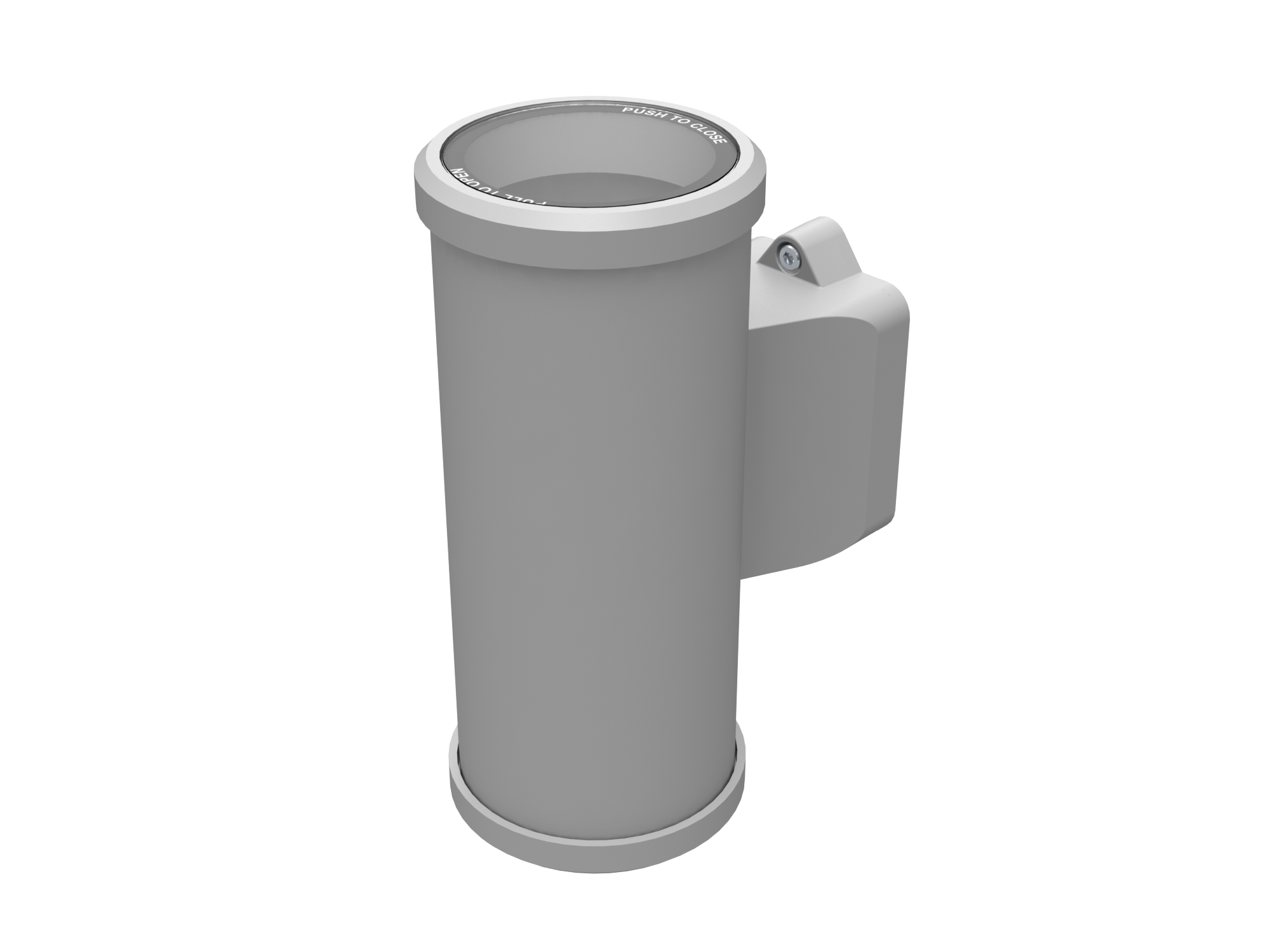

| OS UDL-90-220-2H | Kg | 227 mm | 155 mm | 105 mm | Kg | 1pc / Carton |

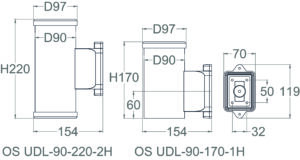

| Model | Luminaires | Dimension (mm) | |||||
| Light Body | Gear Chamber | ||||||
| Diffuser | Type | Base | D | H | L | W | |

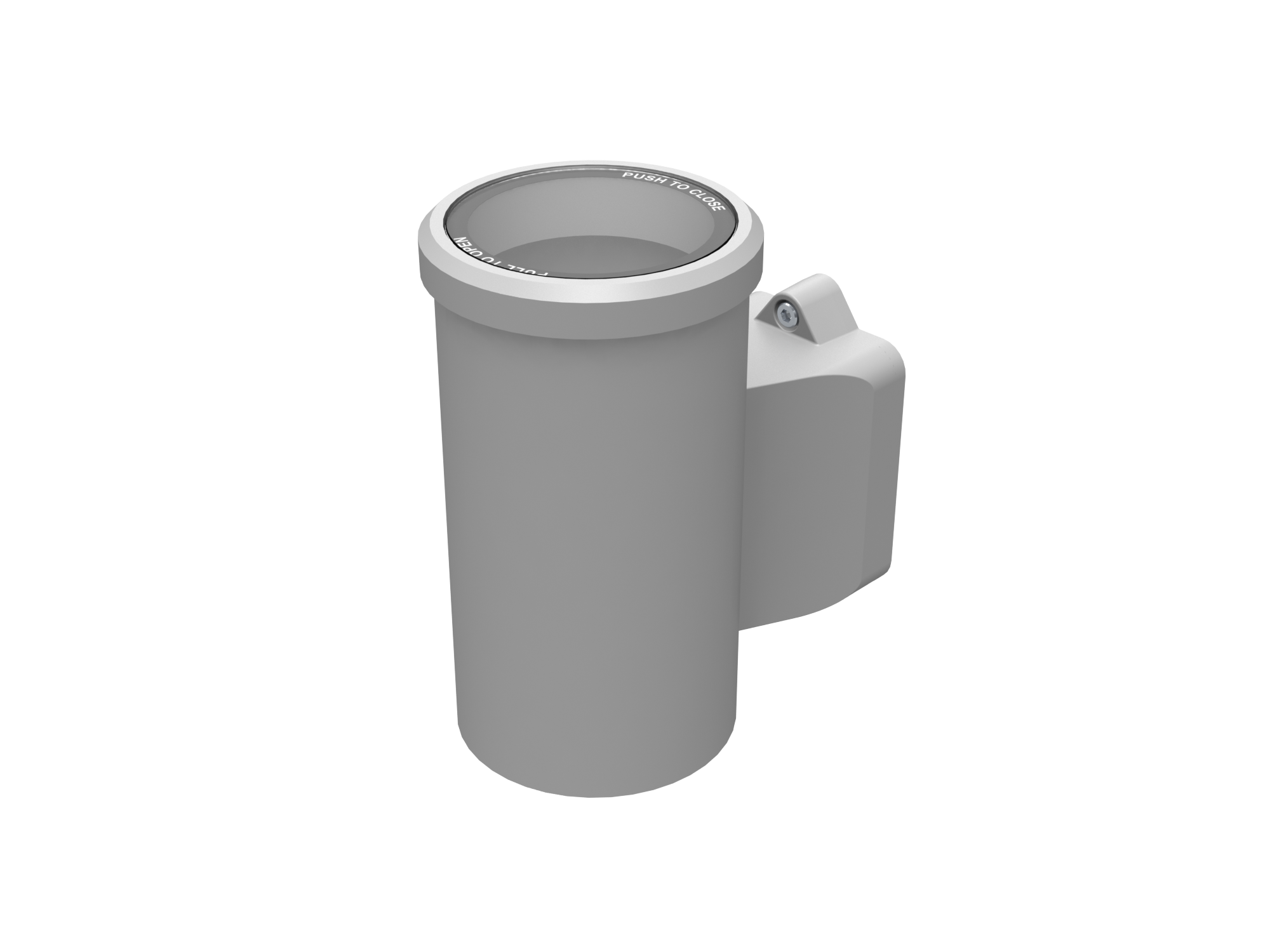

| OS UDL-90-170-1H | Clear Tempered Glass | Single Side | GU10 | ⌀97 mm | 170 mm | 119 mm | 70 mm |
| OS UDL-90-220-2H | Clear Tempered Glass | Double Side | GU10 | ⌀97 mm | 220 mm | 119 mm | 70 mm |
| LED GU10 Bulb | LED RG0 GU10 Bulb | ||
 |
 |
||
| TOSHIBA GU10 BULB RLDMC | TOSHIBA GU10 BULB RLDM02K |
