OS UDL-160 Series (E27)
Outdoor Luminaries
LED UP-DOWN LIGHT – OS UDL-160 Series (E27)
The OS UDL-160 Series LED Up-Down Light, designed for use with the E27 Lamps, is ideal for installation on columns or walls. It enhances the building’s aesthetics with refined light projection, adding both functionality and architectural appeal.
| Application | : | Building Facades, Columns, Pillars, Balcony, Terraces, Courtyards, Hallways, Corridors, Garden Walls, Public and Commercial Buildings |
| Certificate | : | Nil |

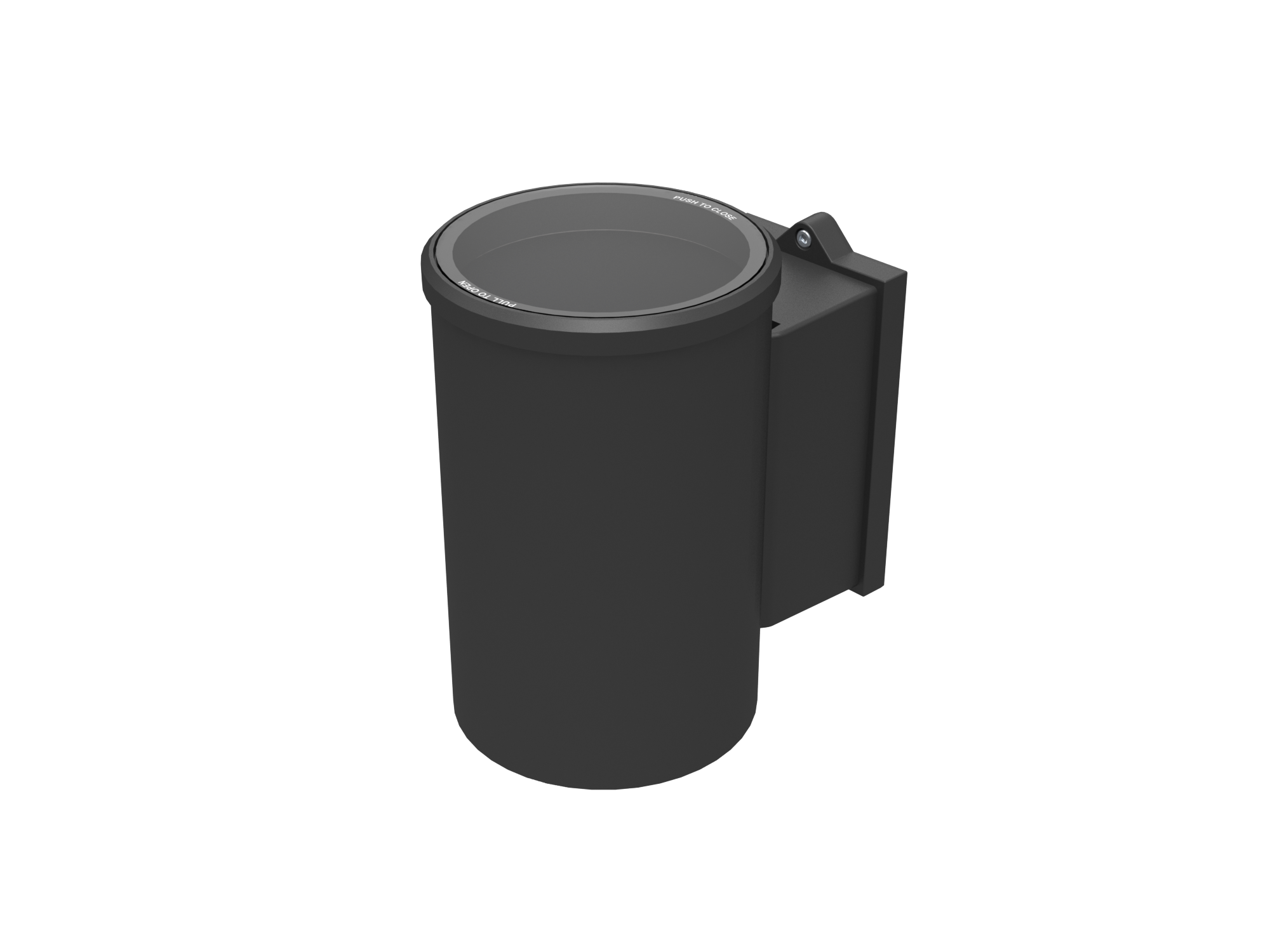

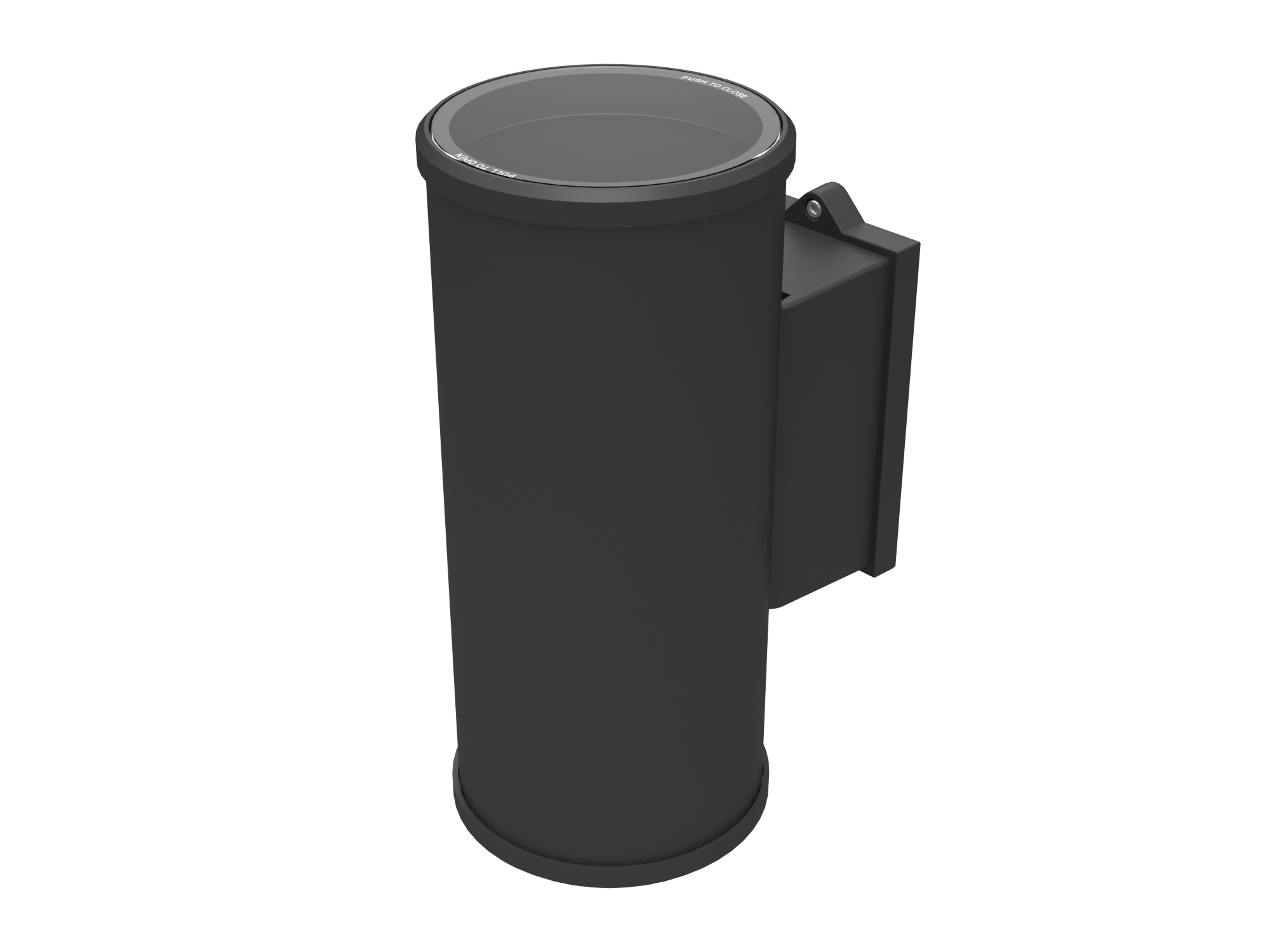

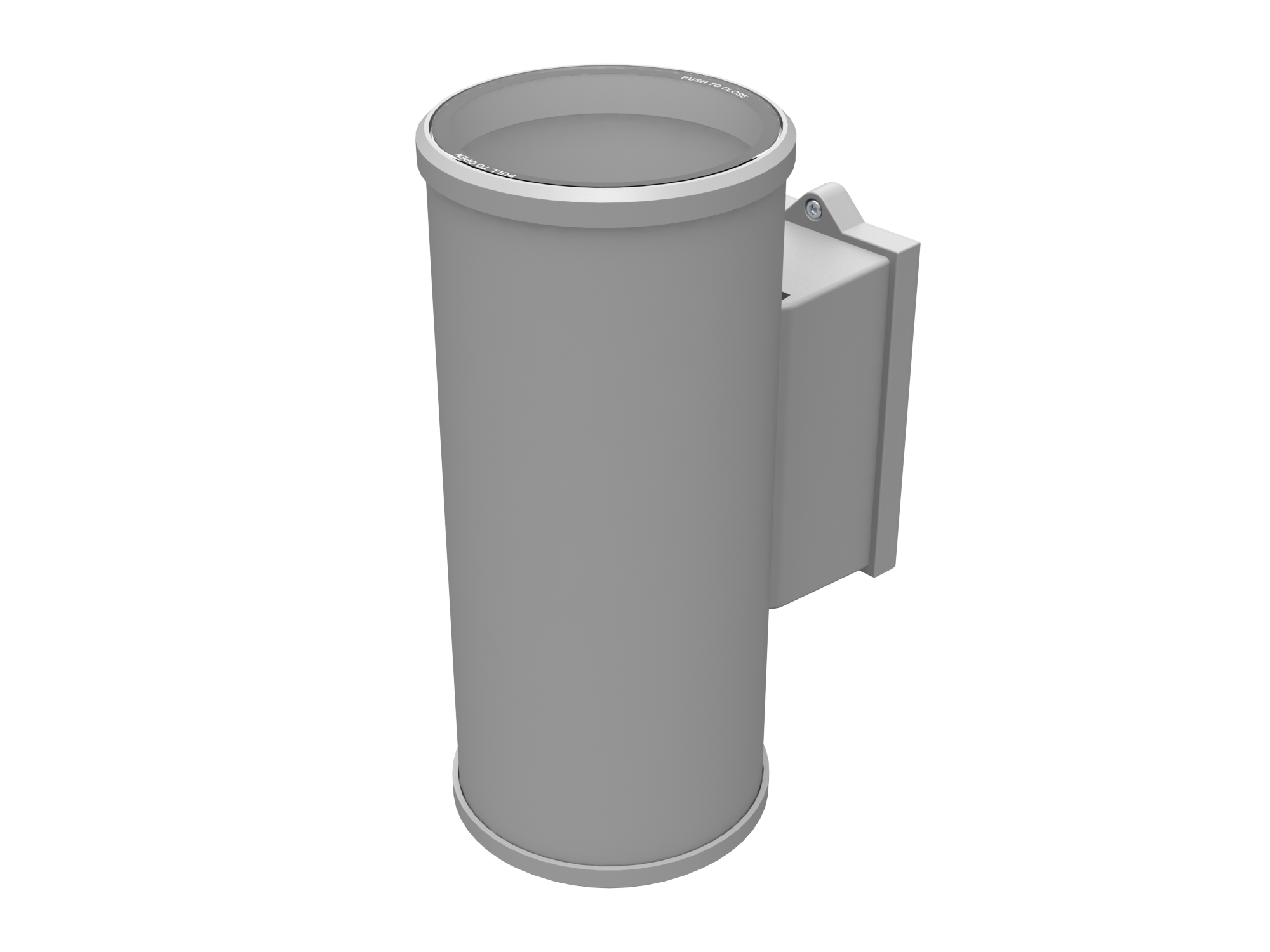

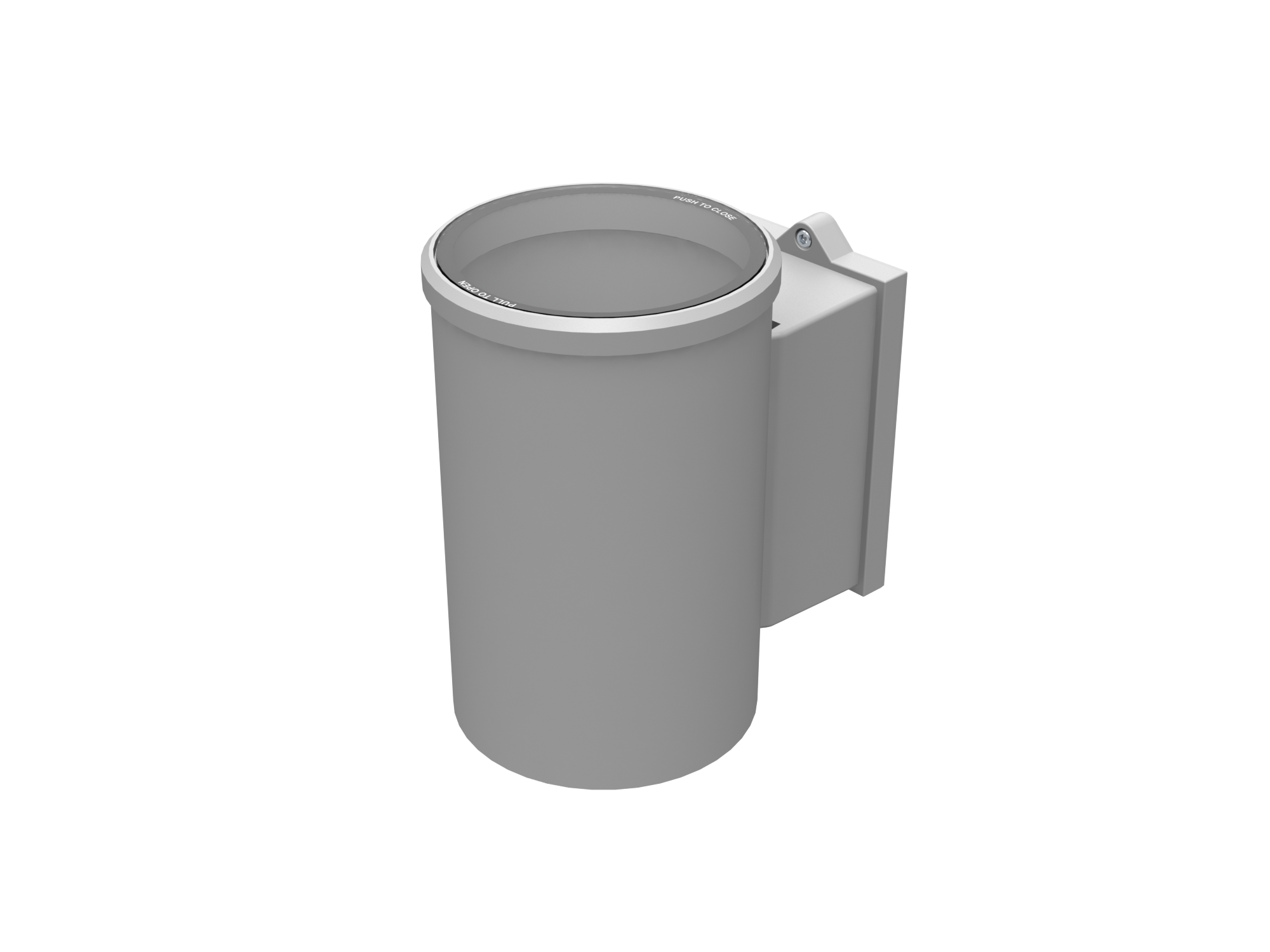

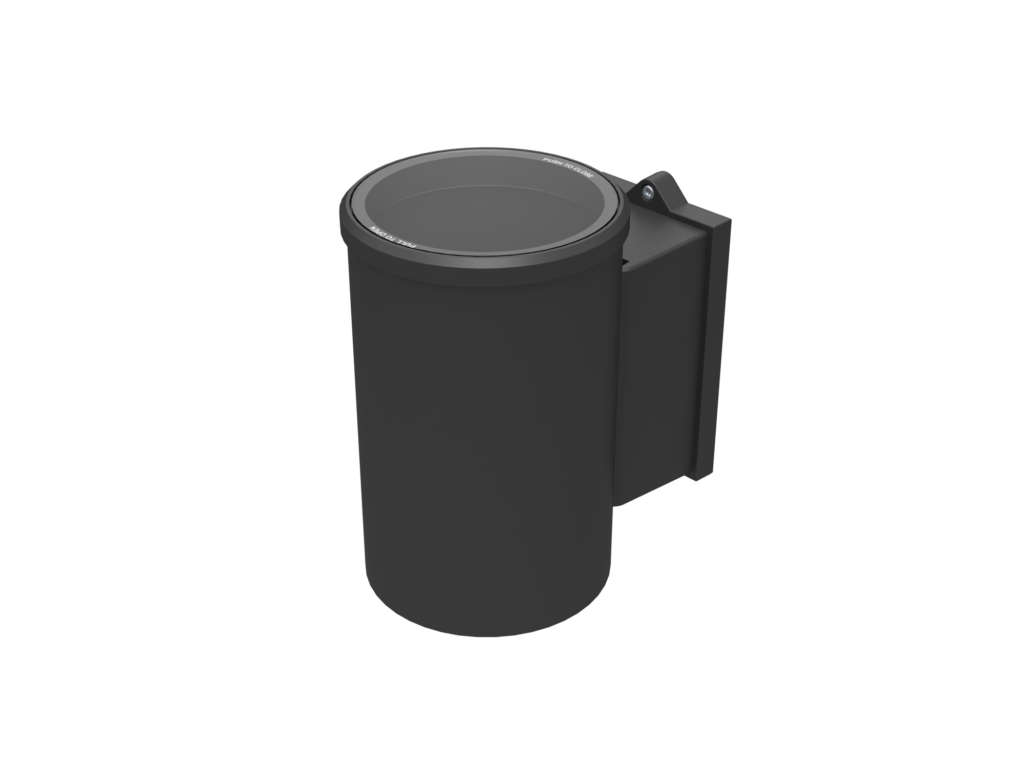

| Colour | : | Black Texture, Silver Texture |
| Body |
Extruded from ADC12 Aluminium Alloy |
| Rim |
Die Casted from ADC12 Aluminium Alloy |
| Side Mounting Kit |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Clear Tempered Glass Diffuser |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Lampholder | E27 Ceramic Holder |
| Lampholder Bracket | Fabricated in Mild Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Wall Mounted |
| Lamp | E27 PAR30 Lamp |
| Model | OS UDL-160-260-1H | OS UDL-160-370-2H |
| Type | Single Side | Double Side |
| Base | E27 | E27 |
| Recommend Lamp | 1 x TOSHIBA LED PAR30 10W | 2 x TOSHIBA LED PAR30 10W |
| System Lumen (lm) | 750 | 2 x 750 |
| System Power (W) | 10 | 2 x 10 |
| System Current (A) | 0.07 | 0.14 |
| Efficacy (lm/W) | 75 | |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |
| IP Grade | IP 65 | |
| IK Grade | IK 07 | |
| Classification | Class I | |
| Power Factor | PF ≥ 0.50 | |
| Operating Temperature (ta) | 0°C ~ 35°C | |
| Rated Lifespan | 25,000 hrs | |
| CRI | > 80 Ra | |
| SDCM | ≤ 6 | |
| Beam Angle | 25° | |
| Available CCT | Warm White (2700K), Daylight (6500K) | |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS UDL-160-260-1H |
||||||
| OS UDL-160-370-2H | Kg | 383 mm | 252 mm | 178 mm | Kg | 1pc / Carton |

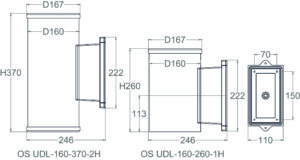

| Model | Luminaires | Dimension (mm) | ||||||
| Light Body | Gear Chamber | |||||||
| Type | Base | Lamps | Colour Temperature, CCT (K) | D | H | L | W | |
| OS UDL-160-260-1H |
Single Side | E27 | TOSHIBA LED PAR30 10W | 2700K/ 6500K | ⌀167 mm | 260 mm | 222 mm | 110 mm |
| OS UDL-160-370-2H | Double Side | E27 | TOSHIBA LED PAR30 10W | 2700K/ 6500K | ⌀167 mm | 370 mm | 222 mm | 110 mm |
| LED PAR30 Lamp | |||
 |
|||
| TOSHIBA PAR30 LAMP RLDPC |
