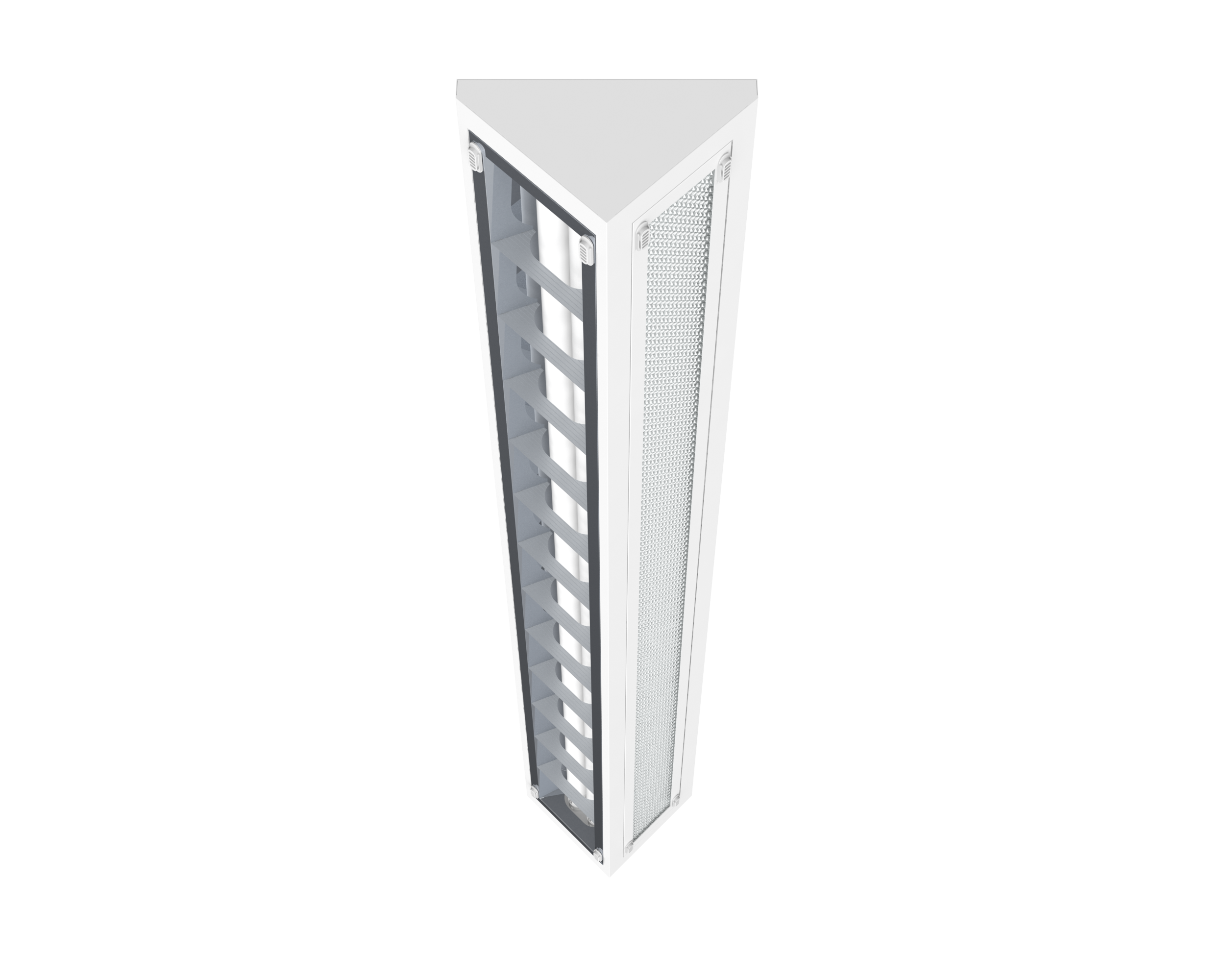

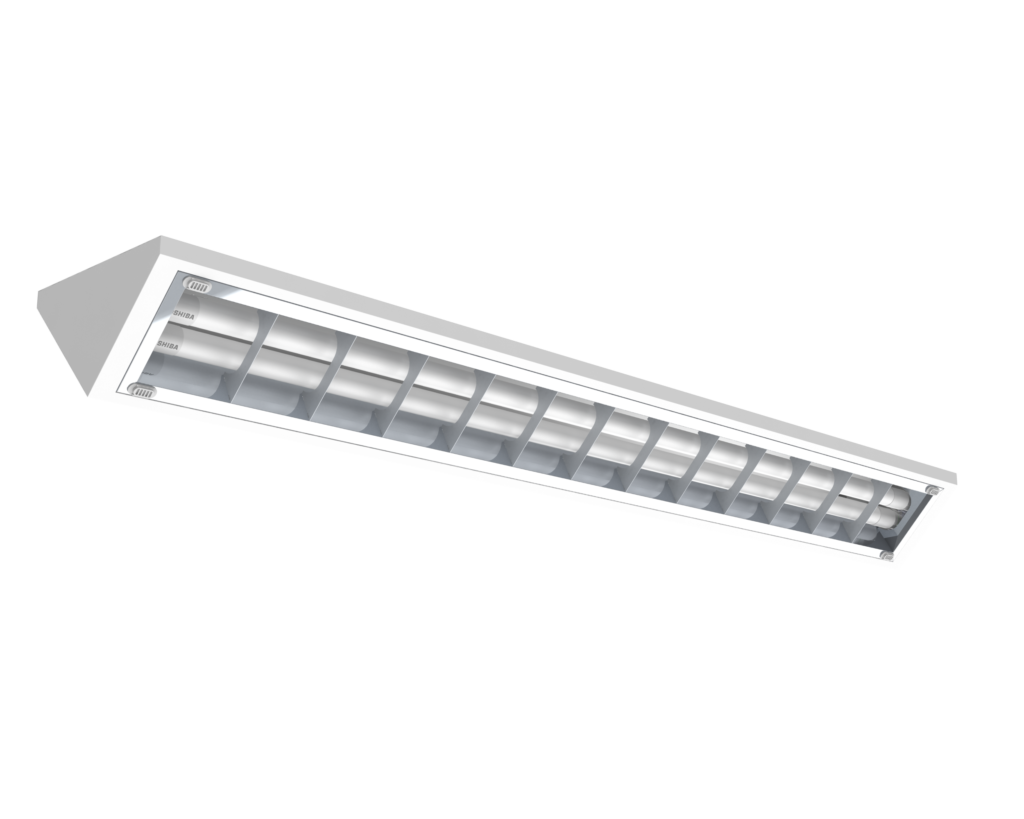

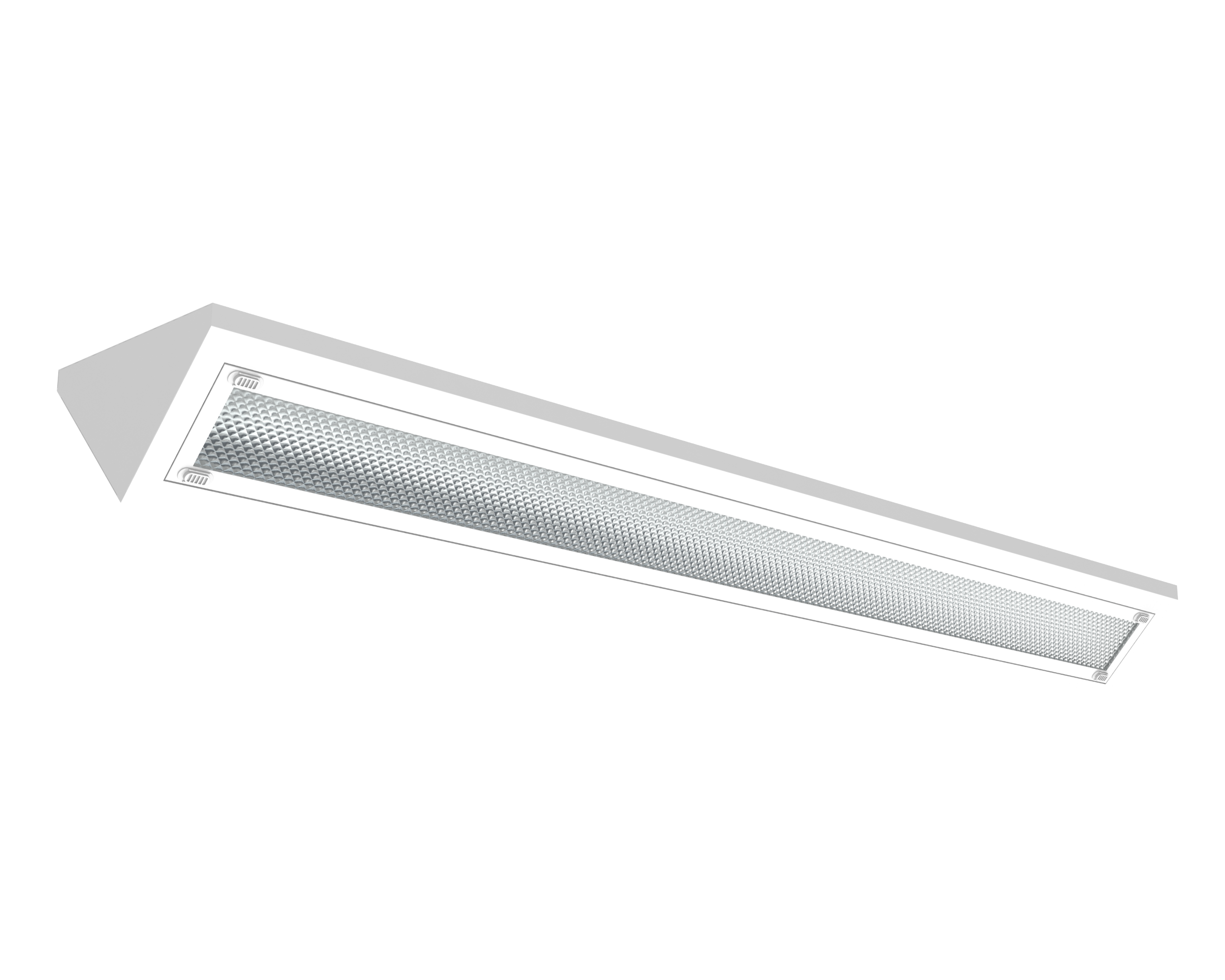

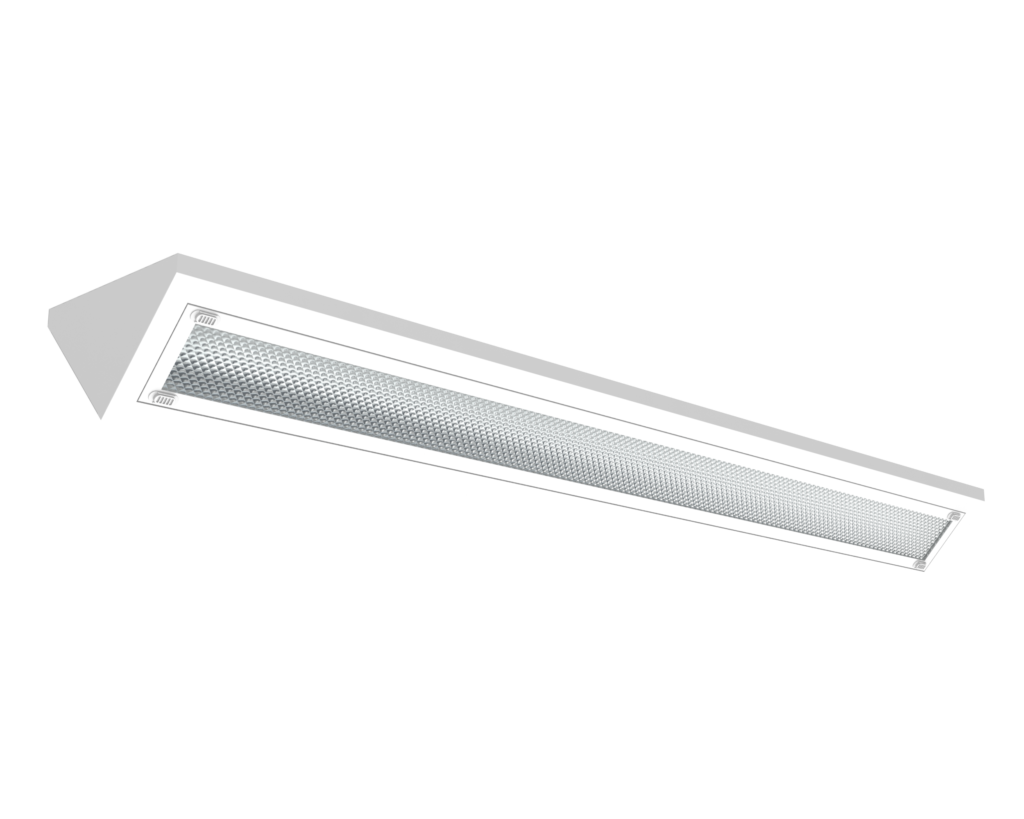

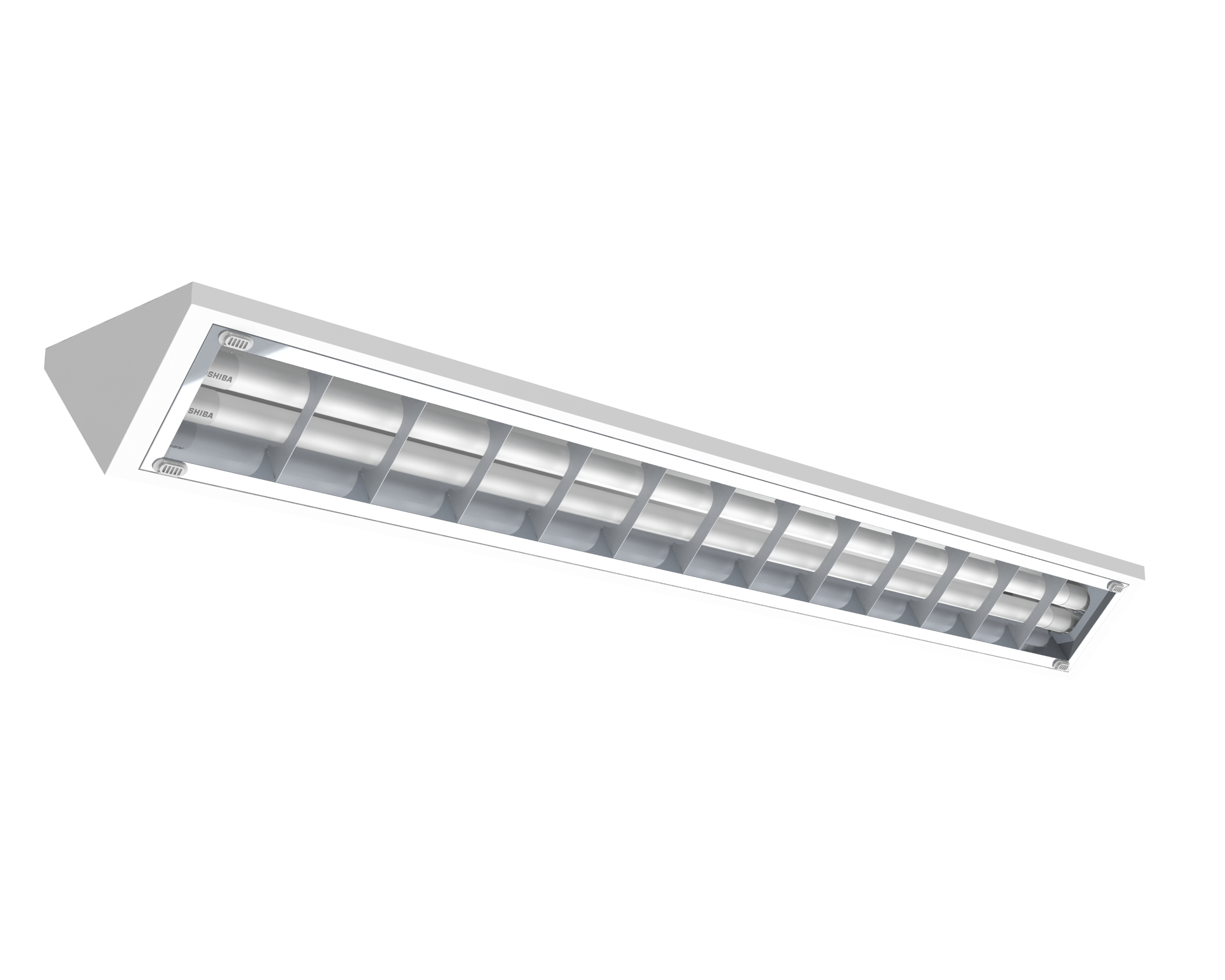

T8 LED TRIANGLE HINGED DIFFUSER & MIRROR LOUVER FITTING – OS TRA Series
Elevate your lighting solutions with the innovative T8 LED Triangle Hinged Diffuser & Mirror Louver Fitting. This dual-sided design features a high-quality diffuser on one side and a sleek mirror louvre on the other, providing versatile lighting effects for any environment.
| Application | : | Mosque, Laboratory, Hospitals, Factory, Warehouse, Corridors |
| Certificate | : | Nil |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.5mm) |
| Louvres | Anodized |
| Diffuser | Polycarbonate Prismatic Diffuser |
| Lampholder | Polycarbonate and Bronze Lampholder |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Wall |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Carton Size | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS TRA 3x600mm/PT | 2.00 Kg | 655 mm | 202 mm | 70 mm | 2.15 Kg | 1 pcs / Carton |
| OS TRA 3x1200mm/PT | 3.44 Kg | 1265 mm | 202 mm | 70 mm | 3.60 Kg | 1 pcs / Carton |

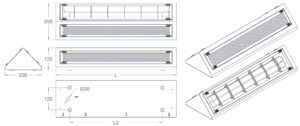

| Model | Luminaires | Dimension (mm) | ||||
| No. of Lamp | Type | Base | L | L2 | W | |
| OS TRA 3x600mm/PT | 3 | Hinged Diffuser + Mirror Louver | G13 | 650 mm | 500 mm | 200 mm |
| OS TRA 3x1200mm/PT | 3 | Hinged Diffuser + Mirror Louver | G13 | 1260 mm | 1110 mm | 200 mm |
| T8 LED Tube | T8 LED Tube | Powerpack | |
 |
 |
 |
|
| TOSHIBA PRO TUBE RLDL028 | TOSHIBA GLASS TUBE RLDL8 | VITALITE VEL 120/ECK |
