OS TMIR Series
Indoor Luminaries
T8 LED TRIANGLE FITTING (MIRROR REFLECTOR) – OS TMIR Series
The OS TMIR Series T8 LED Triangle Fitting with Mirror Reflector is a high-performance lighting solution designed for optimal illumination in various settings. Its triangular design, combined with a robust mirror reflector, ensures that light is evenly distributed and focused where it’s needed most.
| Application | : | Sport Facilities, School, Laboratory, Factory, Warehouse, Workshops, Corridors, Public Buildings |
| Certificate | : | SNI |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.5mm) |
| Reflector | Anodized Aluminium Mirror Reflector (Thickness: 0.3mm) |
| Lampholder | Polycarbonate and Bronze Lampholder |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall / Suspension |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Carton Size | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS TMIR 2x600mm | 0.70 Kg | 640 mm | 160 mm | 123 mm | 1.65 Kg | 2 pcs / Carton |
| OS TMIR 2x1200mm | 1.25 Kg | 1255 mm | 165 mm | 130mm | 2.95 Kg | 2 pcs / Carton |

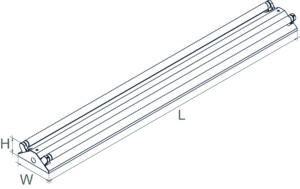

| Model | Luminaires | Dimension (mm) | ||||
| No. of Lamp | Reflector | Base | L | W | H | |
| OS TMIR 2x600mm | 2 | Anodized Aluminium Mirror Reflector | G13 | 612 mm | 152 mm | 63 mm |
| OS TMIR 2x1200mm | 2 | Anodized Aluminium Mirror Reflector | G13 | 1222 mm | 152 mm | 63 mm |
| T8 LED Tube | T8 LED Tube | Powerpack | |
 |
 |
 |
|
| TOSHIBA GLASS TUBE RLDL8 | TOSHIBA PRO TUBE RLDL028 | VITALITE VEL 120/ECK |
