OS TD-FT Series

Indoor Luminaries

LED LINEAR LIGHT FITTING – OS TD-FT Series

The OS TD-FT Series is a sleek aluminum-profile lighting solution available in lengths from 2 to 8 feet. It offers surface, recessed, and suspension mounting options, integrating seamlessly into any space. Featuring energy-efficient LED strips, it delivers uniform, high-quality illumination that elevates the overall ambiance of a space.

Application : Office, Meeting Room, Hotels, Hospitality, School, Laboratory, Hospitals, Restaurants, Supermarket, Shopping Complex, Public & Commercial Building
Certificate : SIRIM
Colour : Black Texture, White Texture

Body Extruded from Aluminium Alloy
Diffuser Polycarbonate (PC) Opal Linear Diffuser
Gear Tray Fabricated from Mild Steel
End Cap Injection Moulded from Polycarbonate (PC)
Connector Nylon 3 Way x 2.5mm2
Finishing Electrostatically Polyester Powder Coated
Mounting Type Surface Ceiling / Recessed Plastered / Suspension
Driver TRIDONIC Essence / VITALITE VLD Series
Lamp TRIDONIC / OS LED Linear Strip
Model OS TD-2/**-FT OS TD-4/**-FT OS TD-6/**-FT OS TD-8/**-FT
Notation
for Mounting Type		 ** replaced by

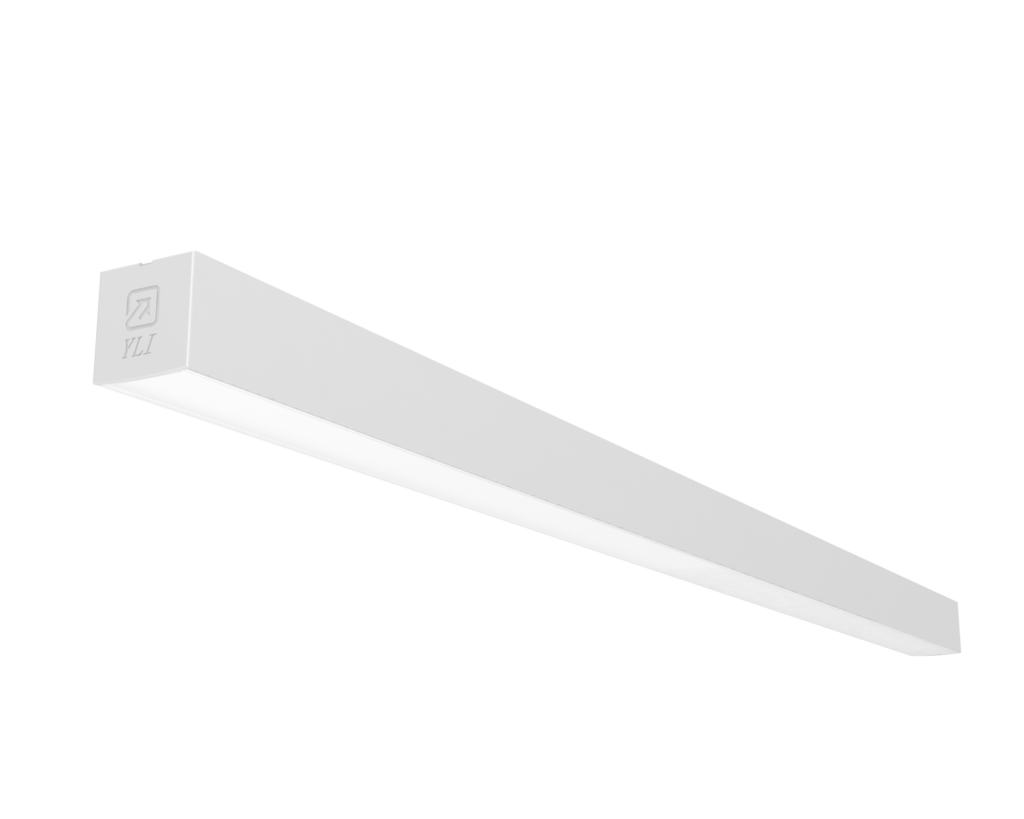

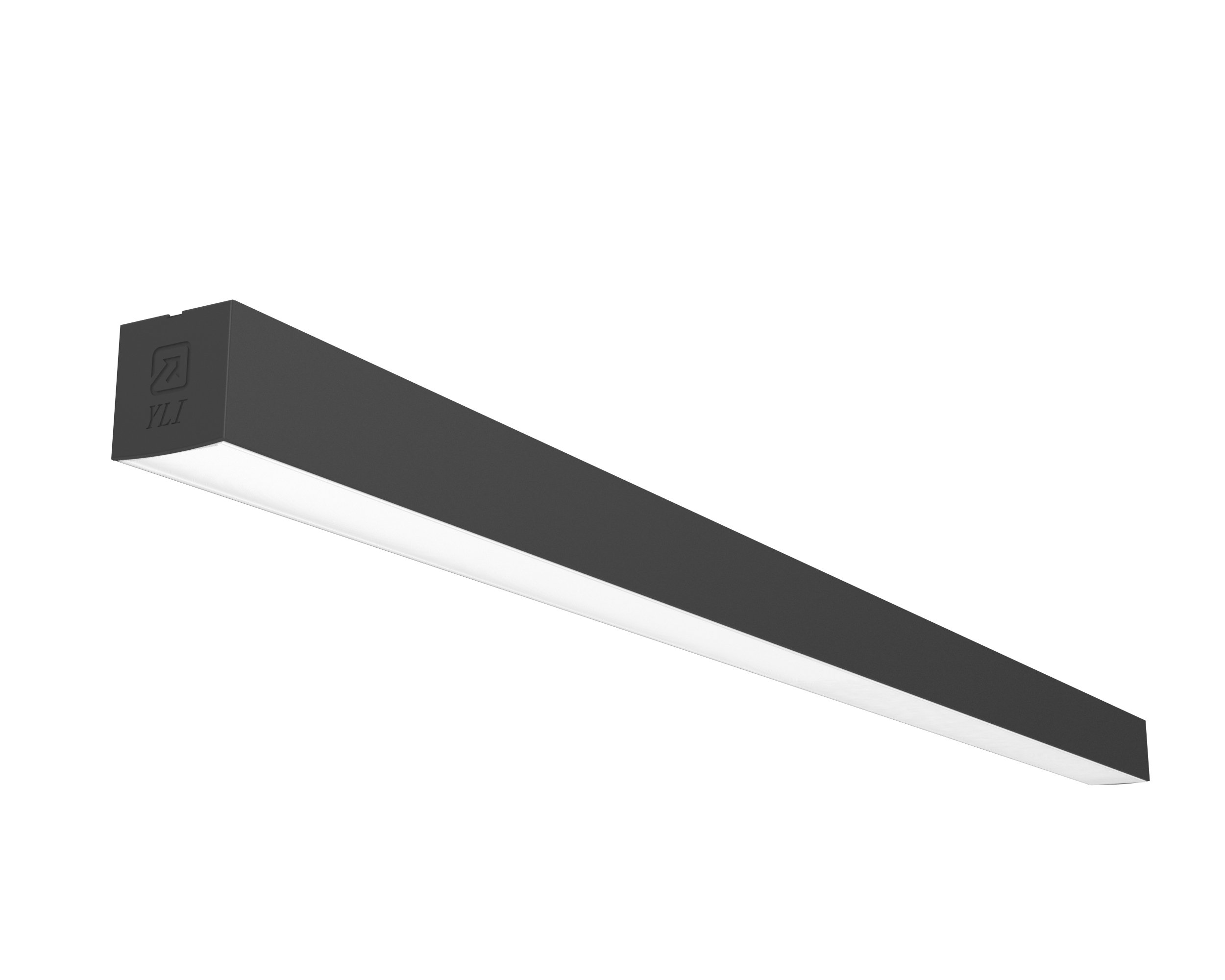

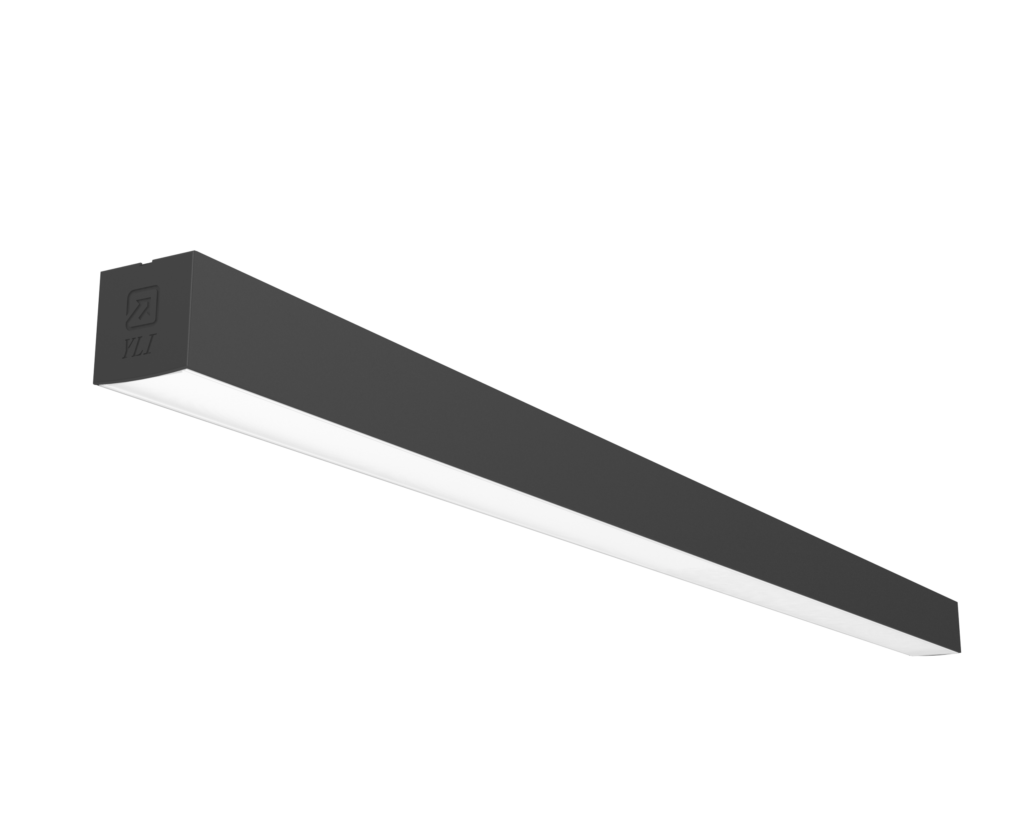

S – Surface Ceiling

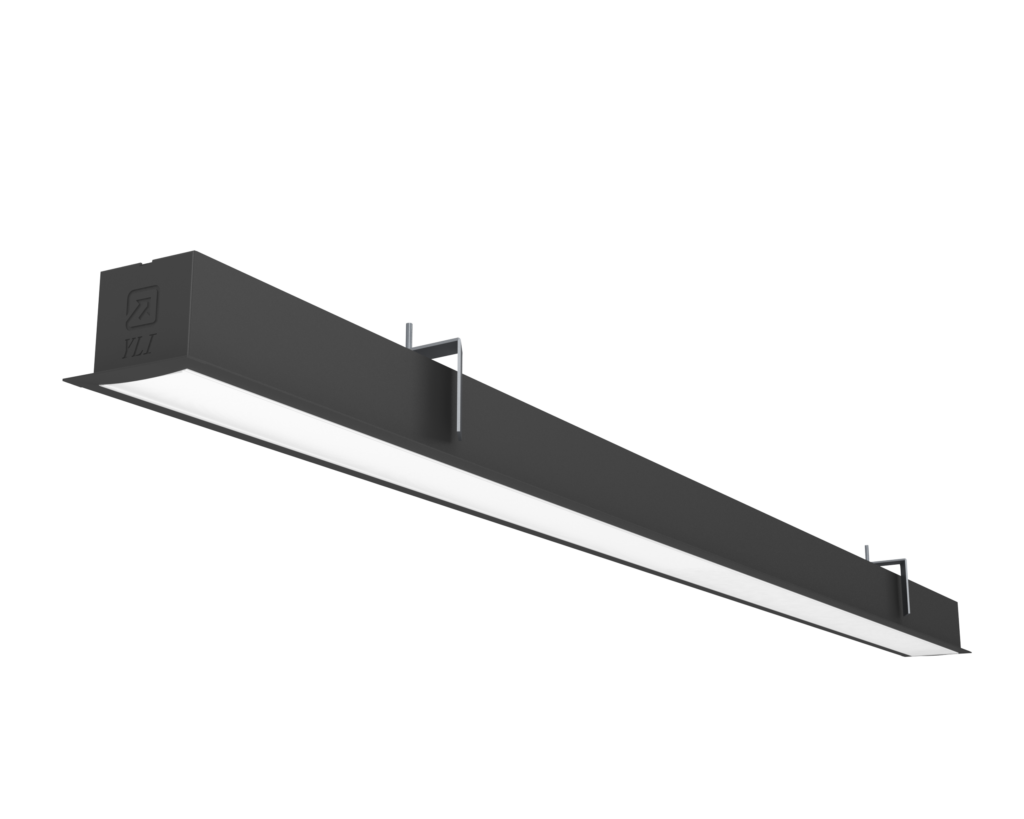

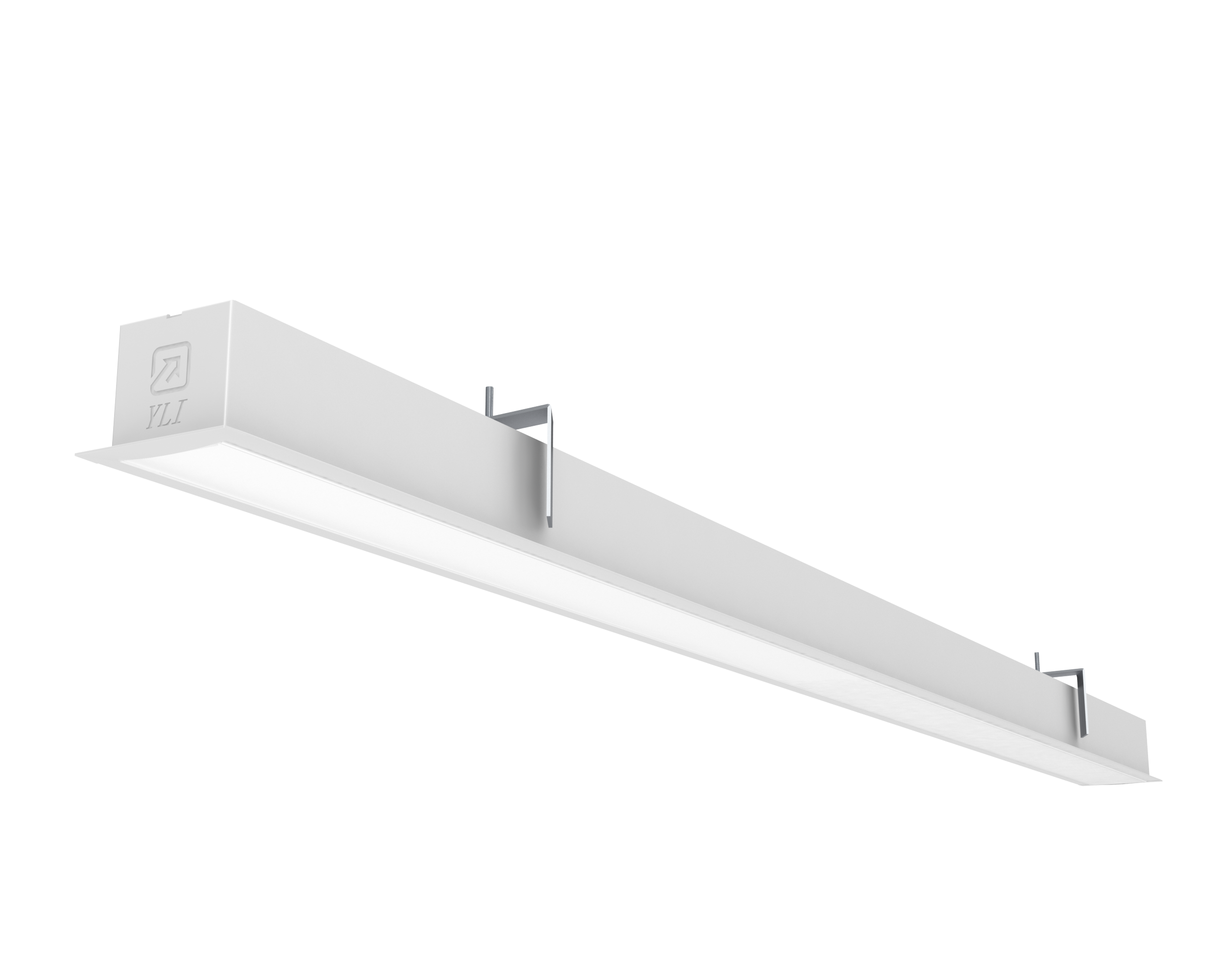

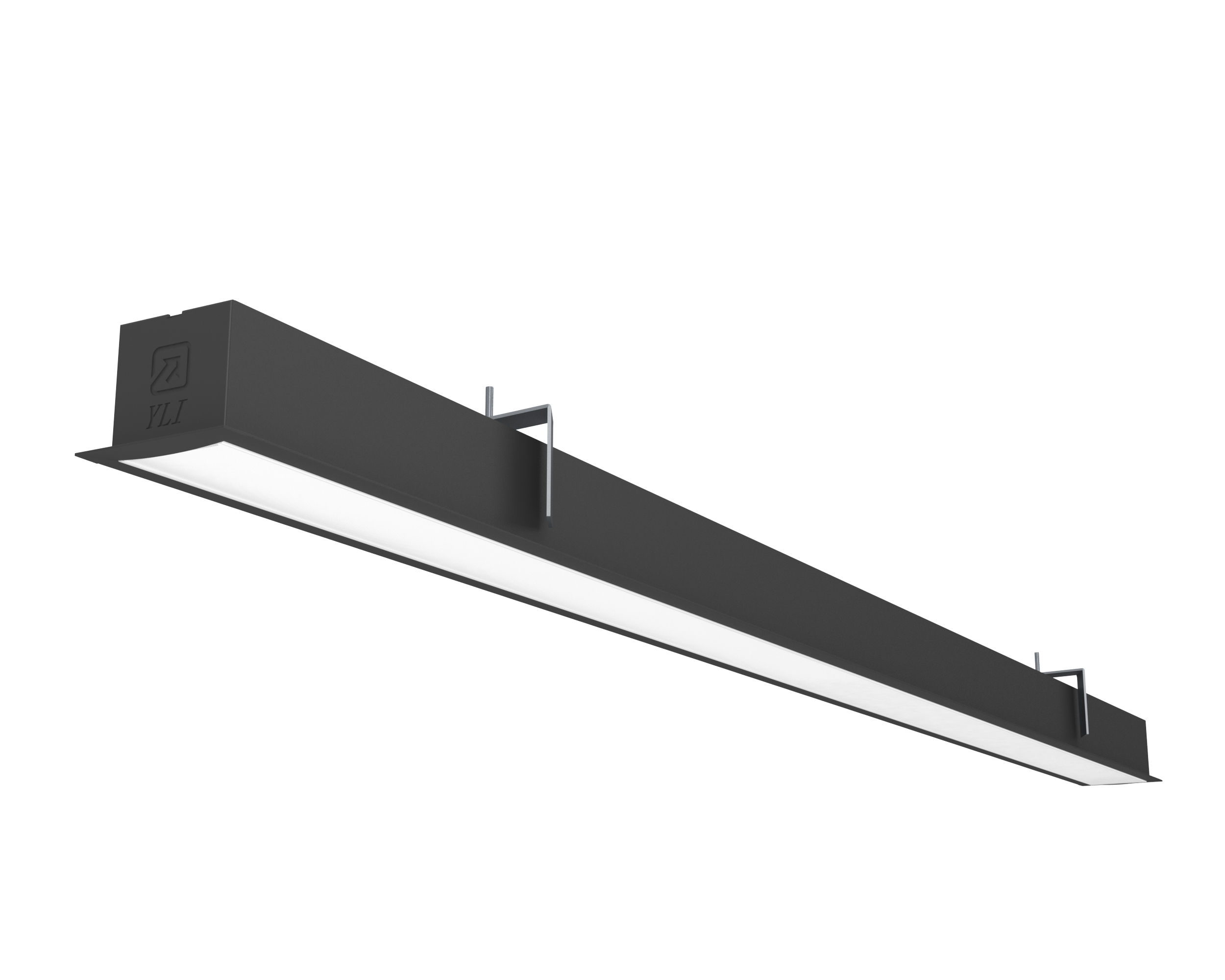

RP – Recessed Plastered

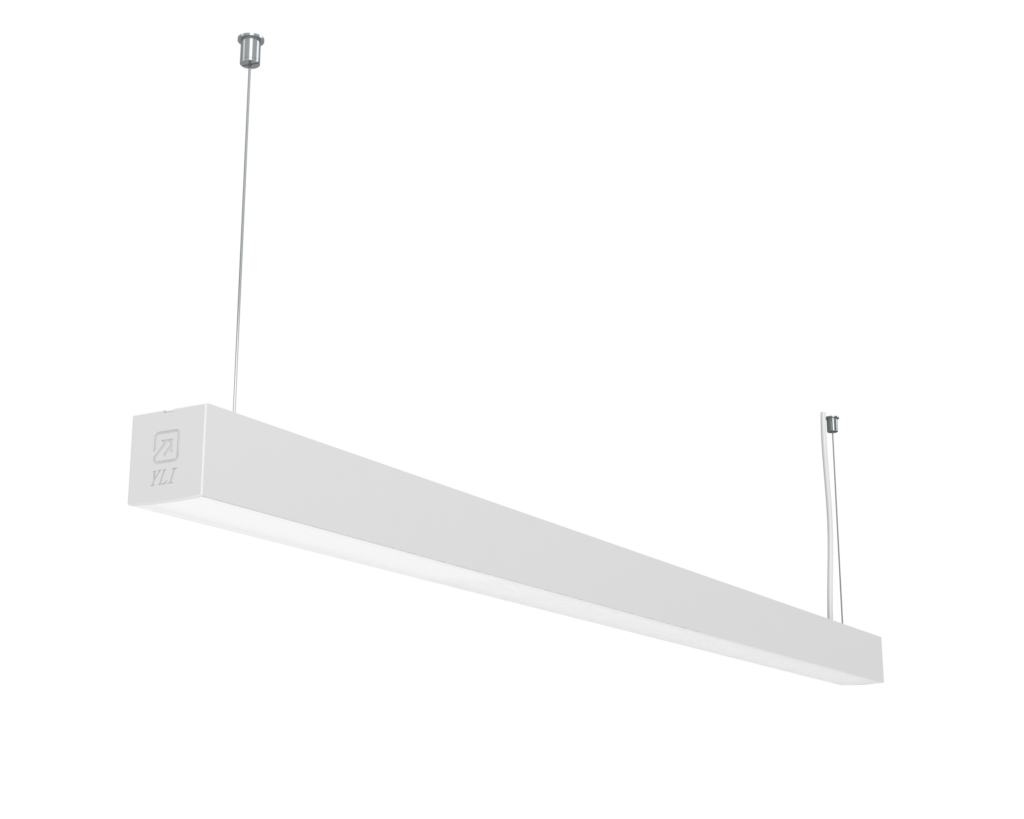

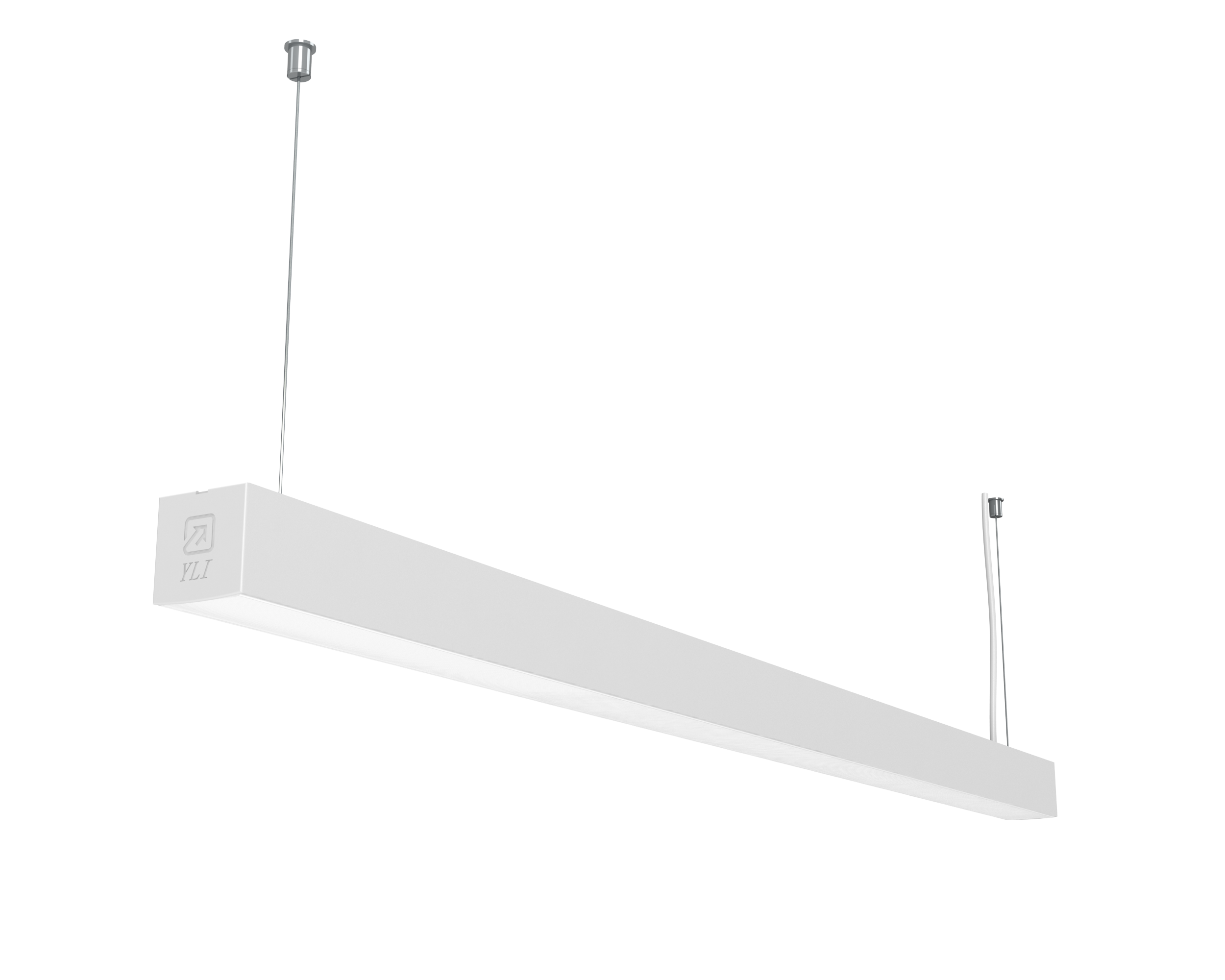

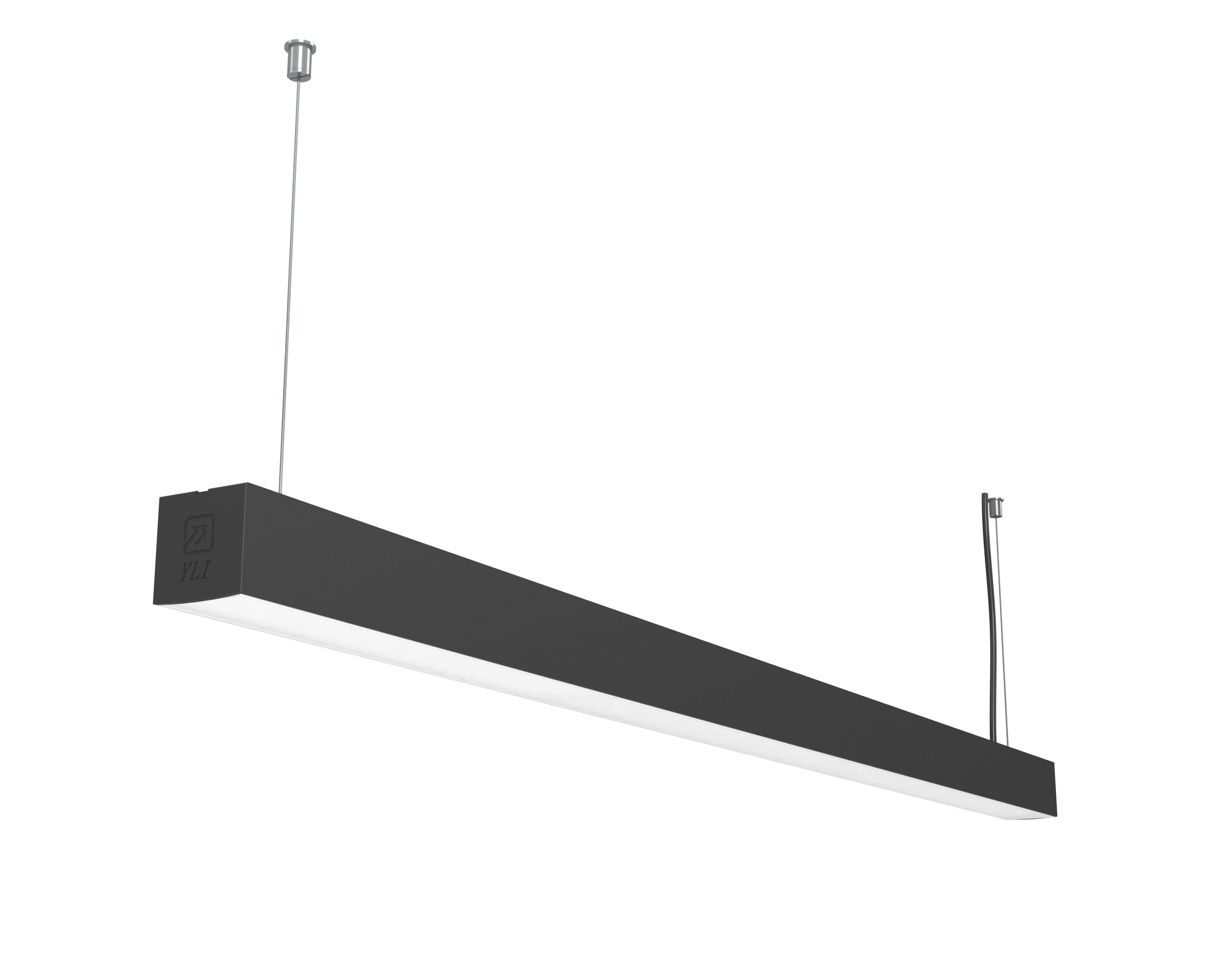

SP – Suspension
Driver 1 x VLD 10 1 x VLD 15 1 x LC 25 1 x VLD 25 1 x VLD35 1 x LC 25 1 x VLD 10
+
1 x VLD 15		 1 x VLD 15
+
1 x VLD35		 1 x LC 50 2 x VLD 25 2 x VLD35 1 x LC 50
System Lumen (lm) 1100 1500 1500 2100 3000 3000 3200 4500 4500 4200 6000 6000
System Power (W) 10 15 13 19 27 25 29 42 38 38 54 50
System Current (A) 0.09 0.12 0.07 0.08 0.12 0.11 0.17 0.24 0.17 0.16 0.24 0.22
Efficacy (lm/W) 110 100 115 111 111 120 110 107 118 111 111 120
Main Supply (V, Hz) 220~240V, 50/60Hz
IP Grade IP 20
Classification Class I
Power Factor 0.5 0.9 0.9 0.9 0.7 0.9 0.9 0.9
Operating Temperature (ta) 0°C ~ 35°C
Max. Casing Temperature (tc) 85°C 90°C 85°C 90°C 85°C 90°C 85°C 90°C
Rated Lifespan 50,000 hrs
CRI > 80 Ra
SDCM ≤ 5 ≤ 3 ≤ 5 ≤ 3 ≤ 5 ≤ 3 ≤ 5 ≤ 3
Beam Angle 110°
Available CCT Warm White (3000K), Cool White (4000K), Daylight (6500K)



Model Product
Weight (Kg)		 Carton Size (mm) Gross
Weight (Kg)		 Quantity
Suspension Surface L W H
OS TD-2/SP-FT OS TD-2/S-FT – Kg 585 mm  58 mm  58 mm – Kg 1 pc / Carton
OS TD-4/SP-FT OS TD-4/S-FT – Kg 1155 mm  58 mm  58 mm – Kg 1 pc / Carton
OS TD-6/SP-FT OS TD-6/S-FT – Kg 1710 mm  58 mm  58 mm – Kg 1 pc / Carton
OS TD-8/SP-FT OS TD-8/S-FT – Kg 2275 mm  58 mm  58 mm – Kg 1 pc / Carton
Model Product
Weight (Kg)		 Carton Size (mm) Gross
Weight (Kg)		 Quantity
Recessed Plaster L W H
OS TD-2/RP-FT – Kg 585 mm 72 mm 58 mm – Kg 1 pc / Carton
OS TD-4/RP-FT – Kg 1155 mm 72 mm 58 mm – Kg 1 pc / Carton
OS TD-6/RP-FT – Kg 1710 mm 72 mm 58 mm – Kg 1 pc / Carton
OS TD-8/RP-FT – Kg 2275 mm 72 mm 58 mm – Kg 1 pc / Carton

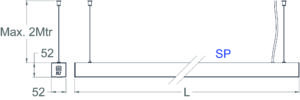

OS TD-*/SP-FT OS TD-*/S-FT OS TD-*/RP-FT
Model Luminaires Dimension (mm) Cut-Out (mm)
for /RP only
Suspension Surface Recessed Plaster Driver LED Module CCT (K) L L x W
OS TD-2/SP-FT OS TD-2/S-FT OS TD-2/RP-FT 1 x VLD 10/250/40 1 x LED-2FT-STRIP-72-xxxxK-G3 3000K/
4000K/
6500K		 580 mm 582 mm x 60 mm
1 x VLD 15/350/43
1 x LC 25/200-350/70 flexCC lp SNC3 1 x LLE 20x560mm 2400lm 8xx LV SNC3
OS TD-4/SP-FT OS TD-4/S-FT OS TD-4/RP-FT 1 x VLD 25/500/50 1 x LED-4FT-STRIP-144-xxxxK-G3 3000K/
4000K/
6500K		 1150 mm 1152 mm x 60 mm
1 x VLD 35/700/50
1 x LC 25/200-350/70 flexCC lp SNC3 2 x LLE 20x560mm 2400lm 8xx LV SNC3
OS TD-6/SP-FT OS TD-6/S-FT OS TD-6/RP-FT 1 x VLD 10/250/40 &
1 x VLD 25/500/50		 1 x LED-2FT-STRIP-72-xxxxK-G3 &
1 x LED-4FT-STRIP-144-xxxxK-G3		 3000K/
4000K/
6500K		 1705 mm 1707 mm x 60 mm
1 x VLD 15/350/43 &
1 x VLD 35/700/50
1 x LC 50/200-350/170 flexCC lp SNC3 3 x LLE 20x560mm 2400lm 8xx LV SNC3
OS TD-8/SP-FT OS TD-8/S-FT OS TD-8/RP-FT 2 x VLD 25/500/50 2 x LED-4FT-STRIP-144-xxxxK-G3 3000K/
4000K/
6500K		 2270 mm 2272 mm x 60 mm
2 x VLD 35/700/50
1 x LC 50/200-350/170 flexCC lp SNC3 4 x LLE 20x560mm 2400lm 8xx LV SNC3
Powerpack
VITALITE VEL 120/ECK
