OS SL-620
Outdoor Luminaries

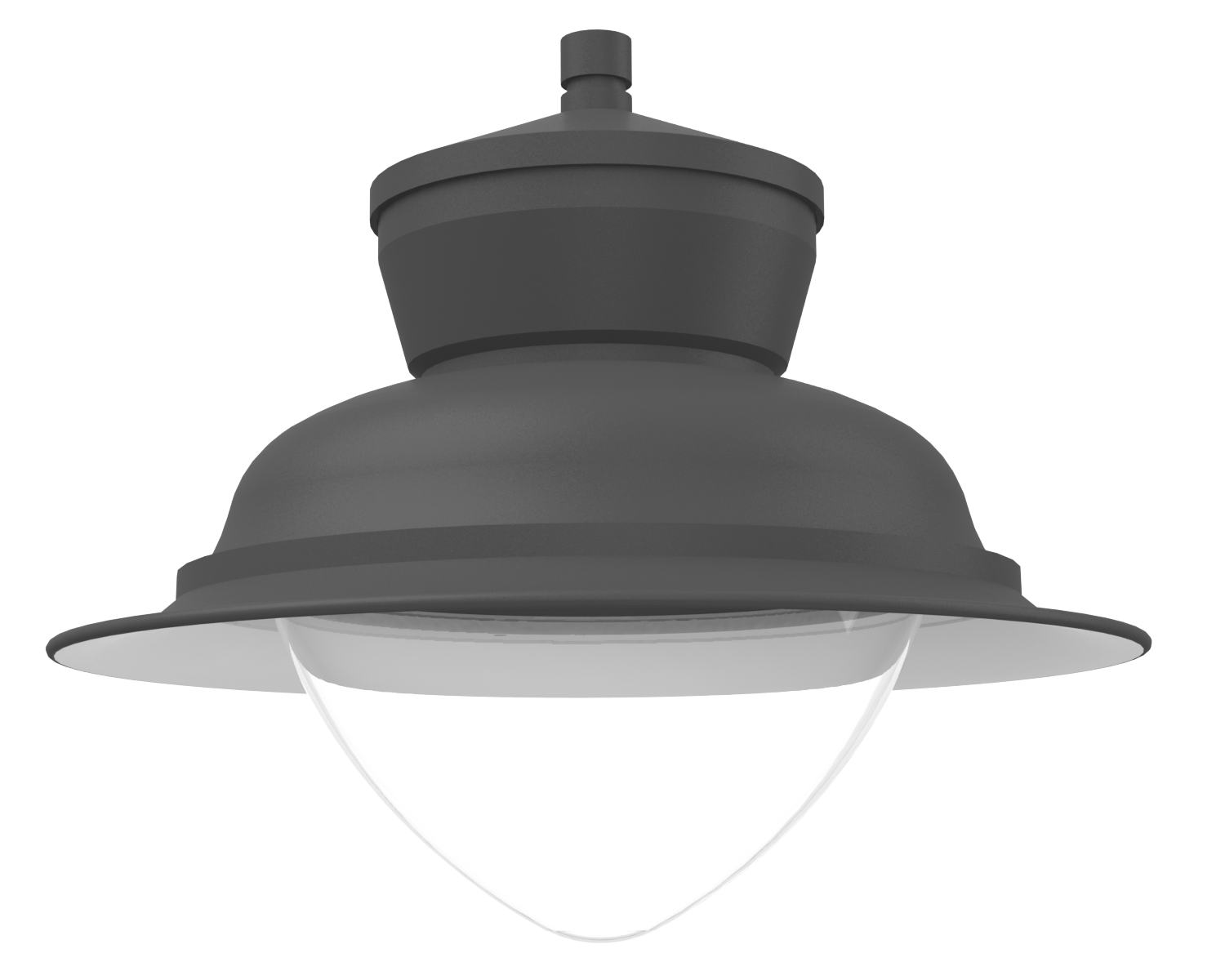

LED STREET LANTERN – OS SL-620
The OS SL-620 LED Street Lantern combines bold design with powerful illumination, engineered to enhance streets and urban spaces. Its sleek, modern profile offers durable performance while lighting the way with striking clarity.
| Application | : | Outdoor Area, Parks, Pedestrian Areas, Roadways, Parking Lots, Plazas and Courtyard, Highlighting Garden, Public Areas |
| Certificate | : | Nil |
| Colour | : | Black Texture |
| Top Plate |
Spinning Aluminium |
| Base |
Die Casted from ADC12 Aluminium Alloy |
| Reflector | Spinning Aluminium |
| Diffuser | Clear Diffuser Moulded from Acrylic |
| Gear Chamber | Built-in |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon Connecting Devices |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Pole Mounted |
| Driver | SOSEN VA-L / VH-E / GA-E |
| Lamp | LED Module |
| Surge Protection | CM: 10kV, DM: 6kV |
| Model | OS SL-620 | |||
| LED Driver | SS-50VA-L50B | SS-75VH-E72B | SS-100VH-E143B | SS-100GA-E143B |
| System Lumen (lm) | 5000 | 10000 | ||
| System Power (W) | 50 | 100 | ||
| System Current (A) | 0.22 | 0.40 | ||
| Efficacy (lm/W) | 100 | 100 | ||
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |||
| IP Grade | IP 65 | |||
| IK Grade | IK 07 | |||
| Classification | Class I | |||
| Power Factor | PF ≥ 0.9 | |||
| Operating Temperature (ta) | 0°C ~ 35°C | |||
| Max. Casing Temperature (tc) | 105°C | |||
| Rated Lifespan | 50,000 hrs | |||
| CRI | > 80 Ra | |||
| SDCM | ≤ 5 | |||
| Beam Angle | 80° | |||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6000K) | |||
| Pole Size Requirement | Diameter: ⌀60 mm | |||
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS SL-620 | Kg | mm | mm | mm | Kg | 1pc / Carton |

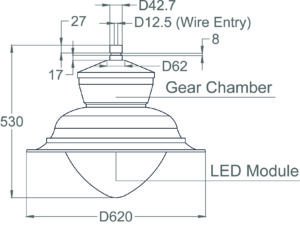

| Model | Luminaires | Dimension (mm) | ||||
| Wattage | SOSEN LED Driver | LED Module | Colour Temperature, CCT (K) | D | H | |
| OS SL-620 | 50W | SS-50VA-L50B | OS AL-R-60-xxxxK-G3 | 3000K/ 4000K/ 6000K |
⌀620 mm | 530 mm |
| SS-75VH-E72B | ||||||
| 100W | SS-100VH-E143B | OS AL-R-120-xxxxK-G3 | ||||
| SS-100GA-E143B | ||||||
| Pole Top | |||
 |
|||

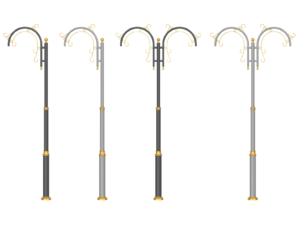

| HDG-POLE c/w BRACKET Series |
