OS SL-1104
Outdoor Luminaries
LED LAWN SPOTLIGHT – OS SL-1104 (OS50)
The OS SL-1104 is an LED Lawn Spotlight featuring the OS50 LED Module. Designed for outdoor applications, it provides focused illumination with durability to withstand various weather conditions.
| Application | : | Park, Lawn, Garden, Public Landscape, Signage & Monument |
| Certificate | : | Nil |

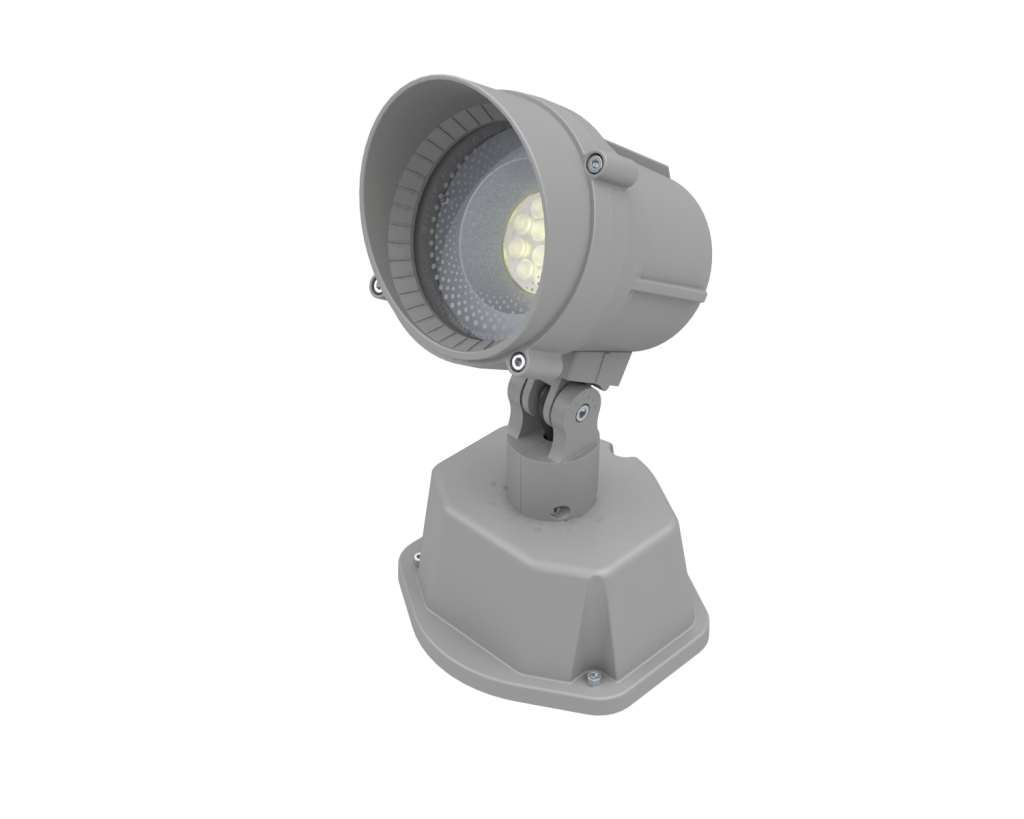

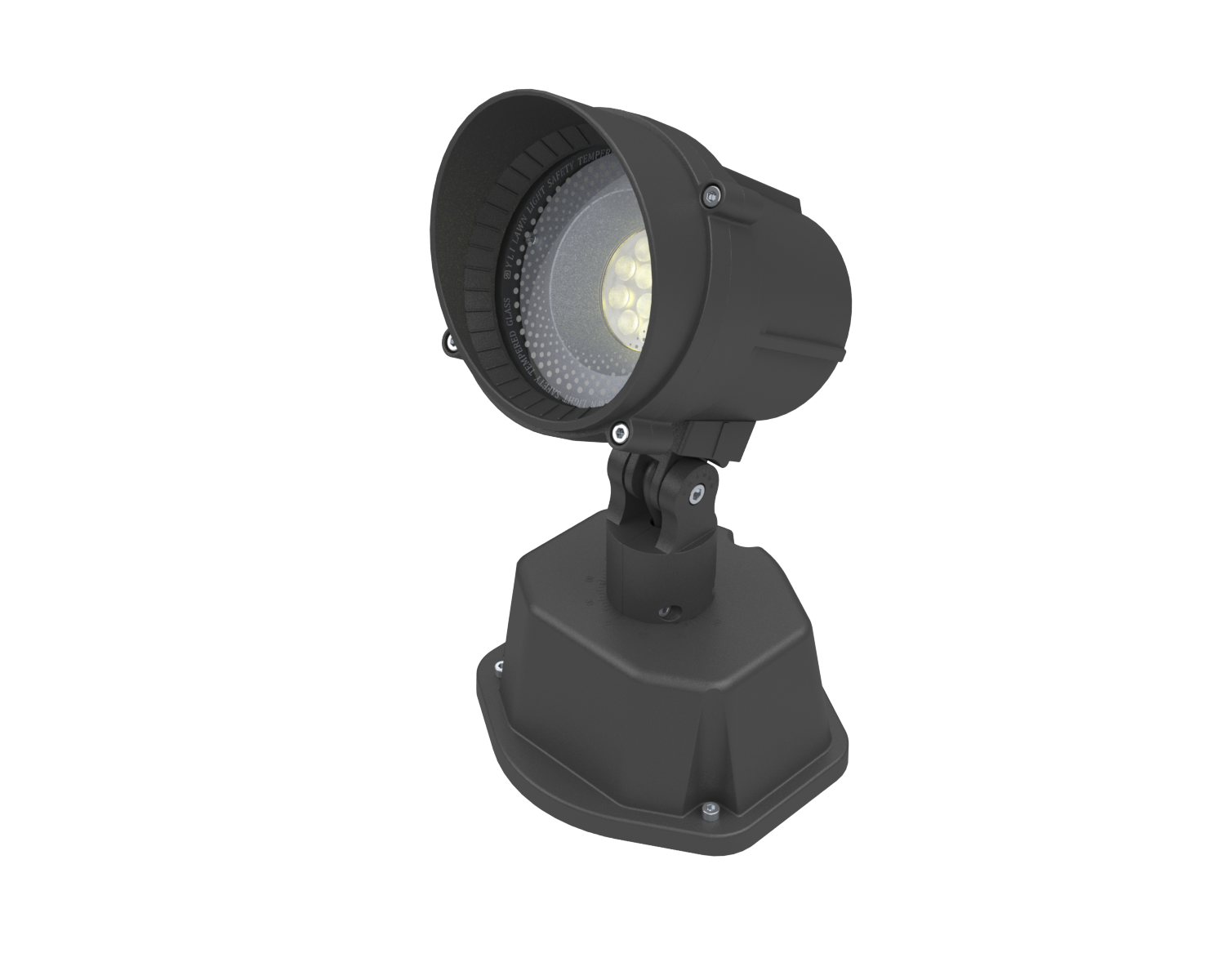

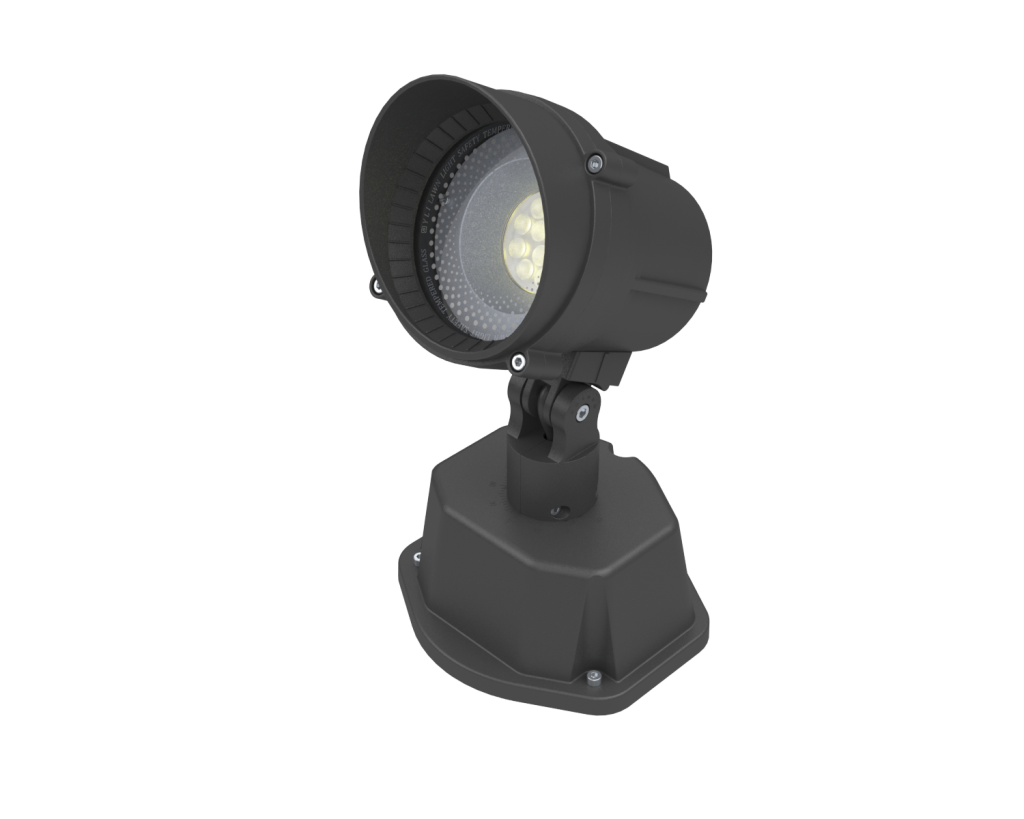

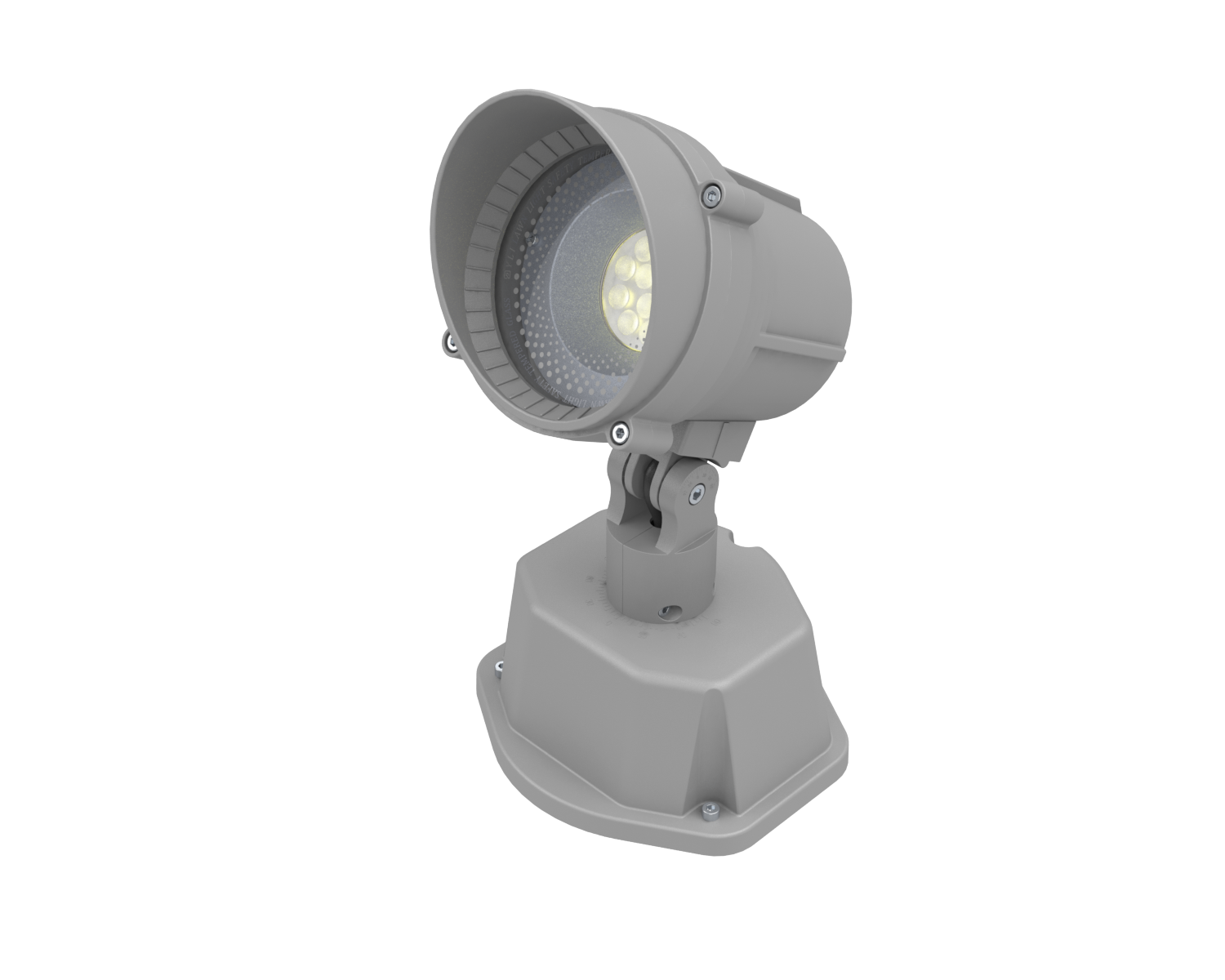

| Colour | : | Black Texture, Silver Texture |
| Body |
Die Casted from ADC12 Aluminium Alloy |
| Rim |
Die Casted from ADC12 Aluminium Alloy |
| Ground Chamber |
Die Casted from ADC12 Aluminium Alloy |
| Diffuser | Tempered Glass Dot-Frosted Diffuser |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Cable Entry | Waterproof Cable Entry |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ground Mounted |
| Lamp | OS50 Lamp |
| Model | OS SL-1104 | |
| Type | Ground Chamber with Rim Shade | |
| LED Driver | VITALITE VLD 10/250/40 | VITALITE VLD 15/350/43 |
| Lamp | OS50-900-8xx-xxD | |
| System Lumen (lm) | 750 | 1000 |
| System Power (W) | 8 | 11 |
| System Current (A) | 0.06 | 0.08 |
| Efficacy (lm/W) | 94 | 91 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | |
| IP Grade | IP 65 | |
| IK Grade | IK 07 | |
| Classification | Class I | |
| Power Factor | PF ≥ 0.50 | |
| Operating Temperature (ta) | 0°C ~ 35°C | |
| Rated Lifespan | 30,000 hrs | |
| CRI | > 80 Ra | |
| SDCM | ≤ 6 | |
| Beam Angle | 24° / 40° | |
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6000K) | |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS SL-1104 | Kg | mm | mm | mm | Kg | 1pc / Carton |

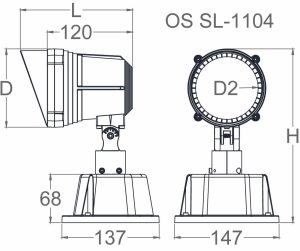

| Model | Luminaires | Dimension (mm) | ||||||
| Type | LED Driver | Lamps | Lens | Colour Temperature, CCT (K) | D | L | H | |
| OS SL-1104 | Ground Chamber with Rim Shade | VITALITE VLD 10/250/40 | OS50-900-8xx-xxD | 24°/ 40° | 3000K/ 4000K/ 6500K |
⌀110 mm | 158 mm | 245 mm |
| VITALITE VLD 15/350/43 | ||||||||

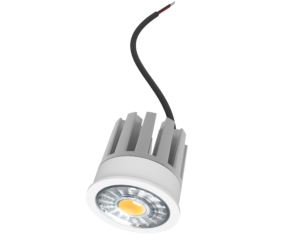

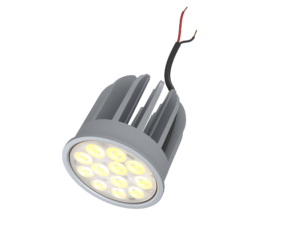

| LED OS50 SMD Module | LED OS50 COB Module | ||
 |
 |
||
| OS50-900-8xx-xxD | OS50-COB-1200-9xx-xxD |
