OS SL-1102
Outdoor Luminaries
LED LAWN SPOTLIGHT – OS SL-1102 (GU10)
The OS SL-1102 is an LED Lawn Spotlight with a GU10 base, designed for focused outdoor illumination. Its durable housing ensures reliable performance in various weather conditions.
| Application | : | Park, Lawn, Garden, Public Landscape, Signage & Monument |
| Certificate | : | Nil |
| Colour | : | Black Texture, Silver Texture |
| Body |
Die Casted from ADC12 Aluminium Alloy |
| Rim |
Die Casted from ADC12 Aluminium Alloy |
| Ground Insert |
Die Casted from ADC12 Aluminium Alloy |
| Reflector | Anodized Aluminium Reflector |
| Diffuser | Tempered Glass Dot-Frosted Diffuser |
| Seal | Silicone Gasket |
| Screws | Stainless Steel |
| Lampholder | GU10 Ceramic Holder |
| Lampholder Bracket | Fabricated in Mild Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Cable Entry | Waterproof Cable Entry |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ground Mounted |
| Lamp | GU10 Lamp |
| Model | OS SL-1102 | |
| Type | Ground Insert with Rim Shade | |
| Base | GU10 | |
| Recommend Lamp | TOSHIBA LED RG0 GU10 5W | TOSHIBA LED RG0 GU10 7.5W |
| System Lumen (lm) | 450 | 640 |
| System Power (W) | 5 | 7.5 |
| System Current (A) | 0.04 | 0.06 |
| Efficacy (lm/W) | 90 | 85 |
| Main Supply (V, Hz) | 170~240V, 50/60Hz | |
| IP Grade | IP 65 | |
| IK Grade | IK 07 | |
| Classification | Class I | |
| Power Factor | PF ≥ 0.50 | |
| Operating Temperature (ta) | 0°C ~ 35°C | |
| Rated Lifespan | 15,000 hrs | |
| CRI | > 90 Ra | |
| SDCM | ≤ 6 | |
| Beam Angle | 36° | 60° |
| Available CCT | Warm White (3000K) | |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS SL-1102 | Kg | 321 mm | 161 mm | 132 mm | Kg | 1pc / Carton |

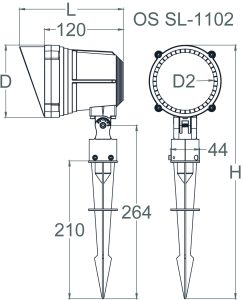

| Model | Luminaires | Dimension (mm) | |||||
| Type | Base | Lamps | Colour Temperature, CCT (K) | D | L | H | |
| OS SL-1102 | Ground Insert with Rim Shade | GU10 | LED RG0 GU10 5W 3000K 36D | 3000K | ⌀110 mm | 158 mm | 386 mm |
| LED RG0 GU10 7.5W 3000K 60D | |||||||
| LED GU10 Bulb | LED RG0 GU10 Bulb | ||
 |
 |
||
| TOSHIBA GU10 BULB RLDMC | TOSHIBA GU10 BULB RLDM02K |
