OS-IMS-01
Accessories

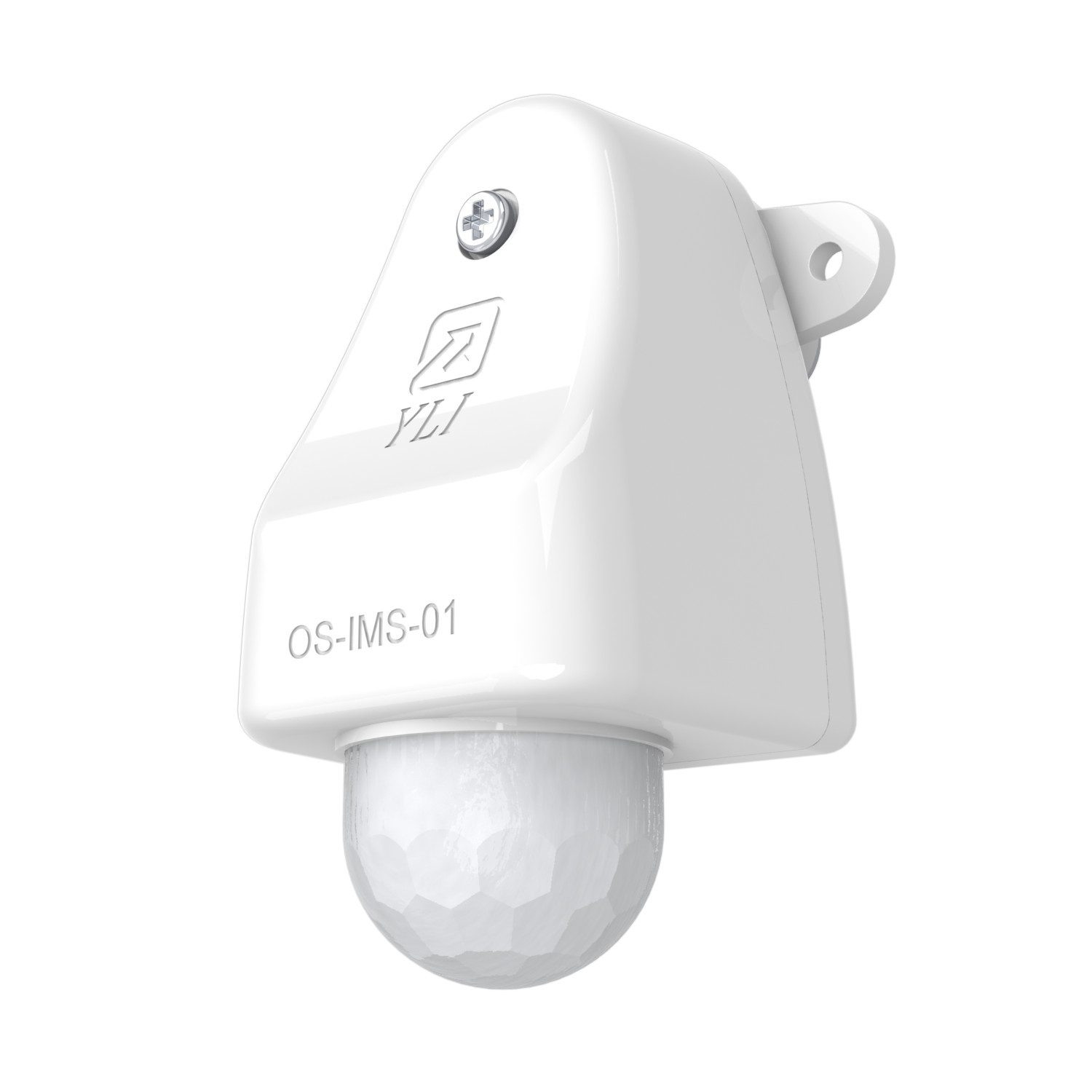

INFRARED MOTION SENSOR – OS-IMS-01
The OS-IMS-01 Series is an infrared motion sensor that activates lights upon detecting movement, offering adjustable sensitivity and range for efficient energy use.
| Usage Application | : | LED Linear Fitting |
| Certificate | : | Nil |
| Colour | : | White |
| Body | Polycarbonate (PC) |
| Fresnel Lens | Polycarbonate (PC) in Dome-shaped |
| Finishing | Smooth Finished Housing |
| Adjustable | Yes |
| Installation & Mounting | Complete With Fitting & IMS Driver |
| Suitable Luminaires | 1) OS YB/OL Series |
| Input Voltage | 5 Vdc |
| Power Consumption | < 0.5W |
| Time Delay | 80 sec ± 20 sec |
| Detection Distance | 5 meter (< 24±°C) |
| Detection Range | 120° / 360° |
| Working Temperature | -20°C ~ 40°C |
| Working Humidity | < 93% RH |
| Recommended Installation Height | 3.0 meter |
| Maximum Mounting Height | 3.5 meter |
| Detection Motion Speed | 0.6 – 1.5m/s |
| Lifespan | 50,000 hrs |
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS-IMS-1 | 0.35 Kg | 470 mm | 340 mm | 292 mm | 11.49 Kg | 320 pcs / Carton |

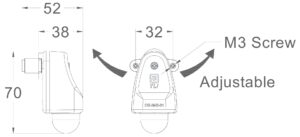

| Model | Type | Dimension (mm) | ||
| L | W | H | ||
| OS-IMS-1 | Infrared Motion Sensor | 52 mm | 32 mm | 70 mm |

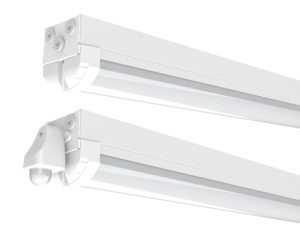

| LED Linear Fitting | |||
 |
|||
| OS YB/OL Series |
