OS FL Series
Outdoor Luminaries
LED FLOODLIGHT – OS FL Series
The OS FL Series LED Floodlight features a durable aluminum body with anti-rust protection, ensuring long-lasting outdoor performance. With a high lumen output and options for 2 to 4 LED modules, it delivers powerful illumination for large areas while maintaining efficiency.
| Application | : | Outdoor Area, Parks, Warehouses, Factory, Patios, High Ceilings Spaces, Public Areas |
| Certificate | : | SIRIM |
| Colour | : | Black Texture |
| Body | Fabricated from Aluminium Alloy |
| Mounting Bracket | Fabricated from Aluminium Alloy |
| Gear Chamber | Built-in |
| Screws | Stainless Steel |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Weatherproof Connecting Devices |
| Cable Gland | Available |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Mounted |
| Driver | SOSEN GA-E |
| Lamp | OSRAM PL-SKY G3 or OS HL-6000-7xx |
| Surge Protection | CM: 10kV, DM: 6kV |
| Model | OS FL-2 (Alu) | OS FL-3 (Alu) | OS FL-4 (Alu) | ||||||
| SOSEN LED Driver | 1 x SS-100GA-E143B | 1 x SS-100GA-E143B | 1 x SS-150GA-E215B | 1 x SS-150GA-E215B | 1 x SS-200GA-E286B | ||||
| Lamp | 2 x OSRAM PL-SKY G3 | 2 x OS HL-6000-7xx | 3 x OSRAM PL-SKY G3 | 3 x OS HL-6000-7xx | 4 x OSRAM PL-SKY G3 | 4 x OS HL-6000-7xx | |||
| Driver Output Current (mA) | 700mA | 900mA | 960mA | 700mA | 900mA | 960mA | 700mA | 900mA | 960mA |
| System Lumen (lm) | 9200 | 11600 | 13000 | 13800 | 17400 | 19500 | 18400 | 23200 | 26000 |
| System Power (W) | 75 | 100 | 100 | 105 | 150 | 150 | 142 | 200 | 200 |
| System Current (A) | 0.32 | 0.43 | 0.44 | 0.44 | 0.64 | 0.62 | 0.61 | 0.85 | 0.82 |
| Efficacy (lm/W) | 123 | 116 | 130 | 131 | 116 | 130 | 130 | 116 | 130 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | ||||||||
| IP Grade | IP 65 | IP 66 | IP 65 | IP 66 | IP 65 | IP 66 | |||
| IK Grade | IK 07 | ||||||||
| Classification | Class I | ||||||||
| Power Factor | PF ≥ 0.9 | ||||||||
| Operating Temperature (ta) | 0°C ~ 35°C | ||||||||
| Max. Casing Temperature (tc) | -30°C ~ 90°C | -30°C ~ 95°C | -30°C ~ 90°C | -30°C ~ 95°C | -30°C ~ 90°C | -30°C ~ 95°C | |||
| Rated Lifespan | 50,000 hrs | ||||||||
| CRI | > 70 Ra | ||||||||
| SDCM | ≤ 3 | ||||||||
| Beam Angle | Asymmetric: 100°x 60° │ Symmetric: 60°x 60° , 100°x 100° | ||||||||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | ||||||||
| Model | Product Weight (Kg) |
Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||
| OS FL-2 (Alu) | 2.70 Kg | 416 mm | 317 mm | 82 mm | 3.10 Kg | 1pc / Carton |
| OS FL-3 (Alu) | 3.40 Kg | 491 mm | 317 mm | 82 mm | 3.80 Kg | 1pc / Carton |
| OS FL-4 (Alu) | 4.00 Kg | 566 mm | 317 mm | 82 mm | 4.50 Kg | 1pc / Carton |

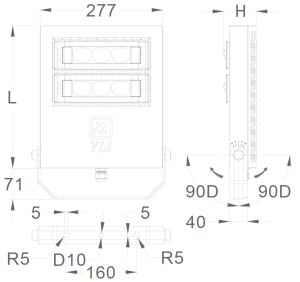

| Model | Luminaires | Dimension (mm) | ||||||
| Wattage | Beam Angle | Driver | LED Module | Colour Temperature, CCT (K) | L | W | H | |
| OS FL-2 (Alu) (L100x60) (700mA) | 75W | 100° x 60° | 1 x SOSEN SS-100GA-E143B | 2 x OSRAM PL-SKY Module | 3000K/ 4000K/ 6500K |
325 mm | 277 mm | 70 mm |
| OS FL-2 (Alu) (L60x60) (700mA) | 60° x 60° | |||||||
| OS FL-2 (Alu) (L100x100) (700mA) | 100°x 100° | |||||||
| OS FL-2 (Alu) (L100x60) (900mA) | 100W | 100° x 60° | ||||||
| OS FL-2 (Alu) (L60x60) (900mA) | 60° x 60° | |||||||
| OS FL-2 (Alu) (L100x100) (900mA) | 100°x 100° | |||||||
| OS FL-2 (Alu) (L100x60) (960mA) | 100W | 100° x 60° | 1 x SOSEN SS-100GA-E143B | 2 x OS HL-6000-7xx | 3000K/ 4000K/ 6500K |
325 mm | 277 mm | 73 mm |
| OS FL-2 (Alu) (L60x60) (960mA) | 60° x 60° | |||||||
| OS FL-3 (Alu) (L100x60) (700mA) | 105W | 100° x 60° | 1 x SOSEN SS-100GA-E143B | 3 x OSRAM PL-SKY Module | 3000K/ 4000K/ 6500K |
400 mm | 277 mm | 70 mm |
| OS FL-3 (Alu) (L60x60) (700mA) | 60° x 60° | |||||||
| OS FL-3 (Alu) (L100x100) (700mA) | 100°x 100° | |||||||
| OS FL-3 (Alu) (L100x60) (900mA) | 150W | 100° x 60° | 1 x SOSEN SS-150GA-E215B | |||||
| OS FL-3 (Alu) (L60x60) (900mA) | 60° x 60° | |||||||
| OS FL-3 (Alu) (L100x100) (900mA) | 100°x 100° | |||||||
| OS FL-3 (Alu) (L100x60) (960mA) | 150W | 100° x 60° | 1 x SOSEN SS-150GA-E215B | 3 x OS HL-6000-7xx | 3000K/ 4000K/ 6500K |
400 mm | 277 mm | 73 mm |
| OS FL-3 (Alu) (L60x60) (960mA) | 60° x 60° | |||||||
| OS FL-4 (Alu) (L100x60) (700mA) | 142W | 100° x 60° | 1 x SOSEN SS-150GA-E215B | 4 x OSRAM PL-SKY Module | 3000K/ 4000K/ 6500K |
475 mm | 277 mm | 70 mm |
| OS FL-4 (Alu) (L60x60) (700mA) | 60° x 60° | |||||||
| OS FL-4 (Alu) (L100x100) (700mA) | 100°x 100° | |||||||
| OS FL-4 (Alu) (L100x60) (900mA) | 200W | 100° x 60° | 1 x SOSEN SS-200GA-E286B | |||||
| OS FL-4 (Alu) (L60x60) (900mA) | 60° x 60° | |||||||
| OS FL-4 (Alu) (L100x100) (900mA) | 100°x 100° | |||||||
| OS FL-4 (Alu) (L100x60) (960mA) | 200W | 100° x 60° | 1 x SOSEN SS-200GA-E286B | 4 x OS HL-6000-7xx | 3000K/ 4000K/ 6500K |
475 mm | 277 mm | 73 mm |
| OS FL-4 (Alu) (L60x60) (960mA) | 60° x 60° | |||||||
| Surge Protective Device | |||
 |
|||
| ZP-LSP20-SY |
