OS-DIM-1G4S
Dimmer

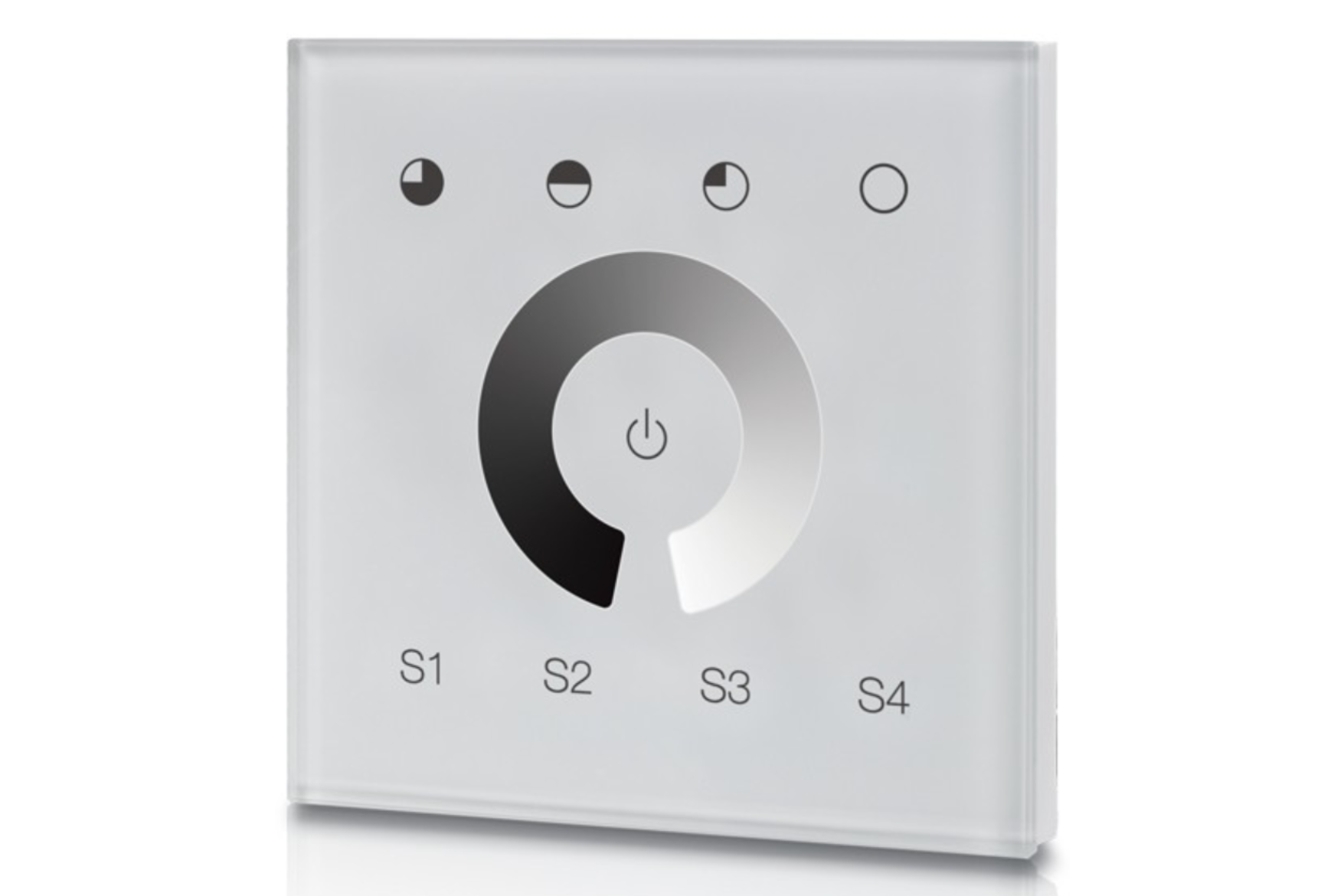

DALI SINGLE COLOUR TOUCH PANEL – OS-DIM-1G4S

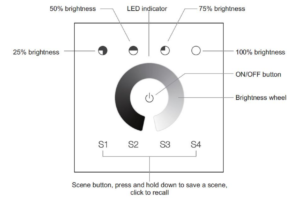

The OS-DIM-1G4S DALI Dimmer Touch Panel offers precise smart lighting control with a modern, elegant touch interface. It features sleek design finishes, making it a stylish addition to any contemporary space.
| Dimming Type | : | DALI |
| Certificate | : | Nil |
| Colour | : | White, Black |
 |
 |
| Interface | Full Touch Glass | |
| Control Type | ON / OFF, Switching or Dimming | |
| Colour Control | Single Colour | |
| Support | Group | 1 |
| Scene | 4 | |
| Light Zone | 1 | |
| Electronic Control Gear (ECGs) | Max. 50 DALI ECGs on built-in 100mA DALI power supply Max. 100 DALI ECGs on 4 control panels (2 by AC mains, 2 by DALI bus) |
|
| Finishing | Smooth Glass Finished | |
| Dimming Mode | DALI | |
| Compliance | DALI standard protocol IEC 62386-102, IEC 62386-207 | |
| Model | OS-DIM-1G4S |
| Main Supply (V, Hz) | 100~240V, 50/60Hz |
| IP Grade | IP 20 |
| Output | DALI Signal |
| Power Supply | Provide by DALI Bus |
| Operation Current | < 15mA |
| DALI Bus Output | 100mA Max. |
| Power Consumption | 4mA |
| Operating Temperature (ta) | 0°C to 40°C |
| Relative Humidity | 8% to 80% |
| Installation Guide | Click here to download User Manual – OS-DIM-1G4S |
| Model | Product Weight (Kg) |
Inner Carton Size (mm) | Outer Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| OS-DIM-1G4S | Kg | mm | mm | mm | mm | mm | mm | Kg | pcs / Carton |
 |
 |

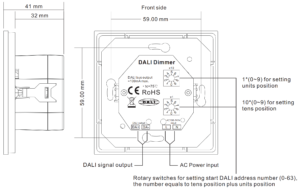

| Model | Dimension (mm) | ||
| L | W | H | |
| OS-DIM-1G4S | 86 mm | 86 mm | 41 mm |
| DALI Single Colour Touch Panel | DALI Dual Colour Touch Panel | DALI RGBW Touch Panel | |
 |
 |
 |
|
| OS-DIM-4G4S | OS-TW-1G4S | OS-RGBW-1G4S |
