OS BS Series
Indoor Luminaries
T8 LED SLIM BATTEN FITTING – OS BS Series
The OS BS Series T8 LED Slim Batten Fitting is a contractor’s favorite choice for its easy installation and hassle-free replacement. Economical and compliant with various international standards, it’s perfect for retail spaces and other commercial applications.
| Application | : | Home, Office, School, Warehouse, Restaurants Supermarkets, Workshops, Corridors, Car Park, Car Porch |
| Certificate | : | SIRIM, ST, MyHijau, SNI |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel (Thickness: 0.3mm) |
| End Cap | Fabricated from Mild Steel |
| Lampholder | Polycarbonate and Bronze Lampholder |
| Wire | 105°C Heat Resistance PVC Cable |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Surface Ceiling / Wall / Suspension |
| Lamp | T8 LED Tube |
| Main Supply (V, Hz) | 220~240V, 50/60Hz |
| Base | G13 |
| IP Grade | IP 20 |
| Classification | Class I |
| Model | Product Weight (Kg) |
Bundle Size | Gross Weight (Kg) |
Quantity | ||
| L | W | H | ||||

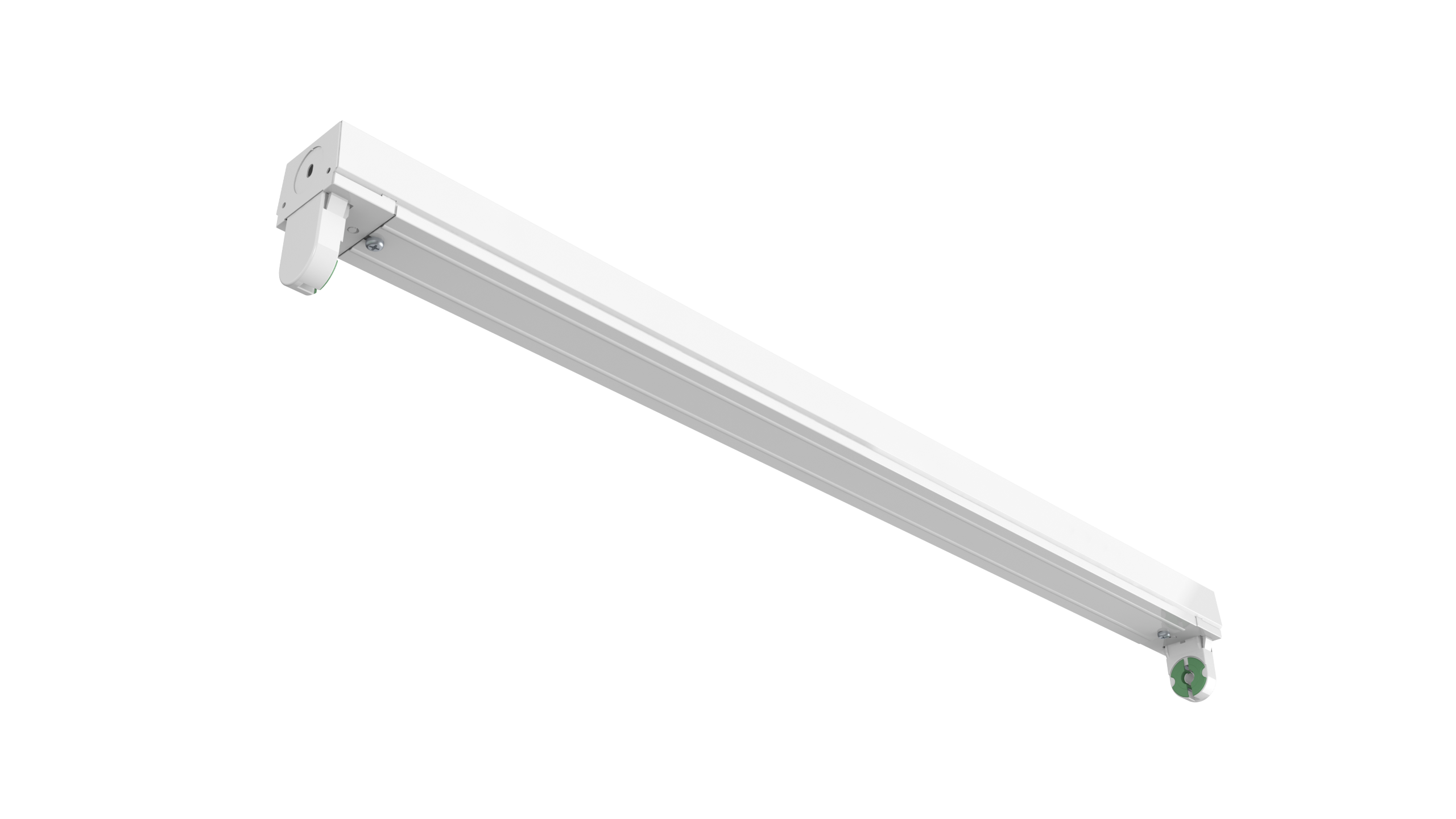

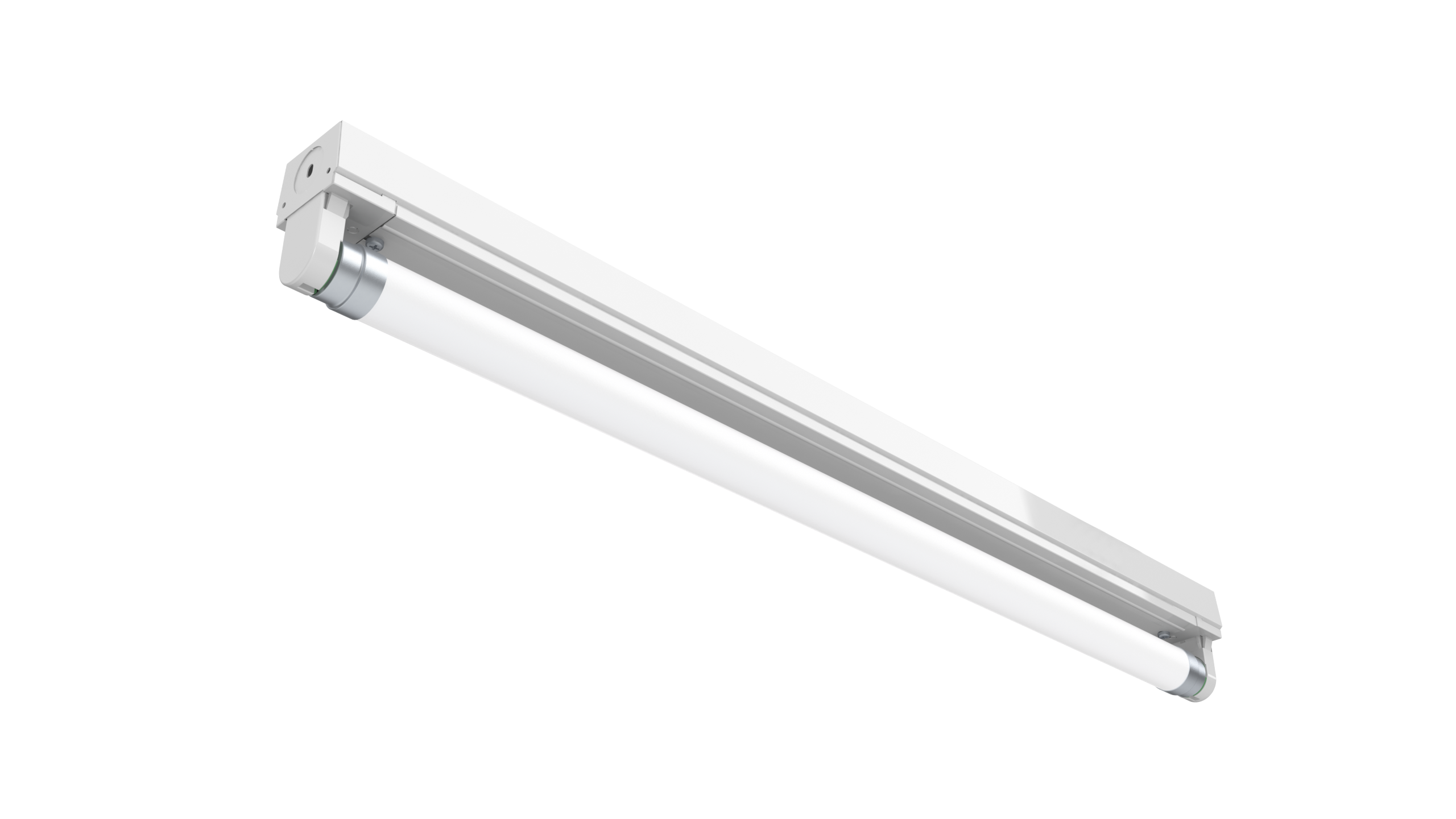

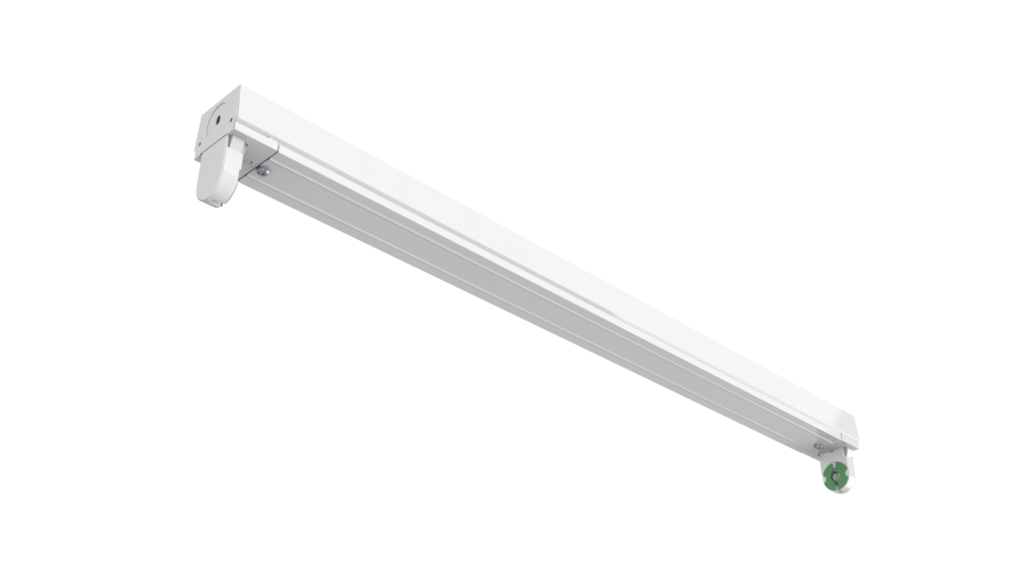

| OS BS 1x600mm | 0.25 Kg | 610 mm | 157 mm | 79 mm | 2.60 Kg | 10 pcs / Bundle |

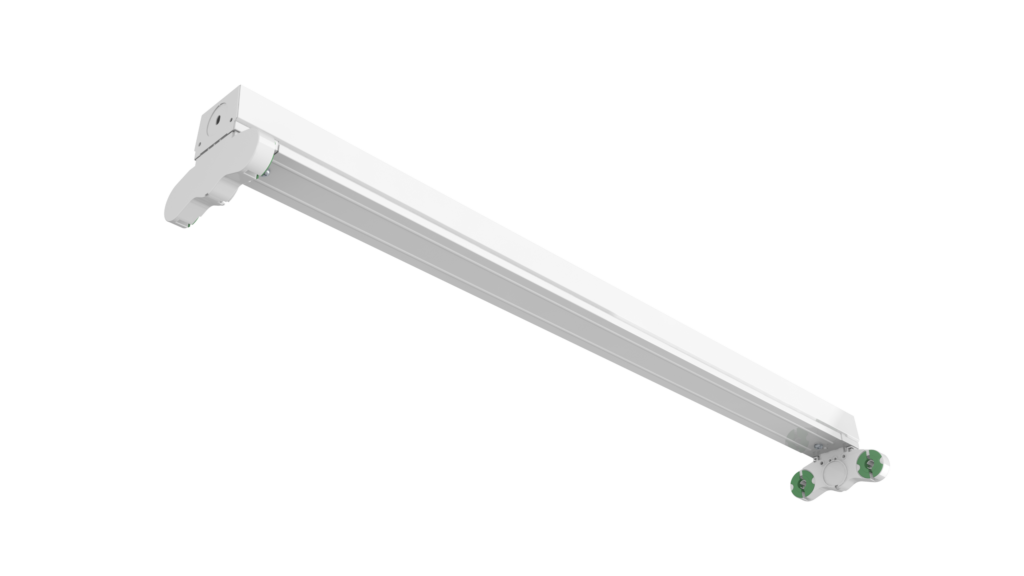

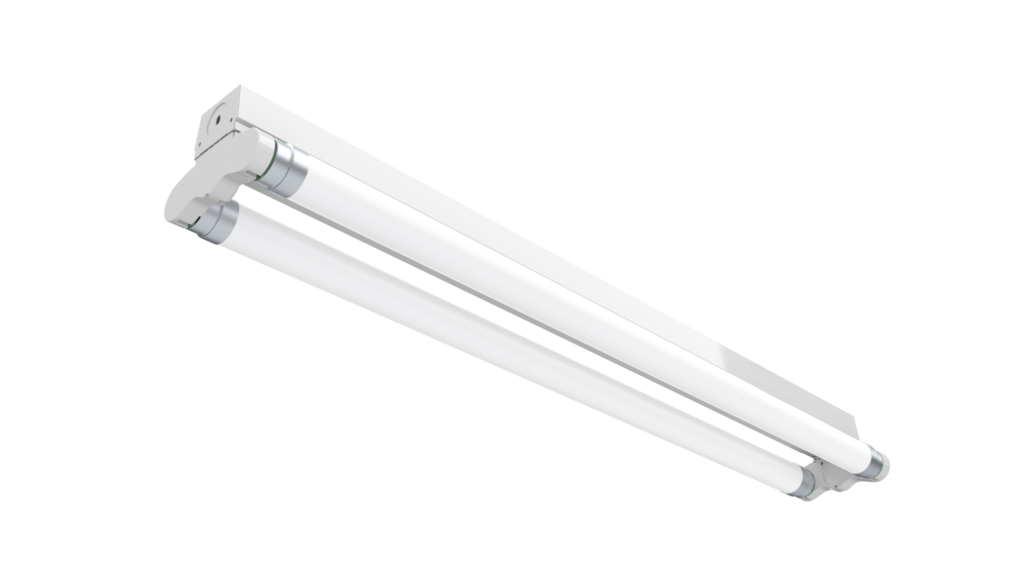

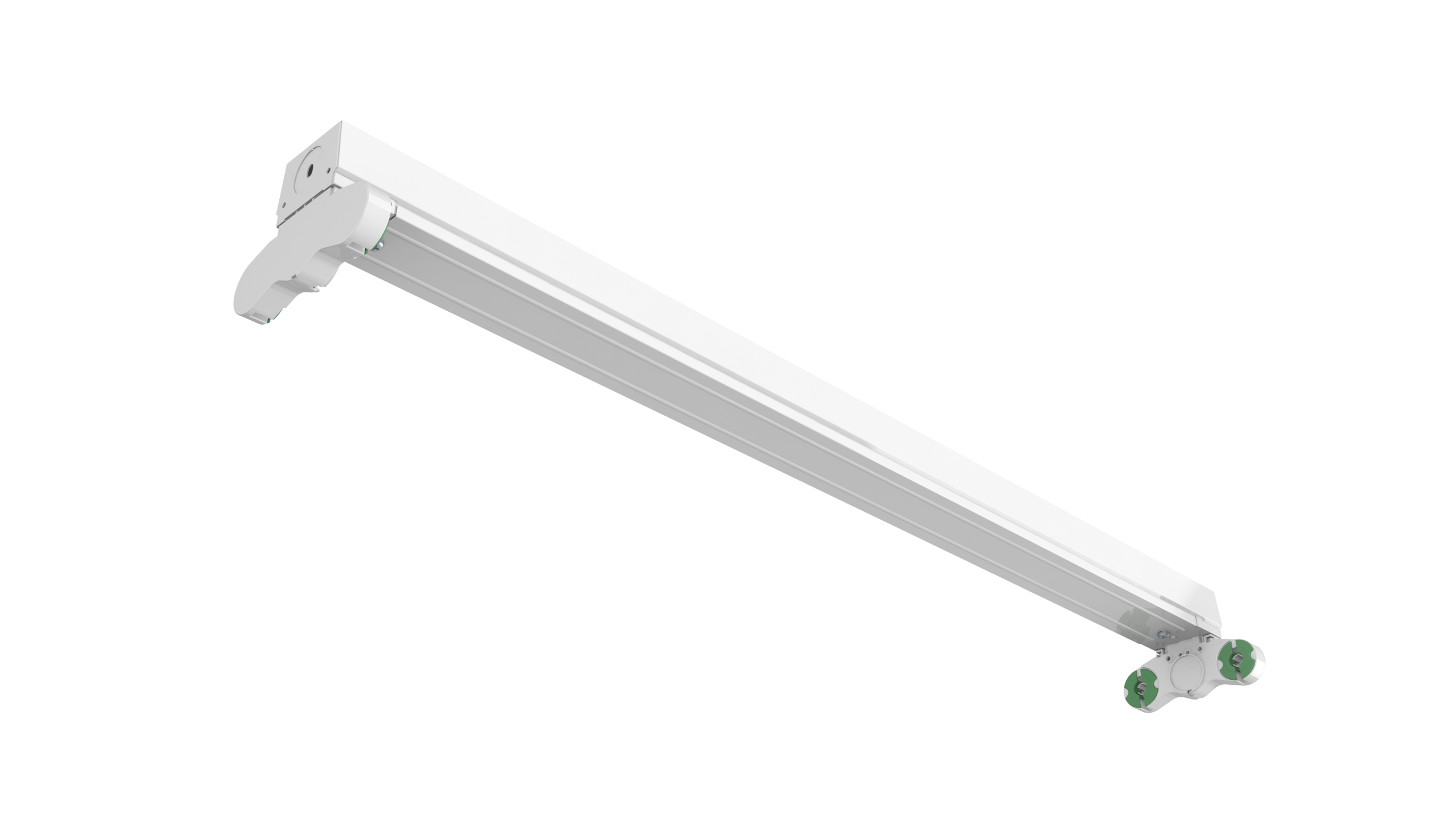

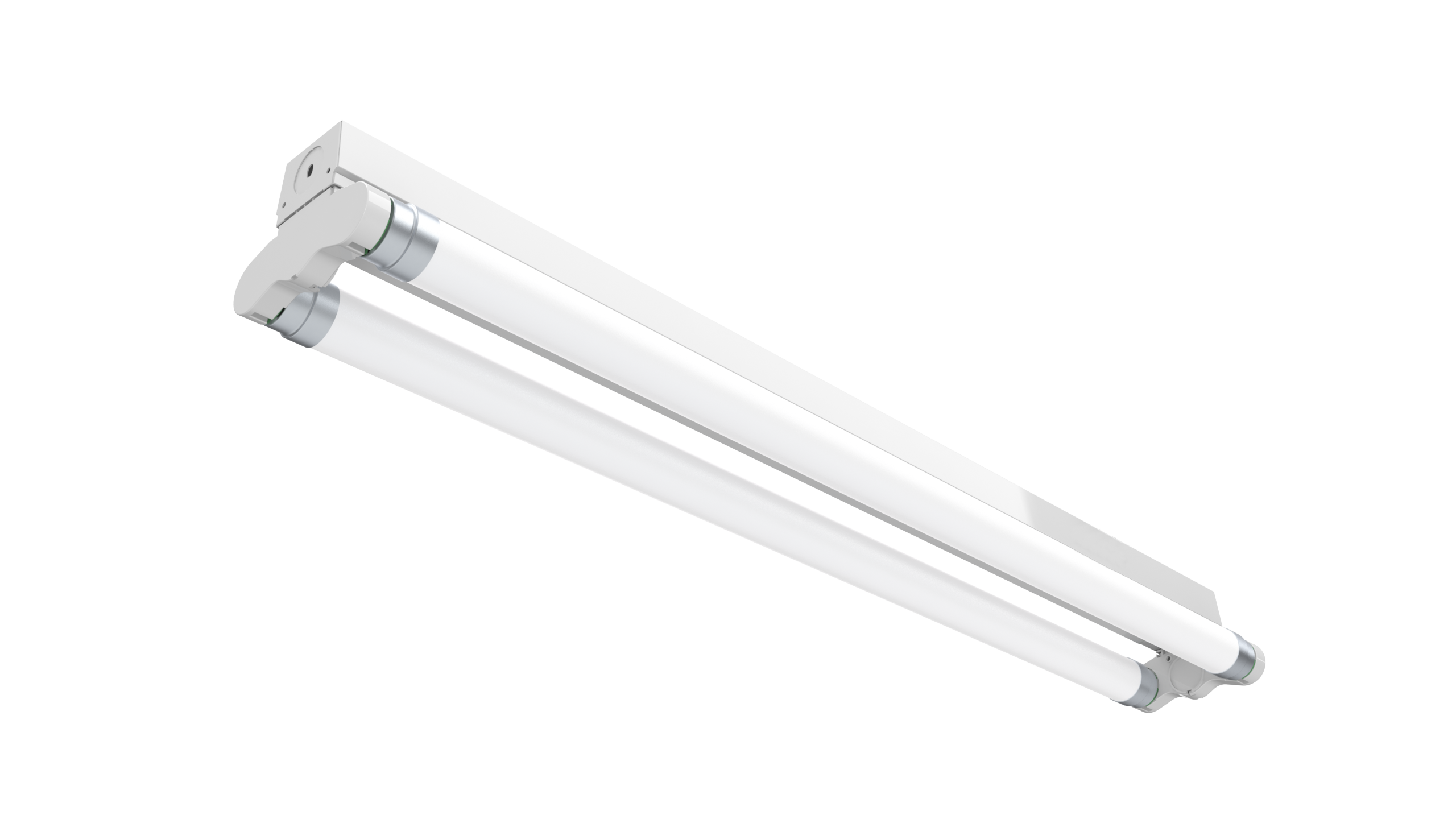

| OS BS 2x600mm | 0.30 Kg | 610 mm | 157 mm | 79 mm | 2.90 Kg | 10 pcs / Bundle |

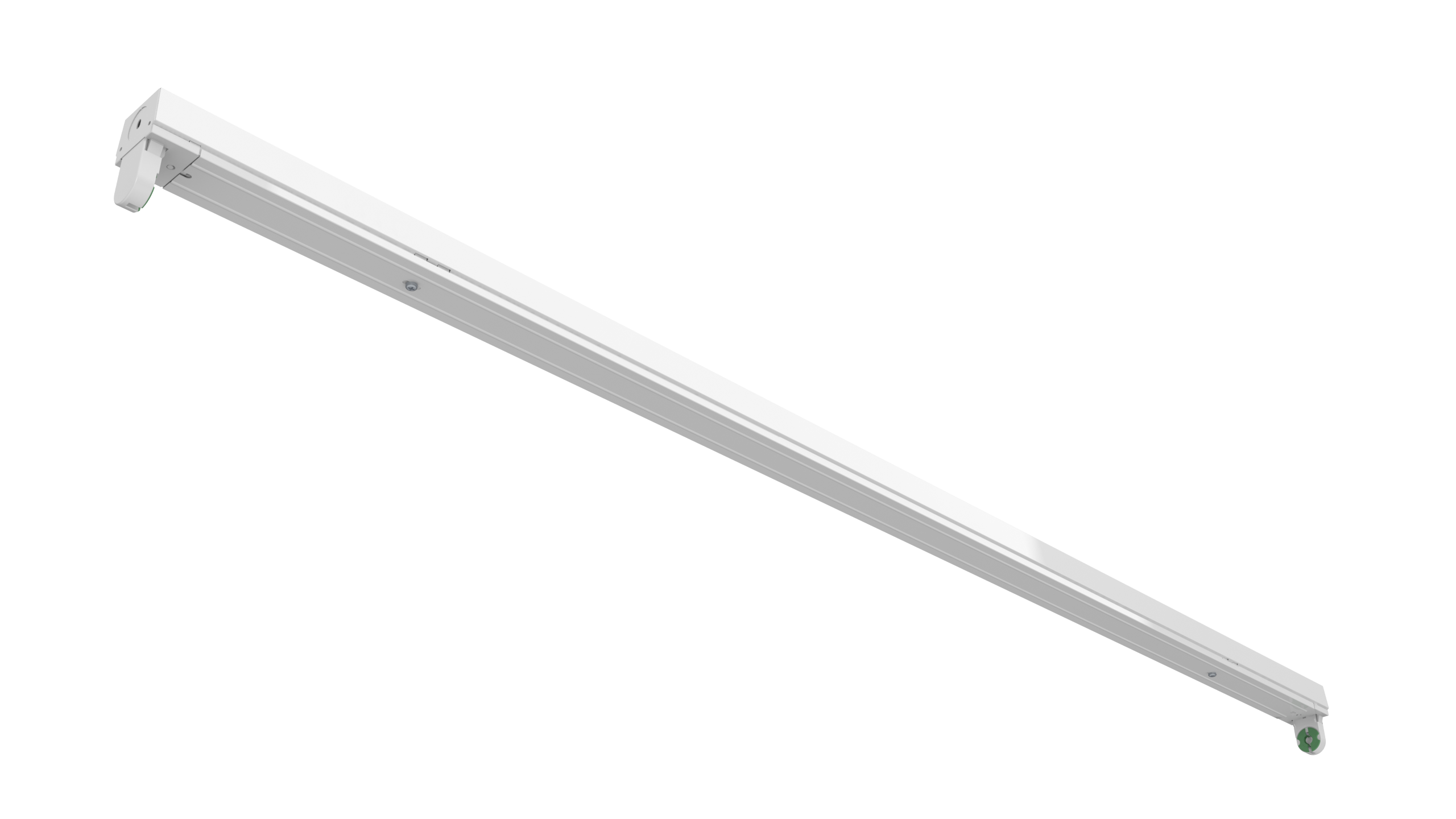

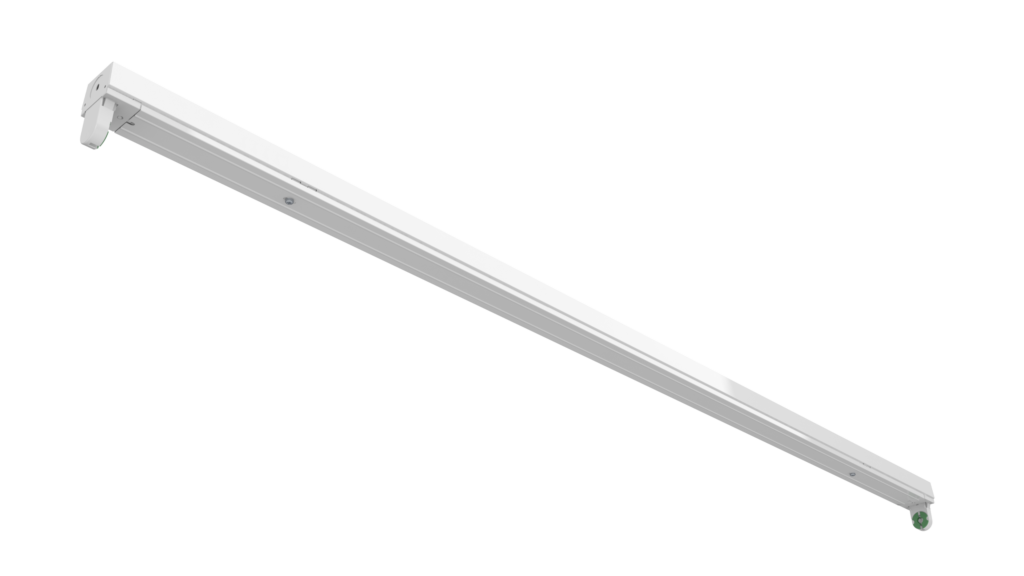

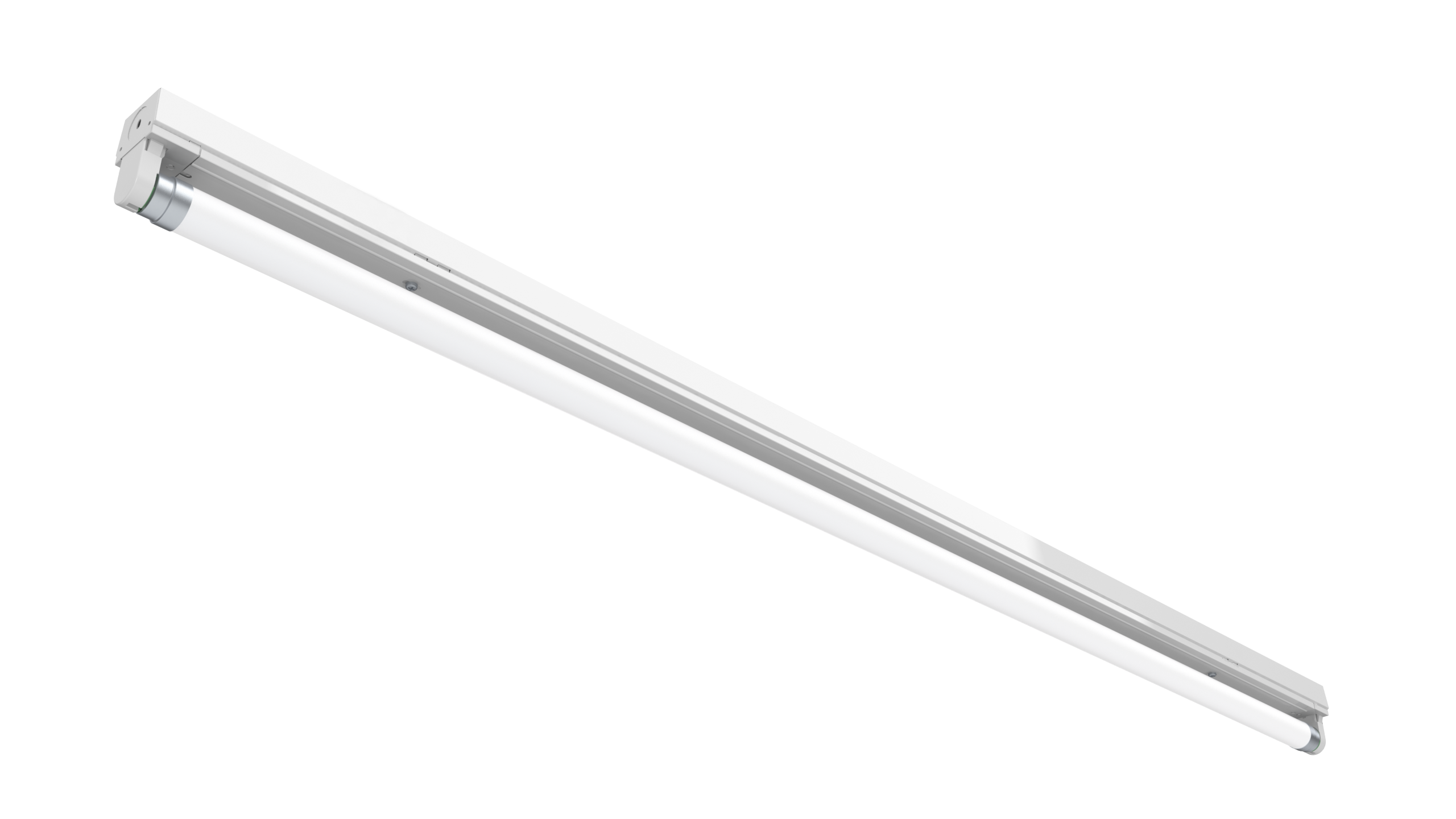

| OS BS 1x1200mm | 0.50 Kg | 1224 mm | 160 mm | 81 mm | 5.05 Kg | 10 pcs / Bundle |

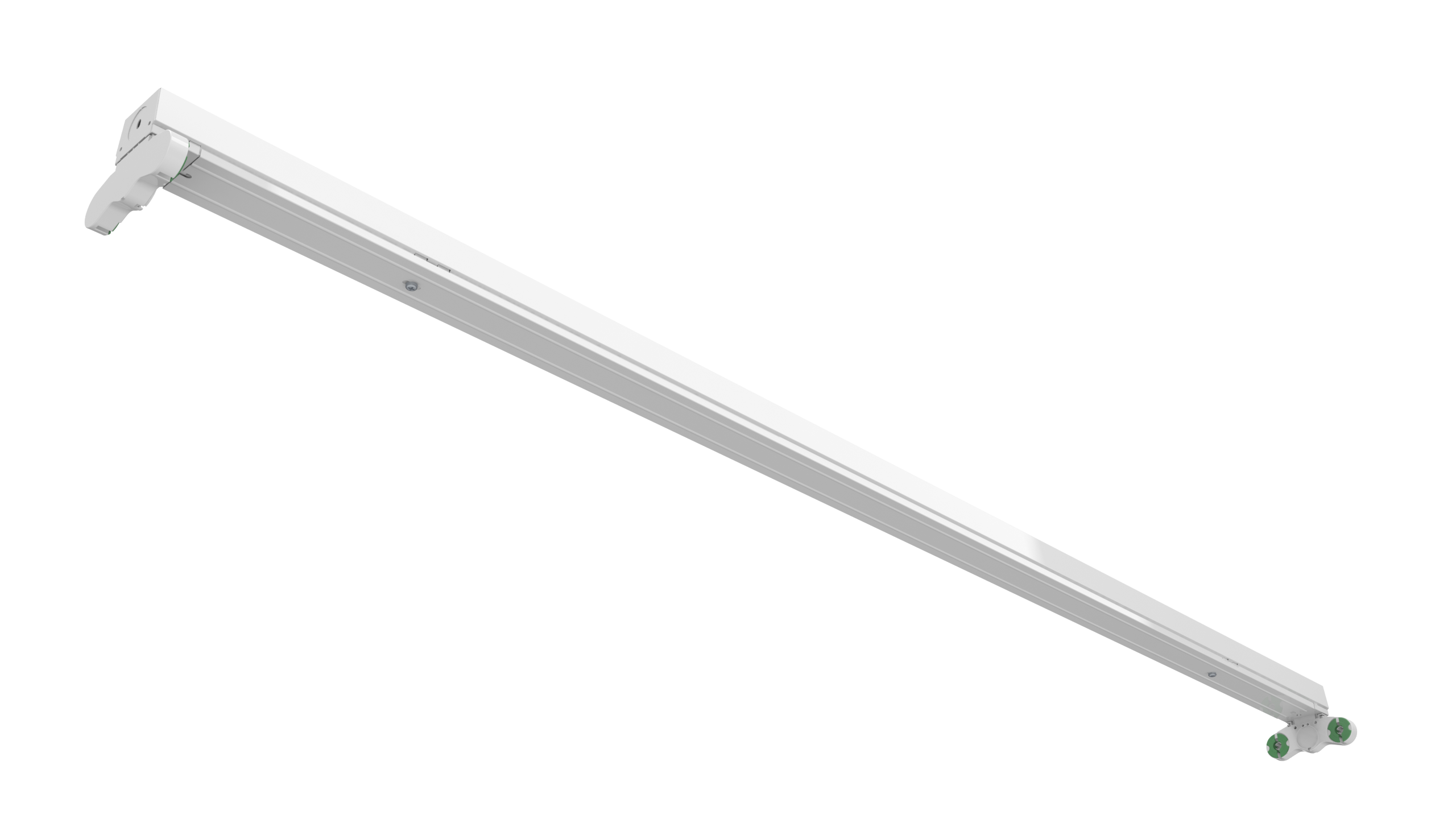

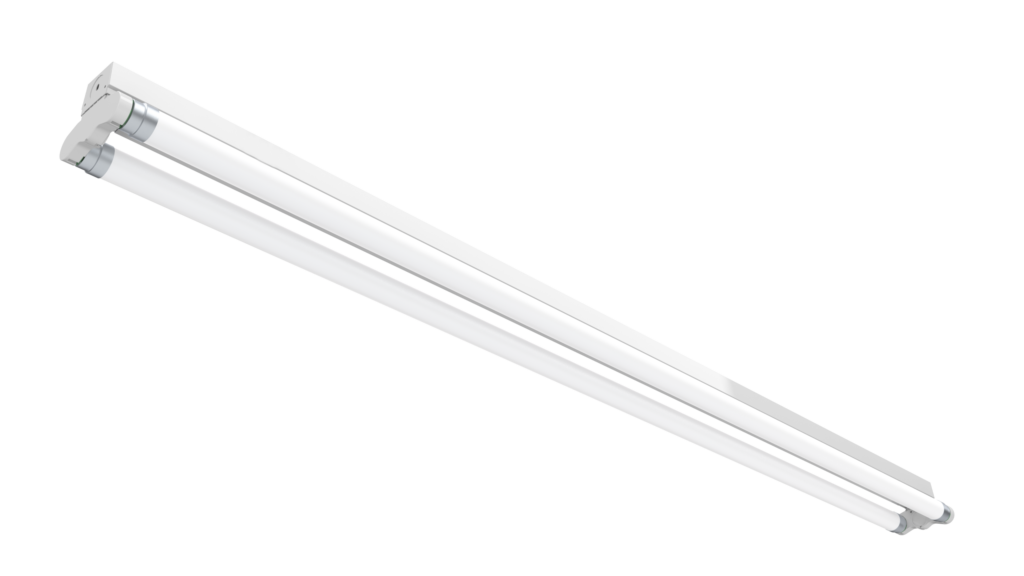

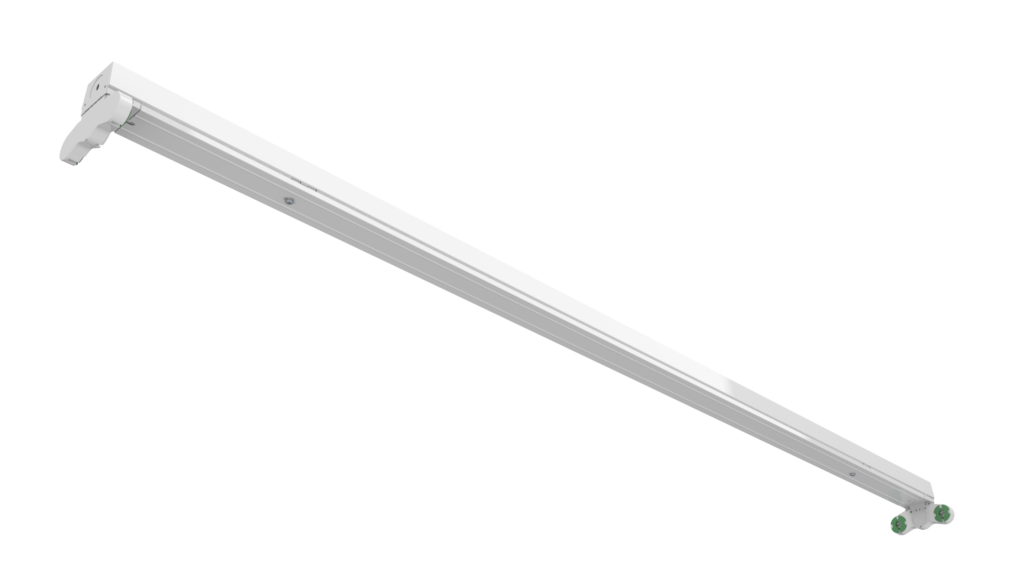

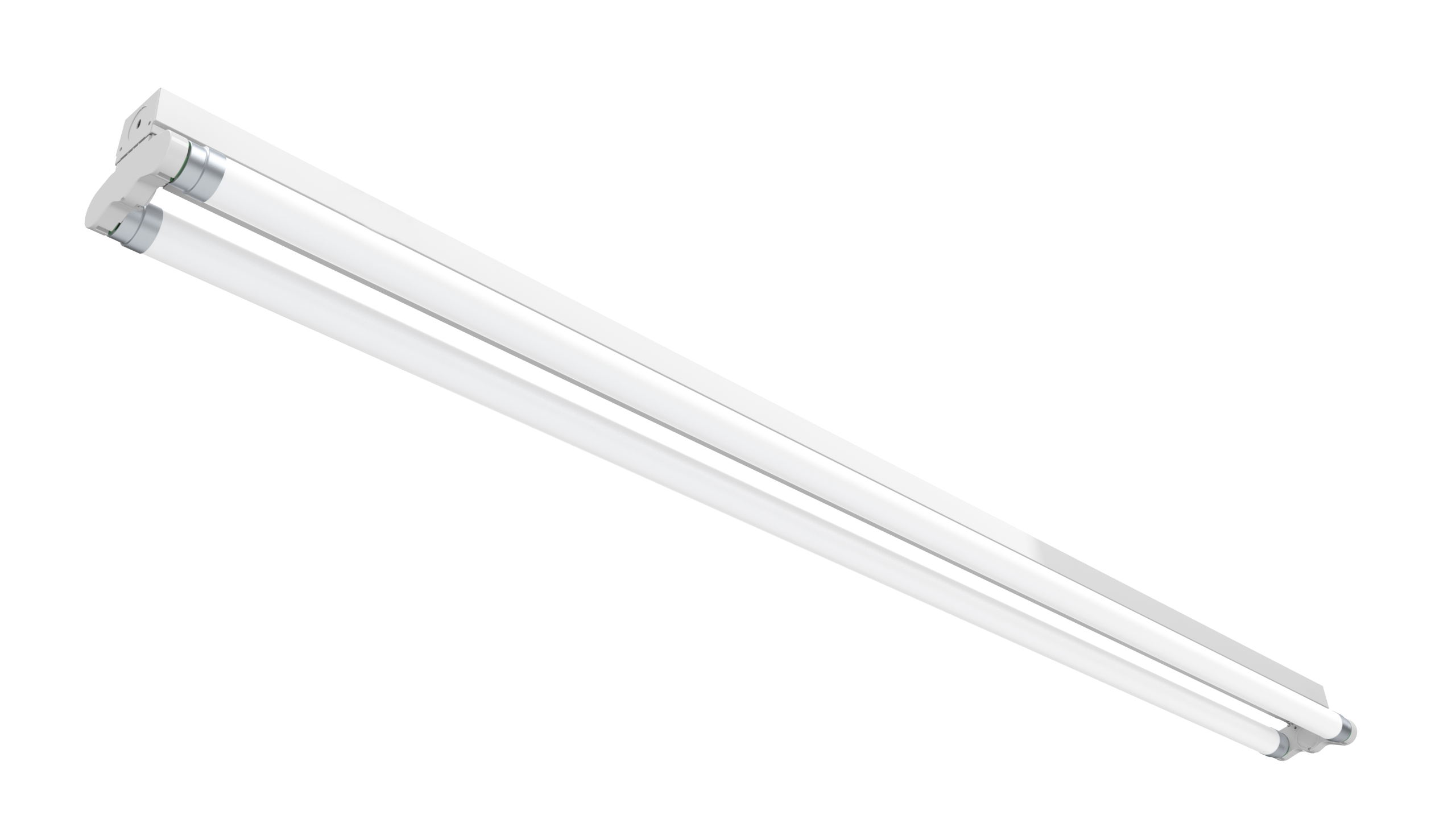

| OS BS 2x1200mm | 0.55 Kg | 1224 mm | 160 mm | 81 mm | 5.35 Kg | 10 pcs / Bundle |
| Model | Luminaires | Dimension (mm) | ||||
| No. of Lamp | Type | Base | L | W | H | |
| OS BS 1x600mm | 1 | Slim Batten | G13 | 612 mm | 42 mm | 68 mm |
| OS BS 2x600mm | 2 | Slim Batten | G13 | 612 mm | 88 mm | 65 mm |
| OS BS 1x1200mm | 1 | Slim Batten | G13 | 1222 mm | 42 mm | 68 mm |
| OS BS 2x1200mm | 2 | Slim Batten | G13 | 1222 mm | 88 mm | 65 mm |
| T8 LED Tube | T8 LED Tube | ||
 |
 |
||
| TOSHIBA GLASS TUBE RLDL8 | TOSHIBA PRO TUBE RLDL028 |
