OS 8VF Series

Indoor Luminaries

LED ADJUSTABLE RECESSED SQUARE DOWNLIGHT – OS 8VF Series

The OS 8VF Series LED Adjustable Recessed Square Downlight combines sleek aesthetics with functionality. Its adjustable design allows you to direct light precisely where it’s needed, making it ideal for highlighting specific areas or objects. This modern, no-housing-required solution ensures both style and efficiency.

Application : Home, Hospitality, Hotels, Offices, Retail, Supermarkets, Restaurants, Shop Lighting, Museums, Galleries, Public & Commercial Building
Certificate : Nil
Colour : White Texture, Black Texture

Rim Die Casted from ADC12 Aluminium Alloy
Adjustable Ring Die Casted from ADC12 Aluminium Alloy
Clip Stainless Steel Spring Clips with Cover
Connector Nylon 3 Way x 2.5mm2
Finishing Electrostatically Polyester Powder Coated
Mounting Type Recessed Ceiling Mounted
Driver VITALITE VLD Series
Lamp OS50 LED Module
Model OS 8VF1 OS 8VF2 OS 8VF3
Type Single Head Double Head Triple Head
VITALITE Driver VLD 10 VLD 15 VLD 10 VLD 15 VLD 10 VLD 15
System Lumen (lm) 1 x 700 1 x 900 2 x 700 2 x 900 3 x 700 3 x 900
System Power (W) 1 x 8W 1 x 11W 2 x 8W 2 x 11W 3 x 8W 3 x 11W
System Current (A) 0.06 0.08 0.12 0.17 0.18 0.25
Efficacy (lm/W) 87.5 81.8 87.5 81.8 87.5 81.8
Main Supply (V, Hz) 220~240V, 50/60Hz
IP Grade IP 20
Classification Class I
Power Factor PF ≥ 0.5
Operating Temperature (ta) 0°C ~ 35°C
Rated Lifespan 30,000 hrs
CRI > 80 Ra
SDCM ≤ 5
Beam Angle 24° / 40°
Available CCT Warm White (3000K), Cool White (4000K), Daylight (6500K)



Model Product
Weight (Kg)		 Inner Carton Size (mm) Outer Carton Size (mm) Gross
Weight (Kg)		 Quantity
L W H L W H
OS 8VF1  Kg  mm  mm  mm  mm  mm  mm  Kg 1 pc / Carton
OS 8VF2  Kg  mm  mm  mm  mm  mm  mm  Kg 1 pc / Carton
OS 8VF3  Kg  mm  mm  mm  mm  mm  mm  Kg 1 pc / Carton



Model Luminaires Dimension (mm) Cut-Out (mm)
Shape Driver Colour Temperature, CCT (K) L W H

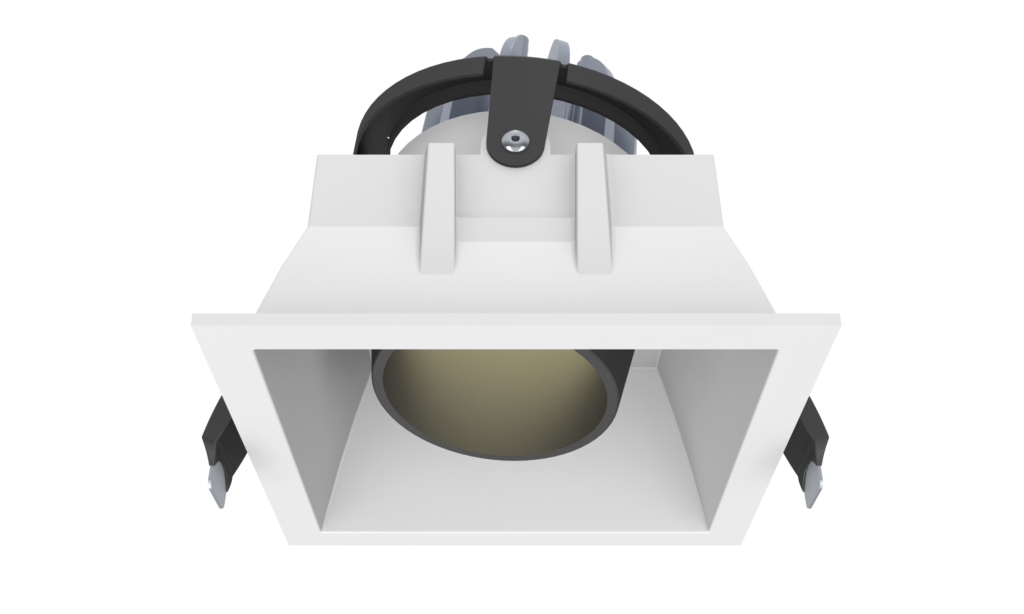

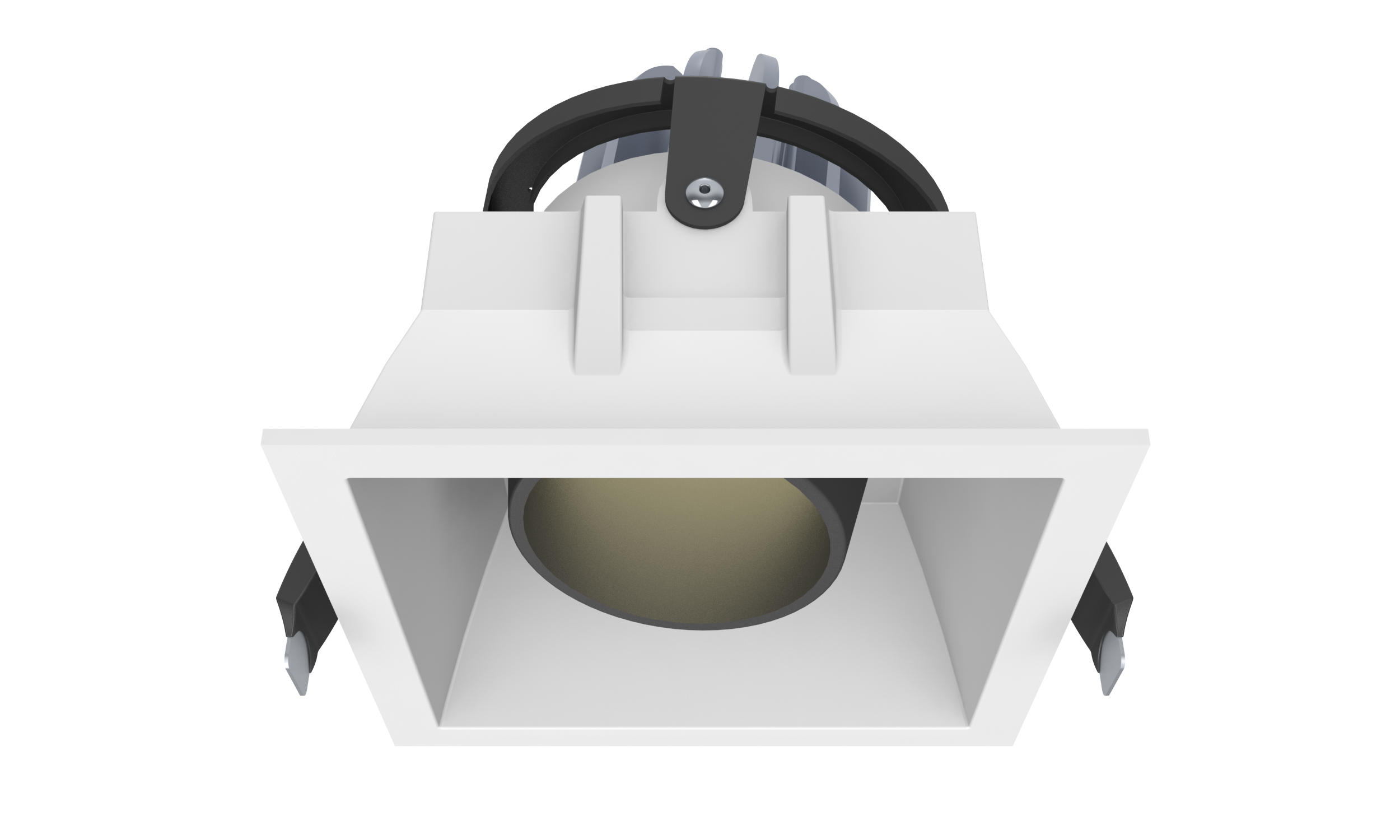

OS 8VF1 Single Head VLD 10/250/40
or
VLD 15/350/43		 3000K/
4000K/
6000K		 95 mm 95 mm 90 mm 85 mm x 85 mm

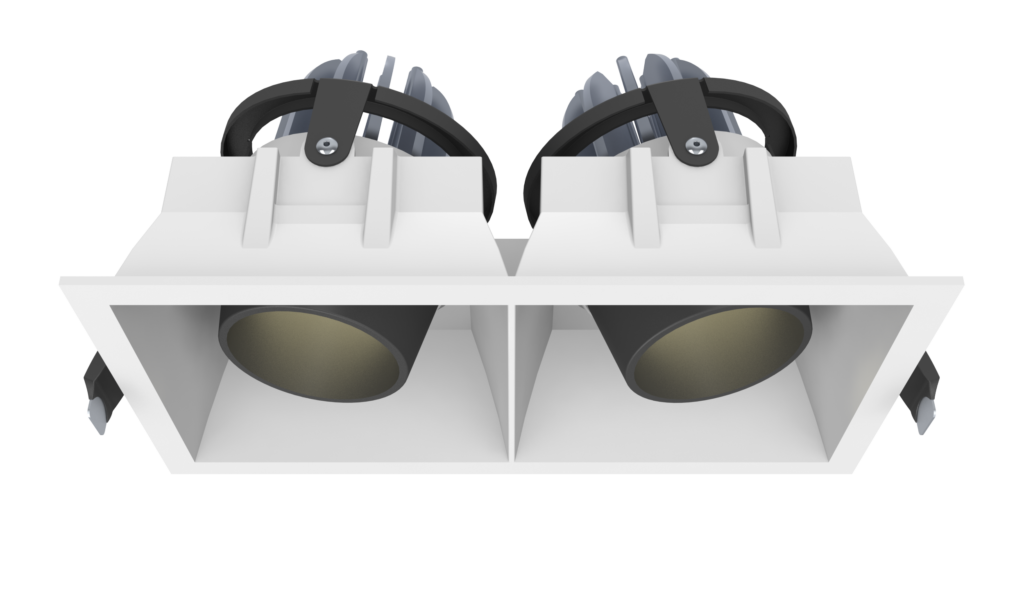

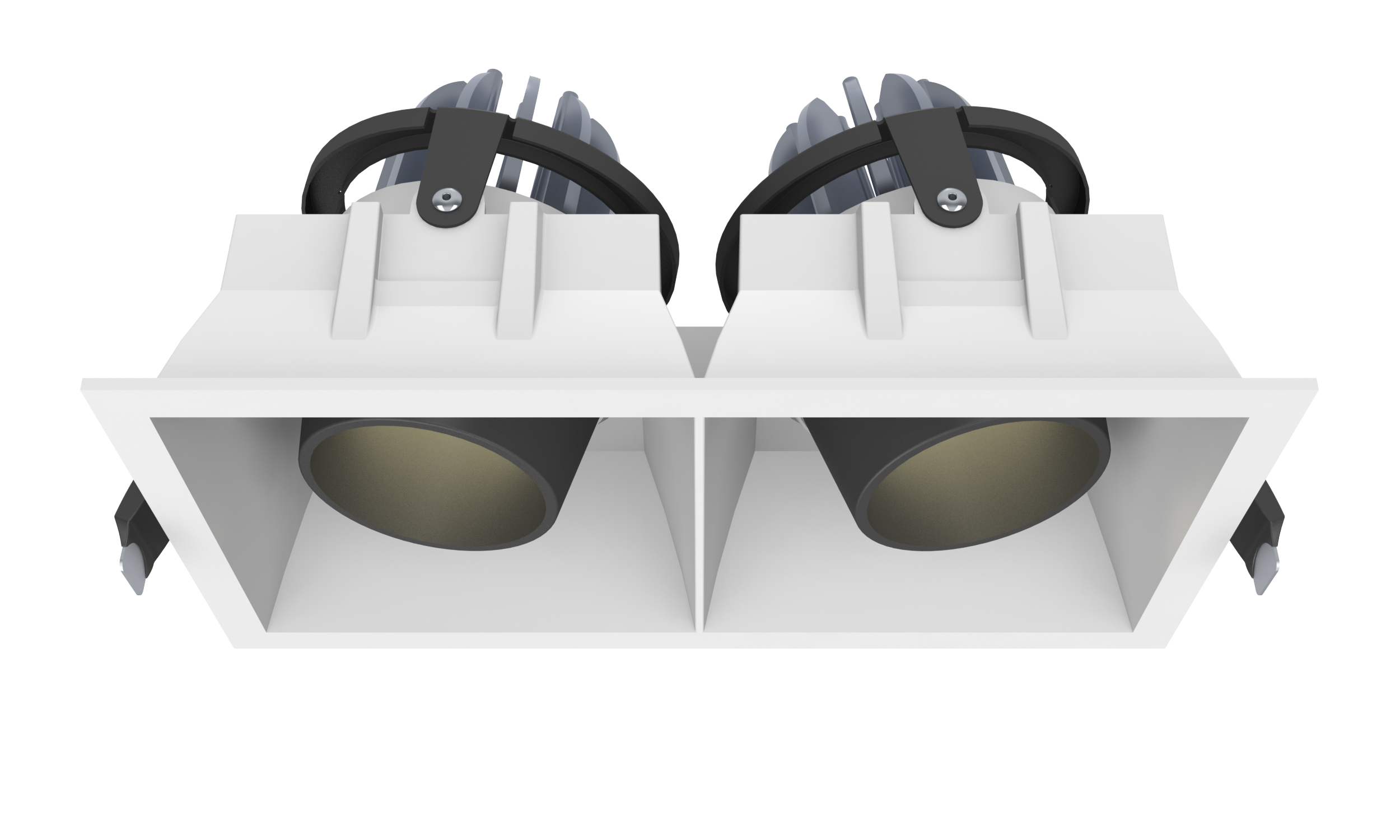

OS 8VF2 Double Head VLD 10/250/40
or
VLD 15/350/43		 3000K/
4000K/
6000K		 176 mm 95 mm 90 mm 168 mm x 85 mm

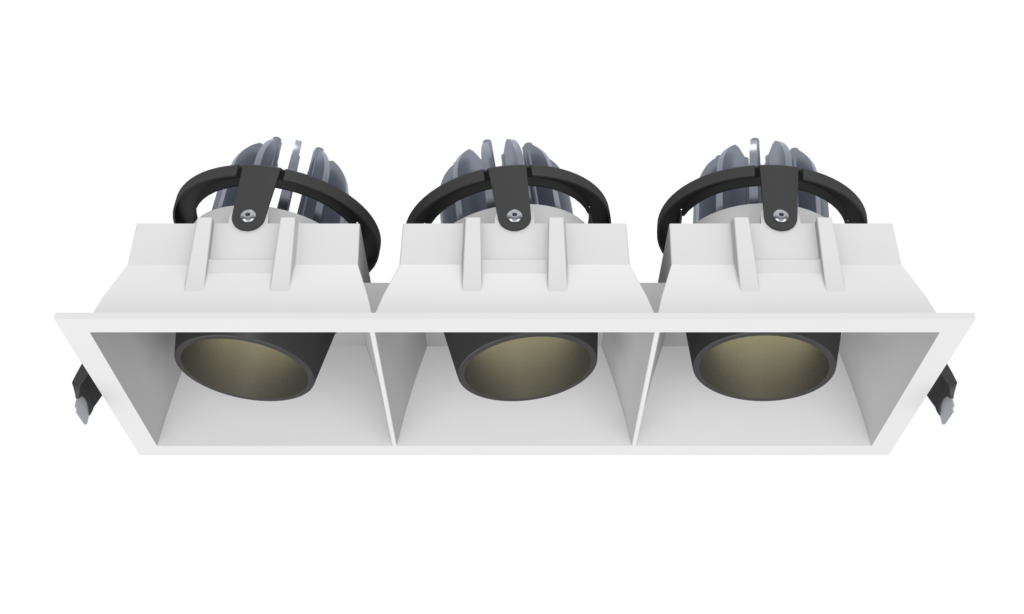

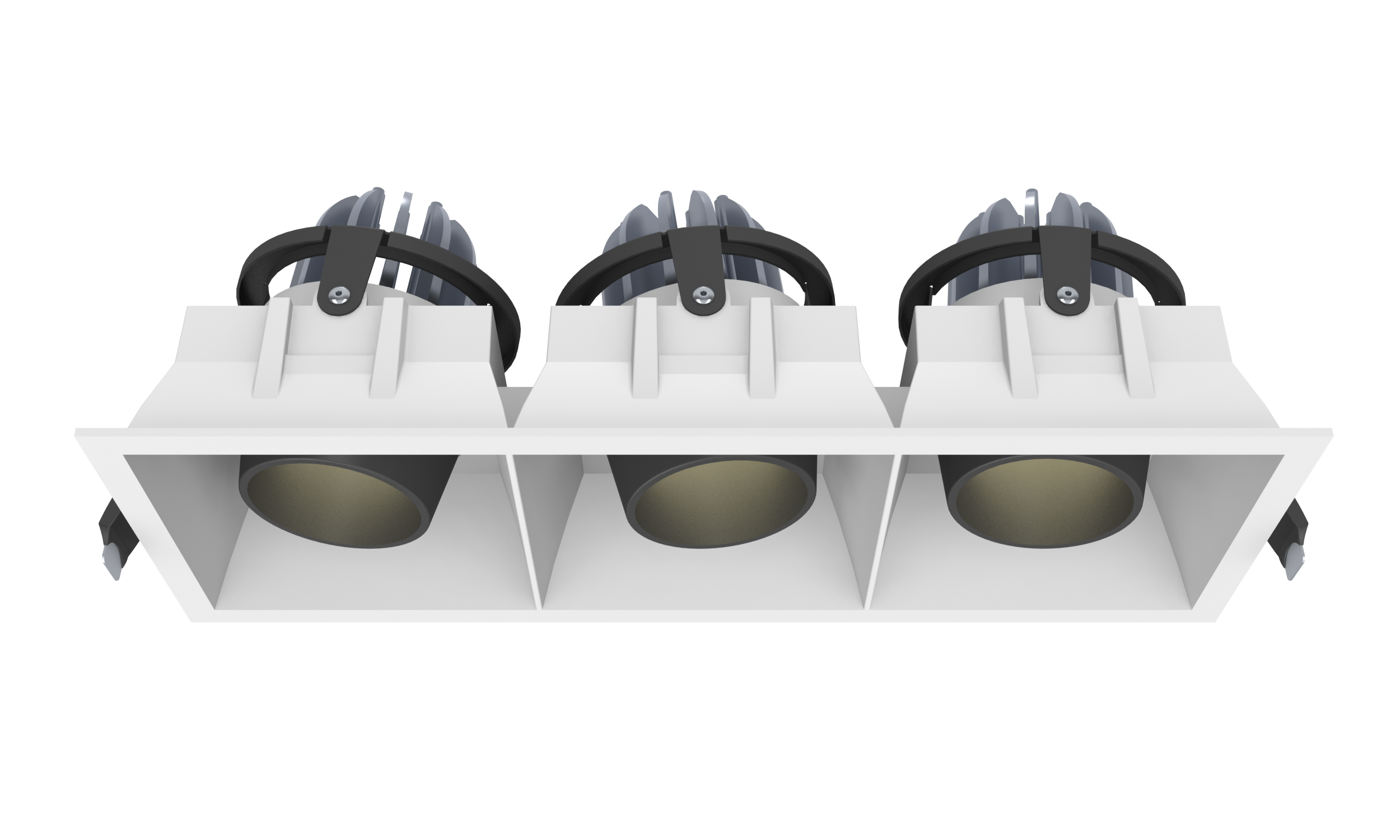

OS 8VF3 Triple Head VLD 10/250/40
or
VLD 15/350/43		 3000K/
4000K/
6000K		 257 mm 95 mm 90 mm 248 mm x 85 mm
DTS 1:
Data Sheet – OS 8VF Series (OS50-900-8xx-xxD) (VLD 10/250/40) (8W)
Download File
DTS 2:
Data Sheet – OS 8VF Series (OS50-900-8xx-xxD) (VLD 15/350/43) (11W)
Download File
File 1:
IES_OS 8VF Series (OS50-900-8xx-24D) (VITALITE VLD 10/250/40) (8W)
Download File
File 2:
IES_OS 8VF Series (OS50-900-8xx-40D) (VITALITE VLD 10/250/40) (8W)
Download File
File 3:
IES_OS 8VF Series (OS50-900-8xx-24D) (VITALITE VLD 15/350/43) (11W)
Download File
File 4:
IES_OS 8VF Series (OS50-900-8xx-24D) (VITALITE VLD 15/350/43) (11W)
Download File
