OS 26 Series
Indoor Luminaries

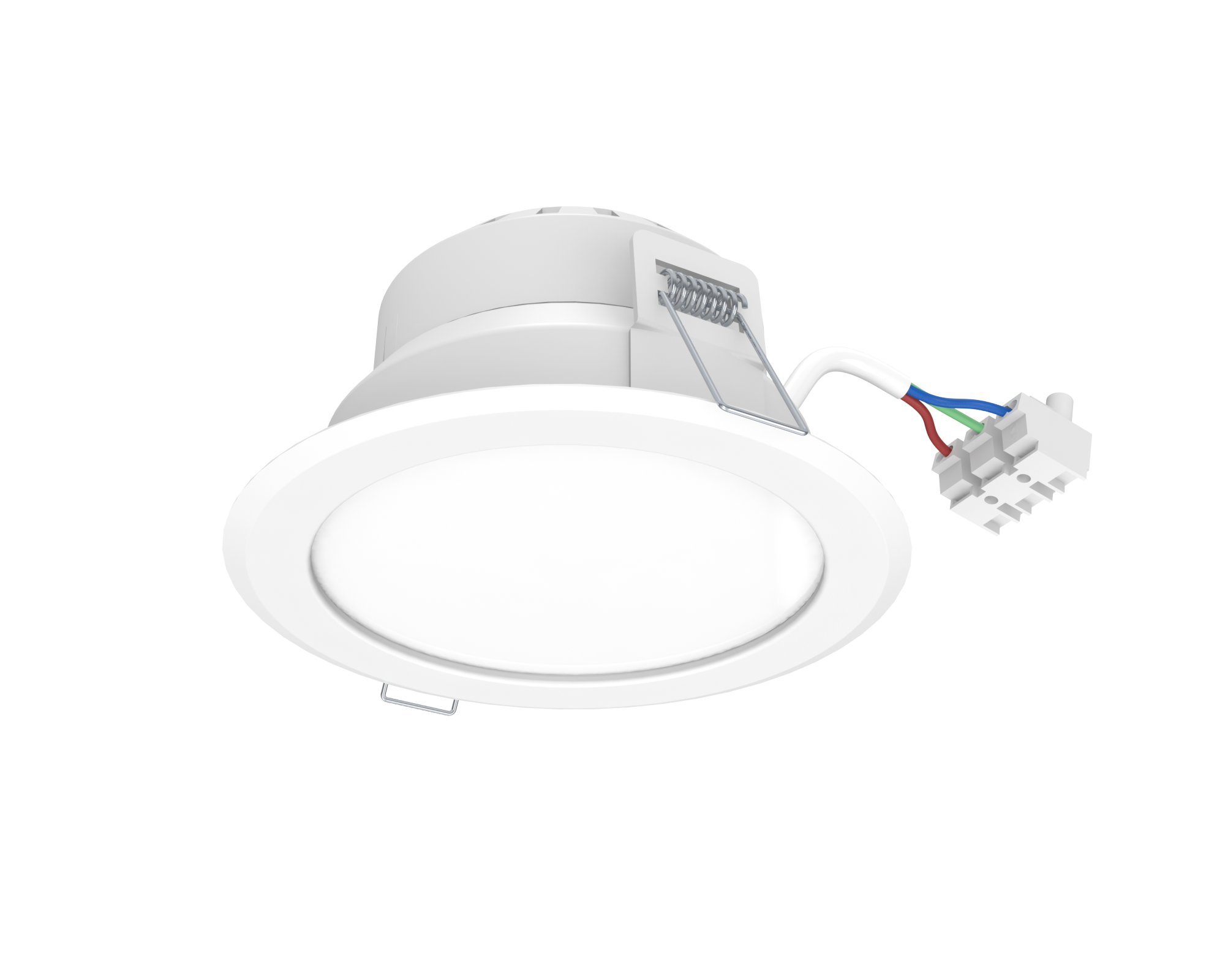

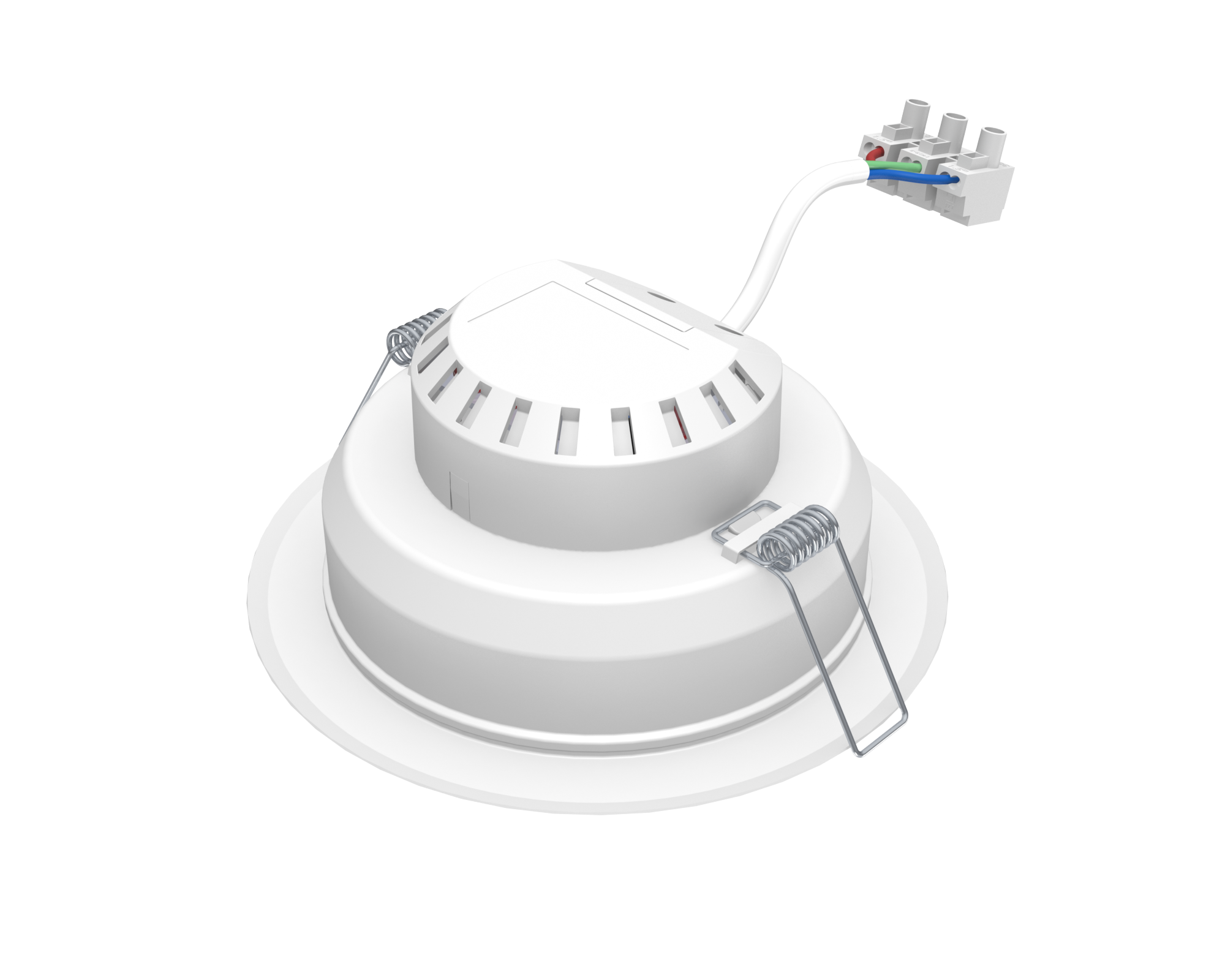

LED RECESSED DOWNLIGHT – OS 26 Series

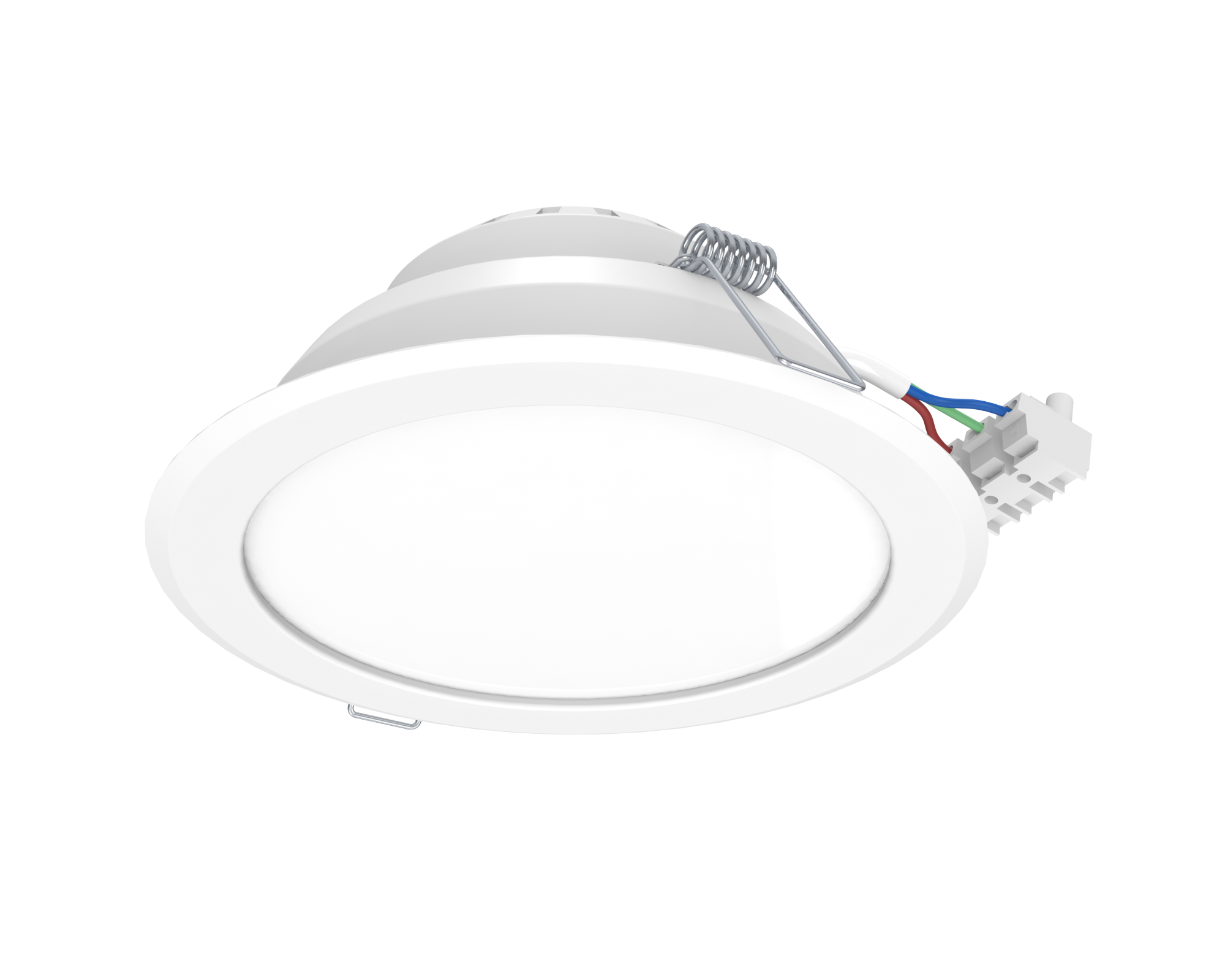

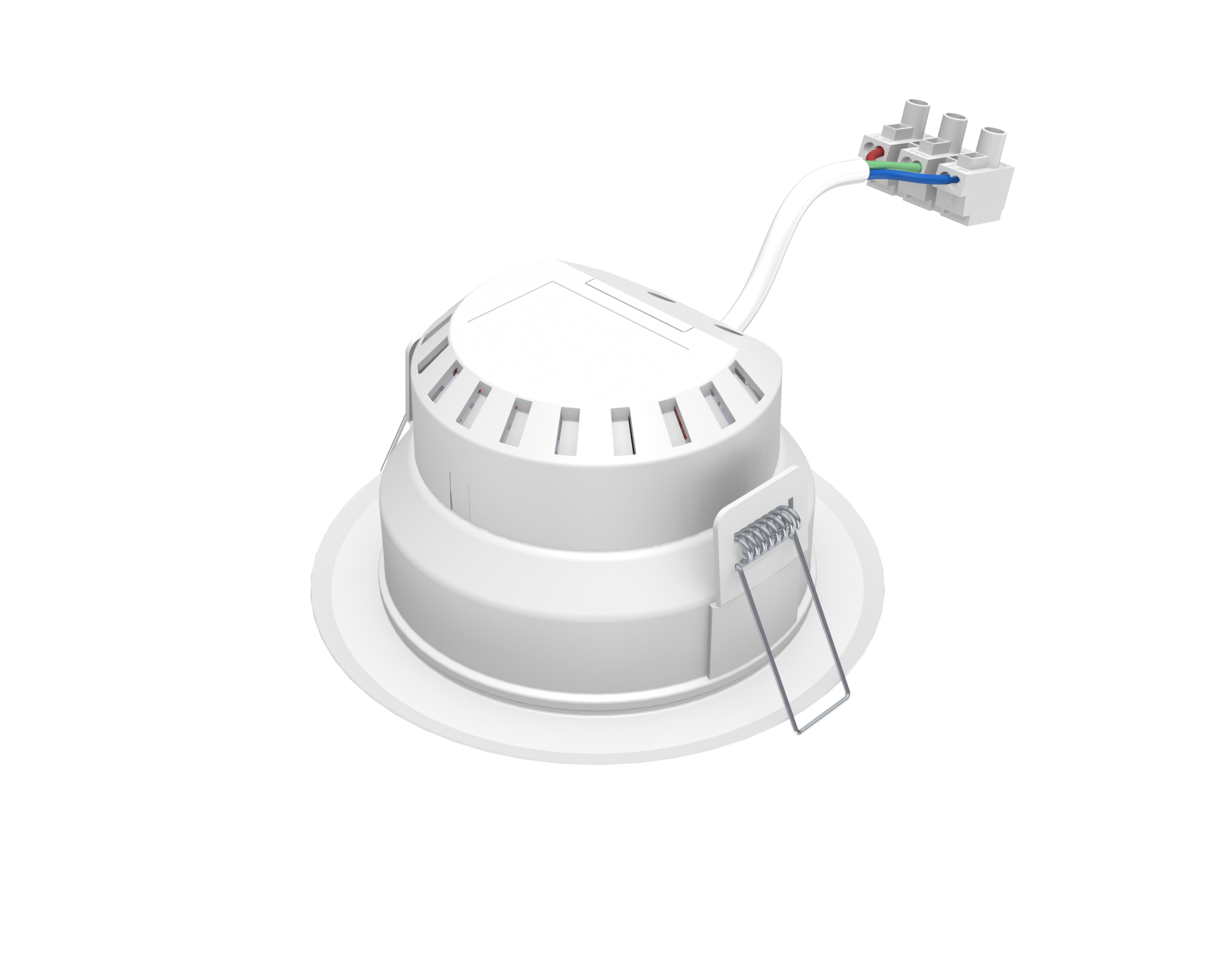

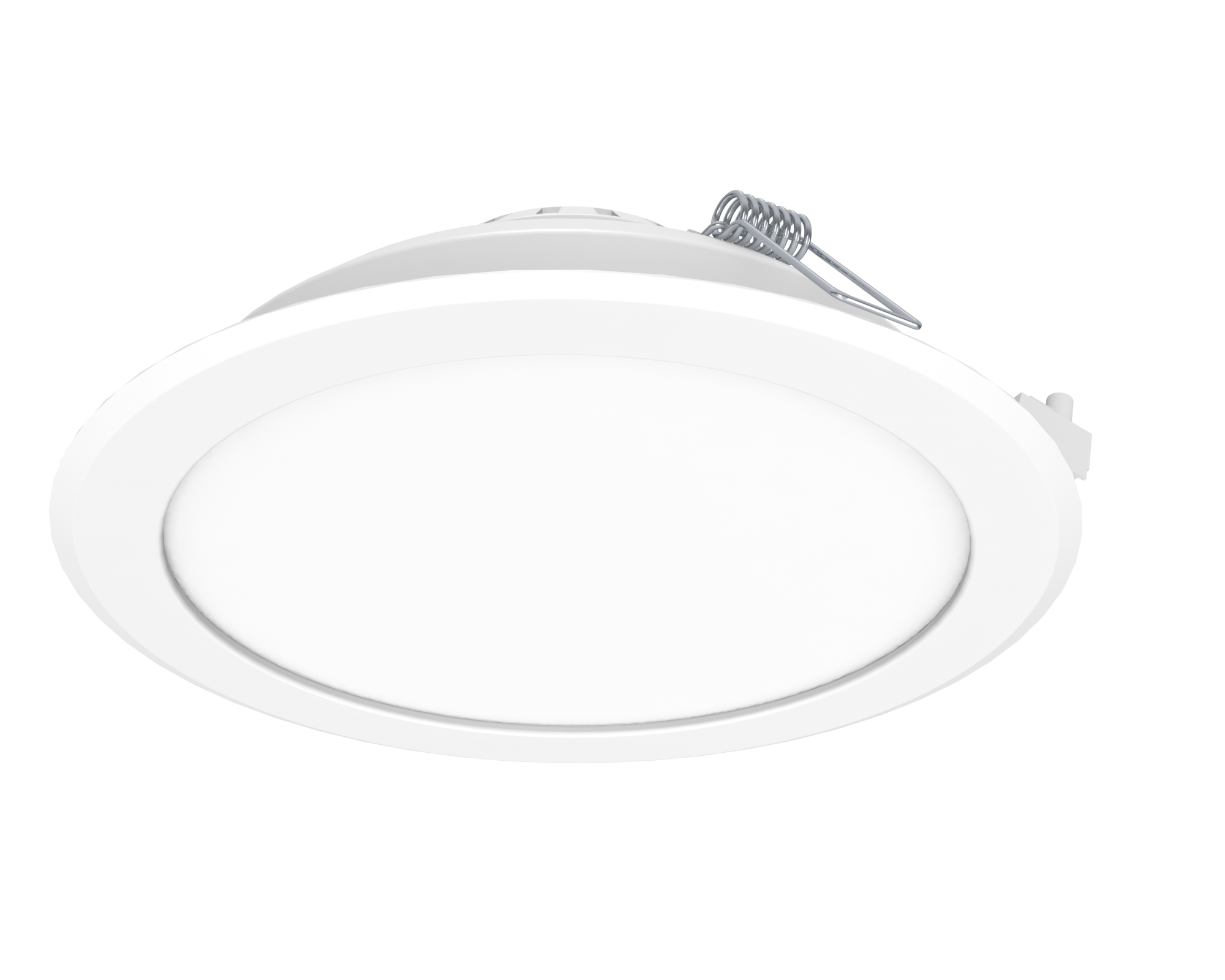

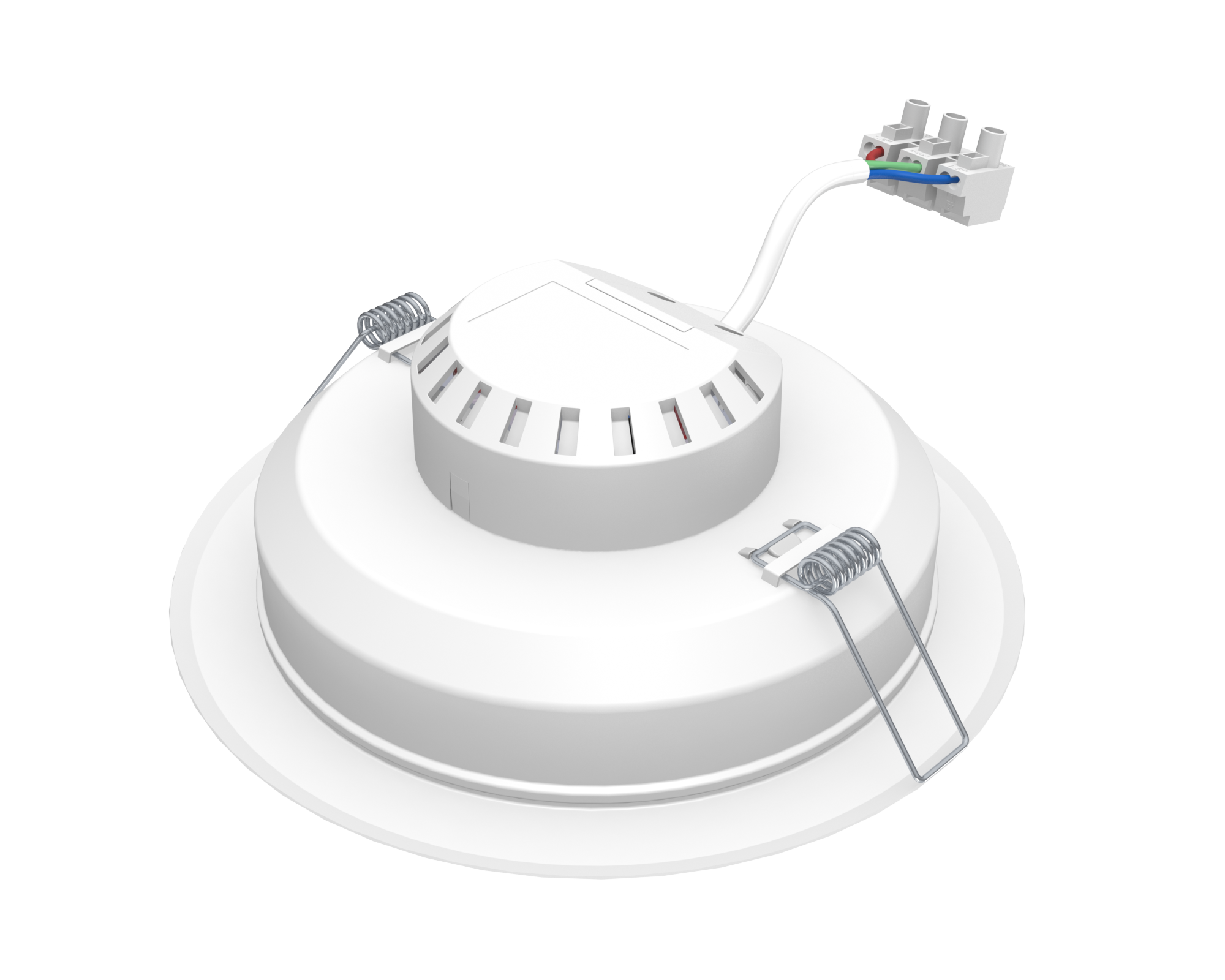

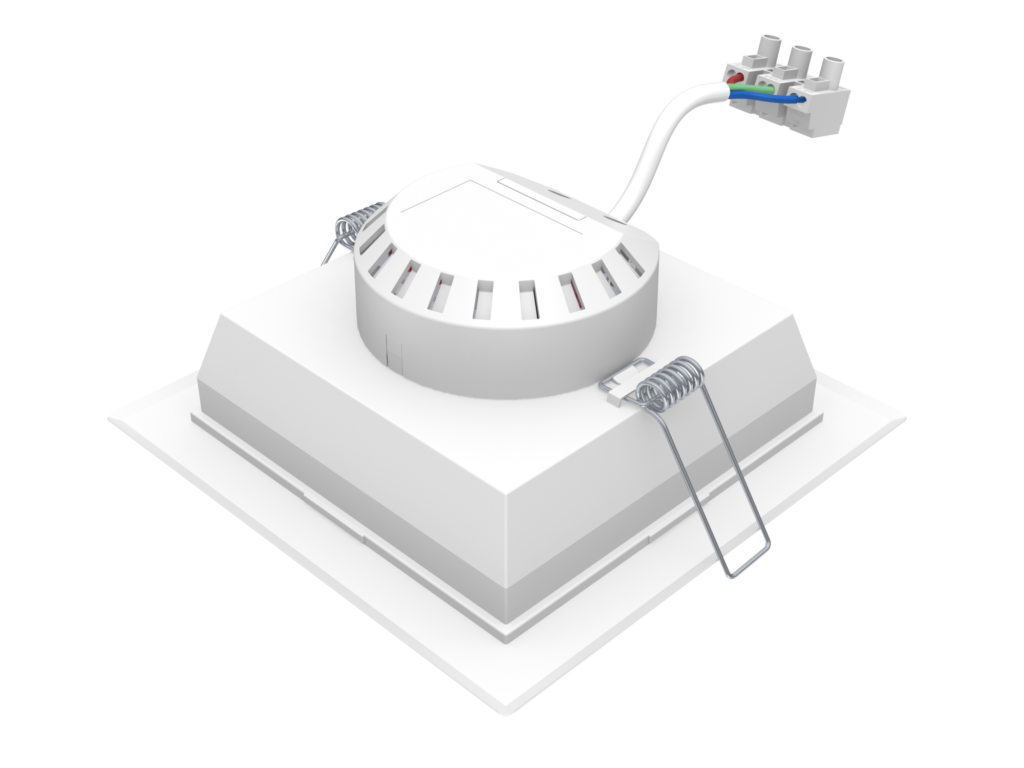

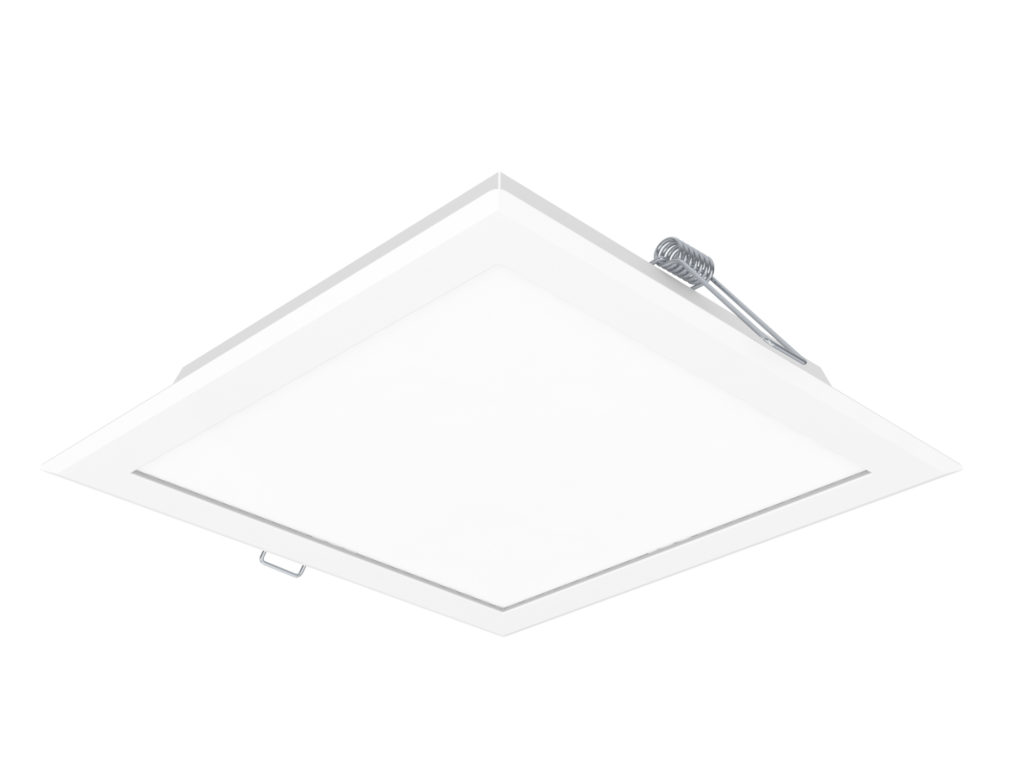

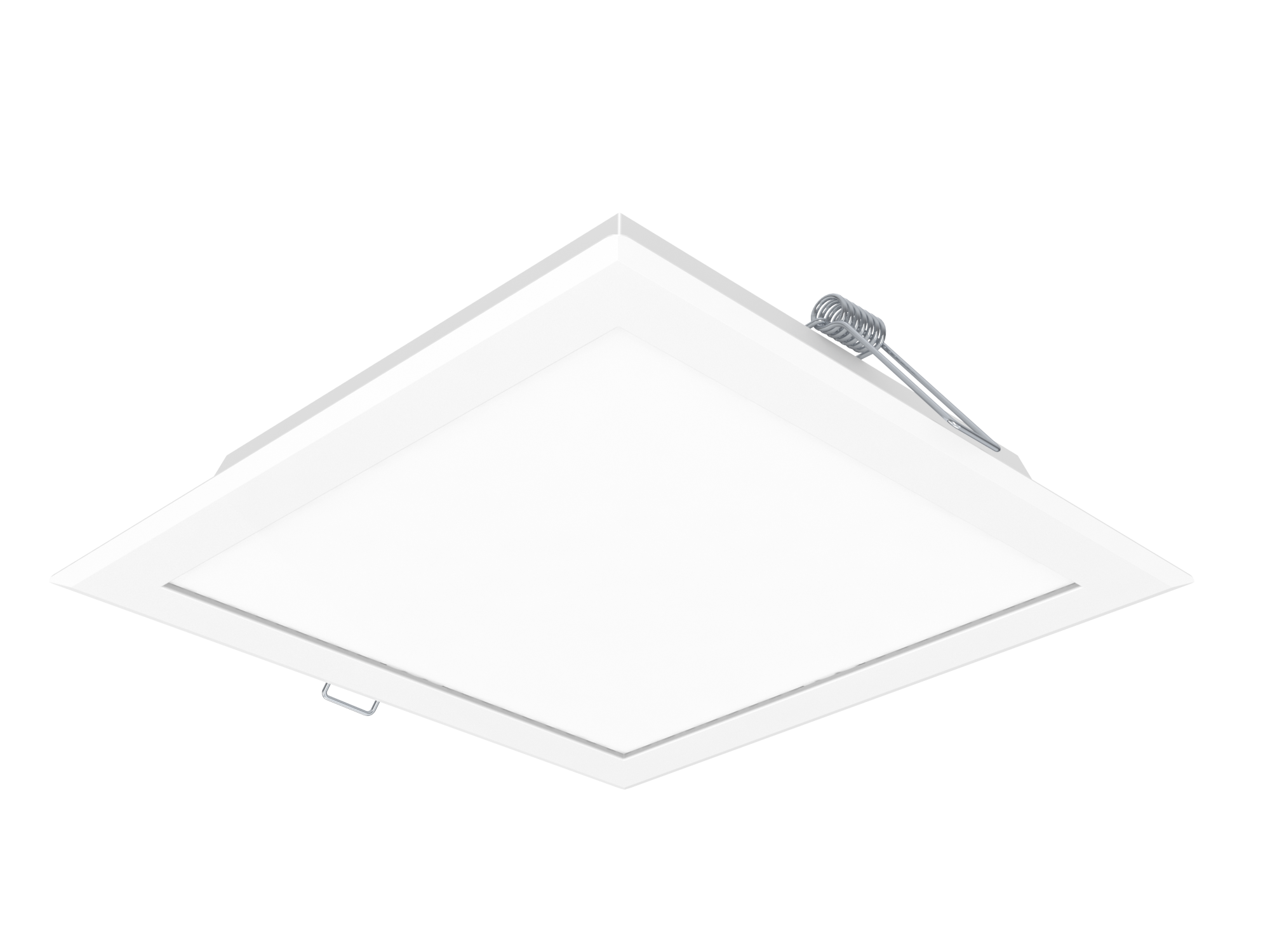

The OS 26 Series LED Recessed Downlight features a built-in driver for optimized performance and cost-efficiency. Available in round and square shapes, with sizes ranging from 3″ to 6″, this energy-efficient downlight provides bright, consistent illumination and integrates seamlessly into any ceiling, making it a versatile and value-for-money lighting solution.
| Application | : | Office, Retail Store, Shophouse, Restaurants, Corridors, Living Areas |
| Certificate | : | SIRIM, ST, SNI |
| Colour | : | Smooth White |
| Body | Fabricated from Mild Steel |
| Gear Chamber | Injection Moulded from Polycarbonate |
| Diffuser | Polystyrene (PS) Opal Diffuser |
| Clip | Stainless Steel Spring Clips |
| Connector | Nylon 3 Way x 2.5mm2 |
| Finishing | Electrostatically Polyester Powder Coated |
| Mounting Type | Recessed Ceiling Mounted |
| Driver | Built-in |
| Lamp | LED Module |
| Model | OS R326 | OS R426 | OS R626 | OS S426 | OS S626 |
| Shape | Round | Round | Round | Square | Square |
| System Lumen (lm) | 800 | 950 | 1150 | 950 | 1150 |
| System Power (W) | 9 | 11 | 13 | 11 | 13 |
| System Current (A) | 0.07 | 0.09 | 0.10 | 0.09 | 0.10 |
| Efficacy (lm/W) | 89 | 86 | 88 | 86 | 88 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | ||||
| IP Grade | IP 20 | ||||
| Classification | Class I | ||||
| Power Factor | PF ≥ 0.5 | ||||
| Operating Temperature (ta) | 0°C ~ 35°C | ||||
| Rated Lifespan | 30,000 hrs | ||||
| CRI | > 80 Ra | ||||
| SDCM | ≤ 5 | ||||
| Beam Angle | 110° | ||||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | ||||
| Model | Product Weight (Kg) |
Inner Carton Size (mm) | Outer Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| OS R326 | 0.19 Kg | 116 mm | 116 mm | 60 mm | 612 mm | 252 mm | 353 mm | 10.36 Kg | 50 pcs / Carton |
| OS R426 | 0.23 Kg | 145 mm | 145 mm | 60 mm | 597 mm | 302 mm | 324 mm | 9.51 Kg | 40 pcs / Carton |
| OS R626 | 0.29 Kg | 174 mm | 174 mm | 60 mm | 545 mm | 365 mm | 333 mm | 9.45 Kg | 30 pcs / Carton |
| OS S426 | 0.25 Kg | 145 mm | 145 mm | 60 mm | 597 mm | 302 mm | 324 mm | 10.75 Kg | 40 pcs / Carton |
| OS S626 | 0.35 Kg | 174 mm | 174 mm | 60 mm | 545 mm | 365 mm | 333 mm | 11.17 Kg | 30 pcs / Carton |

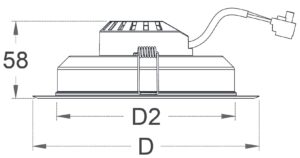

| Model | Luminaires | Dimension (mm) | Cut-Out (mm) | ||||||
| Shape | Driver | Colour Temperature, CCT (K) | D | D2 | H | ||||

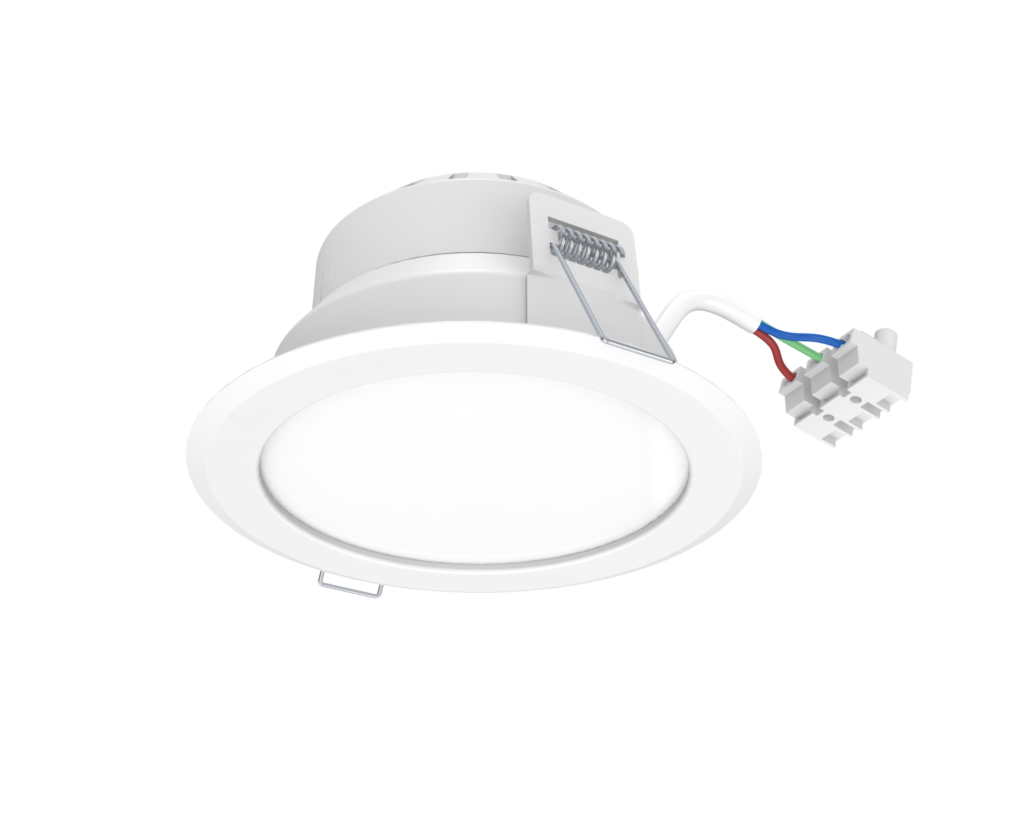

| OS R326 | Round | OS LED PCB | 3000K | 4000K | 6500K | ⌀115 mm | ⌀86 mm | 58 mm | ⌀105 mm |

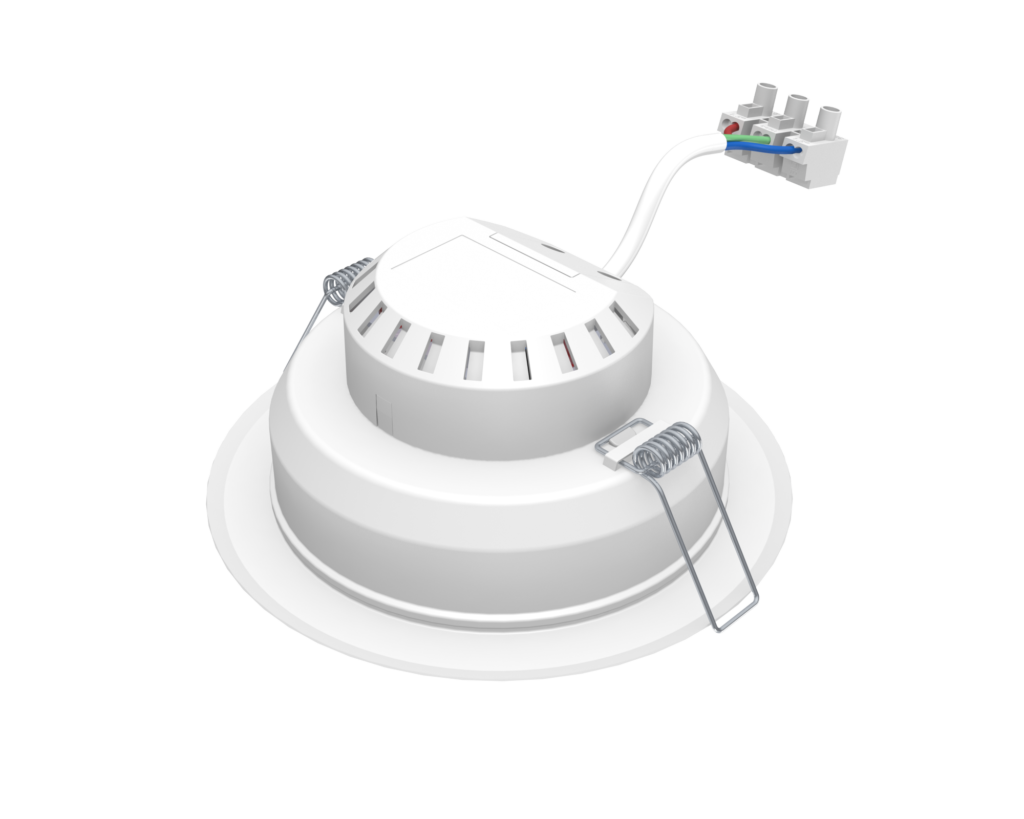

| OS R426 | Round | OS LED PCB | 3000K | 4000K | 6500K | ⌀140 mm | ⌀108 mm | 58 mm | ⌀125 mm |

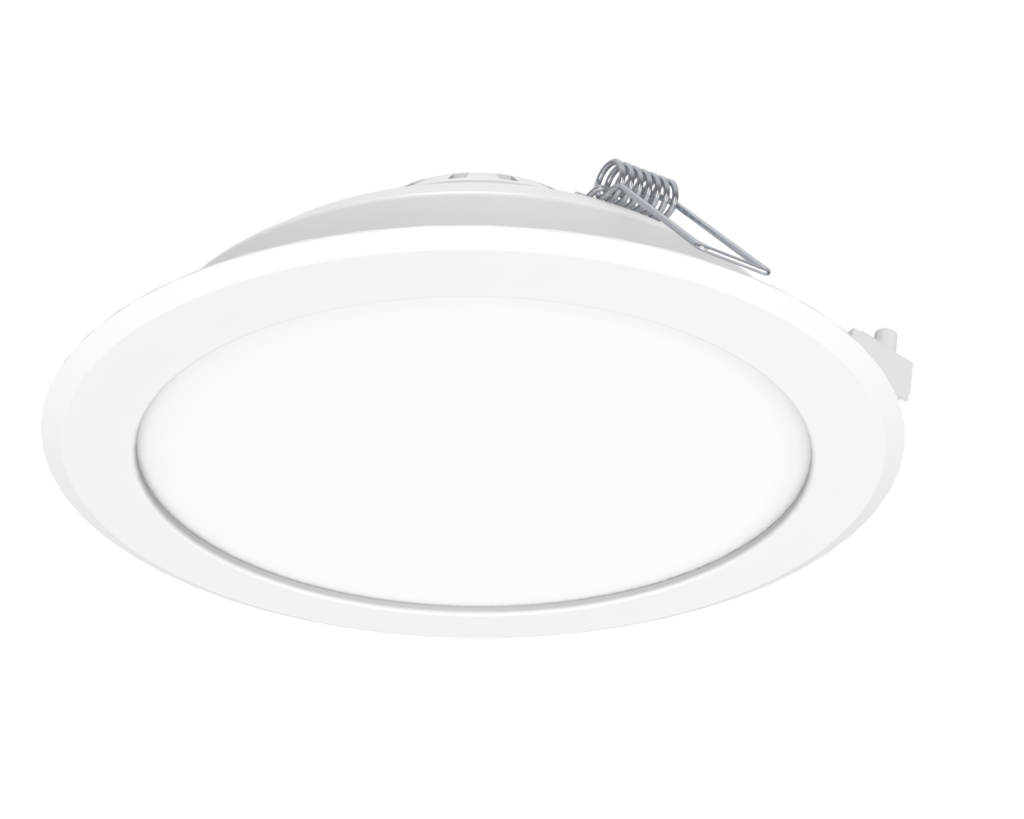

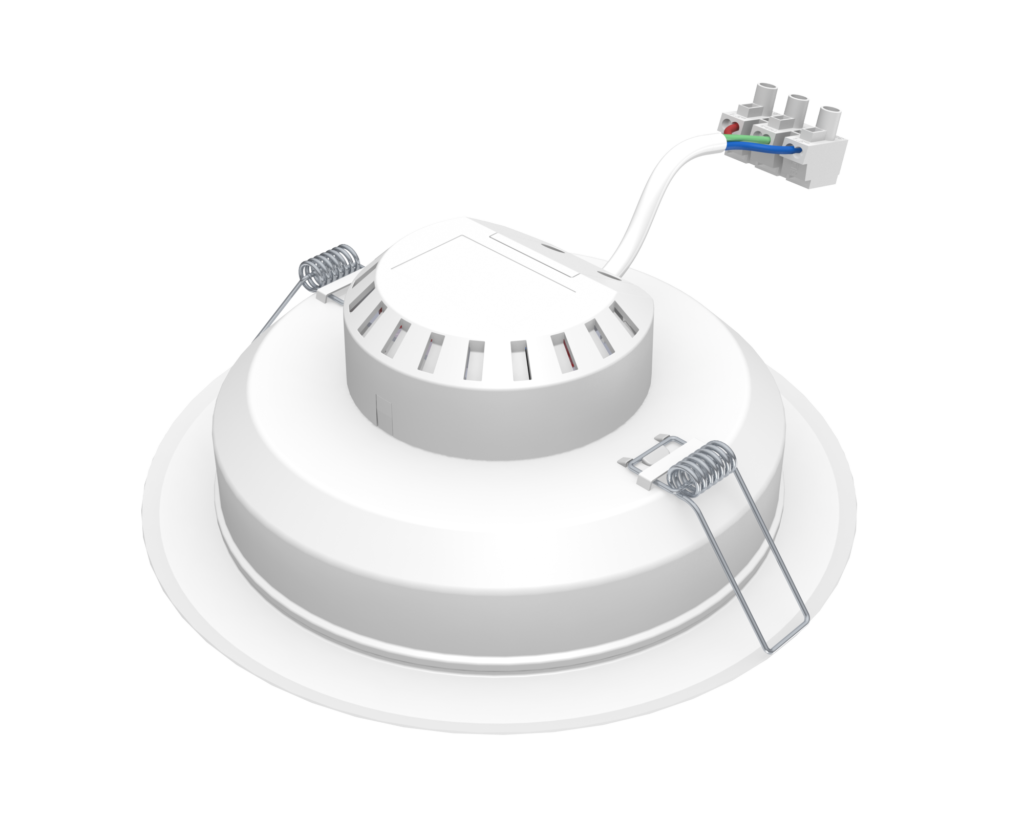

| OS R626 | Round | OS LED PCB | 3000K | 4000K | 6500K | ⌀170 mm | ⌀134 mm | 58 mm | ⌀155 mm |

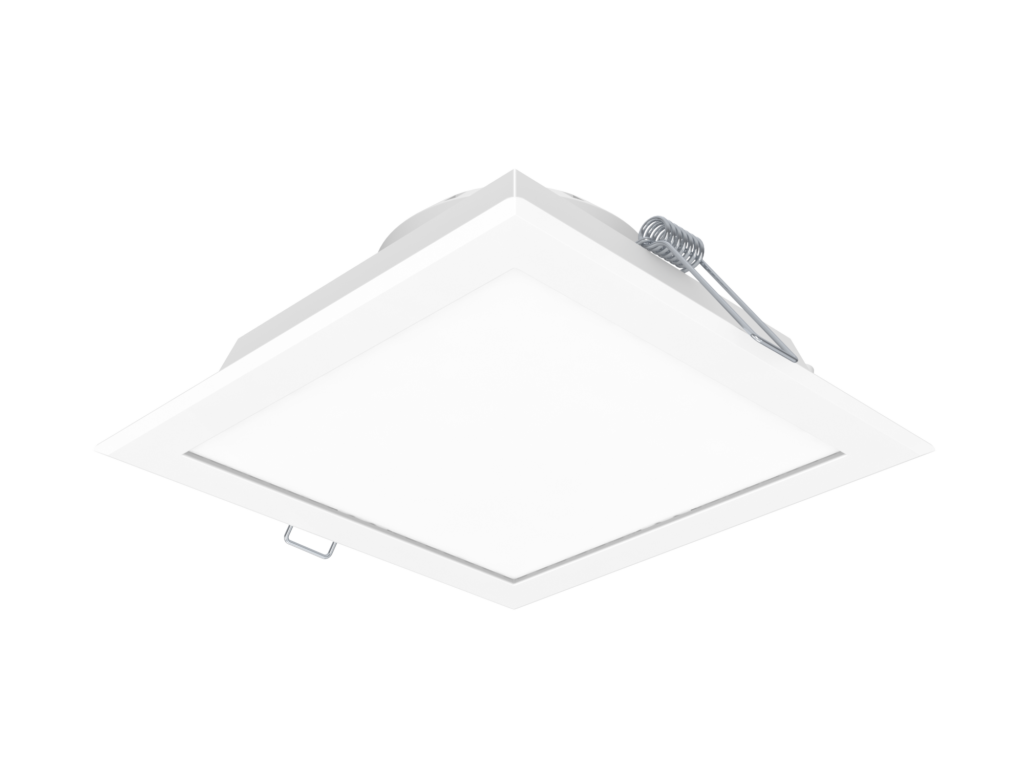

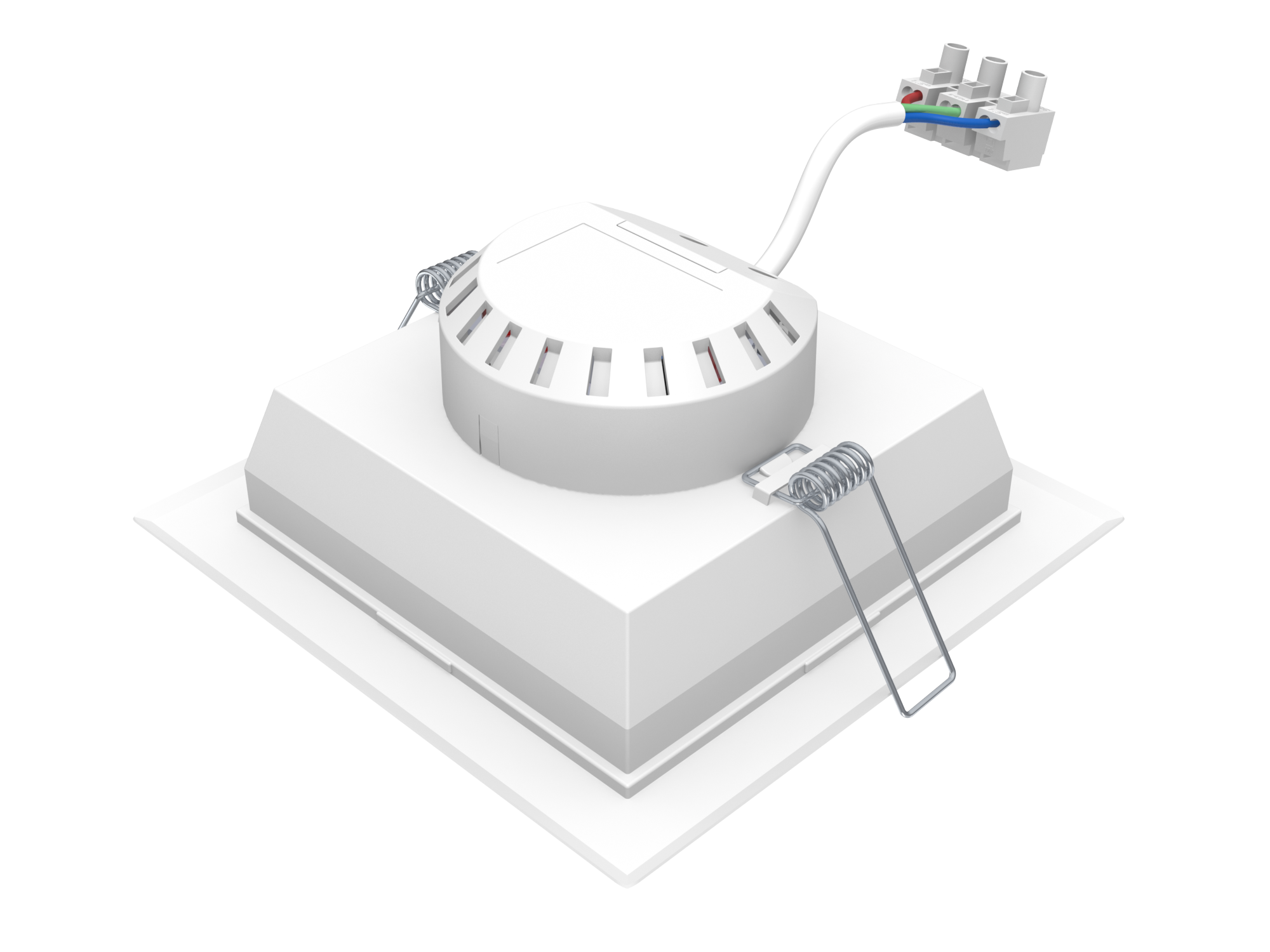

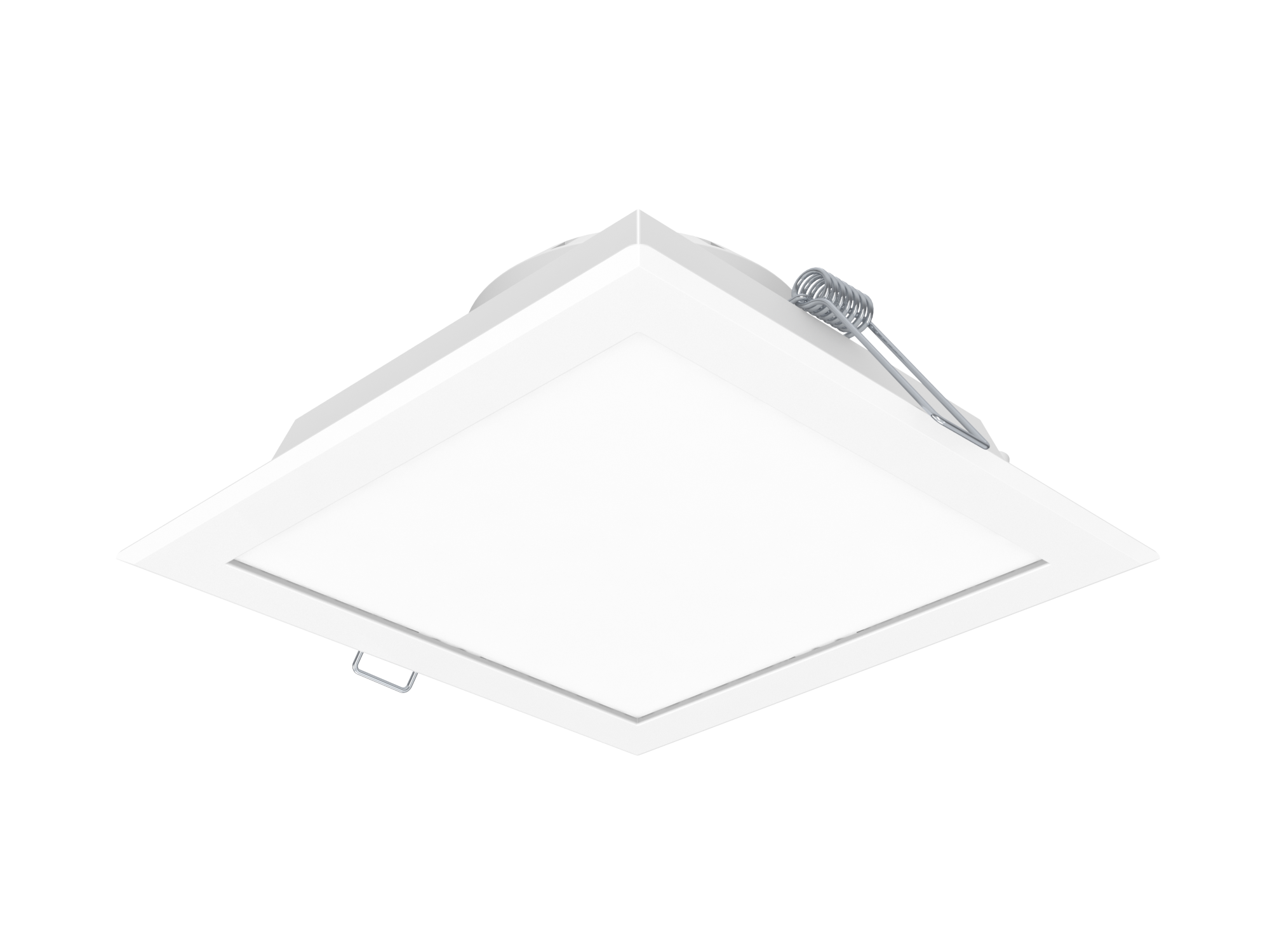

| OS S426 | Square | OS LED PCB | 3000K | 4000K | 6500K | 140 mm x 140 mm | 109 mm x 109 mm | 58 mm | 123 mm x 123 mm |

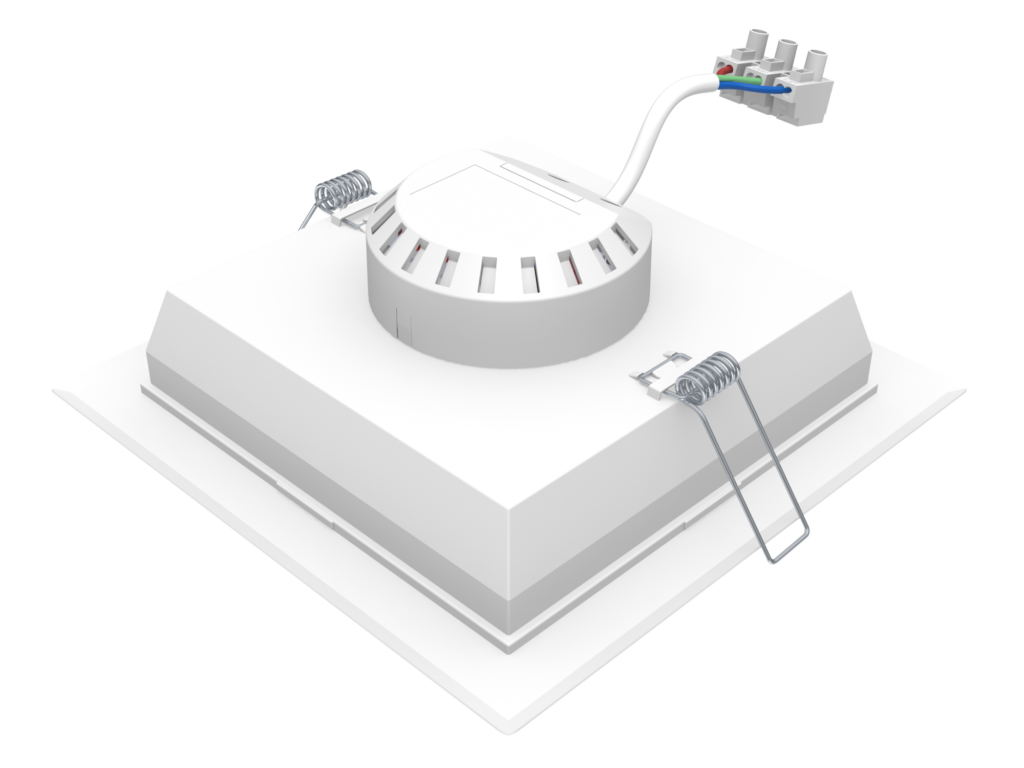

| OS S626 | Square | OS LED PCB | 3000K | 4000K | 6500K | 170 mm x 170 mm | 135 mm x 135 mm | 58 mm | 153 mm x 153 mm |
