OS 16 Series
Indoor Luminaries
LED SURFACE DOWNLIGHT – OS 16 Series
Drawn from an aluminum plate, the OS 15 Series LED Surface Downlight offers a sleek, durable, and round lighting solution. Enhanced with an additional reflector, it not only increases the overall aesthetic appeal but also reduces glare, making it ideal for concrete ceilings with both style and long-lasting performance.
| Application | : | Office, School, Laboratory, Hospitals, Restaurants, Libraries, Living Areas, Shops, Balcony |
| Certificate | : | Nil |
| Colour | : | Smooth White |
| Body | Fabricate from Aluminium Sheet | |
| Mounting Base | Fabricate from Mild Steel | |
| Diffuser | Opal Diffuser Moulded from Polycarbonate | |
| Reflector | Anodized Aluminium Reflector (Frosted Facet) | |
| Connector | Nylon 3 Way x 2.5mm2 | |
| Finishing | Electrostatically Polyester Powder Coated | |
| Mounting Type | Surface Ceiling / Suspension | |
| Driver | VITALITE VLD Series | |
| Lamp | LED Module | |
| Model | OS 616/S | OS 816/S | OS 1016/S |
| Shape | Round | Round | Round |
| System Lumen (lm) | 1100 | 2000 | 2200 |
| System Power (W) | 11 | 19 | 19 |
| System Current (A) | 0.09 | 0.08 | 0.08 |
| Efficacy (lm/W) | 100 | 105 | 116 |
| Main Supply (V, Hz) | 220~240V, 50/60Hz | ||
| IP Grade | IP 20 | ||
| Classification | Class I | ||
| Power Factor | PF ≥ 0.5 | PF ≥ 0.9 | PF ≥ 0.9 |
| Operating Temperature (ta) | 0°C ~ 35°C | ||
| Max. Casing Temperature (tc) | 85°C | ||
| Rated Lifespan | 50,000 hrs | ||
| CRI | > 80 Ra | ||
| SDCM | ≤ 5 | ||
| Beam Angle | 110° | ||
| Available CCT | Warm White (3000K), Cool White (4000K), Daylight (6500K) | ||
| Model | Product Weight (Kg) |
Inner Carton Size (mm) | Outer Carton Size (mm) | Gross Weight (Kg) |
Quantity | ||||
| L | W | H | L | W | H | ||||
| OS 616/S | 0.50 Kg | 166 mm | 166 mm | 62 mm | – | – | – | – | – |
| OS 816/S | 0.71 Kg | 206 mm | 206 mm | 76 mm | 655 mm | 440 mm | 410 mm | 21.95 Kg | 30 pcs / Carton |
| OS 1016/S | 1.05 Kg | 258 mm | 258 mm | 74 mm | 800 mm | 536 mm | 396 mm | 32.15 Kg | 30 pcs / Carton |
| Model | Luminaires | Dimension (mm) | ||||||
| Shape | Driver | Colour Temperature, CCT (K) | D1 | D2 | H | |||

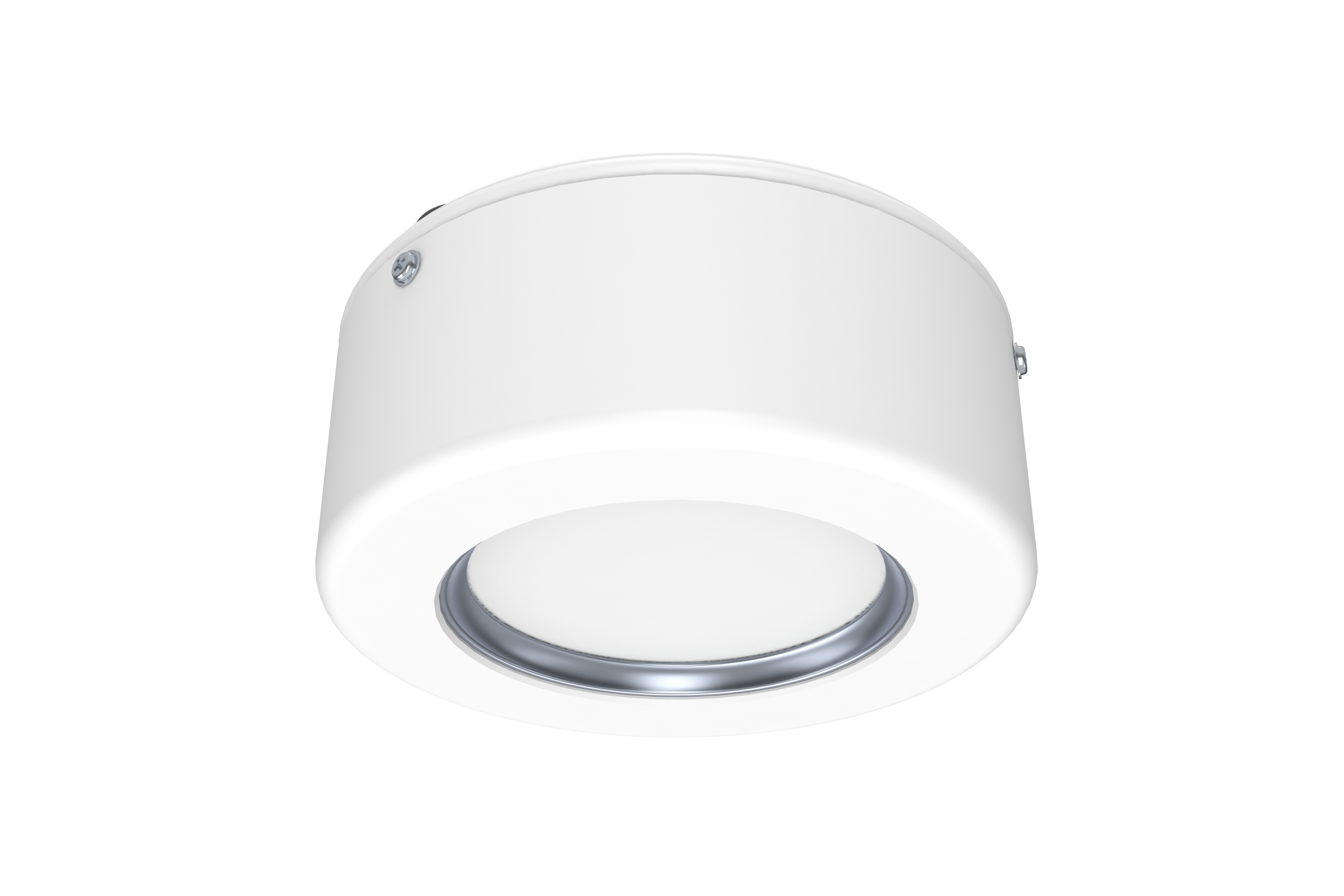

| OS 616/S | Round | VITALITE VLD 10/250/40 | 3000K | 4000K | 6500K | ⌀165 mm | ⌀108 mm | 73 mm |

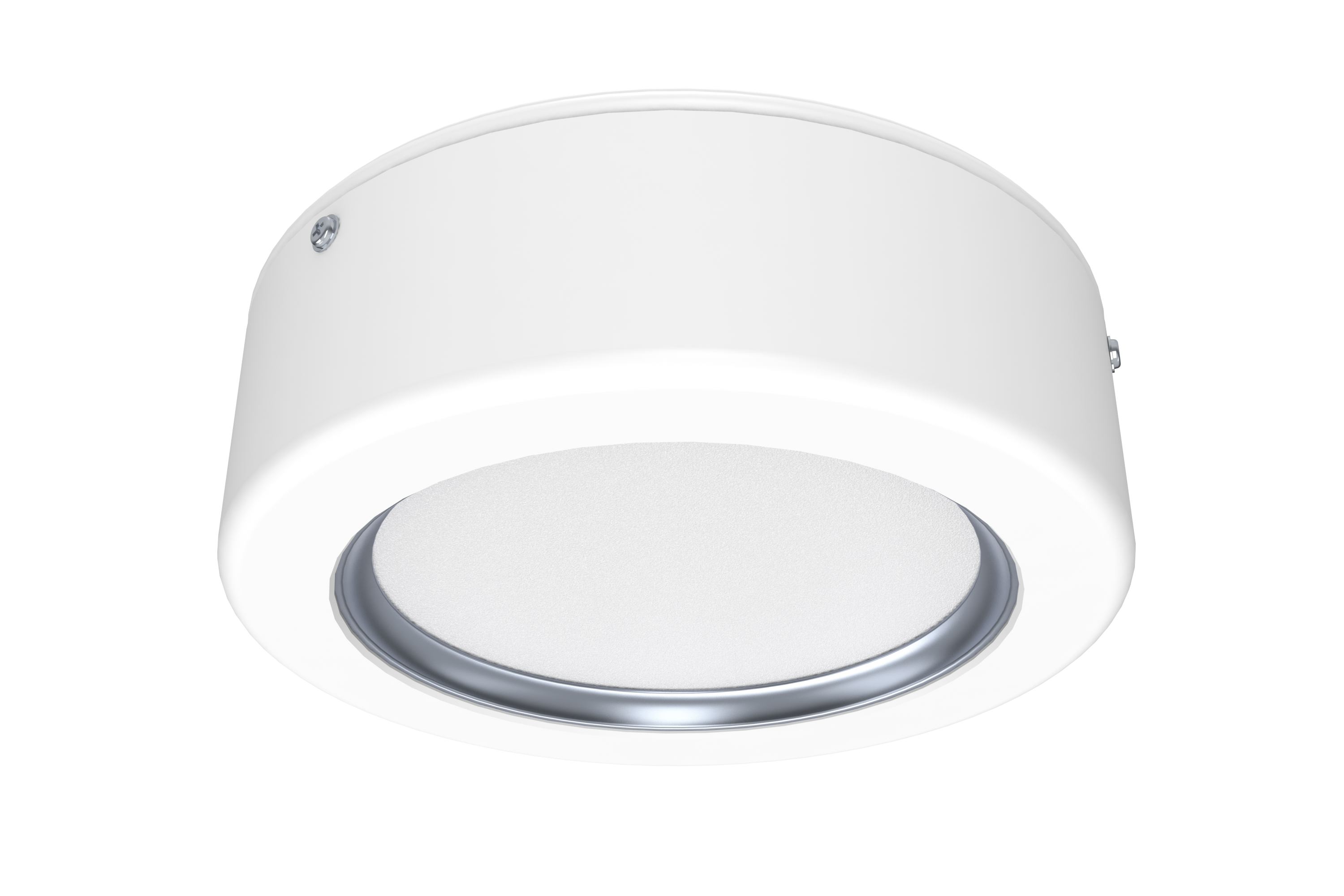

| OS 816/S | Round | VITALITE VLD 25/500/50 | 3000K | 4000K | 6500K | ⌀207 mm | ⌀155 mm | 72 mm |

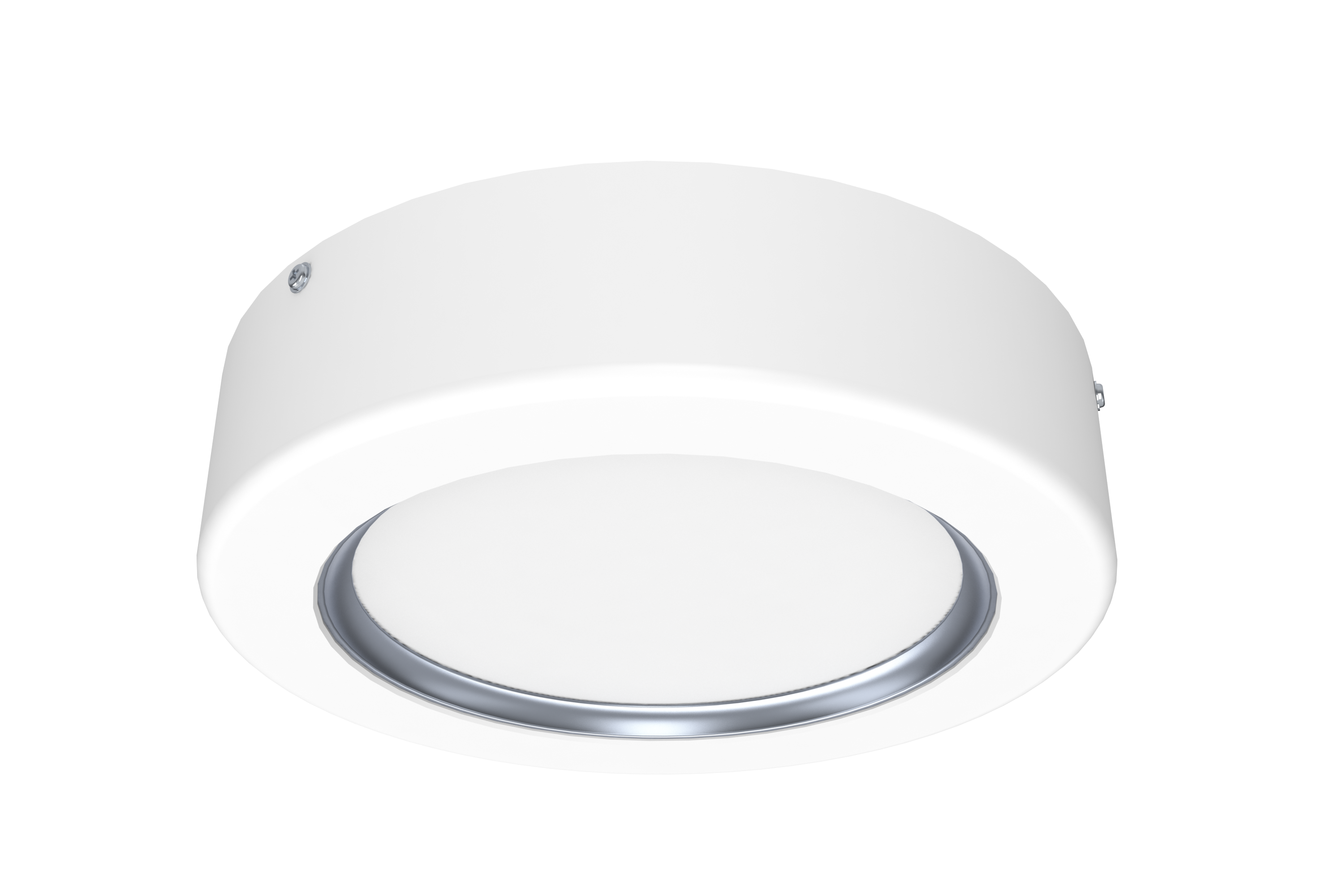

| OS 1016/S | Round | VITALITE VLD 25/500/50 | 3000K | 4000K | 6500K | ⌀257 mm | ⌀191 mm | 68 mm |

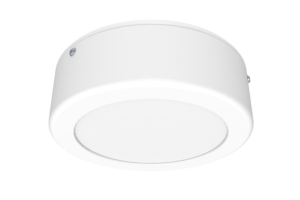

| LED Surface Downlight | |||
 |
|||
