OS 120/S

Indoor Luminaries

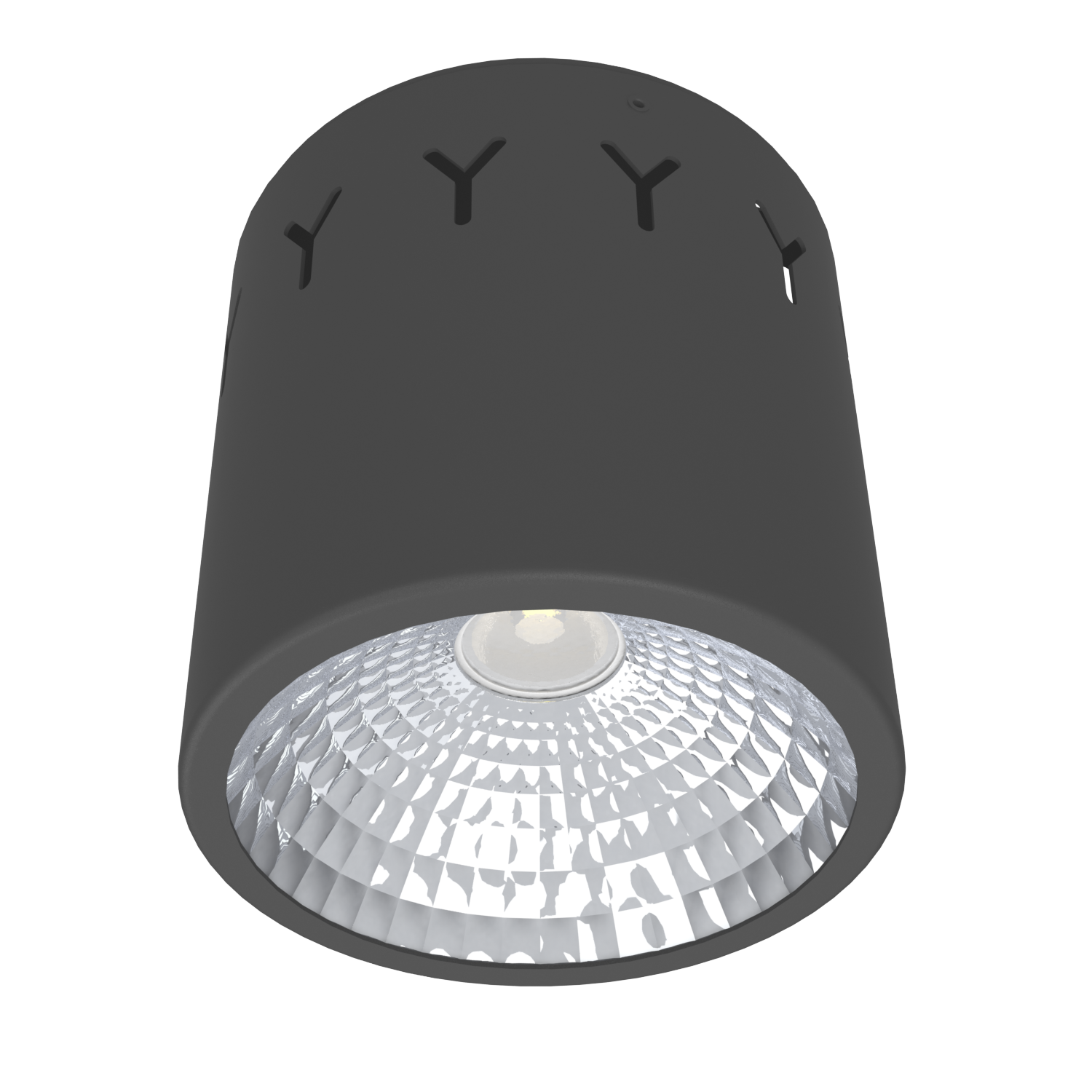

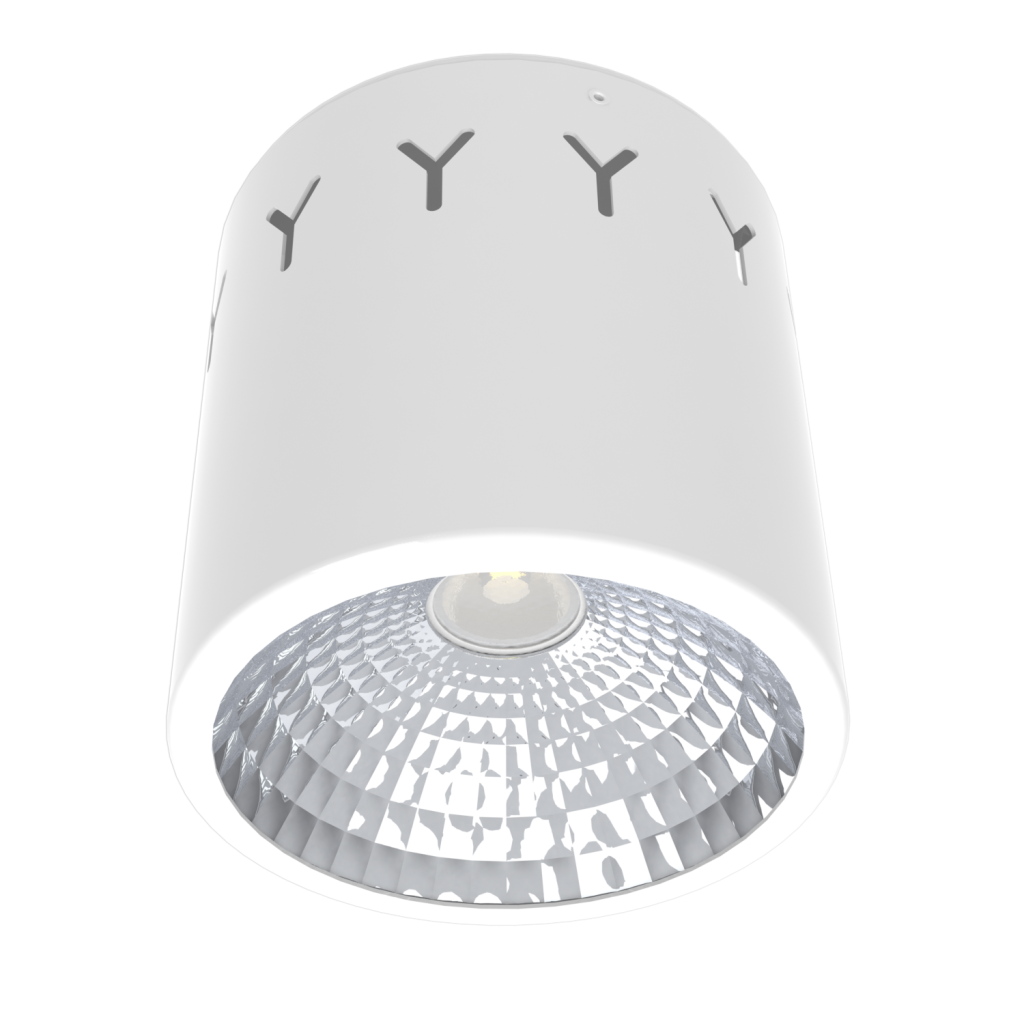

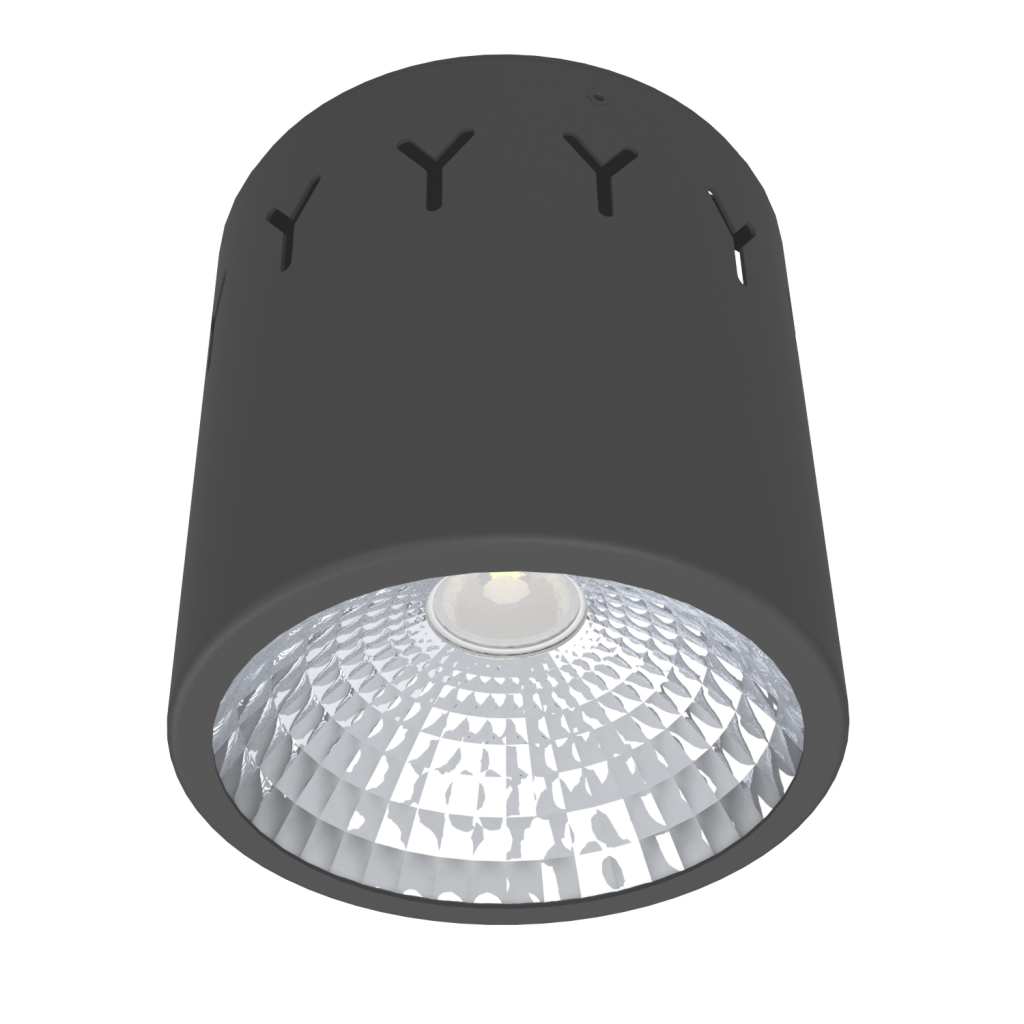

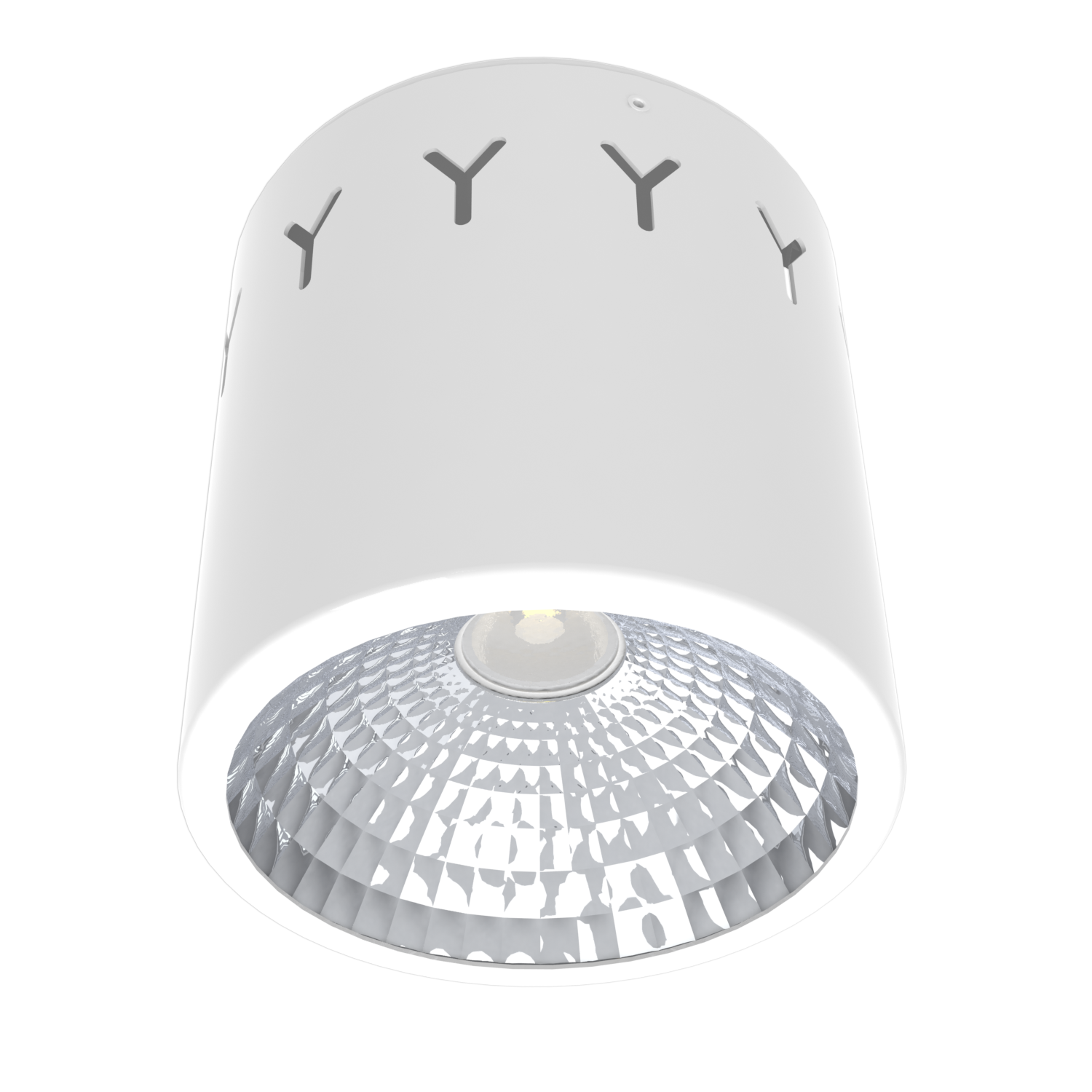

LED ROUND SURFACE DOWNLIGHT – OS 120/S

The OS 120/S LED Round Surface Downlight combines reliability with functional design. It features an anodized aluminum reflector for improved durability and uniform light distribution, making it suitable for various indoor applications.

Application : Home, Office, Hospitality, Hotel Rooms, Retail Store, Shophouse, Restaurants, Living Areas
Certificate : Nil
Colour : Black Texture, White Texture

Body Fabricated from Aluminium
Mounting Base Fabricated from Mild Steel
Reflector Anodized Aluminium Reflector
Lampholder GU10 Ceramic Lampholder
Connector Nylon 3 Way x 2.5mm2
Finishing Electrostatically Polyester Powder Coated
Mounting Type Surface Ceiling Mounted / Suspension
Lamp GU10 Lamps
Main Supply (V, Hz) 220~240V, 50/60Hz
Base GU10
IP Grade IP 20
Classification Class I
Operating Temperature (ta) 0°C ~ 35°C



Model Product
Weight (Kg)
Inner Carton Size (mm) Outer Carton Size (mm) Gross
Weight (Kg)
Quantity
L W H L W H
OS 120/S Kg mm mm mm mm mm mm Kg pcs / Carton

Model Luminaires Dimension (mm)
Size Reflector Base D D2 H
OS 120/S 4 inches Anodized GU10 ⌀120 mm ⌀105 mm 130 mm



LED GU10 Bulb LED RG0 GU10 Bulb
TOSHIBA GU10 BULB RLDMC TOSHIBA GU10 BULB RLDM02K



DTS 1:
Data Sheet – OS 120/S – TOSHIBA LED GU10 (PAR16) – 5W & 7.5W
File 1:
IES_OS 120/S – TOSHIBA LED PAR16 GU10 3000K 36D (5W)
File 2:
IES_OS 120/S – TOSHIBA LED PAR16 GU10 3000K 60D (7.5W)
